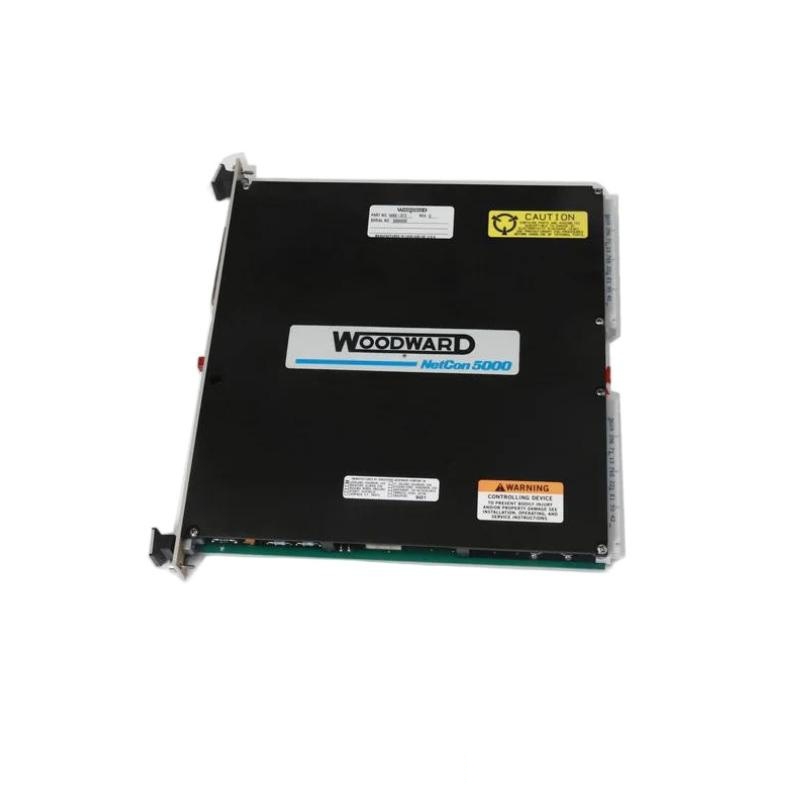

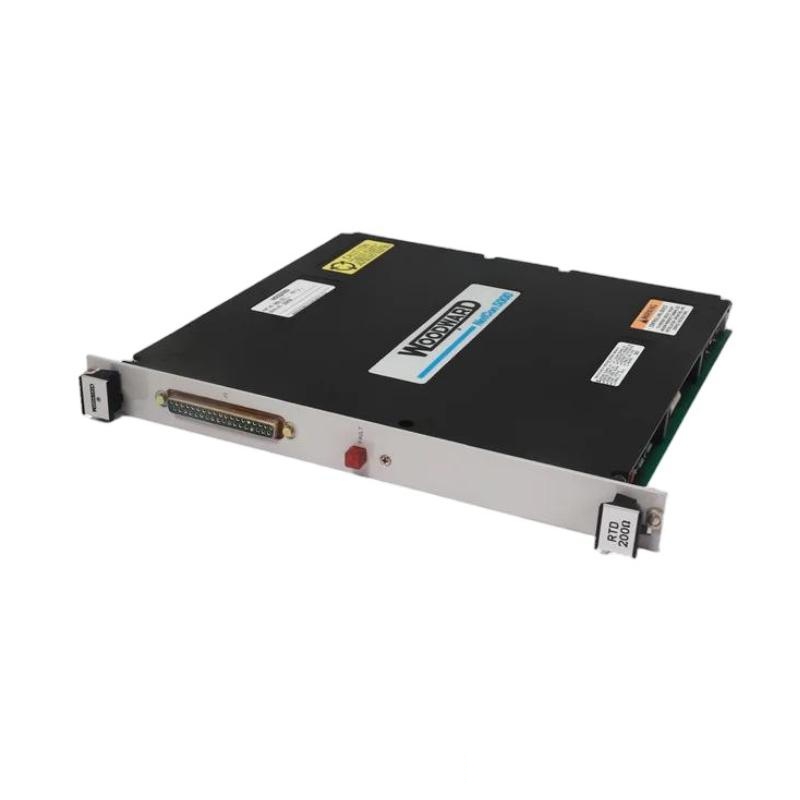

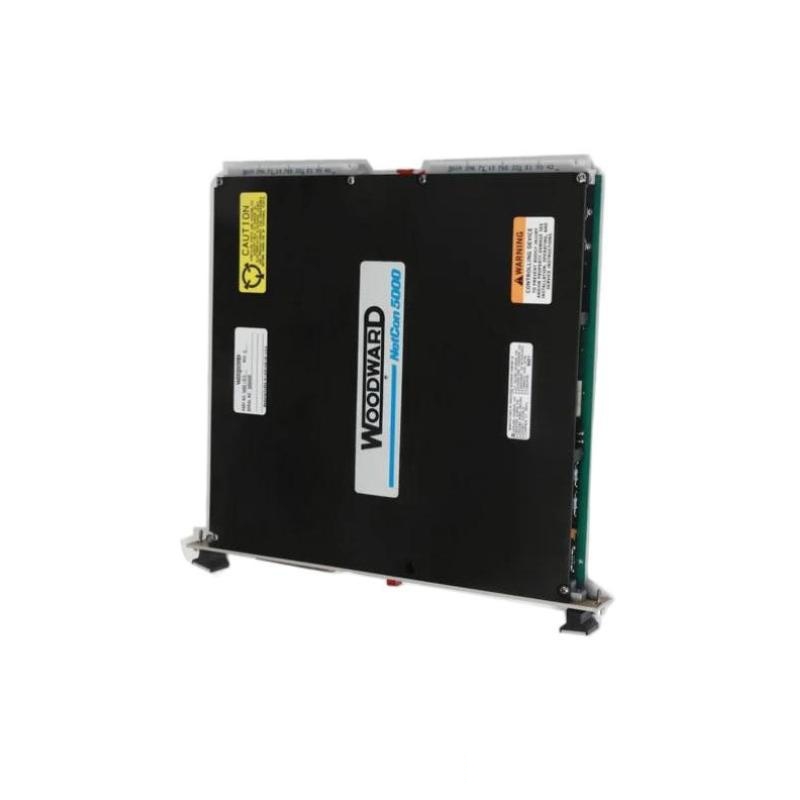

Woodward 5462-744 I/O Module
Product Introduction
The Woodward 5462-744 is a high-performance I/O module designed for use in industrial control systems. Known for its versatility, it interfaces with a wide range of sensors, actuators, and other field devices to facilitate seamless communication with the control system. This module plays a critical role in the monitoring and control of industrial processes, providing essential input/output capabilities for real-time data exchange.
The 5462-744 I/O module is part of Woodward’s extensive control systems portfolio, widely used in applications ranging from power generation to gas turbine control. It provides a reliable solution for controlling and monitoring various parameters like temperature, pressure, speed, and more, ensuring optimal system performance and reliability. Its compact design and flexibility make it ideal for a range of industrial applications.
Product Specifications
| Parameter | Value |
|---|---|
| Model Number | 5462-744 |
| Brand | Woodward |
| Series | Woodward I/O Modules |
| Dimensions (L x W x H) | 100 x 60 x 20 mm |
| Weight | 0.2 kg |
| Input/Output Channels | 8 I/O Channels |
| Signal Type | Analog (4-20mA, 0-10V), Digital |
| Operating Voltage | 24 V DC |
| Operating Temperature | -40°C to +85°C |
| Communication Protocol | CANopen, Modbus RTU |
| Mounting Type | DIN Rail |
| Protection Class | IP20 |
| Response Time | <50 ms |
| Power Consumption | 2 W |
Product Applications
The Woodward 5462-744 I/O module is designed for use in a variety of industrial and power control applications, including:
-
Power Generation: It interfaces with various devices such as speed sensors, temperature transmitters, and pressure transmitters in power generation plants, enabling precise monitoring and control of turbine systems and generators.
-
Gas Turbine Control: Essential for monitoring and controlling gas turbine systems, including fuel supply, exhaust temperature, and rotational speed.
-
Process Control: Used in industries that require real-time feedback, such as oil & gas, chemical processing, and manufacturing, for controlling critical parameters like flow rates, temperature, and pressure.
-
Automation Systems: Integrated into automation systems to connect a variety of field devices, such as flow meters, valves, and actuators, with central controllers.
Advantages of Woodward 5462-744
-
High Versatility: The 5462-744 supports both analog and digital signals, making it compatible with a wide range of field devices.
-
Compact Design: With dimensions of 100 x 60 x 20 mm, this module is designed to fit into tight spaces, perfect for panel installations in systems with limited space.
-
Wide Temperature Range: The module operates in a broad temperature range of -40°C to +85°C, ensuring reliable performance in harsh environments.
-
Fast Response Time: With a response time of <50 ms, the 5462-744 ensures real-time control and feedback, improving process efficiency and safety.
-
Reliable Communication: It supports industry-standard communication protocols like CANopen and Modbus RTU, ensuring seamless integration into control systems and devices.
-
Power Efficiency: The module consumes only 2 W of power, making it an energy-efficient choice for continuous operation in remote or high-demand environments.
-
High Durability: Built with IP20 protection, it offers robust protection against dust and mechanical impact, suitable for industrial environments.
-
Easy Installation: It features DIN rail mounting, simplifying installation and replacement during maintenance.
Brand
-
Brand: Woodward
-
Manufacturer: Woodward is a global leader in the design and manufacturing of control systems, engine systems, and power management products, providing high-performance solutions for industrial applications such as power generation, automotive, and aerospace.
Related Product Recommendations
Here are five related models from the Woodward I/O Modules series or similar product families:
| Model | Dimensions (L x W x H) | Weight | I/O Channels | Signal Type | Application |
|---|---|---|---|---|---|
| Woodward 5462-745 | 100 x 60 x 20 mm | 0.25 kg | 8 I/O Channels | Analog, Digital | Gas turbine control |
| Woodward 5462-746 | 100 x 60 x 20 mm | 0.3 kg | 16 I/O Channels | Analog, Digital | Power generation control |
| Woodward 5462-748 | 100 x 60 x 20 mm | 0.22 kg | 4 I/O Channels | Analog | Process automation |
| Woodward 5462-749 | 100 x 60 x 20 mm | 0.26 kg | 12 I/O Channels | Digital | Oil and gas control |
| Woodward 5462-750 | 100 x 60 x 20 mm | 0.28 kg | 8 I/O Channels | Analog, Digital | Industrial process control |
Other Popular Woodward Models
Here are five other popular models from Woodward:
| Model | Dimensions (L x W x H) | Weight | I/O Channels | Signal Type | Application |
|---|---|---|---|---|---|
| Woodward 5461-720 | 200 x 120 x 40 mm | 0.8 kg | 8 I/O Channels | Analog | Power generation and monitoring |
| Woodward 5461-721 | 200 x 120 x 40 mm | 1.0 kg | 8 I/O Channels | Digital | Industrial automation |
| Woodward 5461-722 | 200 x 120 x 40 mm | 0.9 kg | 16 I/O Channels | Analog, Digital | Turbine control |
| Woodward 5462-730 | 100 x 60 x 20 mm | 0.25 kg | 4 I/O Channels | Analog | Gas turbine monitoring |
| Woodward 5462-735 | 100 x 60 x 20 mm | 0.3 kg | 8 I/O Channels | Analog, Digital | Process automation |
FAQ
Q1: What is the purpose of the Woodward 5462-744 I/O module?
A1: The 5462-744 is used for input/output communication between field devices and control systems, enabling real-time data transfer for monitoring and control.
Q2: What types of signals does the 5462-744 support?
A2: It supports analog signals (4-20mA, 0-10V) and digital signals, providing compatibility with a wide range of devices.
Q3: What communication protocols are supported by the 5462-744?
A3: The 5462-744 supports CANopen and Modbus RTU protocols for seamless integration into control systems.
Q4: What is the operating temperature range for the 5462-744 module?
A4: The 5462-744 operates within a temperature range of -40°C to +85°C, ensuring reliability in harsh environments.
Q5: How many input/output channels does the 5462-744 have?
A5: The 5462-744 has 8 I/O channels, making it suitable for a variety of applications.
Q6: Can the 5462-744 module be mounted easily?
A6: Yes, it features DIN rail mounting, allowing for quick and simple installation.
Q7: What is the power supply requirement for the 5462-744?
A7: The module requires a 24 V DC power supply to operate.
Q8: What is the size and weight of the 5462-744 module?
A8: The module measures 100 x 60 x 20 mm and weighs 0.2 kg.
Q9: Is the 5462-744 suitable for use in power generation applications?
A9: Yes, it is ideal for use in power generation for monitoring gas turbines and other critical systems.
Q10: What is the power consumption of the 5462-744?
A10: The 5462-744 consumes 2 W of power, making it energy efficient.
