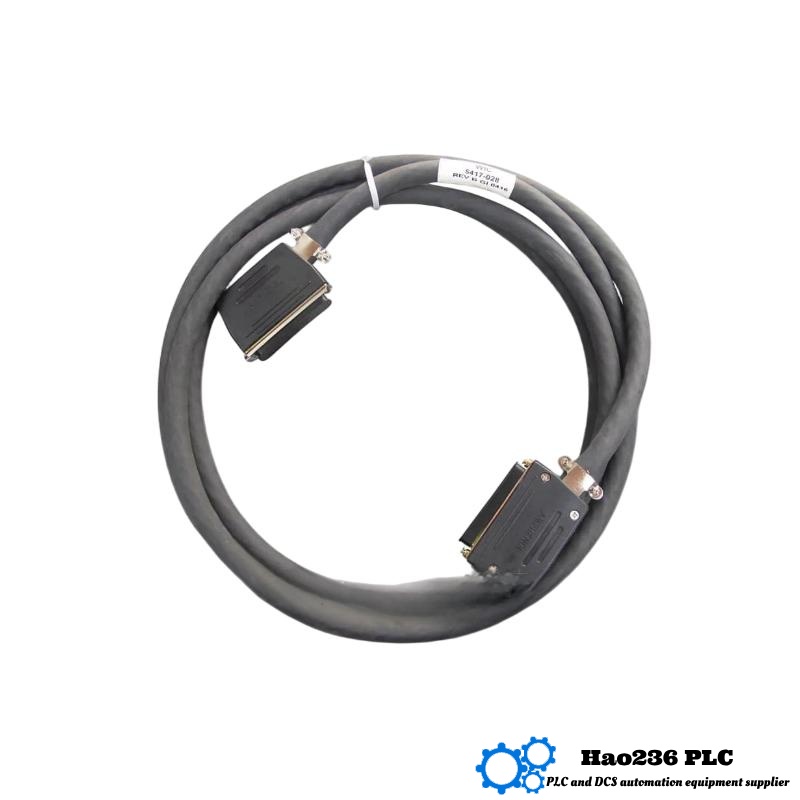

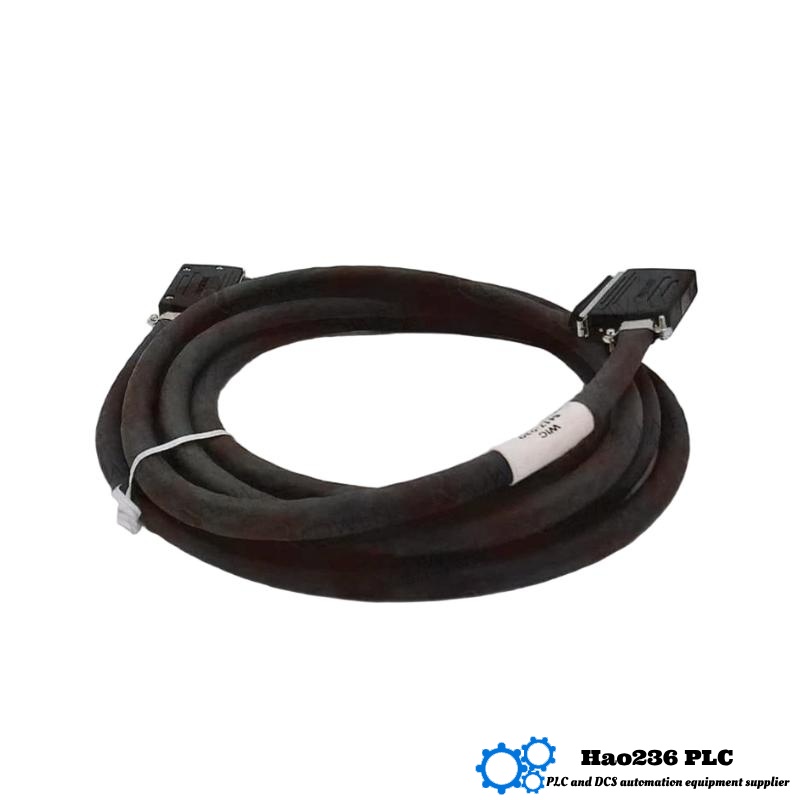

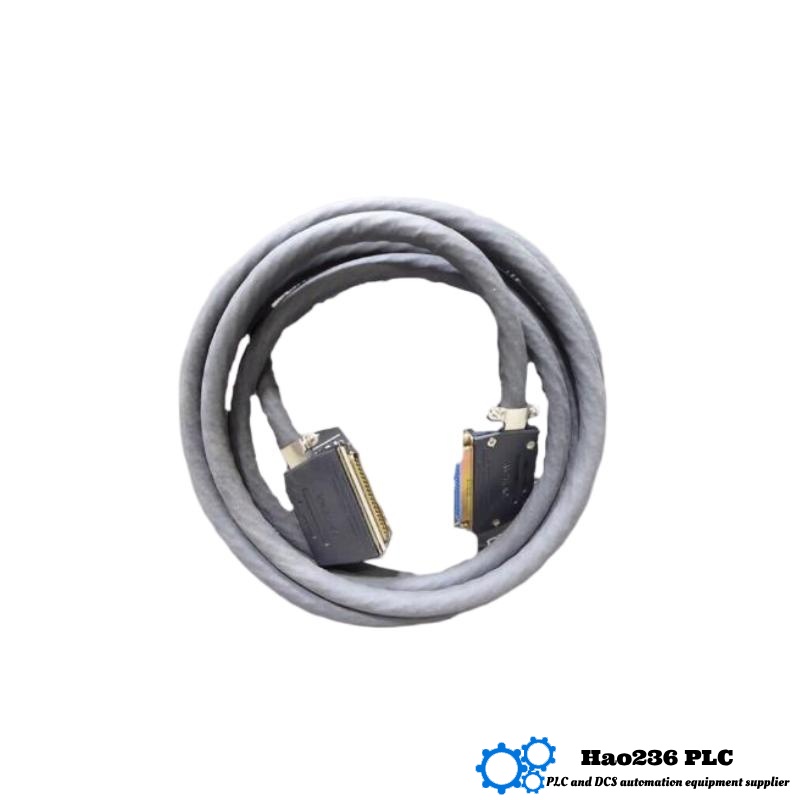

Woodward 5417-028 Cable
Product Introduction
The Woodward 5417-028 cable is a purpose-built interconnect designed to facilitate robust communication between Woodward governor and control modules and field instrumentation. Featuring high-quality conductors, durable insulation materials, and precision-engineered connectors, this cable delivers reliable signal transmission in demanding industrial environments. The assembly is factory-terminated with mating 9-pin D-sub connectors, ensuring a secure, plug-and-play installation that minimizes wiring errors and accelerates commissioning of engine control systems.
Constructed with a flexible yet tough outer jacket, the 5417-028 stands up to mechanical stress, oil exposure, and temperature extremes. With a cable length of 10 ft and a shipping weight of 1.27 kg, it strikes a balance between reach and manageability. Commonly used in generator sets, turbine controls, and other rotating-equipment applications, the 5417-028 helps maintain precise speed regulation, load sharing, and system stability under continuous operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 5417-028 |
| Cable Length | 10 ft (3.05 m) |
| Weight | 1.27 kg |
| Conductor Material | Stranded tin-plated copper |
| Insulation | Cross-linked polyethylene (XLPE) |
| Jacket Material | Neoprene-based synthetic rubber |
| Connector Type | 9-pin D-sub male to 9-pin D-sub female |
| Voltage Rating | 300 VAC |
| Current Rating | 5 A per conductor |
| Operating Temperature Range | –40 °C to +85 °C |
| Certifications | UL AWM Style 2464, CE, RoHS |
Product Applications
The Woodward 5417-028 cable is primarily used in power-generation and industrial process control applications.
• In diesel and gas engine generator sets, it connects the governor control module to speed sensors and actuator drives, ensuring precise speed feedback and load sharing.
• In turbine control systems, it transmits high-fidelity signals from proximity probes and temperature sensors to the turbine control cabinet, enabling accurate trip logic and protective interlocks.
• Marine propulsion platforms utilize this cable to link engine control units with throttle actuators and remote monitoring devices, maintaining synchronization under continuous vibration and motion.
• In oil & gas installations, the 5417-028 provides communications between field instruments (pressure, temperature, position transducers) and cabinet-mounted controllers, supporting real-time condition monitoring.
• For retrofit projects, the 5417-028 replaces aging or damaged interconnects without modifying existing panels, streamlining upgrades and minimizing downtime.
Product Advantages
• Superior Signal Integrity – Stranded tin-plated copper conductors combined with XLPE insulation reduce electrical resistance and minimize signal attenuation over the 10 ft length.
• Rugged Durability – The neoprene-based jacket shields the conductors from abrasion, oil, and UV exposure. Its flexibility supports tight routing without compromising cable life.
• Precision Connectivity – Factory-terminated 9-pin D-sub connectors ensure consistent pin-out orientation and secure mating, eliminating field termination errors.
• Wide Temperature Tolerance – Rated from –40 °C to +85 °C, the cable remains pliable in sub-zero conditions and stable in high-temperature engine rooms.
• Standardized Interface – Compatible with all Woodward governor and control modules that use the same D-sub configuration, enabling plug-and-play integration across multiple platforms.
• Compliance and Safety – UL AWM Style 2464, CE, and RoHS certifications confirm the cable meets international safety and environmental standards.
Brand
Woodward has over 80 years of experience supplying control instrumentation for power and propulsion systems. The 5417-028 is part of Woodward’s long-standing reputation for reliable, precision-engineered components used by OEMs and end users worldwide. Woodward’s emphasis on quality assurance and rigorous testing ensures each cable assembly upholds the brand’s high performance and safety criteria.
Recommended Related Models (Control Cable Series)
| Model Number | Cable Length | Weight | Connector Types | Notes |
|---|---|---|---|---|
| 5417-026 | 5 ft (1.52 m) | 0.35 kg | 9-pin D-sub male to 9-pin D-sub female | Shorter length for tight installations |
| 5417-027 | 10 ft (3.05 m) | 0.60 kg | 9-pin D-sub male to 9-pin D-sub female | Standard length, lighter conductor bundle |
| 5417-030 | 10 ft (3.05 m) | 0.70 kg | 15-pin D-sub male to 15-pin D-sub female | Extra pins for additional sensor channels |
| 5417-032 | 8 ft (2.44 m) | 0.50 kg | 9-pin D-sub male to 7-pin MIL-DTL-5015 | MIL-spec connector for high-vibration environments |
| 5417-035 | 12 ft (3.66 m) | 0.80 kg | 9-pin D-sub male to Deutsch DT04-4P | Deutsch connector for moisture-resistant, sealed field use |
Recommended Popular Woodward Models
| Model Number | Description | Primary Use | Weight |
|---|---|---|---|
| 8411-907 | Speed Sensor (Proximity Probe) | Shaft speed detection in turbines, engines | 0.20 kg |
| 2300-101 | Governor Control Module | Engine speed and load regulation | 0.80 kg |
| 9907-701 | Generator Protection Relay | Monitoring overcurrent, overvoltage, and fault trips | 0.30 kg |
| 5400-091 | Actuator Control Cable | Interconnect between actuator drive and control unit | 0.65 kg |
| 8440-380 | Optical Tachometer | Non-contact rotational speed measurement | 0.25 kg |
Frequently Asked Questions (FAQ)
Q1: What is the primary role of the 5417-028 cable?
A1: It provides a factory-terminated, shielded interconnect between Woodward governor/control modules and field sensors or actuators, ensuring reliable transmission of control and feedback signals.
Q2: Why is the cable length specified as 10 ft?
A2: A 10 ft length offers sufficient reach for most engine-generator installations while avoiding excessive slack, facilitating neat routing in control cabinets.
Q3: What is the weight of this cable assembly?
A3: The 5417-028 weighs approximately 1.27 kg, accounting for its thicker shielding and heavier conductor bundle compared to shorter or lighter variants.
Q4: Which connectors are used on the 5417-028?
A4: The cable is terminated with a 9-pin D-sub male connector on one end (for the governor module) and a 9-pin D-sub female connector on the other end (for field devices).
Q5: Can the 5417-028 withstand high temperatures?
A5: Yes, the neoprene-based jacket and XLPE insulation allow operation between –40 °C and +85 °C without degradation of electrical properties.
Q6: How does the cable resist electrical noise?
A6: A tinned-copper braided shield combined with XLPE insulation provides over 85% coverage, reducing electromagnetic interference (EMI) and preserving signal integrity.
Q7: Is the cable suitable for marine or offshore use?
A7: Its neoprene jacket resists oils, humidity, and temperature fluctuations typical of marine and offshore environments, making it an ideal choice for propulsion and generator applications.
Q8: Can this cable connect to non-Woodward equipment?
A8: While designed for Woodward modules, the standard 9-pin D-sub pin-out allows compatibility with third-party controllers following the same wiring conventions.
Q9: Which certifications does the 5417-028 meet?
A9: It is UL AWM Style 2464 listed, CE marked, and RoHS compliant, ensuring compliance with safety and environmental regulations in global markets.
Q10: What is the recommended maintenance for this cable?
A10: Inspect the jacket for cuts or abrasions, verify connector seating and pins for corrosion, and avoid bends tighter than a 10 mm radius to extend service life.
