Siemens 6AG1151-1AA06-7AB0 — Product Description, Technical Specifications, Applications, and Related Models

1. Product Overview

The Siemens 6AG1151-1AA06-7AB0 is an order number in the SIPLUS industrial automation range. Its product designation should be confirmed against the complete module label before procurement, replacement, or engineering work, as similar order numbers can correspond to different interface-module generations and communication capabilities.

The model number places it in the broader SIMATIC ET 200 distributed I/O product context. These systems allow industrial signals to be collected and controlled near machinery while communicating with a central programmable controller.

This distinction matters because an interface module is not the same as a digital input module, output module, or specialized technology module. Its primary role is to connect and manage a distributed I/O station, while the station’s installed modules handle the individual field signals.

The following guide covers the product-family context, the technical information that should be confirmed, common applications of distributed I/O interface modules, and related models for industrial automation projects.

2. Brand and Product Series

Brand characteristics

Siemens industrial automation products are used in manufacturing, machine building, packaging, material handling, and process automation. The portfolio includes programmable controllers, distributed I/O systems, communication modules, operator panels, power supplies, and specialized technology modules.

The SIPLUS range is designed for selected applications where environmental conditions may require additional protection. Depending on the exact model, relevant features may include conformal coating or an extended specified operating temperature range. These characteristics should be checked for the individual order number rather than assumed from the brand name alone.

Product-series characteristics

The SIMATIC ET 200 family is designed for distributed automation. Instead of routing every field signal directly to a central control cabinet, the system places suitable I/O stations close to the machinery or process equipment.

A typical station contains an interface module, a mounting and connection arrangement, and compatible I/O modules. The interface module provides the station’s communication connection, while the installed signal modules handle the sensors, actuators, and other field devices.

This arrangement can reduce the amount of field wiring routed to the central controller and make a machine’s electrical architecture easier to organize.

3. Detailed Technical Parameters

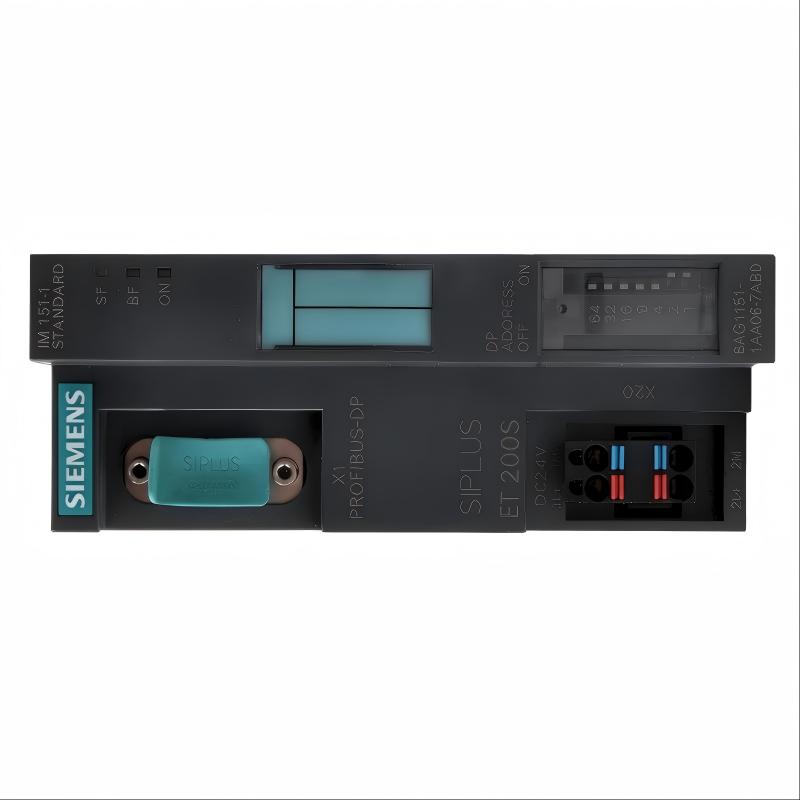

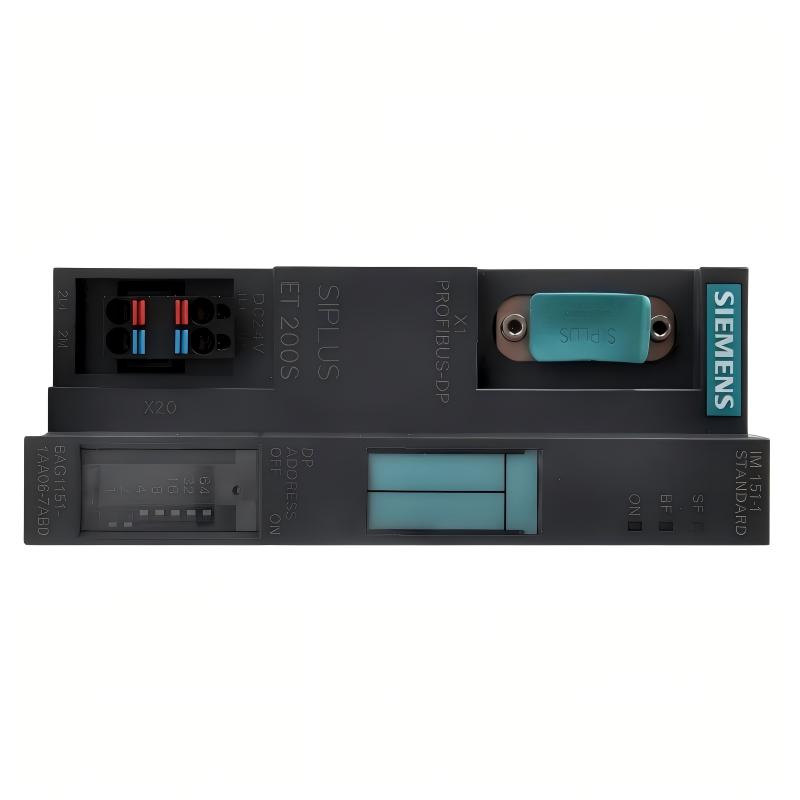

The 6AG1151-1AA06-7AB0 is a SIPLUS ET 200S IM 151-1 Standard interface module. It connects an ET 200S distributed I/O station to a PROFIBUS DP network and supports both DP-V0 and DP-V1 communication.

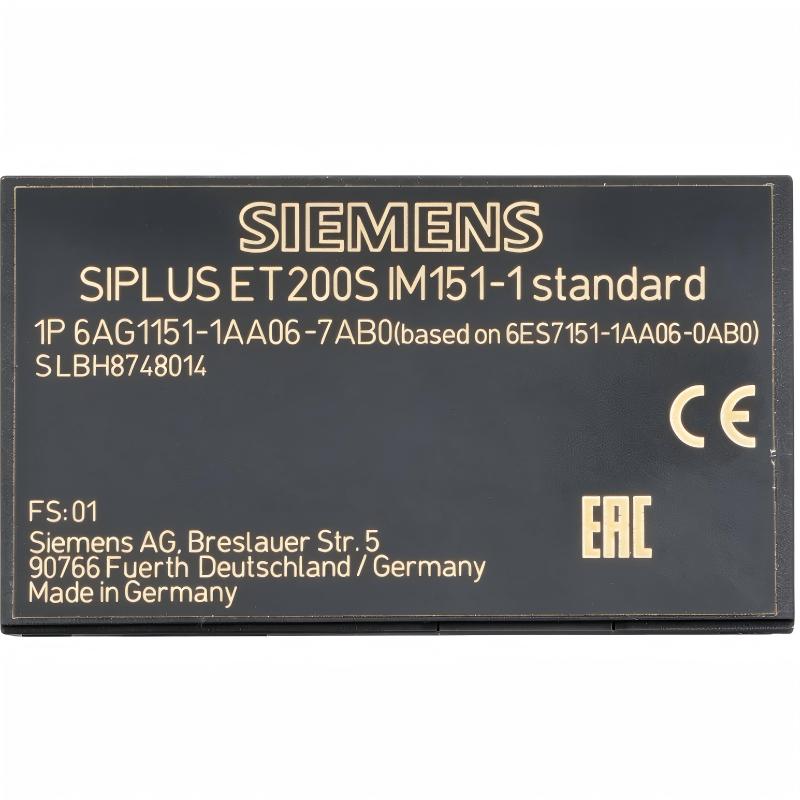

The module is based on the standard 6ES7151-1AA06-0AB0. It includes a termination module and supports up to 63 compatible I/O modules within a station width of up to 2 m. Its SIPLUS configuration features conformal coating and a specified operating temperature range of -25°C to +70°C.

3.1 General specifications

Dimensions are width × height × depth. The stated weight is the listed net product weight, not the shipping package weight.

3.2 Communication specifications

PROFIBUS DP is used to exchange process data between a controller and distributed I/O stations. The interface module manages communication with the connected station, allowing the controller to access the data exchanged with compatible I/O modules.

DP-V0 supports the core cyclic data exchange used in routine automation. DP-V1 adds acyclic communication capabilities, including parameterization and diagnostic functions, where supported by the controller and connected modules.

The module supports a maximum transmission rate of 12 Mbit/s. The actual rate must be configured consistently across the PROFIBUS network and selected according to the network layout, cable length, and connected devices.

3.3 Electrical and power specifications

The interface module requires a stable supply appropriate for the ET 200S station. The power budget should include the interface module and all connected I/O modules, as well as any sensors or actuators supplied through the station.

The 20 ms buffering specification describes the module’s voltage-failure buffering behavior under the specified conditions. It should not be interpreted as a guarantee that the complete control system or every connected field device will continue operating for the same period.

3.4 Environmental and mechanical specifications

The SIPLUS version is intended for industrial environments where the operating temperature or environmental exposure may be more demanding than in a conventional indoor control cabinet.

The conformal coating adds protection to the electronic assemblies against certain environmental influences. It does not make the module waterproof, nor does it remove the need for a suitable enclosure, correct mounting, grounding, and protection against direct liquid exposure.

4. Product Introduction

The Siemens 6AG1151-1AA06-7AB0 SIPLUS ET 200S IM 151-1 Standard is a distributed I/O interface module designed to connect an ET 200S station to a PROFIBUS DP network.

In a typical industrial control system, a programmable controller processes the control logic while sensors and actuators are distributed throughout the machinery. Connecting every field device directly to a central cabinet can create long cable runs and make installation and maintenance more complicated.

A distributed I/O system addresses this challenge by placing signal modules close to the machinery. The interface module manages communication between the controller and the distributed station, allowing the controller to exchange data with the station’s connected modules.

The IM 151-1 Standard supports PROFIBUS DP-V0 and DP-V1. This provides the communication functions needed for cyclic process data and, where applicable, acyclic parameterization and diagnostic information.

The module supports up to 63 compatible I/O modules within a station width of up to 2 m. This gives system designers flexibility when grouping digital inputs, digital outputs, analog signals, and other compatible functions into a single distributed station.

The SIPLUS version is based on the standard IM 151-1 interface module but includes conformal coating and a specified operating temperature range of -25°C to +70°C. These features can be useful in selected industrial installations where environmental conditions require additional consideration.

The module also includes a termination module, helping simplify the assembly of the intended ET 200S station. Its 9-pin D-sub connection provides the physical interface to the PROFIBUS network.

Because this is an interface module rather than a general-purpose I/O module, its principal job is communication and station management. The connected I/O modules determine which field signals can be acquired or controlled.

5. Product Applications

5.1 Factory automation

The module is suitable for distributed signal stations used in factory automation. It allows a compatible ET 200S station to communicate with a PROFIBUS DP controller, supporting the exchange of process information between the controller and field devices.

Typical applications include:

• Automated assembly lines.

• General machine-control systems.

• Production equipment with distributed sensors and actuators.

• Packaging and processing machinery.

• Material-handling equipment.

• Industrial equipment requiring remote I/O.

In these installations, the interface module serves as the communication link for the station. The connected I/O modules handle the individual sensor and actuator signals.

5.2 Production lines

Production lines often contain several workstations, conveyors, inspection points, and automated mechanisms. A distributed I/O arrangement can place signal modules near each section of the production line.

The interface module can help connect a compatible station to the control network, allowing the controller to receive information and issue commands through the installed I/O modules.

Possible applications include:

• Monitoring machine status.

• Acquiring sensor signals from several production areas.

• Controlling compatible actuators.

• Supporting production sequence logic.

• Organizing local I/O near individual machine sections.

• Simplifying the grouping of field wiring.

The number of stations and the network layout should be planned according to the controller, PROFIBUS network capacity, cycle-time requirements, and electrical installation rules.

5.3 Material handling and conveyor systems

Conveyor systems and material-handling machinery frequently use distributed sensors, motor-control interfaces, limit switches, and actuator signals.

A compatible ET 200S station can collect and distribute these signals near the equipment. The interface module then provides communication with the central controller over PROFIBUS DP.

Applications may include:

• Conveyor status monitoring.

• Detection of products at transfer points.

• Control of diverters and stops through compatible output modules.

• Monitoring material movement.

• Local signal acquisition near loading and unloading areas.

• Coordinating several sections of a material-handling line.

The interface module does not itself drive motors or process every field signal. The connected modules and the controller program determine the actual control functions.

5.4 Packaging and processing machinery

Packaging machinery often contains multiple sensors, pneumatic actuators, temperature-control components, and mechanical operating stations. A distributed I/O architecture can help organize these signals and reduce the complexity of long field-wiring runs.

The module may be used in systems that require:

• Local acquisition of machine sensor signals.

• Communication of digital and analog process data.

• Control of compatible actuators through installed output modules.

• Diagnostic information for maintenance.

• Integration of several machine sections into a common control system.

The appropriate I/O modules must be selected for the actual electrical signals, load characteristics, and required response times.

5.5 Process automation

Some process-control installations use distributed I/O to collect signals from instruments and control equipment located across a plant.

A PROFIBUS-connected ET 200S station may be suitable where the controller architecture already supports the required network and I/O configuration.

Potential applications include:

• Monitoring process switches and status signals.

• Acquiring analog measurement values through compatible modules.

• Controlling compatible valves and actuators.

• Collecting diagnostic information.

• Organizing local signal groups within a process area.

For critical process applications, the suitability of the entire station must be evaluated, including the required availability, response time, environmental protection, and any safety-related requirements.

5.6 Industrial environments with demanding ambient conditions

The SIPLUS version is intended for selected applications where environmental conditions may exceed those of a standard indoor installation.

Its conformal coating and specified operating temperature range of -25°C to +70°C can be relevant when designing equipment for temperature-variable or environmentally demanding industrial locations.

The actual suitability depends on the site conditions, including condensation, chemical exposure, vibration, enclosure design, and the thermal behavior of the complete station.

6. Main Product Advantages

6.1 Reliable communication with a PROFIBUS DP network

The module provides a dedicated interface between the ET 200S station and a PROFIBUS DP network. This allows the controller to exchange process data with the station’s installed I/O modules.

Support for DP-V0 and DP-V1 covers core cyclic data exchange as well as supported acyclic parameterization and diagnostics.

6.2 Support for a large distributed I/O station

The module can support up to 63 compatible I/O modules within a station width of up to 2 m. This allows the designer to group multiple signal functions in one distributed I/O station.

The actual configuration must comply with the platform’s module compatibility and installation requirements.

6.3 Large process-data address area

The module supports up to 244 bytes of input data and 244 bytes of output data. This provides capacity for exchanging process information from the configured station, subject to the controller and overall network configuration.

The available address space should be planned around the actual modules installed and the controller’s addressing capabilities.

6.4 Conformal coating

The conformal coating is a useful feature for selected industrial environments where electronic assemblies may be exposed to certain contaminants or challenging ambient conditions.

It can improve the module’s suitability for those conditions, but it does not replace proper enclosure design or protection against direct water exposure.

6.5 Extended operating temperature range

The specified operating range of -25°C to +70°C is an important consideration when the equipment must operate in locations with significant temperature variation.

The complete installation should still be assessed for heat dissipation, mounting conditions, humidity, condensation, and the temperature limits of the other connected components.

6.6 Compact station integration

The module’s dimensions are approximately 45 × 119.5 × 75 mm. Its compact format supports installation within the ET 200S system and helps keep the distributed I/O station organized.

The complete cabinet layout must also allow sufficient space for connectors, wiring, access, and maintenance.

6.7 Diagnostic support

The module supports diagnostic and status information, including indications associated with bus faults, group errors, and the 24 V supply.

These features can help maintenance personnel distinguish a network communication problem from a station-level or supply-related problem. Effective troubleshooting still depends on the controller diagnostics, network configuration, and status of the connected modules.

6.8 Support for synchronization functions

The module supports PROFIBUS SYNC and FREEZE functions as well as direct data exchange. These functions can be useful in compatible network configurations where coordinated process-data behavior is required.

The module does not support isochronous mode, so applications requiring isochronous operation must be evaluated against that limitation.

6.9 Included termination module

The included termination module is part of the intended station arrangement. Having the required termination component available helps simplify assembly, provided the station is installed according to the platform’s instructions.

Correct termination and network wiring remain important for reliable PROFIBUS communication.

7. Five Related Models

The following models are relevant to distributed I/O, interface modules, or closely related ET 200 platforms. They serve different functions, so compatibility should be checked before selecting any of them as a replacement.

Exact dimensions and weights for the alternative models should be checked against their individual hardware specifications. Similar module names do not guarantee identical dimensions, connector layouts, or replacement compatibility.

7.1 How to choose among these related models

6ES7151-1AA06-0AB0 — Standard interface module

This is the most directly related model because it is the standard base version of the SIPLUS interface module. It is worth evaluating where the application does not require the SIPLUS variant’s additional environmental features.

Before substituting it, confirm the required operating temperature, environmental conditions, and station configuration.

6AG1151-1AA05-7AB0 — Earlier SIPLUS variant

This is a related interface-module order number. It may be relevant when maintaining an existing ET 200S installation, but the exact hardware and communication specifications should be compared before replacement.

6ES7151-1BA02-0AB0 — Higher-function ET 200S interface variant

This model belongs to the related ET 200S interface family. It may be worth considering where the application needs different interface functions or station capabilities. Confirm the supported I/O modules and network behavior.

6ES7151-8AB01-0AB0 — ET 200S CPU/interface combination

This is a different type of system component because it combines CPU functionality with the ET 200S architecture. It should be considered only if the project requires a different controller arrangement, not as a simple plug-in replacement for the IM 151-1 Standard.

6AG1153-2BA02-7XB0 — ET 200M interface module

This model is relevant to a different distributed I/O platform. It may be useful in systems already built around ET 200M, but it should not be treated as interchangeable with an ET 200S module.

8. Five Popular Siemens Models for Industrial Automation

The following models cover common automation functions, including PLC control, distributed I/O, power supply, and operator interfaces. They are useful references when planning a broader system but are not direct replacements for the 6AG1151-1AA06-7AB0.

8.1 Role of each model in an automation system

6ES7214-1AG40-0XB0 — SIMATIC S7-1200

A PLC provides the logic that coordinates the machine or process. It reads input data, executes the control program, and issues output commands. The appropriate CPU should be chosen according to the required I/O count, communication functions, processing needs, and program size.

6ES7511-1AK02-0AB0 — SIMATIC S7-1500

The S7-1500 family is used for industrial control applications with different performance and integration requirements. It may be suitable where the application requires a different level of controller capability, but the exact CPU and communication architecture must be evaluated.

6ES7155-6AU01-0BN0 — SIMATIC ET 200SP

This interface-module family is used to connect compatible distributed I/O stations to an automation network. It is relevant when the project uses ET 200SP rather than the older ET 200S platform.

6EP1333-2BA20 — SITOP

A DC power supply provides operating power for the controller, I/O modules, sensors, and other connected devices. The rated current should be selected based on the total load, startup requirements, and suitable operating reserve.

6AV2123-2GB03-0AX0 — SIMATIC HMI Basic Panel

An HMI allows operators to view process conditions, acknowledge alarms, enter setpoints, and interact with the machine. The display, communication interfaces, and engineering-software compatibility should be confirmed for the exact panel version.

The dimensions and weights of these five models are marked for verification rather than estimated. This avoids introducing incorrect figures into a purchase specification or engineering document.

9. Installation and Configuration Considerations

Before installing or replacing the 6AG1151-1AA06-7AB0, review the following items.

Network planning

PROFIBUS wiring, termination, network topology, and transmission speed all affect communication reliability. The network should be configured consistently, with suitable cabling and connectors, and with termination applied at the appropriate points.

If communication errors occur, check the physical bus connection, termination, address configuration, network speed, and the status indications on the interface module.

Station configuration

The interface module supports up to 63 compatible I/O modules, but the final station configuration must also satisfy the applicable platform restrictions, power budget, address-space limits, and mounting requirements.

The maximum 244-byte input and output data areas should be considered during engineering. The configured modules and controller must be able to support the planned process data.

Environmental protection

Although the SIPLUS version has conformal coating and an extended operating temperature range, the module still requires an appropriate installation. The cabinet must provide the necessary protection against direct water exposure and any other environmental hazards present at the site.

10. Summary

The Siemens 6AG1151-1AA06-7AB0 is a SIPLUS ET 200S IM 151-1 Standard interface module designed to connect a compatible ET 200S distributed I/O station to a PROFIBUS DP network.

Its principal features include support for PROFIBUS DP-V0 and DP-V1, a maximum transmission rate of 12 Mbit/s, up to 63 compatible I/O modules, input and output data capacities of 244 bytes each, and a 9-pin D-sub bus connection. The SIPLUS version adds conformal coating and a specified operating temperature range of -25°C to +70°C.

The module’s dimensions are 45 × 119.5 × 75 mm, and its listed net weight is 0.172 kg. It is intended for communication and station management rather than direct field-signal processing; the installed I/O modules provide the individual input and output functions.

For a system that does not require the SIPLUS environmental characteristics, the standard model 6ES7151-1AA06-0AB0 is the closest related product to evaluate. For other network architectures or different station capabilities, the alternatives should be selected according to the existing platform, controller compatibility, communication requirements, and environmental conditions.

The most important selection criteria are the network protocol, station capacity, data-address requirements, electrical supply, and the environmental conditions at the installation site.
