Siemens 6AG1138-6AA01-2BA0 — Detailed Product Description and Technical Overview

1. Product Overview

The Siemens 6AG1138-6AA01-2BA0 belongs to the SIPLUS range of industrial automation products and is associated with the SIMATIC ET 200SP distributed I/O platform. SIPLUS products are designed for industrial environments where equipment may need additional protection against demanding ambient conditions.

For this specific order number, the exact hardware designation and technical configuration should be confirmed against the product nameplate or the applicable equipment documentation before procurement or installation. The model number is close to other SIWAREX weighing modules, but similar-looking order numbers can represent different functions, interfaces, or environmental specifications. It would be misleading to assign detailed weighing or electrical specifications to this model without confirming its exact variant.

The following description therefore separates the general product-family context from specifications that must be verified for this particular model. This helps avoid using incorrect connection details, dimensions, or weight values in a quotation, engineering document, or replacement-parts list.

2. Brand and Product Series

Brand characteristics

Siemens industrial automation equipment is commonly used in manufacturing, process control, machine building, material handling, and infrastructure systems. Its automation portfolio includes programmable controllers, distributed I/O, operator interfaces, power supplies, communication modules, and specialized measurement equipment.

The SIPLUS range is intended for applications where environmental requirements may exceed those of standard industrial equipment. Depending on the product variant, relevant considerations can include temperature range, protective coating, humidity exposure, and resistance to demanding operating conditions. These characteristics must be checked for the individual order number rather than assumed for every SIPLUS product.

Product-series context

The SIMATIC ET 200SP platform is a modular distributed I/O system. It allows signal and functional modules to be installed close to sensors, actuators, and machinery, while communicating with a higher-level controller through a compatible interface module.

A typical ET 200SP installation consists of an interface module, a suitable mounting arrangement, BaseUnits, and the selected I/O or technology modules. The exact module type determines its electrical connections, supported signals, communication functions, and installation requirements.

3. Product Parameters and Technical Specifications

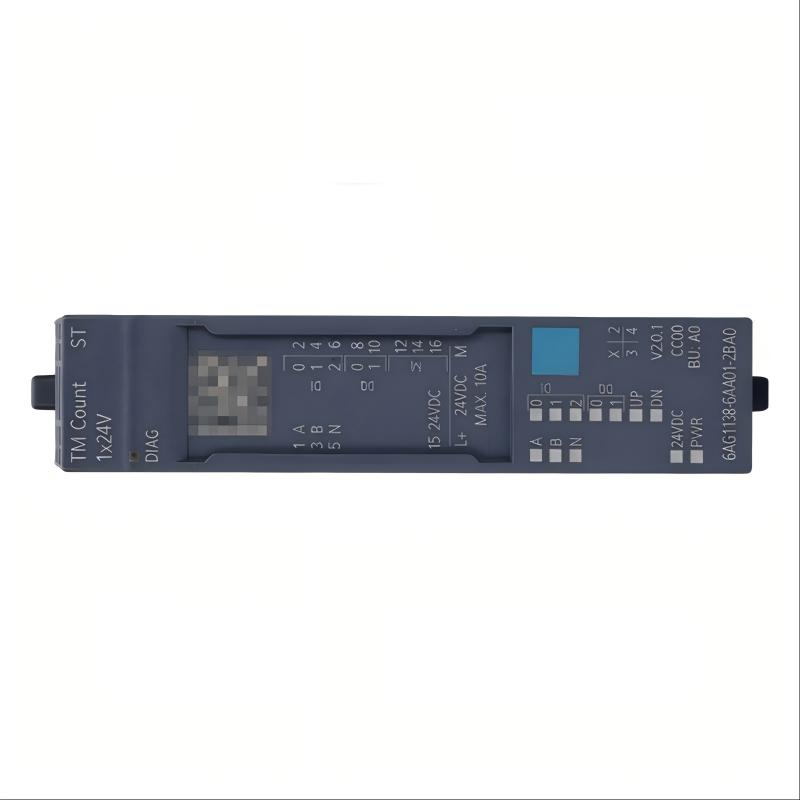

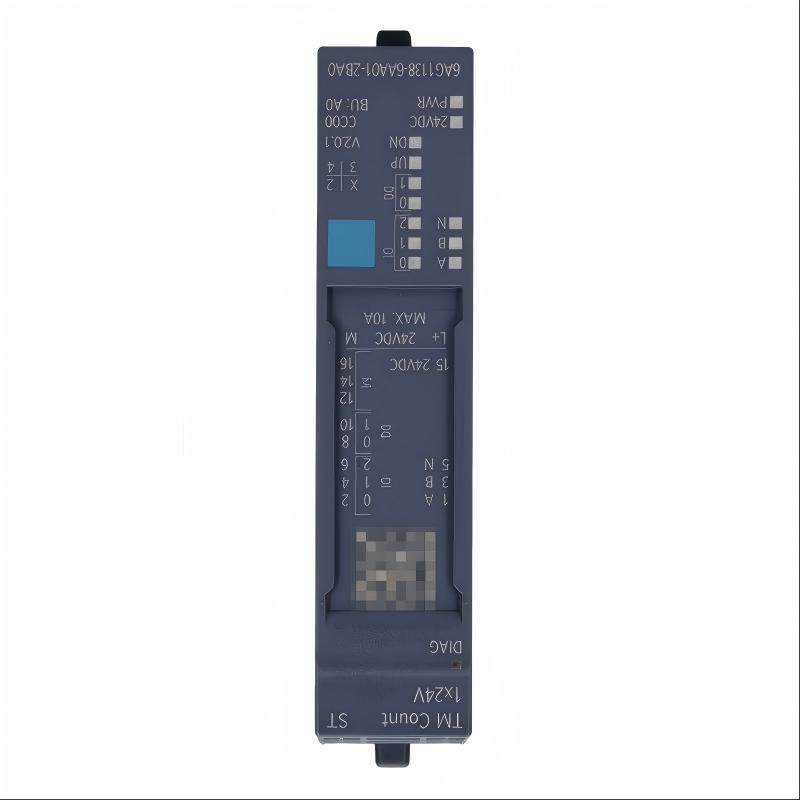

The 6AG1138-6AA01-2BA0 is a SIPLUS ET 200SP TM Count 1x24V counter module. It is designed to acquire signals from a 24 V incremental encoder or pulse generator and process counting and measurement tasks within a distributed automation system.

Its main function is high-speed signal counting. Rather than relying solely on ordinary PLC scan-cycle logic to monitor every pulse, the dedicated technology module handles the counting task using its built-in counting functions. This makes it suitable for applications where pulse frequency, repeatability, and accurate signal acquisition are important.

Main technical data

Dimensions are stated as width × height × depth. The weight above refers to the module specification; packing weight and shipping dimensions may differ.

Counting and signal acquisition

The module provides one dedicated 24 V counter channel. It can receive suitable incremental encoder or pulse-generator signals and process them for counting and measurement tasks. The maximum counting frequency depends on the configured evaluation method and the connected signal source.

The standard counting frequency is up to 200 kHz, with operation up to 800 kHz available when quadruple evaluation is used. The encoder, wiring, signal quality, parameter settings, and application configuration must all be compatible with the selected operating mode.

The module also provides three digital inputs and two digital outputs. These additional signals can support control functions associated with the counting operation, such as triggering, capture, synchronization, or responding to defined conditions, depending on the configured function and available module parameters.

Electrical and environmental characteristics

The module is designed for a nominal 24 V DC supply, with a permitted range of 19.2–28.8 V DC. The encoder supply output supports compatible 24 V devices and provides short-circuit protection, with a maximum output current of 300 mA.

Its conformal coating and specified operating temperature range of -40°C to +60°C are important features for applications in which environmental conditions may be more demanding than those found in a typical indoor control cabinet.

The module is rated IP20 as part of its intended installed system. This does not mean that the module is waterproof or suitable for direct exposure to rain, washdown, or uncontrolled outdoor conditions. The overall enclosure and installation must provide the protection required by the application.

4. Product Introduction

The 6AG1138-6AA01-2BA0 SIPLUS ET 200SP TM Count 1x24V is a specialized automation module for counting pulses and processing suitable encoder signals in industrial equipment. It is particularly useful when a machine needs to determine speed, movement, position increments, production quantities, or the occurrence of repeated events.

In many automated systems, sensors produce a series of electrical pulses as a shaft rotates, a conveyor moves, a component passes a detection point, or a mechanism completes a cycle. The number and frequency of these pulses can provide information about the machine’s operating state. A dedicated counter module makes it possible to acquire and process this information within the control architecture.

The module integrates into the ET 200SP platform through a compatible BaseUnit. This modular design allows the counter function to sit alongside other I/O and technology modules rather than requiring a separate standalone counter device for every counting task.

Its compact 15 mm width is useful in control cabinets where installation space is limited. The small footprint also allows multiple functions to be grouped within a distributed I/O station, helping simplify panel layouts and equipment organization.

The SIPLUS version adds conformal coating and an extended specified temperature range. This makes it a relevant option for equipment designers who need a compatible ET 200SP counting module for more demanding environmental conditions.

The module is not a general-purpose analog measurement device. Its primary role is the acquisition and processing of compatible digital pulse or incremental signals. When selecting it, engineers should confirm the encoder voltage, signal format, counting frequency, wiring arrangement, and required counting functions.

5. Product Applications

5.1 Conveyor systems and material handling

Conveyor systems often need to track movement, estimate travel distance, or count items passing a sensor. When an appropriate 24 V pulse source or encoder is installed, the counter module can receive the pulses and make the resulting count data available to the control system.

Typical applications include:

• Counting products moving along a conveyor.

• Monitoring belt movement through an encoder.

• Measuring incremental travel distance.

• Tracking repeated movements of a transfer mechanism.

• Detecting whether a specified count has been reached.

• Supporting sequencing and interlocking logic.

For distance measurement, the relationship between pulse count and physical movement must be established through the encoder resolution and mechanical transmission ratio. Accurate results also depend on correct signal wiring and suitable configuration.

5.2 Packaging and production machinery

Packaging machines frequently carry out repeated actions such as feeding, cutting, sealing, filling, labeling, and transferring products. Counting pulses or detecting repeated events can help synchronize these actions with the production sequence.

The module may be used to support:

• Product quantity counting.

• Material feed monitoring.

• Repetitive machine-cycle counting.

• Encoder-based movement acquisition.

• Production batch monitoring.

• Signal-based triggering for defined machine operations.

For applications involving very fast movements or tightly synchronized processes, the system designer should confirm the required response time and whether the module’s supported operating modes meet the application requirements.

5.3 Rotating equipment and speed monitoring

A rotating shaft fitted with a compatible incremental encoder or pulse generator can produce signals whose frequency changes with rotational speed.

By acquiring these signals, the automation system can use the measured pulse rate to calculate or monitor speed. The calculation depends on encoder resolution, pulse evaluation, and the mechanical arrangement.

Potential applications include:

• Monitoring motor-driven mechanisms.

• Tracking shaft rotation.

• Checking rotational speed against configured limits.

• Counting revolutions.

• Monitoring rollers and rotating production components.

The module should not be treated as a complete motor drive or safety-rated speed-monitoring device. Additional control functions or dedicated safety equipment may be required depending on the application.

5.4 Position and travel measurement

An incremental encoder can generate pulses as a machine axis or mechanical component moves. The accumulated count can be used as an incremental representation of travel.

Examples include:

• Tracking the movement of a sliding mechanism.

• Measuring incremental travel on a production line.

• Monitoring the position progression of a feeder.

• Counting movement cycles of a lifting or transfer mechanism.

• Providing count values to PLC logic for sequencing.

Incremental counting does not automatically provide an absolute position after power loss. Depending on the application, a homing operation, reference sensor, retained count strategy, or absolute-position device may be necessary.

5.5 Industrial production-line monitoring

In production systems, pulse-count information can be used to track operating cycles and production output. The module can be integrated into the wider control architecture so that counting information contributes to machine status, sequence control, and production monitoring.

Potential uses include:

• Counting completed cycles.

• Tracking component movement.

• Monitoring the number of products processed.

• Supporting threshold-based control logic.

• Providing count information for higher-level monitoring systems.

The usefulness of the module depends on the signal source and control-program design. It supplies counting functionality; the complete production logic remains part of the overall automation application.

5.6 Equipment operating in demanding environments

The conformal coating and -40°C to +60°C specified operating temperature range make the SIPLUS version relevant to selected applications where environmental conditions require additional consideration.

Possible installations include industrial machinery in areas with temperature variation, production equipment exposed to challenging ambient conditions, and automation cabinets located near process machinery.

The actual suitability of an installation still depends on humidity, condensation, corrosive substances, vibration, enclosure design, and other environmental factors. The coating does not remove the need for appropriate cabinet protection and installation practices.

6. Main Product Advantages

6.1 Dedicated high-speed counting functionality

The module is designed specifically for counting compatible pulse and incremental signals. This allows the counting task to be handled by a dedicated technology module rather than implemented solely through ordinary digital-input polling.

With a maximum counting frequency of 200 kHz in the standard evaluation mode and up to 800 kHz with quadruple evaluation, it can support a range of pulse-counting applications when the encoder and configuration are suitable.

6.2 Compact installation

At 15 mm wide, the module uses little mounting space. This is valuable when a control cabinet contains many I/O points and technology functions.

A compact module layout can help equipment designers reduce the space occupied by the distributed I/O station and keep signal processing functions close to related control equipment.

6.3 Integration with the ET 200SP platform

The module is designed to be installed in a compatible ET 200SP configuration using a type A0 BaseUnit. This allows the counter function to be integrated with other modules in the same distributed I/O station.

Using a common platform can simplify system organization, spare-parts planning, and maintenance procedures when the installation already uses compatible ET 200SP equipment.

6.4 Additional digital inputs and outputs

The three digital inputs and two digital outputs provide more flexibility than a counter channel alone. Depending on the selected configuration, these I/O points can participate in control and measurement sequences associated with the counting function.

This can reduce the need to allocate separate general-purpose I/O modules for every related signal, although the final design should be based on the complete signal list and electrical requirements.

6.5 Extended specified temperature range

The SIPLUS variant is specified for operation from -40°C to +60°C. This is a significant selection consideration where the expected ambient temperature falls outside the range of a standard module.

The temperature rating should be assessed alongside the cabinet’s internal temperature, installation density, heat dissipation, and any additional environmental restrictions in the technical documentation.

6.6 Conformal coating

The conformal coating provides an additional protective layer for the module’s electronic assemblies against certain environmental influences. It is a useful feature in installations where environmental exposure is a concern.

It should not be interpreted as complete protection against every contaminant or against direct liquid immersion. The installation must still meet the environmental requirements of the site.

6.7 Support for maintenance and configuration

Firmware update capability and identification and maintenance data can assist with equipment identification and lifecycle management. These functions can be useful when a plant contains multiple distributed I/O stations and requires consistent documentation.

The exact configuration, firmware compatibility, and engineering workflow should be checked against the controller and software environment used in the installation.

6.8 Modular system design

Because the module belongs to a modular distributed I/O platform, it can be used as part of a larger automation station. The system can combine counting, digital I/O, analog I/O, and other compatible functions as required.

This structure helps separate individual automation functions into manageable modules and can simplify future expansion when the station has sufficient capacity and the selected components are compatible.

7. Recommended Installation and Selection Considerations

Before installing or replacing the 6AG1138-6AA01-2BA0, the following points should be reviewed.

For a replacement project, matching only the physical dimensions is not sufficient. The original module number, signal type, BaseUnit compatibility, configuration, and application behavior should all be checked before commissioning.

8. Five Related Models to Consider

The following models are related to the SIPLUS ET 200SP technology-module family or are relevant alternatives for nearby counting, position acquisition, and distributed I/O tasks. Their functions differ, so they should not be considered direct substitutes without reviewing the application requirements.

The dimensions and weights marked for verification are deliberately not estimated. The exact values should be taken from the applicable hardware documentation before they are entered into a purchase specification or mechanical design.

How to choose among these related models

– 6AG1138-6BA01-2BA0: Consider this model when the application requires position acquisition or encoder functionality beyond the basic 24 V pulse-counting role of the main product. Check the encoder interface carefully.

– 6AG1138-6CG00-2BA0: Consider it when timer-based technology functions are needed. Confirm the precise timer modes, I/O allocation, and wiring requirements.

– 6AG1138-6DB00-2BB1: Consider it when the control task involves pulse generation rather than simply counting incoming pulses. Verify the required output signal, frequency, and load conditions.

– 6AG1155-6AU01-7BN0: Consider it when selecting a compatible interface module for a distributed I/O station. Its role is different from that of a counter module.

– 6AG1155-6AU01-7CN0: Consider it when the station requires the functions of the corresponding high-feature interface variant. Check the required network features and module compatibility before ordering.

9. Five Popular Siemens Models for Industrial Automation

These additional models cover common functions in PLC control, distributed I/O, power supply, and operator-interface applications. They are not all direct replacements for the 6AG1138-6AA01-2BA0; each serves a different role in an automation system.

How these models fit into an automation system

6ES7214-1AG40-0XB0 — PLC control

A PLC provides the central logic for a machine or small automation process. It evaluates input signals, executes the control program, and coordinates outputs and connected devices. A counter module such as the 6AG1138-6AA01-2BA0 can contribute counting information to a compatible control architecture.

6ES7511-1AK02-0AB0 — Higher-level control

A controller in the S7-1500 family may be suitable for applications requiring a different level of processing, program structure, or system integration. Selection should be based on program size, performance requirements, communication needs, and compatible I/O architecture.

6ES7155-6AU01-0BN0 — Distributed I/O

An interface module connects the distributed I/O station to the control network. It is useful when signals must be acquired near the machinery instead of routing every field signal directly to a central cabinet.

6EP1333-2BA20 — DC power supply

A stable 24 V DC supply is a key part of many automation panels. The power supply must be sized for the combined load of the controller, I/O modules, sensors, and other connected equipment, including startup and transient requirements.

6AV2123-2GB03-0AX0 — Operator interface

An HMI panel allows operators to view machine status, enter setpoints, acknowledge alarms, and interact with the process. The exact display, interface, and software compatibility should be checked before integrating it into an existing project.

For all five models, exact dimensions and net weight have intentionally been left for verification rather than filled with potentially incorrect figures. Product variants, hardware revisions, and supplied accessories can affect these values.

10. Choosing the Right Module for a New Project

When selecting the 6AG1138-6AA01-2BA0 or one of its related models, start with the signal that the machine actually needs to process.

If the application involves counting pulses from a compatible 24 V encoder or pulse generator, the TM Count 1x24V is the relevant function to evaluate. If the task involves position acquisition from a different encoder interface, a position-input module may be more appropriate. If the system must generate pulses, a pulse-generation module should be assessed instead.

Next, confirm the operating frequency and measurement requirements. The maximum supported counting frequency alone does not guarantee that every encoder and wiring arrangement will work at that speed. Signal format, cable length, electrical noise, evaluation mode, and the required response time all influence the final configuration.

Environmental conditions are another important factor. The SIPLUS version offers conformal coating and a specified operating range of -40°C to +60°C, but the entire installation still needs suitable protection from condensation, liquids, dust, and other site-specific hazards.

Finally, confirm the exact order number, compatible BaseUnit, controller configuration, and replacement requirements. This is particularly important when maintaining existing equipment, because modules that look similar may use different signal interfaces or provide different technology functions.

11. Summary

The Siemens 6AG1138-6AA01-2BA0 is a SIPLUS ET 200SP TM Count 1x24V counter technology module intended for acquiring and processing compatible 24 V incremental encoder or pulse-generator signals.

Its principal features include one counter channel, three digital inputs, two digital outputs, a 24 V DC supply, a maximum counting frequency of 200 kHz with up to 800 kHz available using quadruple evaluation, and compatibility with a type A0 BaseUnit. The conformal coating and specified -40°C to +60°C operating temperature range are additional considerations for demanding industrial installations.

With a compact size of 15 × 73 × 58 mm and an approximate module weight of 0.045 kg, it can be incorporated into a compatible distributed I/O station without requiring a large amount of mounting space.

The most important selection criterion is whether the module’s signal type, counting performance, electrical characteristics, and environmental ratings match the application. For procurement and engineering documentation, verify the exact dimensions and weight of each recommended alternative against its specific hardware documentation before finalizing the parts list.
