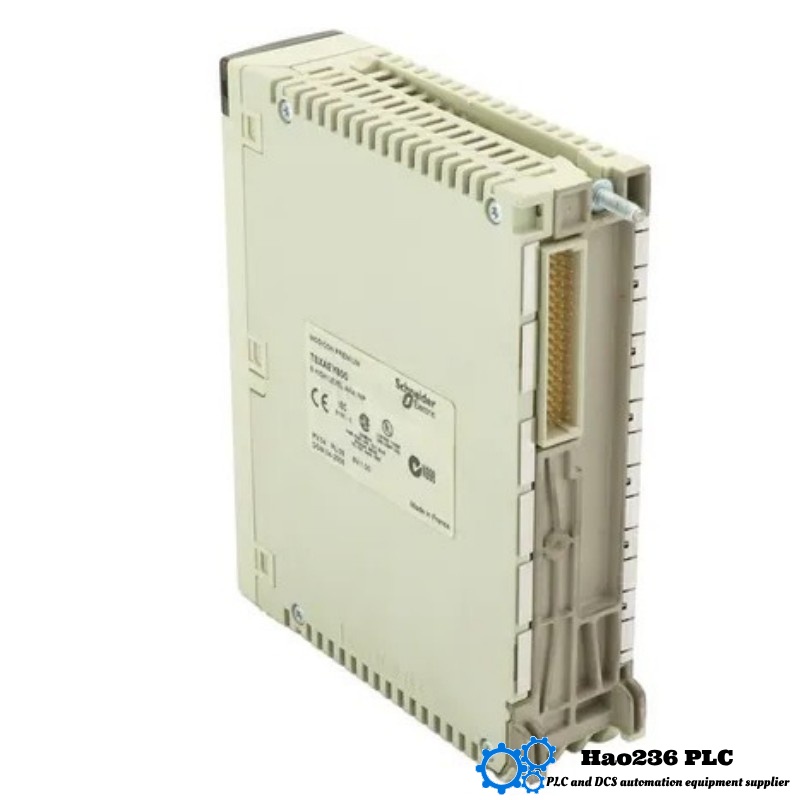

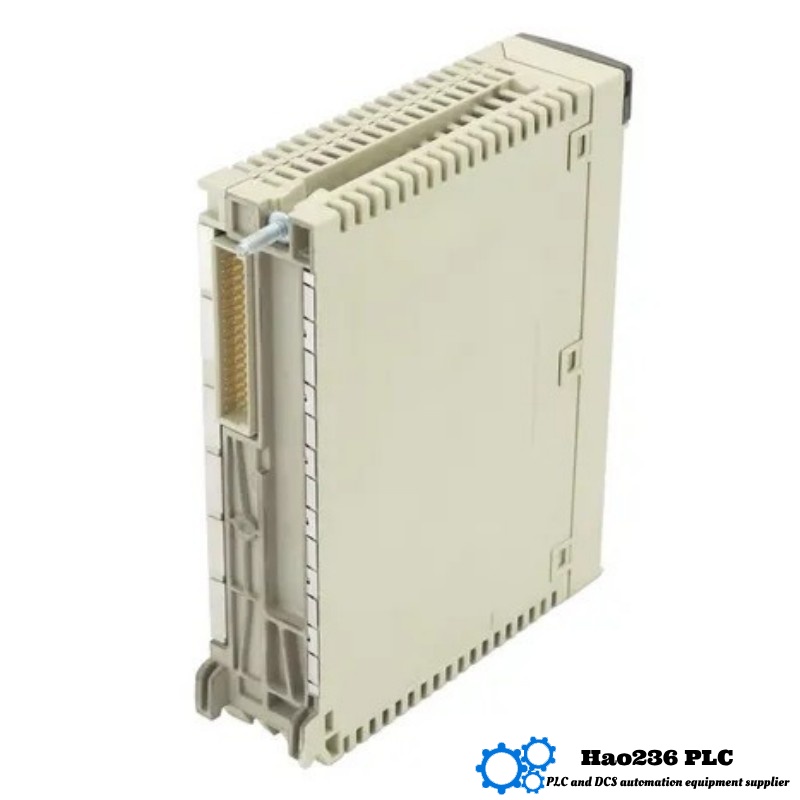

Schneider TSXAEY800 Analog Input Module
Product Introduction:
The Schneider TSXAEY800 is an advanced analog input module designed for use with Modicon Premium PLC systems. This high-performance module is engineered to provide precise data acquisition from a variety of analog sensors such as temperature, pressure, and flow meters. It is ideal for industrial automation and process control applications where accurate and reliable signal processing is essential.
The TSXAEY800 features 8 analog inputs that can be configured to handle various input ranges, such as 0-10 V, 4-20 mA, and 0-20 mA. This flexibility allows the module to interface with a wide range of industrial sensors. The module ensures fast, accurate conversion of analog signals into digital values that can be easily processed by the PLC system, making it an essential component in real-time process control systems.
This module is known for its high accuracy, fast conversion times, and the ability to handle both voltage and current signals. It is also compact and easy to integrate into existing setups, making it a versatile solution for a variety of applications.
Product Parameters:
Here are the key technical specifications of the Schneider TSXAEY800 Analog Input Module:
| Parameter | Value |
|---|---|
| Model | TSXAEY800 |
| Type | Analog Input Module |
| Series | Modicon Premium |
| Dimensions (H x W x D) | 55 x 180 x 260 mm |
| Weight | 0.31 kg |
| Number of Inputs | 8 inputs |
| Input Type | Voltage, Current (configurable) |
| Input Range | 0-10 V, 0-20 mA, 4-20 mA (depending on configuration) |
| Conversion Time | 10 ms per input |
| Resolution | 12 bits |
| Accuracy | ± 0.1% (of full scale) |
| Signal Conditioning | Built-in filters and scaling |
| Temperature Range | -20°C to 60°C |
| Operating Voltage | 24 V DC |
| Mounting | DIN Rail |
| Isolation | 1500 V isolation (input to output) |
| Input Impedance | 250 kΩ (for voltage inputs) |
Product Applications:
The TSXAEY800 is an ideal solution for industries requiring the integration of multiple analog sensors. The following are some of the key applications for this module:
-
Industrial Automation: The module is widely used in automation systems to gather data from temperature, pressure, and flow sensors, which is crucial for maintaining optimized industrial processes.
-
Process Control: In chemical, pharmaceutical, and food processing industries, the module’s ability to handle analog inputs makes it a vital part of controlling processes such as mixing, heating, or filtration.
-
Building Automation: Used in HVAC systems for monitoring temperature and humidity, the TSXAEY800 plays a role in optimizing energy usage and maintaining ideal indoor conditions.
-
Energy Management: In power generation and distribution, it helps to monitor energy parameters and improve overall energy efficiency by providing reliable analog data for real-time monitoring.
-
Water Treatment: The TSXAEY800 is used to monitor and control parameters like pH, chlorine levels, and water pressure, ensuring efficient and optimal operation of water treatment plants.
Product Advantages:
-
High Accuracy: With an accuracy of ±0.1% of full scale, the TSXAEY800 provides precise measurements, ensuring reliable system performance.
-
Flexible Input Configuration: The module supports multiple input signal types such as 0-10 V, 4-20 mA, and 0-20 mA, making it compatible with a wide range of industrial sensors.
-
Fast Data Conversion: The module’s conversion time of 10 ms per input ensures quick and accurate processing of analog signals, which is critical for real-time control systems.
-
Compact Design: With dimensions of 55 x 180 x 260 mm, this module is easy to install and integrate into existing systems, even in space-constrained environments.
-
High Isolation: The TSXAEY800 features 1500 V isolation between inputs and outputs, protecting sensitive equipment from electrical surges and ensuring system reliability.
-
Temperature Flexibility: It can operate in extreme temperatures ranging from -20°C to 60°C, making it suitable for a wide range of industrial environments.
-
Easy Installation: The module mounts directly on a DIN rail, simplifying both installation and maintenance processes.
Brand: Schneider Electric
Schneider Electric is a global leader in energy management and automation, offering solutions that increase energy efficiency and productivity. With over 180 years of experience, Schneider Electric’s products are trusted in various industries, including energy, industrial automation, data centers, and more.
Series: Modicon Premium
The Modicon Premium series represents Schneider Electric’s high-performance PLC and control solutions, specifically designed for large-scale and complex industrial automation applications. These modules are built to handle high-speed processes, deliver precise control, and offer integration with a variety of sensors and input/output modules, making them a cornerstone of industrial control systems.
Recommended Related Models:
Here are five models from the Modicon Premium series that are related to the Schneider TSXAEY800:
| Model | Description | Key Parameters |
|---|---|---|
| TSXAEY804 | 4-Channel Analog Input Module | 0-10 V, 0-20 mA, 4-20 mA Input, 24 V DC |
| TSXAEY810 | 16-Channel Analog Input Module | 0-10 V, 4-20 mA, 24 V DC |
| TSXAEY850 | 8-Channel Temperature Input Module | RTD, Thermocouple Inputs, 24 V DC |
| TSXAEY810F | 10-Channel High-Resolution Analog Input | 0-10 V, 0-20 mA, 4-20 mA Inputs, 24 V DC |
| TSXAEY850 | 8-Channel Precision Analog Input | High-Resolution 24-bit, 0-10 V, 4-20 mA Input |
Other Popular Schneider Electric Models:
Here are five other popular models from Schneider Electric:
| Model | Features | Application Areas |
|---|---|---|
| TSXAEY1600 | High-speed data transfer, compact | Industrial automation, control systems |
| TSXAEY1614 | Multi-port I/O, versatile connectivity | PLC systems, process automation |
| TSXAEY414 | High reliability, rugged design | Heavy machinery, robotics |
| TSXAEY1200 | Fast processing, low power consumption | Sensor networks, monitoring systems |
| TSXAEY1350 | Enhanced I/O expansion, flexible | Automated manufacturing lines, data acquisition |
FAQ Section:
-
Q: How many analog input channels does the TSXAEY800 module support?
A: The module supports 8 analog input channels. -
Q: What types of signals can the TSXAEY800 module handle?
A: The module can handle voltage (0-10 V) and current (4-20 mA, 0-20 mA) signals. -
Q: What is the accuracy of the Schneider TSXAEY800 module?
A: The module offers an accuracy of ± 0.1% of full scale. -
Q: Can I use the TSXAEY800 module in environments with extreme temperatures?
A: Yes, the module operates in temperatures ranging from -20°C to 60°C. -
Q: How is the TSXAEY800 module mounted?
A: The module is mounted on a DIN rail, making it easy to install and maintain. -
Q: What is the conversion time for each input channel?
A: The conversion time is 10 ms per input channel. -
Q: What is the input impedance of the module for voltage inputs?
A: The input impedance is 250 kΩ for voltage inputs. -
Q: Can the TSXAEY800 be used in both industrial and commercial applications?
A: Yes, the module is versatile and suitable for both industrial automation and building automation systems. -
Q: Is the module compatible with the Modicon Premium PLC?
A: Yes, the TSXAEY800 is designed specifically for integration with Modicon Premium PLC systems. -
Q: What is the isolation voltage between inputs and outputs for the TSXAEY800?
A: The module provides 1500 V isolation between inputs and outputs.
