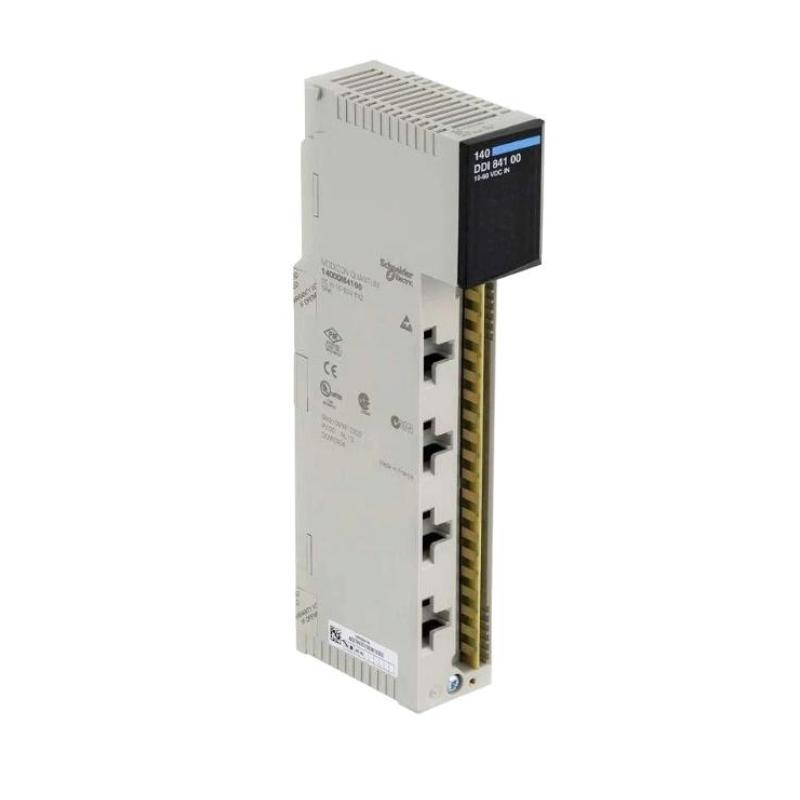

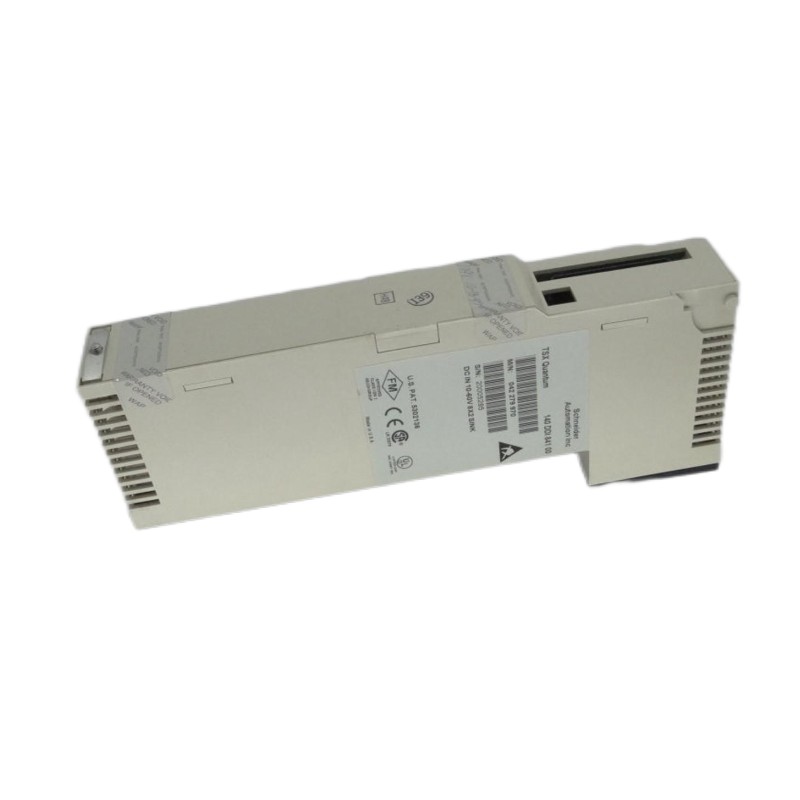

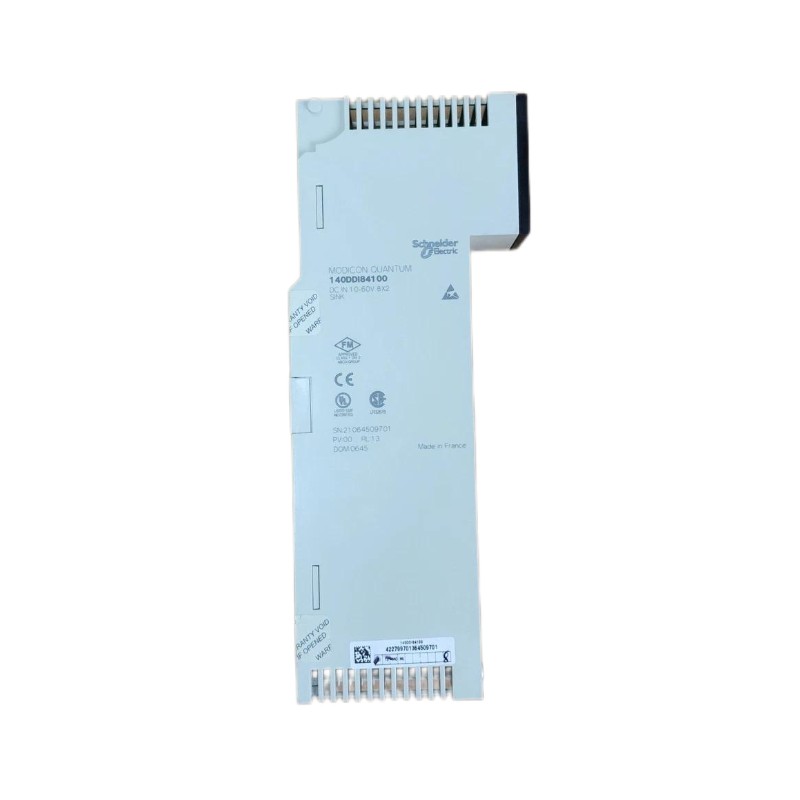

Schneider Electric 140DDI84100 Product Overview
The Schneider Electric 140DDI84100 is a highly reliable digital input module designed for integration into Modicon Premium PLC systems. This module provides a robust solution for processing 24V DC digital input signals, which are commonly used in various industrial automation applications. With a capacity to handle 32 inputs, the 140DDI84100 is perfect for applications that require precise control and monitoring of multiple devices simultaneously, such as sensors, switches, and relays.
With a DIN rail mounting option and a compact form factor, the 140DDI84100 is easily installed and integrated into control systems. Its wide operating temperature range, from -25°C to +70°C, allows it to function efficiently in both industrial and more controlled environments.
Product Parameters
| Parameter | Details |
|---|---|
| Model | 140DDI84100 |
| Type | Digital Input Module |
| I/O Type | Digital Input |
| Number of Inputs | 32 Inputs |
| Voltage Range | 24V DC |
| Current Consumption | 200mA |
| Signal Type | 24V DC |
| Operating Temperature | -25°C to +70°C |
| Dimensions | 45 mm x 160 mm x 90 mm |
| Weight | 0.4 kg |
| Mounting Type | DIN Rail |
Product Description
The 140DDI84100 is a digital input module designed to work seamlessly with Modicon Premium PLCs. It is equipped with 32 input channels, each capable of receiving 24V DC digital signals from a wide variety of devices, such as switches, sensors, and relays. This makes the module particularly well-suited for applications where high input density and reliability are crucial.
This module offers a compact design, measuring 45 mm x 160 mm x 90 mm, and is mounted using a DIN rail, which makes installation fast and convenient in control cabinets. Its robust construction ensures reliable performance even under challenging industrial conditions, and its wide operating temperature range of -25°C to +70°C ensures it can perform in both hot and cold environments.
The 140DDI84100 utilizes Modbus communication, which allows it to interface smoothly with other devices in the Modicon Premium PLC system. This makes it an excellent choice for industries requiring flexible and scalable automation solutions.
Product Applications
The 140DDI84100 is designed for use in various industrial sectors, offering significant benefits in systems that require the monitoring of multiple digital inputs. Key applications include:
-
Manufacturing Automation: The module can be used to collect data from sensors, switches, and machine controllers, enabling real-time monitoring and control of manufacturing processes.
-
Process Control: In industries such as oil and gas, chemical, and pharmaceutical production, the module is used to monitor and control devices such as valves, flow meters, and pressure sensors.
-
Energy Management: The module supports energy monitoring by collecting input signals from energy meters, circuit breakers, and other electrical devices, helping to ensure efficient energy use.
-
Building Automation: It is widely employed in HVAC systems, lighting control, and security systems, where it collects input data from motion sensors, light sensors, and alarms.
-
Water and Wastewater Treatment: The module is used in water treatment plants to monitor pumps, flow meters, valves, and other critical equipment, helping to maintain optimal plant operation.
Product Advantages
-
High Input Density: With the capability to handle 32 inputs, the 140DDI84100 is ideal for applications that require monitoring numerous devices or sensors simultaneously.
-
Compact Design: The DIN rail mountable design allows the module to fit easily into control cabinets, even when space is limited.
-
Wide Operating Temperature Range: The module operates efficiently in a broad temperature range from -25°C to +70°C, making it suitable for use in both extreme and controlled industrial environments.
-
Modbus Communication Support: The 140DDI84100 supports Modbus communication, ensuring easy integration with other Modicon Premium PLC components and devices in the automation system.
-
Reliable Performance: Designed for use in demanding industrial applications, the 140DDI84100 is built to be durable, ensuring high reliability and long service life even under harsh conditions.
Brand Information
-
Brand: Schneider Electric
-
Series: Modicon Premium
-
Product Type: Digital Input Module
-
PLC Compatibility: Modicon Premium PLC
Recommended Models in the Same Series or Related Models
| Model | Type | Number of Inputs | Voltage Range | Current Consumption | Operating Temperature | Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| 140DDI84110 | Digital Input Module | 32 | 24V DC | 150mA | -25°C to +70°C | 45 mm x 160 mm x 90 mm | 0.4 kg |
| 140CRA93100 | Communication Adapter | N/A | 24V DC | 250mA | -25°C to +70°C | 45 mm x 85 mm x 100 mm | 0.3 kg |
| 140DRA94010 | Analog Output Module | 16 | 24V DC | 120mA | -25°C to +70°C | 30 mm x 150 mm x 90 mm | 0.3 kg |
| 140MGA93110 | Motion Control Adapter | N/A | 24V DC | 200mA | -25°C to +70°C | 50 mm x 120 mm x 90 mm | 0.4 kg |
| 140NOE77100 | Ethernet Communication | N/A | 24V DC | 180mA | -25°C to +70°C | 50 mm x 130 mm x 90 mm | 0.4 kg |
Top 5 Popular Schneider Electric Models
| Model | Type | Number of Inputs | Voltage Range | Current Consumption | Operating Temperature | Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| 140CPU67160 | CPU Module | N/A | 24V DC | 350mA | -25°C to +70°C | 200 mm x 160 mm x 150 mm | 0.6 kg |
| 170ENT11010 | Ethernet Interface | N/A | 24V DC | 150mA | -25°C to +70°C | 100 mm x 160 mm x 110 mm | 0.4 kg |
| 120A1E25 | Power Supply | N/A | 24V DC | 500mA | -25°C to +70°C | 50 mm x 100 mm x 150 mm | 0.3 kg |
| 140CRP93100 | Modbus Communication | N/A | 24V DC | 250mA | -25°C to +70°C | 45 mm x 85 mm x 100 mm | 0.2 kg |
| 160ATP62100 | Analog Input Module | 8 | 24V DC | 90mA | -25°C to +70°C | 30 mm x 150 mm x 100 mm | 0.3 kg |
Frequently Asked Questions (FAQ)
Q1: What is the primary purpose of the 140DDI84100 module?
A1: The 140DDI84100 is a digital input module used to interface with 24V DC digital input signals from external devices such as sensors, switches, and relays. It is designed to integrate with Modicon Premium PLC systems for monitoring and controlling industrial automation processes.
Q2: How many inputs does the 140DDI84100 handle?
A2: The 140DDI84100 module can handle 32 digital inputs simultaneously.
Q3: What type of voltage does the 140DDI84100 support for its inputs?
A3: The module supports 24V DC digital input signals, making it compatible with a wide range of industrial sensors and control devices.
Q4: Can the 140DDI84100 be used with other PLC systems besides Modicon Premium?
A4: No, the 140DDI84100 is designed specifically for use with Modicon Premium PLC systems and is not directly compatible with other PLC models.
Q5: What is the temperature range in which the 140DDI84100 operates?
A5: The 140DDI84100 can operate within a temperature range of -25°C to +70°C, allowing it to function in a variety of environmental conditions.
Q6: How is the 140DDI84100 installed in a control panel?
A6: The module is designed for DIN rail mounting, which makes installation straightforward and space-efficient within standard control panels.
Q7: Does the 140DDI84100 support communication with other devices?
A7: Yes, the module supports Modbus communication, enabling it to communicate with other Modicon Premium PLC components and devices.
Q8: What is the power consumption of the 140DDI84100?
A8: The 140DDI84100 consumes 200mA during normal operation.
Q9: What are the physical dimensions of the 140DDI84100?
A9: The module has dimensions of 45 mm x 160 mm x 90 mm, making it compact and easy to integrate into control systems.
Q10: How much does the 140DDI84100 weigh?
A10: The 140DDI84100 weighs approximately 0.4 kg.
