The Schneider 140ACI03000C analog input module should be installed as part of a Modicon Quantum automation system, with careful attention to module mounting, field signal wiring, power distribution, grounding, channel configuration, and commissioning. As an analog input interface, the 140ACI03000C receives process signals from field instruments and makes the measured information available to the control system. Exact terminal assignments and supported signal characteristics should always be verified against the documentation for the specific module and application.

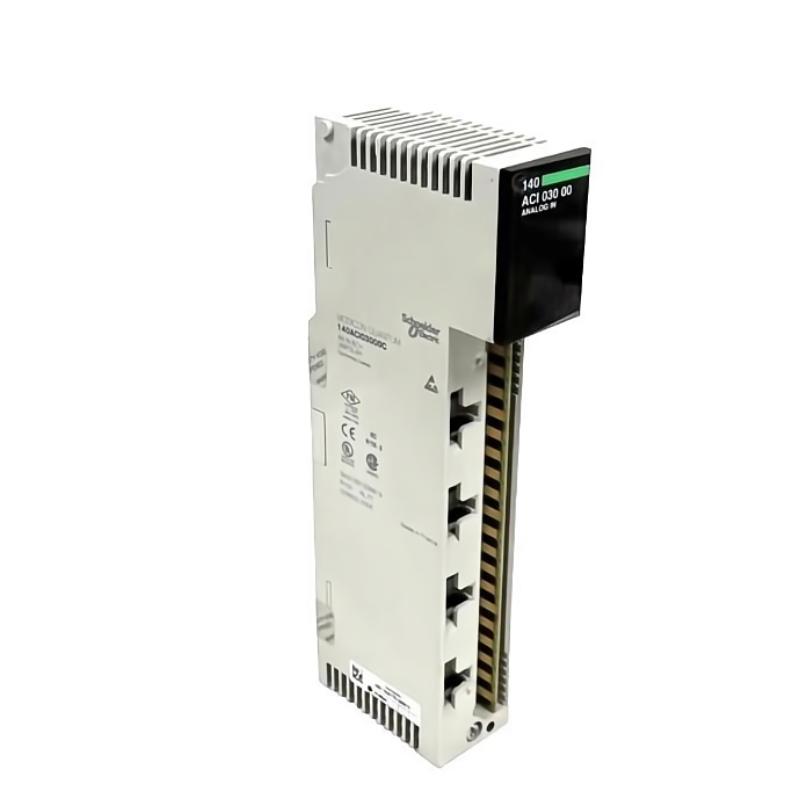

Schneider 140ACI03000C Analog Input Module Installation Overview

The 140ACI03000C is an analog input module used in industrial control applications to interface field analog signals with a Schneider automation controller. It forms part of the signal path between process instrumentation and the PLC or control system.

Process Sensor / Transmitter
          |
          v
Field Wiring
          |
          v
Schneider 140ACI03000C
Analog Input Module
          |
          v
Modicon Quantum Backplane
          |
          v
Controller / CPU
          |
          v
Control Logic / HMI / SCADA

Typical applications include monitoring process variables such as pressure, temperature, flow, level, or other continuously varying instrumentation signals, depending on the configured system and connected field devices.

Schneider 140ACI03000C Analog Input Module Function

The main purpose of the 140ACI03000C is to provide an interface between analog field instrumentation and the control system. The module receives electrical signals from connected transmitters or sensors and transfers the corresponding measurement information into the PLC system for monitoring, control, alarming, or data processing.

• Interfaces field analog signals with the automation system.
• Transfers process measurement information to the controller.
• Supports continuous-variable process monitoring.
• Provides an input point for control-system calculations and alarms.
• Allows field instrumentation to participate in automated process control.

Schneider 140ACI03000C Installation Preparation

Before installation, identify the complete system architecture and confirm how every analog channel will be used. This is particularly important because incorrect signal type, polarity, shielding, or common wiring can result in inaccurate measurements or unstable inputs.

• Confirm the module order number: 140ACI03000C.
• Inspect the module and associated terminal assembly for damage.
• Confirm the compatible Quantum rack and backplane arrangement.
• Identify every connected field transmitter or sensor.
• Verify the signal type required by each application.
• Prepare suitable shielded instrumentation cable where required.
• Separate analog signal wiring from high-current power wiring.
• Confirm the cabinet grounding and bonding arrangement.
• Document existing channel assignments before replacing an installed module.

Schneider 140ACI03000C Mounting and Rack Installation

The 140ACI03000C should be installed in the appropriate Schneider Modicon Quantum rack or system configuration. The module should be inserted carefully and secured according to the rack hardware requirements.

Before insertion, inspect the backplane and module connector for contamination, mechanical damage, or foreign material. Never force a module into the rack if the connector or guide mechanism does not align correctly.

• Confirm the correct rack position.
• Inspect the backplane connector.
• Align the module carefully with the rack guides.
• Secure the module correctly.
• Ensure that adjacent modules do not obstruct installation or removal.
• Provide sufficient cabinet ventilation.

Schneider 140ACI03000C Analog Signal Wiring

Analog signal wiring should be planned according to the connected field instruments. The exact terminal and channel assignments must be verified from the applicable Schneider documentation rather than inferred from another analog input module.

Field Transmitter
      |
      +---- Signal Conductor
      |
      +---- Signal Return / Common
      |
      v
[ 140ACI03000C ]
      |
      v
Quantum Backplane
      |
      v
PLC Controller

For low-level analog signals, electromagnetic interference can have a significant effect on measurement quality. Instrumentation cables should therefore be routed away from variable-frequency drive cables, motor conductors, contactor wiring, and other high-energy switching circuits where practical.

Shielding should be implemented according to the system grounding design. Avoid creating unintended ground loops by connecting cable shields at multiple locations without a documented grounding strategy.

Schneider 140ACI03000C Channel Configuration and Setup

After the module has been physically installed, configure it within the applicable Quantum control-system engineering environment. The configuration should match the actual field instrumentation connected to each channel.

1. Identify the module position in the rack.
2. Confirm the module is recognized by the controller.
3. Assign the module to the appropriate hardware configuration.
4. Configure each channel according to the connected field signal.
5. Verify channel addressing and scaling.
6. Define appropriate alarm or diagnostic behavior where required.
7. Download or apply the validated configuration.
8. Monitor the input values before placing the process into automatic control.

Do not use an assumed signal range or engineering-unit conversion simply because another installation uses the same module family. The actual instrument output and configured channel characteristics must agree.

Schneider 140ACI03000C Commissioning Procedure

Commissioning should begin with electrical verification and proceed toward process-level validation.

Module Installation
       |
       v
Rack / Backplane Check
       |
       v
Field Wiring Verification
       |
       v
Signal Type Verification
       |
       v
Controller Configuration
       |
       v
Live Input Test
       |
       v
Engineering-Unit Scaling Check
       |
       v
Process Functional Test
       |
       v
Final Documentation

For each channel, compare the expected field condition with the value reported by the controller. A known process condition or calibrated test source can be used where appropriate.

Schneider 140ACI03000C Analog Input Validation

Validation should be performed channel by channel rather than assuming that one successful input proves that every channel is correctly wired.

• Module is correctly seated in the rack.
• Controller recognizes the module.
• Channel configuration matches the field device.
• Signal wiring is correctly identified.
• Signal polarity and common connections are correct.
• Shielding and grounding are appropriate.
• Input values change consistently with the field condition.
• Engineering-unit scaling is correct.
• Alarm limits and process interlocks have been verified.

Schneider 140ACI03000C Field Commissioning Case

Representative example: During commissioning, one analog channel reports a value that is significantly different from the local process indication. The module is powered and recognized correctly by the controller, so the technician investigates the signal path instead of immediately replacing the module.

Observed:
Analog value does not match process indication

Check 1:
Module recognized by controller
Result: Yes

Check 2:
Channel configuration
Result: Requires verification

Check 3:
Field transmitter output
Result: Normal

Check 4:
Signal wiring / channel assignment
Result: Wiring requires correction

Final Test:
Controller value follows transmitter output

This representative case demonstrates that an incorrect analog reading can result from configuration or field wiring even when the input module itself is functioning correctly.

Schneider 140ACI03000C Installation FAQ

What is the Schneider 140ACI03000C?

The Schneider 140ACI03000C is an analog input module used in a Modicon Quantum automation system to interface field analog signals with the control system.

What types of devices can be connected to an analog input module?

Depending on the module’s supported signal characteristics and system configuration, analog input channels can interface with suitable industrial transmitters and sensors. The exact supported signal type should be confirmed for the 140ACI03000C before wiring.

Why should analog wiring be separated from power wiring?

Analog signals can be affected by electromagnetic interference. Separating instrumentation wiring from high-current and switching circuits helps reduce unwanted signal disturbances.

Why is channel scaling important?

The controller must translate the electrical input information into the correct engineering value. Incorrect scaling can produce a plausible-looking but inaccurate process measurement.

What should be checked when replacing an existing module?

Record the rack position, channel assignments, field wiring, configuration, scaling, and diagnostic conditions before removing the original module. Verify the replacement module and configuration before returning the system to operation.

Schneider 140ACI03000C Technical Summary

The Schneider 140ACI03000C analog input module provides an interface between industrial field instrumentation and a Modicon Quantum control system. Reliable operation depends on correct rack installation, field wiring, signal compatibility, shielding, configuration, scaling, and commissioning. When installing or replacing the module, technicians should verify exact channel and terminal information against the applicable system documentation and validate every connected analog signal before automatic operation.
