Product Overview

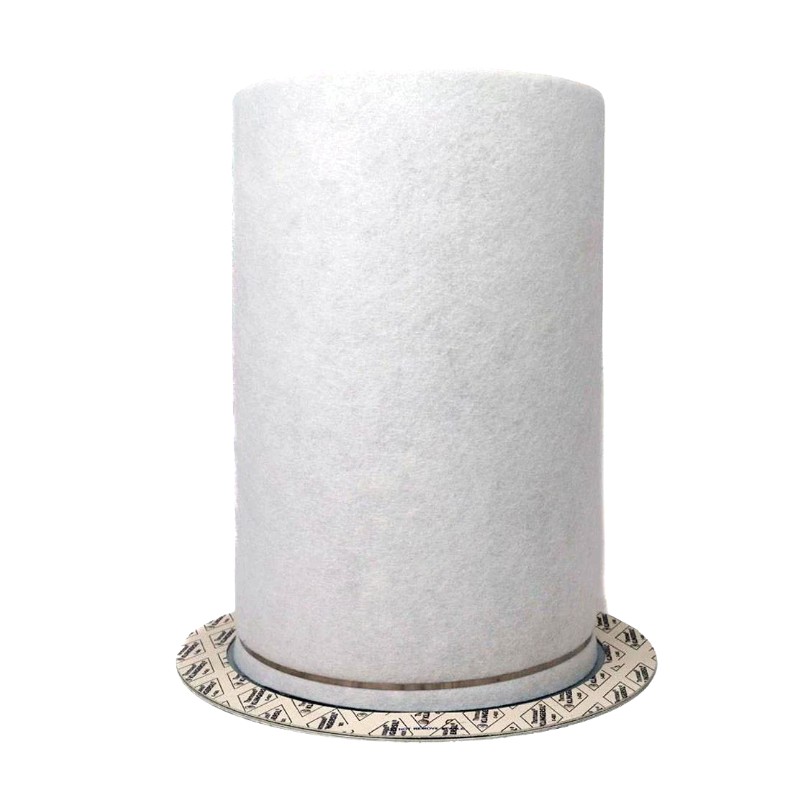

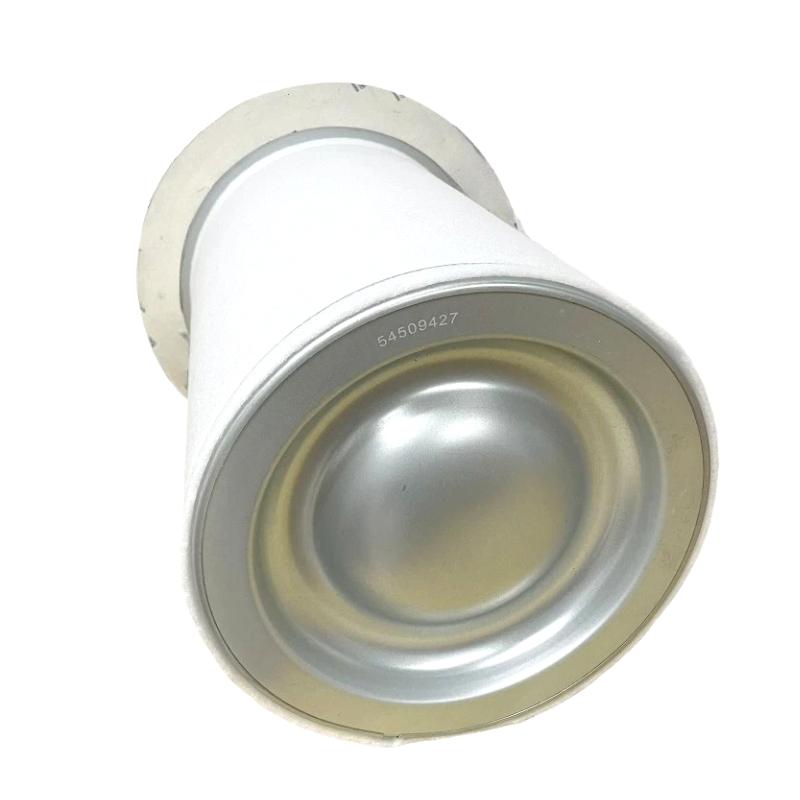

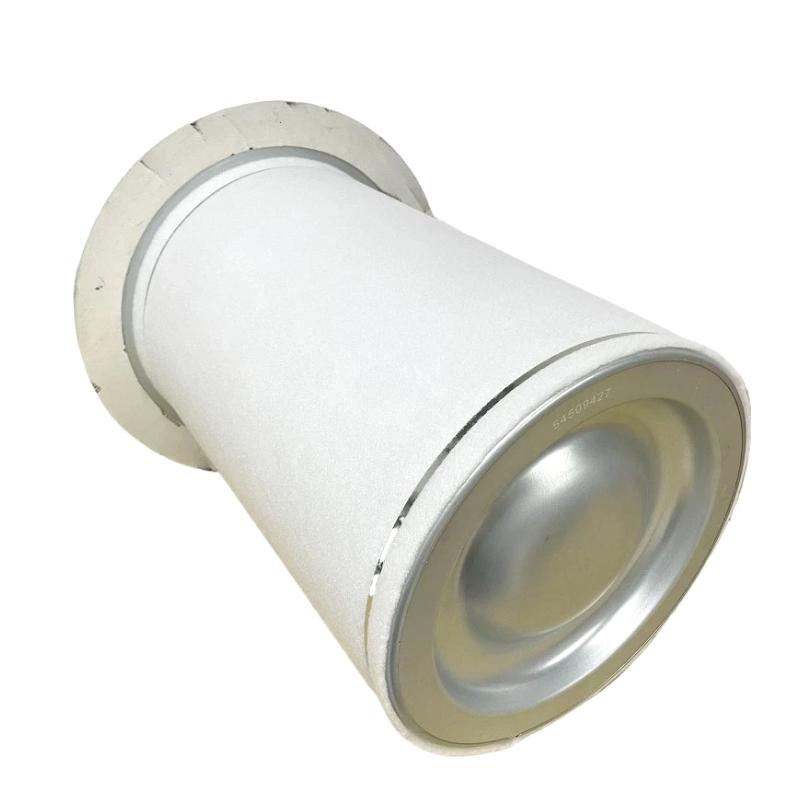

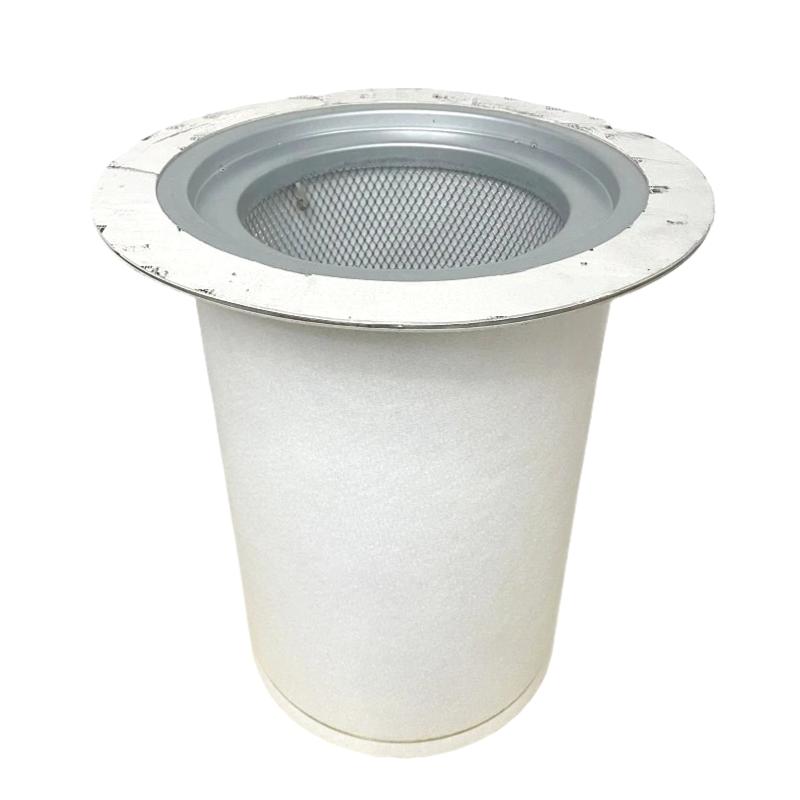

The Ingersoll Rand 47642703001 54509427 Air/Oil Separator is a replacement separator component used in Ingersoll Rand rotary screw compressor systems. Its primary job is to separate entrained oil from compressed air after the compression stage, allowing recovered oil to return to the compressor oil circuit while cleaner compressed air continues toward the discharge system.

The separator works as part of the compressor’s oil-management and air-treatment arrangement. Correct separation is important for maintaining oil circulation, limiting oil carryover into the compressed-air line, and keeping the compressor operating within its intended lubrication and discharge conditions.

For replacement applications, the complete part-number combination should be checked against the compressor model and existing separator specification. Connections, sealing surfaces, separator housing condition, and the associated oil-return circuit should also be inspected during service.

Technical Specifications

Product Features

• Air/oil separation component for Ingersoll Rand rotary screw compressors.
• Separates lubricating oil carried with compressed air after the compression process.
• Supports recovery of separated oil back into the compressor lubrication circuit.
• Helps reduce oil carryover into downstream compressed-air piping.
• Works together with the separator housing, oil-return circuit, and compressor lubrication system.
• Suitable for scheduled compressor maintenance and separator replacement.
• Identified by both Ingersoll Rand part numbers 47642703001 and 54509427.

Working Principle

In a rotary screw compressor, the compression process uses oil for lubrication, sealing, and heat removal. As a result, the compressed-air stream leaving the airend contains fine oil droplets.

The air/oil separator receives this oil-laden compressed air and uses its internal separation structure to remove oil from the airflow.

A simplified process path is:

Airend → Separator Vessel → 47642703001 Air/Oil Separator → Compressed Air Outlet

At the same time, separated oil collects within the separator system and is routed through the oil-return circuit back toward the compressor.

As the separator becomes loaded with contaminants or its separation performance deteriorates, pressure drop and oil carryover can increase. This is why separator condition should be considered together with compressor operating pressure, oil consumption, differential pressure, and the condition of the oil-return system.

Role in a Rotary Screw Compressor Control Architecture

The 47642703001 separator sits directly within the compressor’s air/oil management path. Although it is not an electronic control component, its condition can affect compressor pressure behavior, oil consumption, discharge air quality, and overall package performance.

Industrial Applications

Installation and Maintenance

1. Confirm the complete 47642703001 / 54509427 part-number identification before ordering or installing the separator.
2. Shut down the compressor and isolate it from the compressed-air system.
3. Fully relieve internal compressor pressure before opening the separator vessel.
4. Allow the compressor and associated components to cool before beginning service work.
5. Record the existing separator installation arrangement and oil-return connection.
6. Inspect the separator vessel and sealing surfaces for contamination, corrosion, or damage.
7. Check the oil-return line and associated components for blockage or restricted flow.
8. Install the replacement separator according to the compressor manufacturer’s service procedure.
9. Replace or inspect the applicable seals and sealing components during reassembly.
10. Verify that all connections are correctly installed and properly secured before restarting the compressor.
11. After startup, monitor operating pressure, oil carryover, temperature, and separator differential pressure where applicable.
12. Check for leaks and abnormal compressor behavior before returning the package to normal service.

Related Components

Recommended Related Models

Key Advantages

• Supports effective separation of oil from compressed air.
• Helps maintain the compressor oil-return circuit.
• Reduces oil carryover into downstream compressed-air equipment.
• Suitable for scheduled rotary screw compressor maintenance.
• Available under the identified Ingersoll Rand part-number combination.

Technical FAQs

What is the function of the Ingersoll Rand 47642703001 54509427?

It is an air/oil separator used in a rotary screw compressor system. It separates lubricating oil from compressed air and allows recovered oil to return to the compressor oil circuit.

What symptoms can indicate an air/oil separator problem?

Common indications can include increased oil carryover into the compressed-air system, rising separator differential pressure, abnormal oil consumption, or changes in compressor operating behavior. These symptoms should also be evaluated against the condition of the oil-return circuit and other compressor components.

Why should the oil-return circuit be inspected when replacing the separator?

A restricted oil-return line can prevent separated oil from returning correctly to the compressor. This can affect oil consumption and separation performance, so replacing the separator without checking the return circuit may leave the underlying problem unresolved.

What should be checked before installing a replacement separator?

Verify the complete part-number identification and compressor application first. During installation, inspect the separator vessel, sealing surfaces, oil-return connection, and related components, then verify the system for leaks and abnormal operating conditions after startup.
