Product Overview

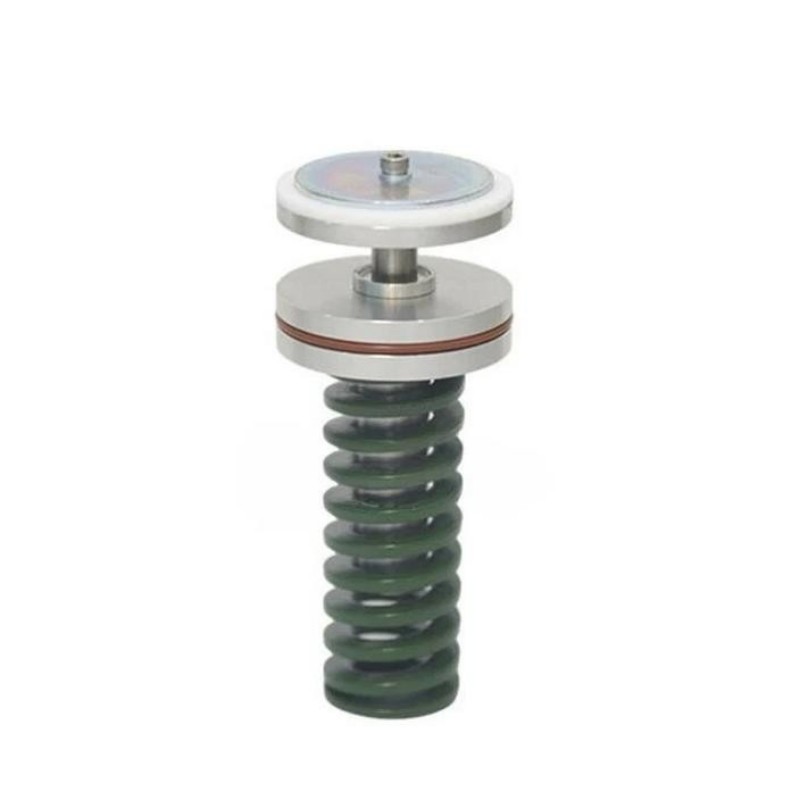

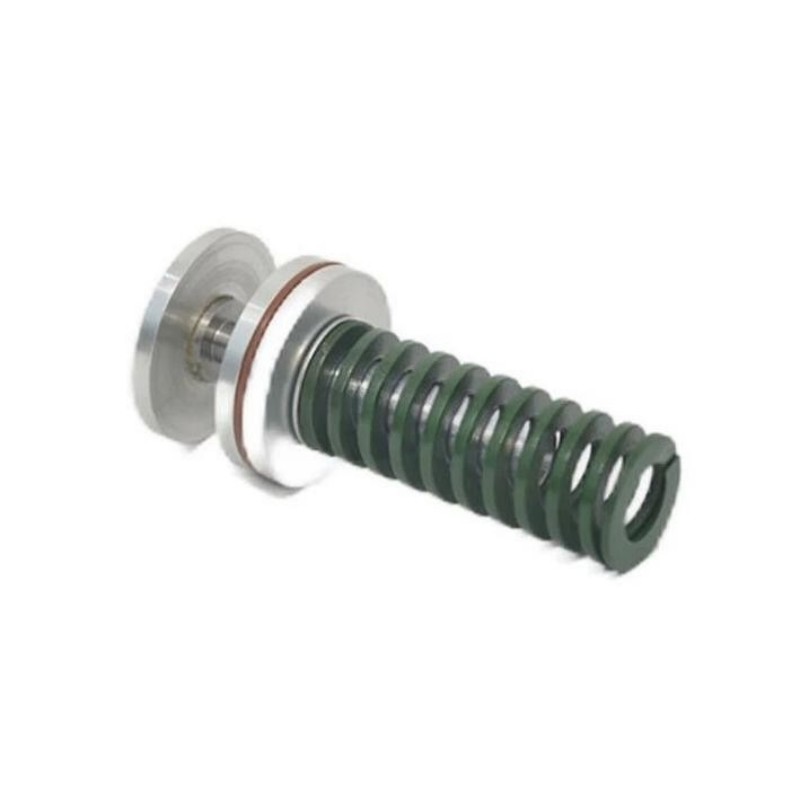

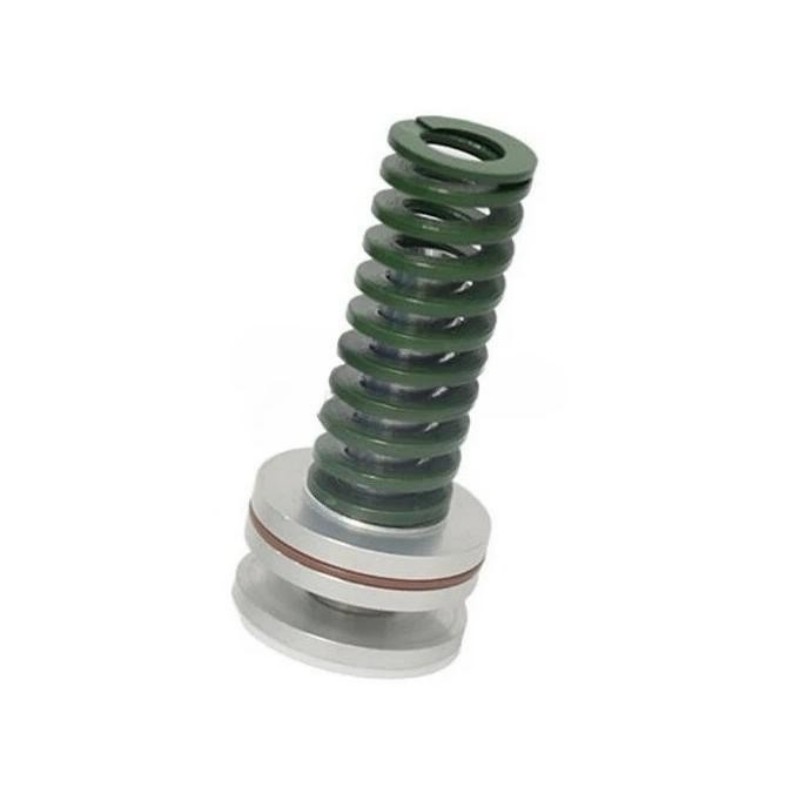

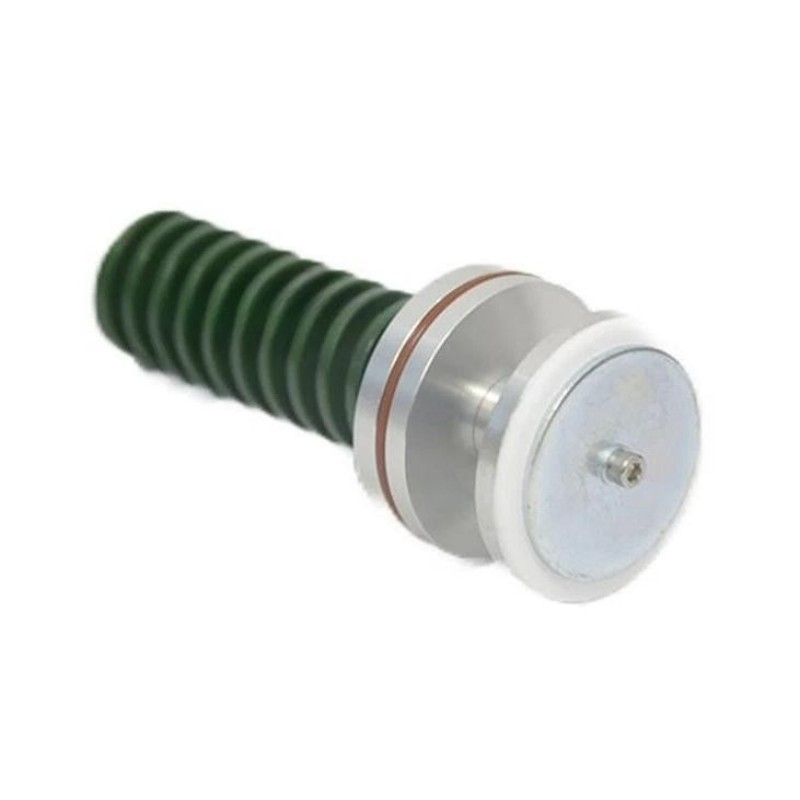

The Ingersoll Rand 47642702001 99289894 Minimum Pressure Check Valve Repair Kit is a service kit for maintaining the minimum pressure and check valve assembly used in oil-injected screw compressors. The valve assembly helps maintain the required internal pressure during compressor operation while controlling the direction of compressed air flow through the separator and outlet circuit.

A minimum pressure valve is particularly important during compressor startup and low-load operation. It helps establish sufficient pressure inside the air/oil separator system so that oil circulation and separation can operate correctly. The check function also limits reverse flow from the downstream compressed-air system when the compressor unloads or stops.

The 47642702001 repair kit is intended for maintenance work where internal valve components require replacement rather than replacing the complete valve assembly. It is useful during scheduled compressor servicing, valve inspection, or corrective maintenance associated with pressure-control and backflow problems.

Technical Specifications

Product Features

• Minimum Pressure Control: Supports maintenance of the required internal pressure in the compressor air/oil separation circuit.
• Check Valve Function: Helps prevent reverse compressed-air flow toward the compressor.
• Repair Kit Configuration: Provides replacement components for servicing the applicable valve assembly.
• Screw Compressor Application: Intended for oil-injected compressor service and maintenance.
• Startup Support: Proper valve operation helps establish suitable internal pressure during compressor startup.
• Oil Circuit Support: Correct pressure conditions contribute to proper oil separation and circulation.
• Unload Operation: Supports controlled pressure behavior when the compressor transitions between loaded and unloaded conditions.
• Maintenance Replacement: Suitable for scheduled overhaul or corrective repair of the minimum pressure check valve.

Working Principle

During compressor operation, compressed air leaving the screw compression element carries entrained oil into the air/oil separation system. The minimum pressure check valve controls the downstream air path while maintaining the pressure required within the separator circuit.

When internal pressure reaches the valve’s operating threshold, the valve permits compressed air to move toward the discharge system. When downstream pressure becomes higher than the compressor-side pressure, the check function restricts reverse flow.

The 47642702001 99289894 repair kit is used when internal valve components such as sealing or operating elements require service. Restoring the valve assembly helps maintain correct pressure behavior, especially during startup, unloading, and shutdown.

Compression Element → Air/Oil Separator → Minimum Pressure Check Valve → Aftercooler / Air Outlet

Downstream Pressure → Check Function → Reverse-Flow Protection

Role in an Oil-Injected Screw Compressor Control Architecture

Industrial Applications

Installation and Maintenance

1. Verify the Part Number: Confirm 47642702001 and 99289894 against the applicable compressor service documentation before opening the valve assembly.
2. Shut Down the Compressor: Stop the compressor and isolate it from the plant compressed-air network.
3. Release Pressure: Fully depressurize the separator vessel, discharge line, and connected circuits before valve service.
4. Allow Components to Cool: Wait until the compressor and oil circuit reach a safe maintenance temperature.
5. Inspect the Valve Assembly: Check the minimum pressure check valve for contamination, scoring, corrosion, or mechanical damage.
6. Clean the Valve Housing: Remove accumulated oil deposits and foreign material before installing repair components.
7. Replace Service Components: Install the repair kit components according to the applicable valve maintenance procedure.
8. Inspect Sealing Surfaces: Check mating surfaces for scratches or damage that could cause leakage after reassembly.
9. Check the Check Function: Verify that the valve permits the intended flow direction and restricts reverse flow.
10. Verify Connections: Confirm that all fittings, fasteners, and connected air/oil lines are correctly installed.
11. Monitor Startup Pressure: After commissioning, observe pressure development during compressor startup and loading.
12. Record the Service Work: Document the repair, operating condition, and replaced components for future maintenance planning.

Related Components

Recommended Related Models

Key Advantages

• Supports repair of the minimum pressure check valve assembly.
• Helps maintain appropriate compressor internal pressure.
• Supports correct compressed-air flow direction.
• Helps prevent reverse flow during unloading and shutdown.
• Suitable for scheduled valve maintenance and overhaul.
• Supports proper operation of the compressor air/oil separation circuit.

Technical FAQs

What does the minimum pressure valve do in an oil-injected screw compressor?

It maintains sufficient internal pressure within the compressor’s air/oil separation system while allowing compressed air to flow toward the outlet once the required pressure condition is reached.

Why is the check function important?

The check function helps prevent compressed air from flowing backward from the downstream system into the compressor when the compressor is unloaded or stopped.

When is a repair kit preferable to replacing the complete valve?

A repair kit can be appropriate when the valve housing remains serviceable but internal wear, sealing deterioration, or other replaceable components require attention. The final decision should be based on the valve inspection and applicable compressor service procedure.

What operating symptoms can indicate a minimum pressure check valve problem?

Possible symptoms include abnormal startup pressure behavior, unstable pressure during loading or unloading, reverse flow after shutdown, abnormal oil carryover, or compressor operation that does not match expected pressure conditions.
