Product Overview

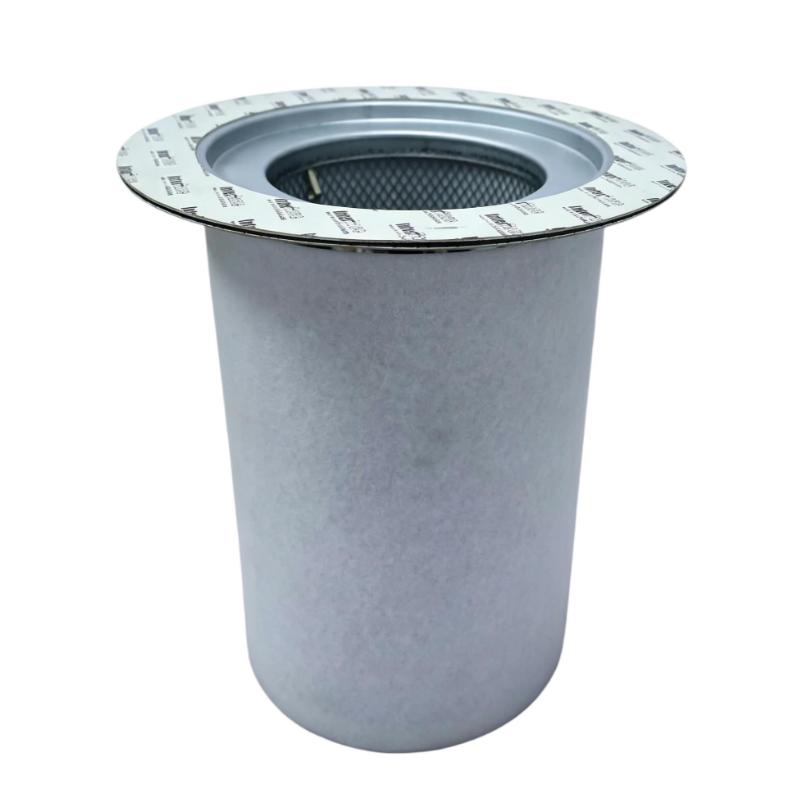

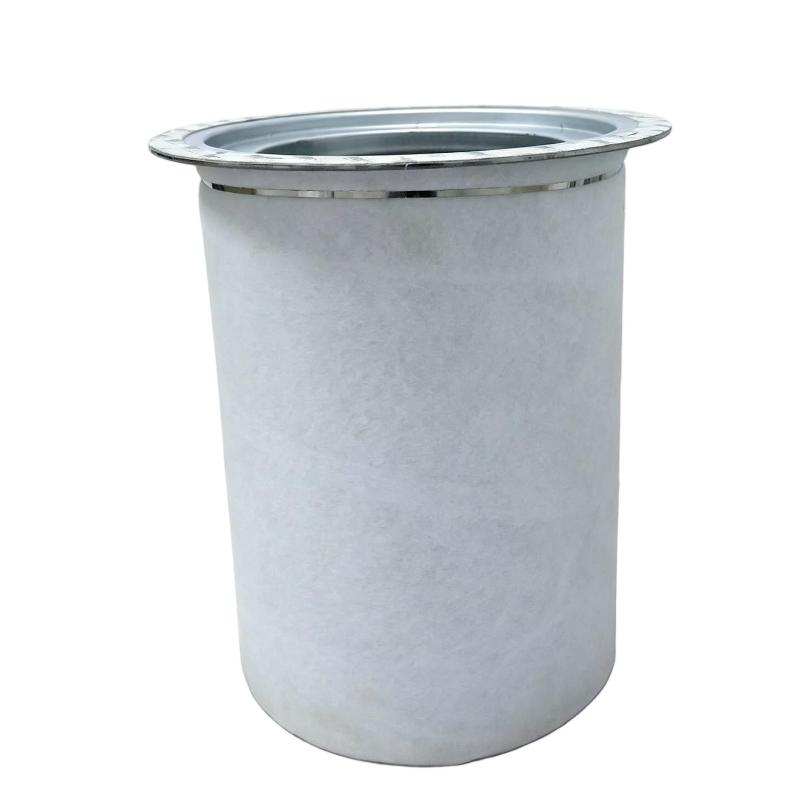

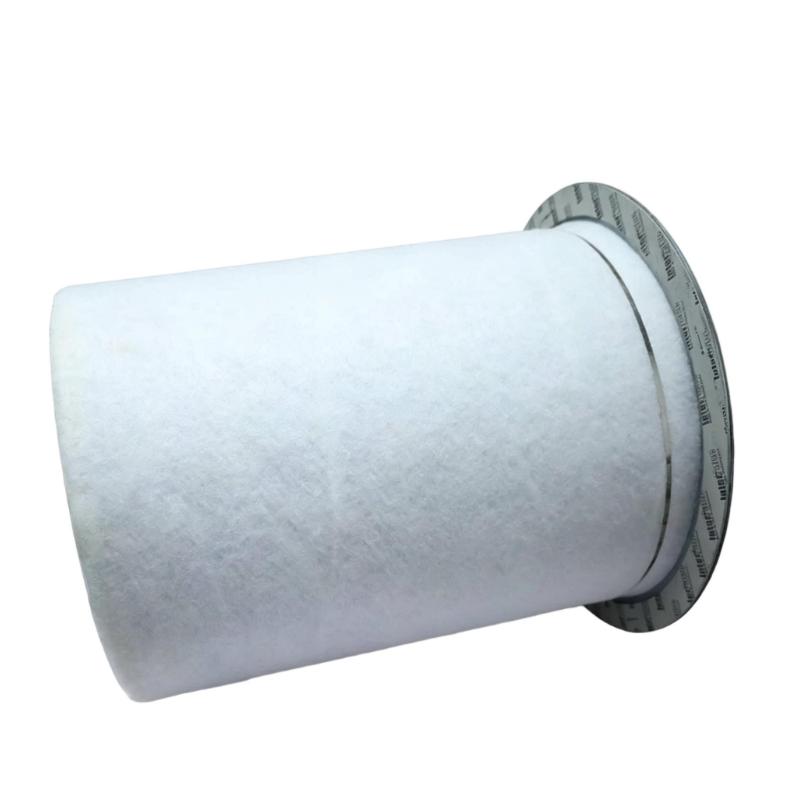

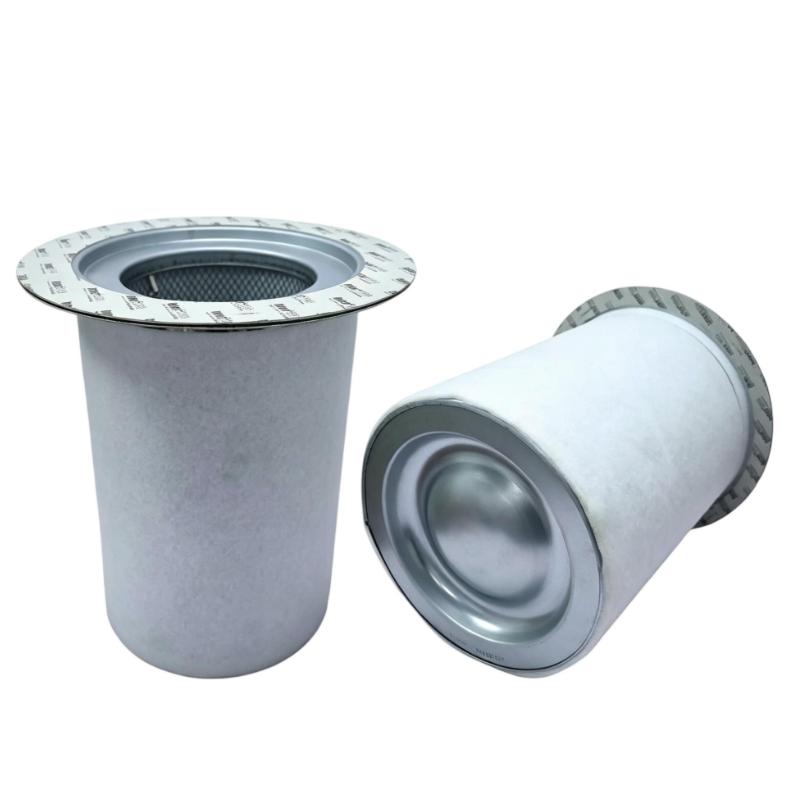

The Ingersoll Rand 47642702001 54509427 Air/Oil Separator is a key separation component used in oil-injected screw compressor systems. It separates entrained compressor oil from compressed air after the compression stage, allowing recovered oil to return to the lubrication and cooling circuit while cleaner compressed air continues toward the outlet system.

In an oil-injected screw compressor, effective air/oil separation directly affects oil carryover, compressor efficiency, downstream air quality, and the condition of the oil circulation system. The separator is therefore typically treated as a service-critical component during compressor maintenance.

The 47642702001 assembly is suitable for compressor maintenance and replacement applications where the specified 54509427 Air/Oil Separator is required. It can be incorporated into scheduled separator replacement programs or used when increased oil carryover, pressure drop, or separator-related performance issues are detected.

Technical Specifications

Product Features

• Air/Oil Separation: Removes entrained compressor oil from compressed air after compression.
• Oil Recovery: Supports the return of separated oil to the compressor lubrication and cooling circuit.
• Compressor Service Component: Suitable for planned maintenance and replacement of separator assemblies.
• Reduced Oil Carryover: Proper separation helps limit the amount of compressor oil leaving with compressed air.
• Screw Compressor Application: Intended for use within oil-injected screw compressor air/oil separation systems.
• System Protection: Helps reduce oil migration into downstream compressed-air equipment.
• Maintenance-Oriented Replacement: Can be installed as part of a scheduled compressor service program.
• Separation System Compatibility: Used together with the compressor separator vessel, oil return circuit, and associated filtration components.

Working Principle

During compression, lubricating oil is injected into the screw compression chamber to provide cooling, sealing, and lubrication. The resulting mixture of compressed air and oil enters the compressor’s air/oil separation section.

The 47642702001 Air/Oil Separator separates oil droplets and aerosols from the compressed-air stream. Separated oil collects and is directed back into the compressor oil circuit, while the treated compressed air moves toward the aftercooler, air receiver, or downstream air system.

As the separator accumulates contamination or becomes restricted through service operation, pressure differential can increase and separation performance can change. Separator condition is therefore normally evaluated together with oil consumption, differential pressure, and compressor operating behavior.

Compression Element → Air/Oil Mixture → 47642702001 Air/Oil Separator → Separated Oil Return → Compressed Air Outlet

Role in an Oil-Injected Screw Compressor Control Architecture

Industrial Applications

Installation and Maintenance

1. Confirm the Part Number: Verify that 47642702001 and 54509427 match the compressor service documentation before installation.
2. Shut Down the Compressor: Stop the compressor and isolate it from the compressed-air system before beginning service work.
3. Release Internal Pressure: Make sure the separator vessel and connected circuits are fully depressurized.
4. Allow Cooling: Wait until the compressor and oil system have cooled to a safe maintenance temperature.
5. Inspect the Separator Housing: Check the separator vessel, sealing surfaces, and connection points for contamination or damage.
6. Replace Sealing Components: Inspect or replace applicable O-rings, gaskets, and sealing elements during separator replacement.
7. Keep the Separator Clean: Prevent dust, dirt, and foreign material from entering the air/oil separation system during installation.
8. Check Oil Return Components: Inspect the oil return line and associated fittings for blockage or restriction.
9. Verify Installation Orientation: Install the separator according to the compressor manufacturer’s specified orientation and connection arrangement.
10. Inspect for Leakage: After reassembly, check the separator area and connected oil/air lines for leakage during startup.
11. Monitor Operating Pressure: Observe separator-system pressure and differential pressure after commissioning.
12. Record Maintenance: Document the replacement date, operating condition, and service findings for future compressor maintenance planning.

Related Components

Recommended Related Models

Key Advantages

• Supports efficient separation of compressor oil from compressed air.
• Helps control oil carryover into downstream air systems.
• Supports recovery of separated oil for recirculation.
• Suitable for scheduled screw compressor maintenance.
• Integrates with the existing air/oil separation circuit.
• Helps maintain compressor operating performance when replaced at the appropriate service interval.

Technical FAQs

What is the function of the Ingersoll Rand 47642702001 Air/Oil Separator?

It separates compressor oil from compressed air after the screw compression stage and supports the return of recovered oil to the compressor oil circuit.

What symptoms can indicate that the air/oil separator needs replacement?

Common indications include increased oil carryover, abnormal separator differential pressure, higher oil consumption, reduced compressor performance, or oil appearing in downstream compressed-air equipment.

Should the oil return circuit be inspected when replacing the 47642702001 separator?

Yes. A restricted or contaminated oil return circuit can affect separator performance even when the separator itself has been replaced. The return line, fittings, and associated components should be checked during service.

Can the 47642702001 separator be replaced without depressurizing the compressor?

No. The compressor and separator system must be shut down, isolated, and fully depressurized before separator maintenance begins. Residual pressure and hot oil can create significant service hazards.
