Product Overview

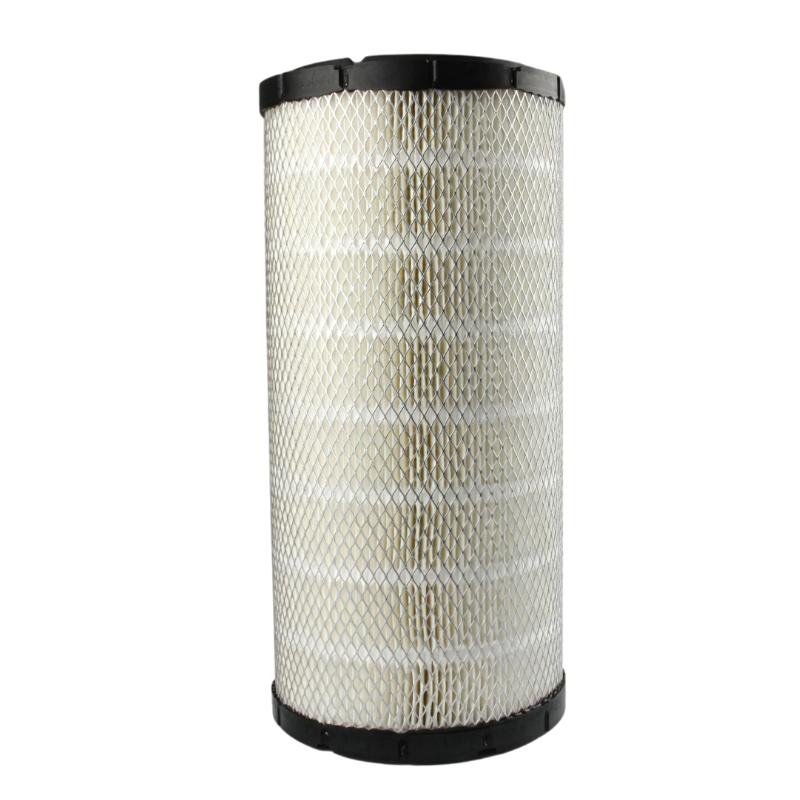

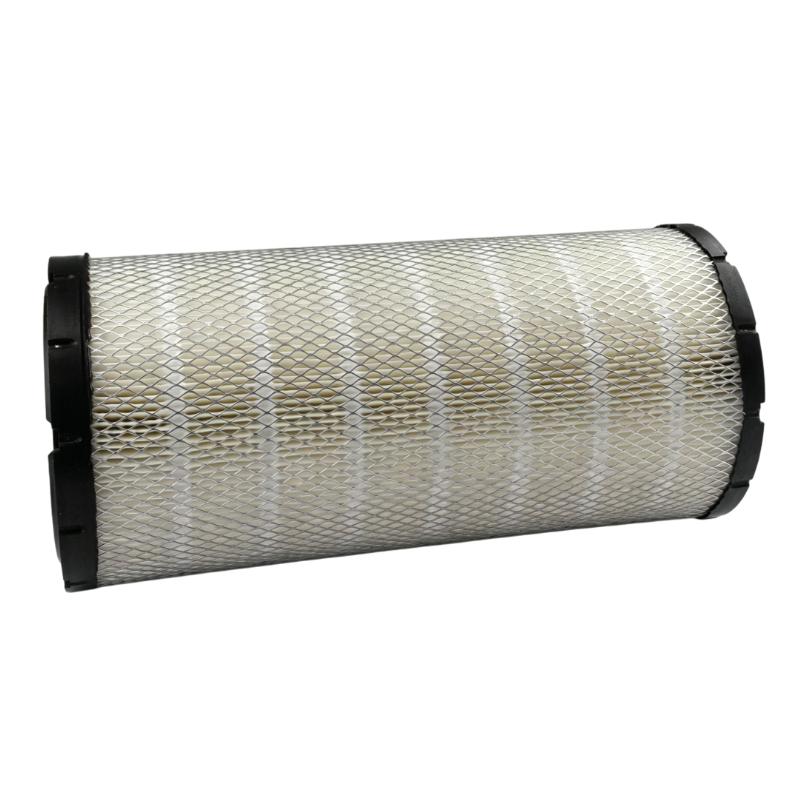

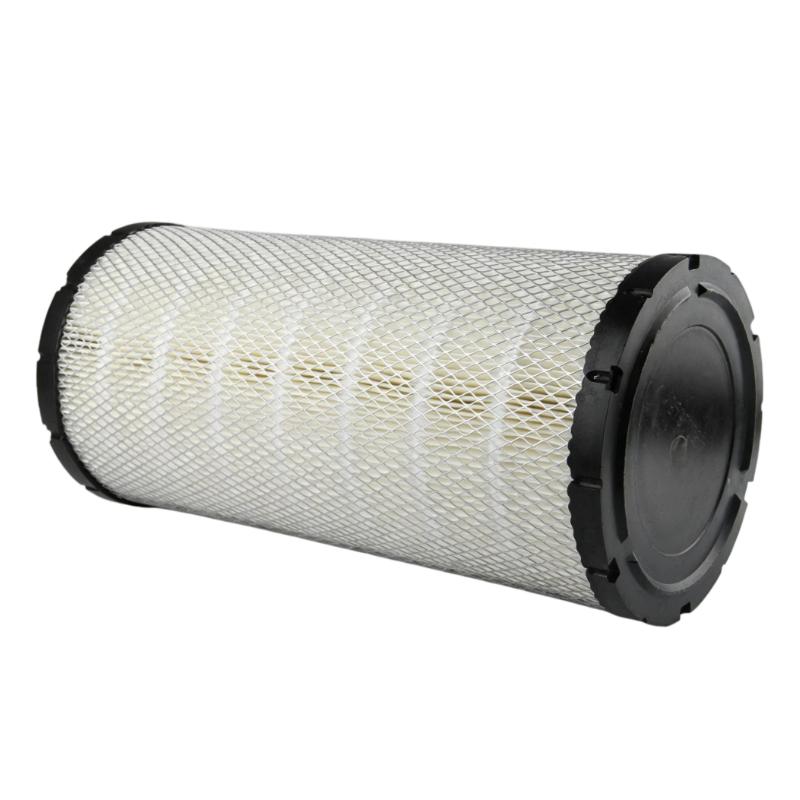

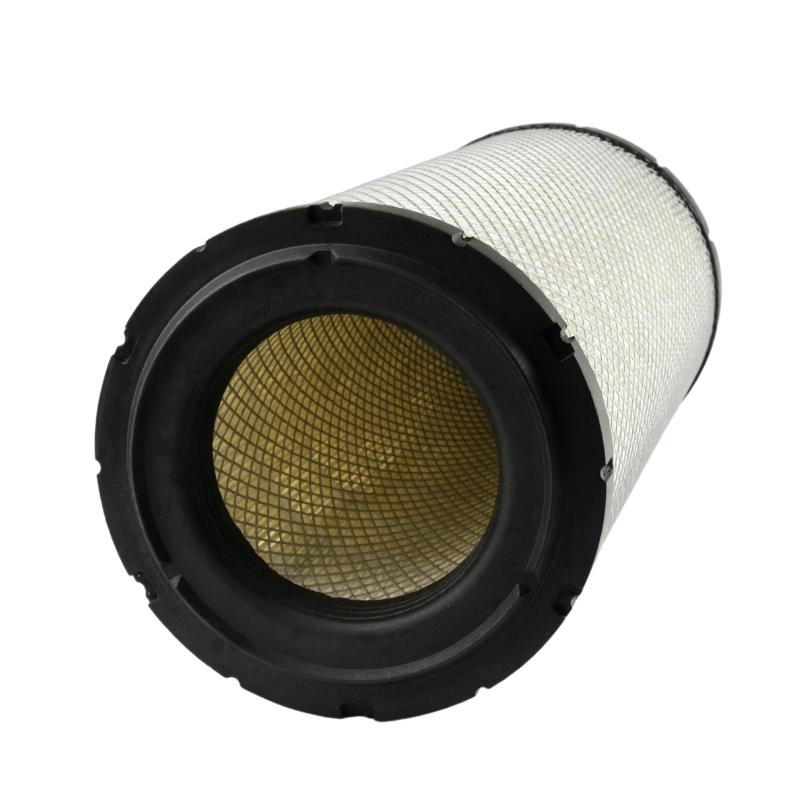

The Ingersoll Rand 47629378001 49101645 Air Filter Element is an industrial air filtration component designed for compatible compressed air equipment. It helps remove airborne dust and particulate contaminants from incoming air before they enter the compressor’s internal components. Maintaining effective intake filtration is important for supporting compressor reliability, protecting precision surfaces, and maintaining stable equipment performance.

In industrial compressed air systems, the air intake filter is one of the first protective components in the compression process. Ambient air can contain dust, fibers, and other suspended particles. If these contaminants enter the compressor, they may contribute to wear, contamination, and reduced operating efficiency over time. A properly matched replacement filter helps maintain the intended filtration function of the original system.

The part number 49101645 is identified in product listings as an Ingersoll Rand air filter element. The additional number 47629378001 is included in the supplied product identification and should be retained when checking inventory records, purchasing documents, and replacement-part references.

This filter is intended for maintenance and replacement applications rather than use as a standalone filtration system. Before ordering, maintenance personnel should confirm the compressor model, serial number, existing filter identification, and housing configuration. Similar-looking filters may differ in dimensions, sealing arrangements, filtration characteristics, and airflow capacity.

The supplied listing dimensions are 380 × 55 × 180 mm, with a listed weight of 0.4 kg. These values can be used for preliminary cataloging and logistics planning, but the physical part and packaging should be checked before finalizing installation or shipping arrangements.

For industrial users, selecting the correct air filter element is an important part of preventive maintenance. A properly fitted filter helps preserve intake cleanliness, reduce the risk of particulate contamination, and support the dependable operation of compatible Ingersoll Rand compressor equipment.

Technical Specifications

Specifications reflect the supplied product listing. Confirm the actual filter geometry, manufacturer documentation, and compatibility with the intended compressor before ordering.

Function and Working Principle

The Ingersoll Rand 49101645 air filter element supports the intake filtration stage of a compatible compressor. Its function is to reduce the amount of airborne particulate matter entering the machine.

1. Intake Air Filtration

A compressor draws ambient air into its intake system before compressing it. The air filter element provides a filtration barrier that captures particles as air passes through the filter media.

The effectiveness of this process depends on the filter’s construction, media characteristics, sealing condition, and airflow requirements. A correctly selected filter helps prevent excessive quantities of dust and debris from reaching downstream components.

2. Protection of Internal Components

Particulate contamination can contribute to abrasion and deposits in compressor systems. Depending on the compressor design, contamination may affect inlet components, compression elements, lubricant cleanliness, and other internal surfaces.

The air filter helps reduce this risk by removing contaminants from incoming air. It cannot eliminate all possible contamination, so proper maintenance of the complete intake system remains necessary.

3. Airflow Management

A filter must provide the required balance between particulate capture and airflow resistance. As dust accumulates, resistance to airflow may increase. Excessive restriction can interfere with normal compressor operation and may increase the energy required to draw air through the intake system.

Regular inspection and replacement according to the applicable compressor maintenance instructions help maintain suitable airflow.

4. Sealing and Bypass Prevention

The filter must fit correctly within its housing. Damaged seals, incorrect dimensions, or improper installation can allow unfiltered air to bypass the media.

A filter that fits physically but does not seal correctly may fail to provide the intended protection. Therefore, replacement selection should account for the housing dimensions, sealing surfaces, and mounting arrangement, not simply the overall size.

Role in Industrial Compressed Air Systems

The 47629378001 / 49101645 filter element supports the intake side of a compressed air system. Its performance contributes to the protection and maintenance of the compressor, which in turn supplies air to pneumatic equipment and industrial processes.

Compressor Protection

The intake filter helps reduce the entry of airborne particles that could contribute to internal wear. This is especially important in industrial environments where dust levels vary with production activity, material handling, or outdoor air conditions.

Support for Stable Operation

A clean, correctly installed filter helps maintain the intended intake airflow. Excessive filter restriction or air bypass can affect compressor performance and may contribute to operating problems.

Preventive Maintenance

Air filter replacement is a routine maintenance task in many compressor installations. A documented replacement schedule helps maintenance teams manage consumables, identify abnormal contamination, and reduce the likelihood of unplanned downtime.

Protection of Downstream Equipment

The intake filter protects the compressor from particles entering through its intake. It should not be confused with a downstream compressed-air line filter, which is designed to treat air after compression and may remove different contaminants.

Applications requiring clean or dry compressed air may also need suitable downstream particulate filters, coalescing filters, dryers, and other treatment equipment.

Industrial Applications

The Ingersoll Rand 49101645 air filter element may be used in compatible compressor installations where the part number is specified by the equipment documentation.

1. Industrial Air Compressors

Industrial compressors provide compressed air for pneumatic tools, actuators, production machinery, and utility systems. An appropriately matched intake filter helps protect the compressor from airborne particulate contamination.

The exact compressor model must be verified before this filter is selected.

2. Manufacturing Facilities

Manufacturing environments may contain dust generated by cutting, machining, packaging, material handling, or general production activity. Maintaining intake filtration helps reduce the quantity of these particles entering the compressor.

Where ambient contamination is high, filter inspection frequency may need to be adjusted according to operating conditions and the manufacturer’s recommendations.

3. Pneumatic Automation Systems

Pneumatic automation relies on compressed air to operate cylinders, valves, grippers, and other equipment. The air filter element supports the compressor that supplies this air.

It is one component of the overall compressed air system and does not replace the air treatment devices required to meet the cleanliness requirements of downstream pneumatic equipment.

4. Industrial Workshops

Workshops often operate compressors for tools, cleaning systems, and general maintenance tasks. A suitable intake filter helps protect the compressor during routine operation.

Maintenance personnel should inspect the filter and intake housing for dust accumulation, damage, and incorrect seating.

5. Continuous Production Operations

Facilities that depend on continuous compressed air supply benefit from planned filter maintenance. Replacing a filter before excessive restriction develops can help avoid unnecessary operational interruptions.

The replacement interval should be based on the compressor’s maintenance documentation, operating hours, and environmental conditions rather than a universal interval applied to every machine.

Installation and System Integration

Correct installation is essential for maintaining filtration performance and preventing unfiltered air from bypassing the element.

1. Verify the Part Number

Before installation, compare the replacement part number with the existing filter, equipment parts list, and compressor documentation.

The numbers 47629378001 and 49101645 should be checked against the relevant parts records. If the compressor has undergone previous modifications, confirm that the installed housing and filter arrangement still match the documented configuration.

2. Inspect the Filter Housing

Before fitting the replacement, inspect the housing for accumulated dust, damage, loose material, and deteriorated sealing surfaces.

Clean the housing using an appropriate method that prevents contaminants from entering the intake passage. Avoid leaving cleaning materials, debris, or loose objects inside the compressor intake.

3. Install the Element Correctly

Fit the replacement filter according to the compressor manufacturer’s instructions. Ensure that the element sits evenly in its intended position and that the sealing surfaces engage correctly.

Do not force a filter into an incompatible housing or modify the element to make it fit. Incorrect installation can damage the filter or allow unfiltered air to enter the compressor.

4. Check Airflow and Restriction

After installation, inspect any available filter restriction indicator or intake monitoring device. Confirm that the filter housing is closed securely and that there are no obvious gaps or installation problems.

If an abnormal restriction indication remains after replacement, investigate other potential causes, including intake obstructions, damaged ducting, or an incorrect filter element.

5. Record Maintenance Information

Record the replacement date, compressor running hours, part number, and observed filter condition. These records help identify changing contamination levels and support future maintenance planning.

If filters repeatedly become dirty sooner than expected, investigate the intake location and surrounding environment rather than simply shortening the replacement interval without understanding the cause.

Compatible System Components

The air filter element operates as part of a larger compressor installation. The following components may be present in a compatible system, but they are not necessarily supplied with the filter.

Component compatibility should be verified using the compressor model, serial number, and relevant parts documentation.

Alternative Models and Replacement Considerations

When sourcing an alternative to the Ingersoll Rand 47629378001 / 49101645 air filter element, physical dimensions alone are not sufficient to establish compatibility.

Before approving a replacement, compare:

• Exact part number and cross-reference.
• Compressor model and serial number.
• Overall dimensions and mounting geometry.
• Sealing arrangement and housing interface.
• Required airflow capacity.
• Filtration performance and pressure-drop characteristics.
• Environmental operating conditions.
• Manufacturer maintenance requirements.

An incorrect filter may cause excessive intake restriction or allow unfiltered air to bypass the element. For critical equipment, confirm the proposed replacement with the compressor documentation or an authorized technical supplier.

Key Advantages

Supports Cleaner Intake Air

The filter element helps capture airborne particles before they enter compatible compressor equipment.

Helps Protect Internal Components

Reducing particulate entry can help limit contamination-related wear within the compressor’s intake and compression systems.

Supports Preventive Maintenance

The replaceable element can be incorporated into scheduled compressor servicing and spare-parts inventory management.

Compact Replacement Format

The supplied dimensions of 380 × 55 × 180 mm provide a reference for product cataloging and preliminary handling arrangements.

Helps Maintain Intended Airflow

Replacing a loaded or damaged element with the correct part can help restore the intended intake filtration condition.

Suitable for Industrial Maintenance Programs

Correctly identified replacement filters help maintenance teams manage compressor consumables and reduce the risk of installing incompatible parts.

Technical FAQs

1. What is the Ingersoll Rand 47629378001 49101645?

It is an industrial air filter element identified for compatible Ingersoll Rand compressed air equipment. It helps remove airborne particulate contaminants from intake air.

2. What is the function of an air filter element in a compressor?

It filters incoming ambient air before that air enters the compressor. This helps reduce the amount of dust and other particles reaching internal components.

3. What are the dimensions and weight of this product?

The supplied product listing gives dimensions of 380 × 55 × 180 mm and a weight of 0.4 kg. Confirm the actual item and whether shipping packaging is included when preparing logistics documentation.

4. Which compressors use part number 49101645?

Some supplier listings associate 49101645 with particular Ingersoll Rand rotary screw compressor models. Compatibility can vary by compressor series and configuration, so verify the model and serial number before ordering.

5. Can I use a filter with similar dimensions?

Not necessarily. A compatible filter must also match the housing interface, sealing arrangement, airflow requirements, and filtration characteristics.

6. How often should the filter be replaced?

Follow the maintenance interval specified for the exact compressor model. Dust levels, operating hours, and restriction indications can affect the required service interval.

7. Can the filter element be cleaned and reused?

Do not assume that it is reusable. Cleaning may damage the media or fail to remove embedded particles. Follow the manufacturer’s instructions for the specific element and replace it when required.

8. What happens if the air filter becomes blocked?

Excessive restriction can reduce intake airflow and affect compressor performance. The appropriate response is to inspect the intake system and replace the filter when indicated by the equipment’s maintenance requirements.

9. Is this an oil filter or an air-oil separator?

No. It is identified as an air filter element for intake filtration. Oil filters and air-oil separator elements perform different functions and must be selected using their own part numbers.

10. What information should I provide when ordering?

Provide the complete part number, compressor model, serial number, and photographs of the existing element or its label when available. This information helps reduce the risk of ordering an incompatible replacement.

Procurement and Maintenance Recommendations

When purchasing the Ingersoll Rand 47629378001 / 49101645 air filter element, verify the complete part identification against the compressor’s parts list. Confirm the equipment model, serial number, existing filter configuration, and housing dimensions before placing an order.

For industrial spare-parts procurement, check the physical condition of the supplied element, packaging, quantity, and applicable quality documentation. If purchasing an aftermarket replacement, request technical information demonstrating that the element is suitable for the intended application.

For maintenance planning, track compressor operating hours and filter condition. Inspect the intake housing and sealing surfaces during replacement, and investigate recurring restriction or contamination problems. Avoid applying a fixed service interval across different compressor models without checking the relevant maintenance instructions.

The supplied dimensions and weight can support preliminary inventory and shipping records. Before final shipment, confirm the actual packaged dimensions and gross weight with the supplier.

Conclusion

The Ingersoll Rand 47629378001 49101645 Air Filter Element is a replacement filtration component for compatible industrial compressed air equipment. Its primary role is to reduce airborne particulate contamination entering the compressor, helping protect internal components and support dependable operation.

With supplied listing dimensions of 380 × 55 × 180 mm and a weight of 0.4 kg, the element can be cataloged for industrial spare-parts procurement. However, exact compatibility should always be verified using the compressor model, serial number, and original parts documentation. Selecting the correct filter and maintaining it according to the equipment manufacturer’s instructions are essential for reliable compressed air system operation.
