Product Overview

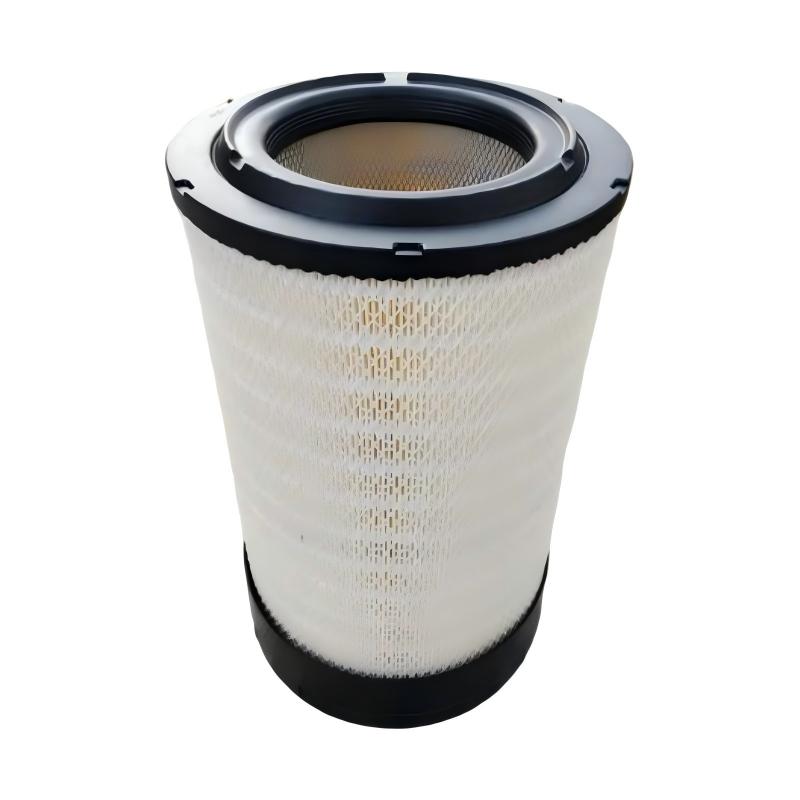

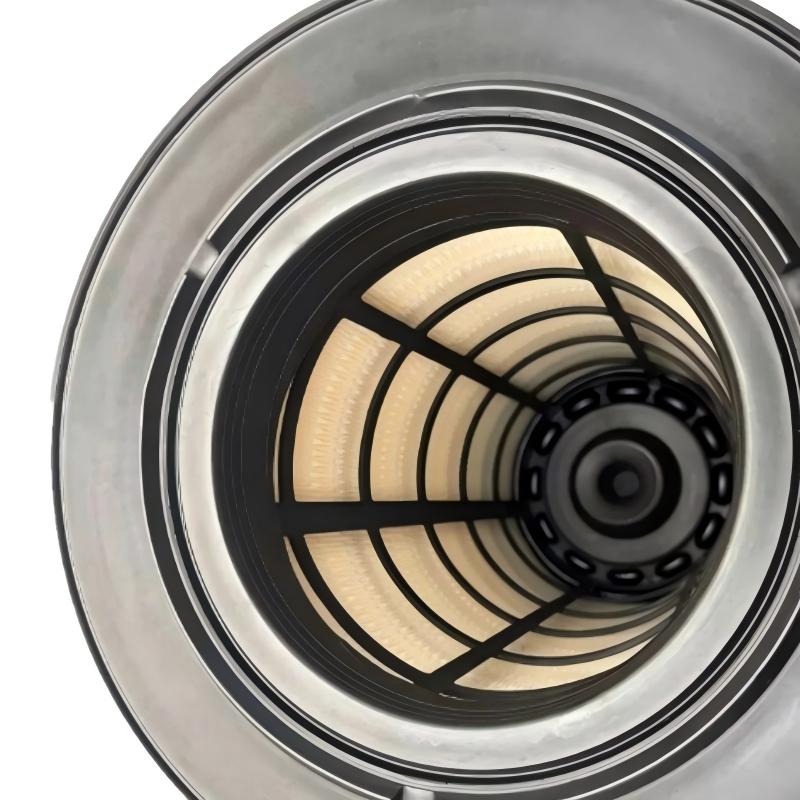

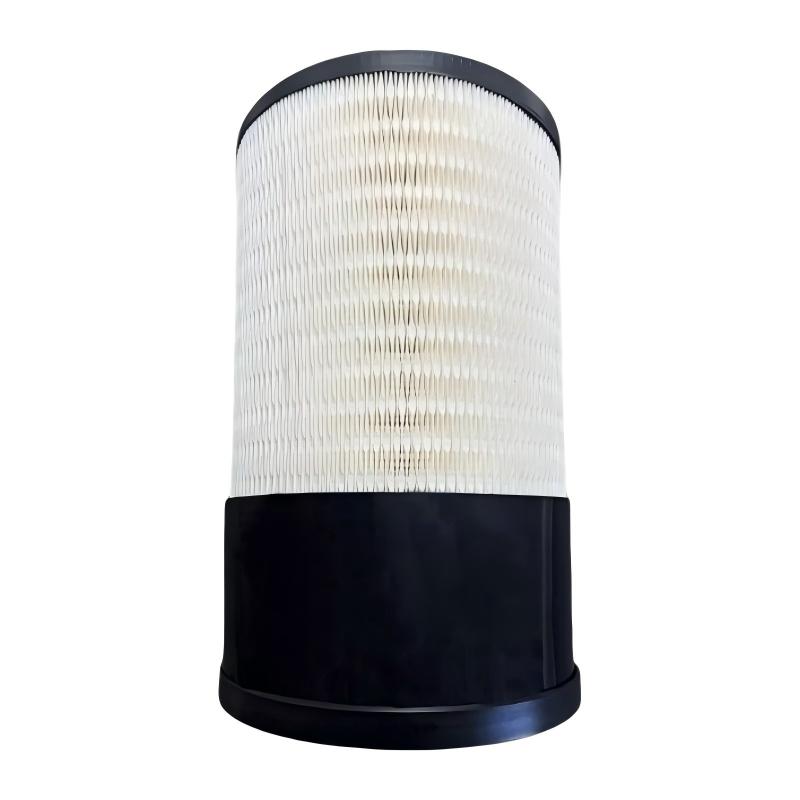

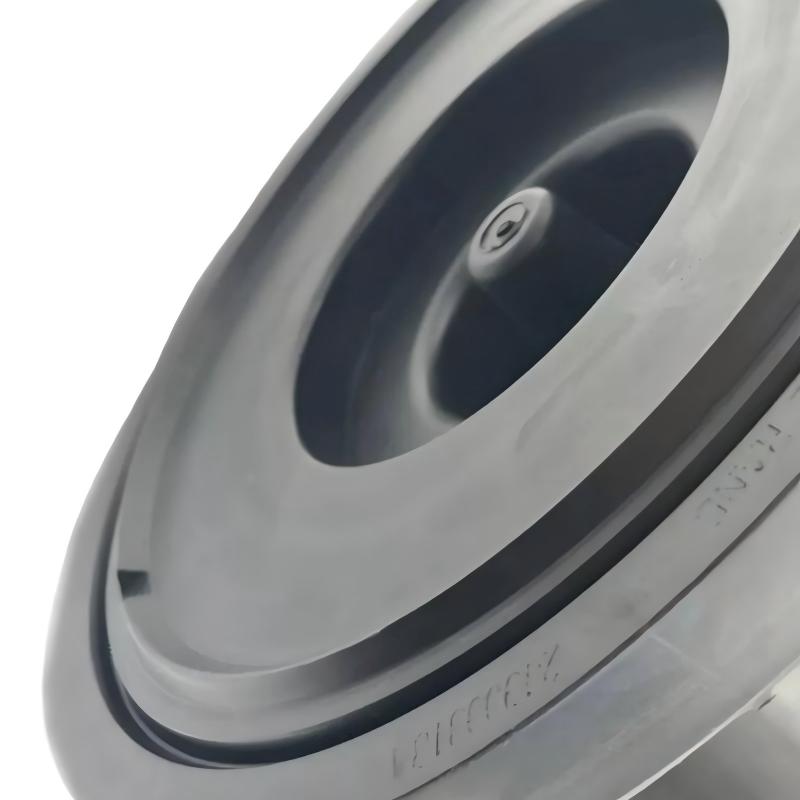

The Ingersoll Rand 47623613001 / 24900318 Air Filter is a high-efficiency intake air filter engineered for Ingersoll Rand oil-injected rotary screw air compressors. Designed to remove airborne contaminants before they enter the compressor airend, this industrial-grade filter helps maintain clean airflow, improve compression efficiency, and protect critical internal components from premature wear.

Air quality is one of the most important factors affecting compressor performance and service life. During continuous operation, compressors draw in large volumes of ambient air containing dust, sand, fibers, pollen, soot, and other airborne contaminants. Without proper filtration, these particles can damage screw rotors, bearings, valves, and lubrication systems while increasing energy consumption and maintenance costs. The 24900318 Air Filter effectively captures fine particulate matter while maintaining a low-pressure drop, ensuring a consistent supply of clean intake air.

Constructed with premium cellulose and synthetic filtration media, reinforced metal end caps, and a durable steel mesh support structure, the filter provides excellent mechanical strength and long service life. Its large filtration surface area increases dust-holding capacity, extends maintenance intervals, and ensures stable airflow under demanding industrial operating conditions.

With dimensions of 226 × 470 × 160 mm and a weight of 3.1 kg, the Ingersoll Rand 47623613001 / 24900318 Air Filter is an ideal replacement component for maintaining the efficiency, reliability, and longevity of industrial rotary screw air compressor systems.

Technical Specifications

Function and Working Principle

The Ingersoll Rand 47623613001 / 24900318 Air Filter serves as the first line of defense against airborne contamination entering the compressor.

During compressor operation, ambient air is drawn through the pleated filter element. The multi-layer filtration media traps dust, dirt, fibers, insects, pollen, and other particulate contaminants while allowing clean air to pass with minimal airflow restriction. The reinforced pleated design maximizes filtration surface area, increasing dust-holding capacity without significantly increasing pressure loss.

Clean intake air protects the compressor airend, lubrication system, bearings, and downstream components from abrasive wear. Reduced contamination also improves compression efficiency, lowers operating temperatures, and contributes to lower energy consumption.

Key operating features include:

• High-efficiency particulate filtration
• Large pleated filtration surface
• Low airflow resistance
• High dust-holding capacity
• Reinforced structural design
• Stable airflow under heavy-duty operation
• Improved compressor efficiency
• Extended equipment service life

Role in Air Compressor Systems

Within an Ingersoll Rand rotary screw air compressor, the 47623613001 / 24900318 Air Filter performs several essential functions that directly influence compressor performance.

Its primary responsibilities include:

• Filtering intake air
• Preventing dust ingress
• Protecting screw rotors and bearings
• Maintaining clean airflow
• Reducing internal component wear
• Improving energy efficiency
• Extending maintenance intervals
• Enhancing compressor reliability

Routine replacement of the air filter is one of the most important preventive maintenance procedures for ensuring consistent compressor performance.

Industrial Applications

The Ingersoll Rand 47623613001 / 24900318 Air Filter is widely used in:

• Manufacturing Plants
• Automotive Production Facilities
• Steel & Metallurgy Plants
• Mining Operations
• Chemical Processing Facilities
• Petrochemical Plants
• Oil & Gas Production
• Power Generation Stations
• Food & Beverage Processing
• Pharmaceutical Manufacturing
• Textile Industry
• Paper & Pulp Mills
• Electronics Manufacturing
• Packaging Facilities
• General Industrial Compressed Air Systems

Its large filtration capacity makes it especially suitable for dusty industrial environments operating around the clock.

Installation and Maintenance

Proper installation and routine maintenance maximize filtration efficiency and compressor reliability.

Recommended maintenance procedures include:

• Shut down and isolate the compressor before servicing.
• Open the intake filter housing carefully.
• Remove the used air filter element.
• Clean the housing and inspect sealing surfaces.
• Install the new filter with the correct airflow orientation.
• Verify proper sealing before closing the housing.
• Restart the compressor and monitor intake pressure.
• Inspect the filter periodically under dusty operating conditions.
• Replace the filter according to scheduled maintenance intervals or differential pressure recommendations.

Regular replacement helps maintain maximum airflow while protecting expensive compressor components.

Compatible System Components

The Ingersoll Rand 47623613001 / 24900318 Air Filter commonly operates together with:

• Ingersoll Rand Rotary Screw Air Compressors
• Ingersoll Rand 24900433 Oil Filter
• Ingersoll Rand 23708423 Air-Oil Separator
• Ingersoll Rand 88089743 Breather Filter
• Ingersoll Rand 47605764001 Panel Air Filter
• Compressor Air Intake Assemblies
• Compressor Airends
• Compressor Lubrication Systems
• Oil Coolers
• Oil Pumps
• Minimum Pressure Valves
• Thermostatic Valves
• Compressor Controllers
• Electric Drive Motors
• Industrial Compressed Air Distribution Systems

These components work together to provide clean intake air, efficient lubrication, high-quality compressed air, and reliable long-term compressor performance.

Recommended Alternative Models

Key Advantages

• High-efficiency intake air filtration
• Large dust-holding capacity
• Low pressure drop
• Reinforced industrial construction
• Excellent filtration performance
• Protects compressor airend
• Improves compressor efficiency
• Extends equipment service life
• Easy installation and maintenance
• Optimized for Ingersoll Rand rotary screw air compressors

Technical FAQs

What is the primary function of the Ingersoll Rand 47623613001 / 24900318 Air Filter?

The filter removes airborne contaminants from compressor intake air, protecting the compressor airend, bearings, lubrication system, and other critical components while maintaining efficient airflow.

When should the air filter be replaced?

The air filter should be replaced according to the compressor maintenance schedule or whenever excessive intake restriction, contamination, or pressure drop is observed. Dusty environments may require more frequent replacement.

What equipment commonly works with this air filter?

The 47623613001 / 24900318 Air Filter is commonly installed with Ingersoll Rand rotary screw air compressors, 24900433 oil filters, 23708423 air-oil separators, 88089743 breather filters, 47605764001 panel air filters, compressor airends, oil pumps, oil coolers, thermostatic valves, minimum pressure valves, compressor controllers, electric motors, maintenance service kits, and industrial compressed air systems, providing comprehensive protection for compressor air intake and lubrication systems.

Conclusion

The Ingersoll Rand 47623613001 / 24900318 Air Filter is a critical maintenance component designed to maximize the performance, efficiency, and service life of Ingersoll Rand oil-injected rotary screw air compressors. By providing high-efficiency particulate filtration, low airflow resistance, and durable industrial construction, it protects internal compressor components, reduces maintenance costs, improves energy efficiency, and ensures reliable long-term operation.

With dimensions of 226 × 470 × 160 mm and a weight of 3.1 kg, the Ingersoll Rand 47623613001 / 24900318 Air Filter is an ideal replacement solution for manufacturing, mining, petrochemical, power generation, pharmaceutical, food processing, and other industrial compressed air applications requiring dependable intake air filtration and continuous operational reliability.
