Product Overview

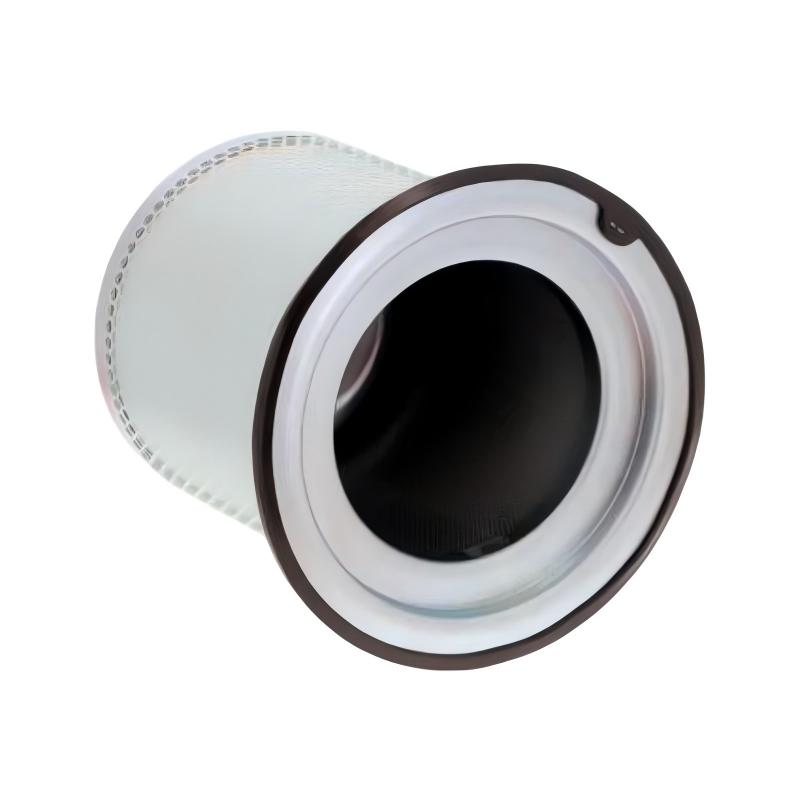

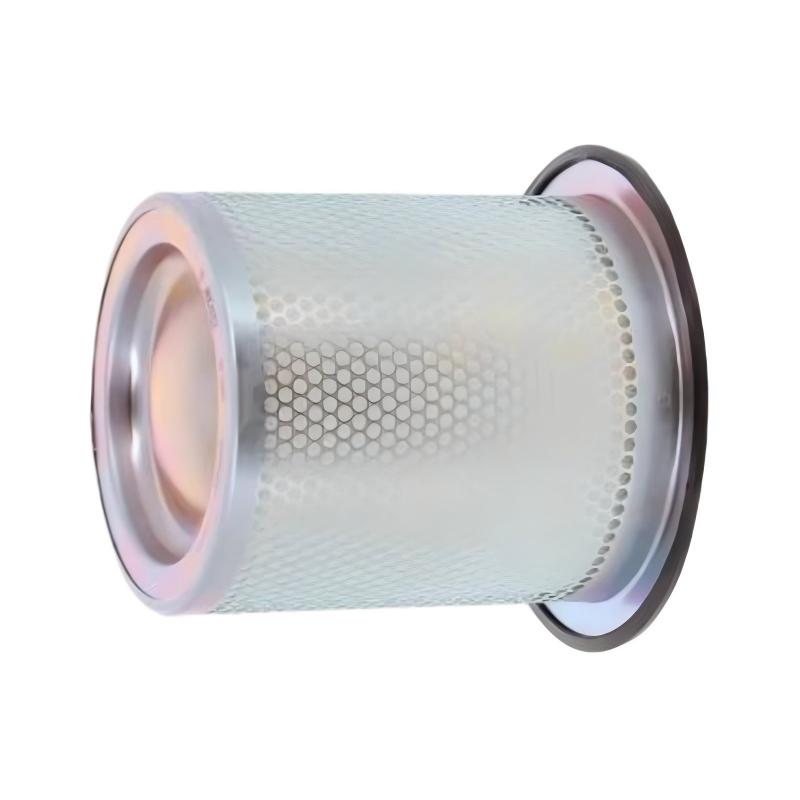

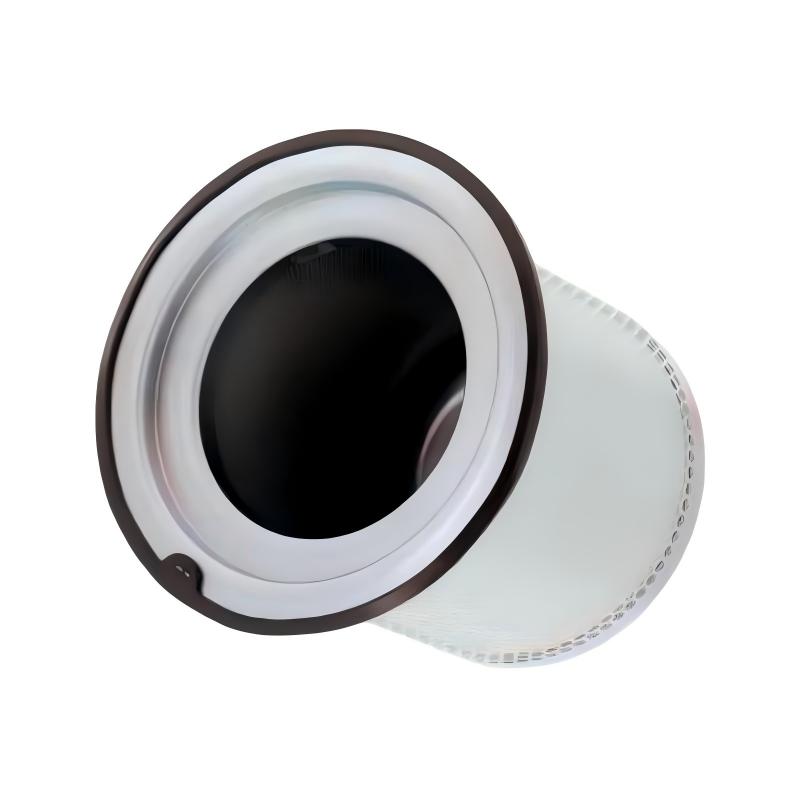

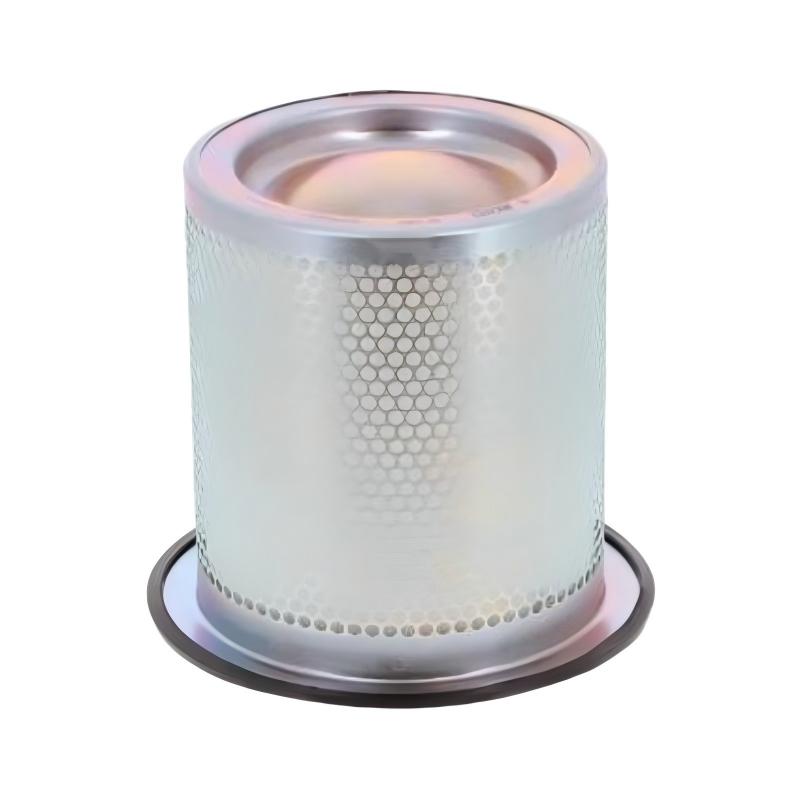

The Ingersoll Rand 47623613001 / 23708423 Air-Oil Separator is a high-performance separator element designed specifically for Ingersoll Rand oil-injected rotary screw air compressors. Its primary function is to efficiently separate lubricating oil from compressed air, ensuring a continuous supply of clean compressed air while recovering lubricant for recirculation within the compressor lubrication system.

During the compression process, oil is injected into the airend to lubricate moving components, remove heat, and seal the compression chamber. The resulting compressed air contains fine oil droplets that must be removed before the air enters downstream equipment. The 23708423 Air-Oil Separator utilizes a multi-layer coalescing filtration element that captures microscopic oil particles and combines them into larger droplets, allowing the recovered lubricant to return to the compressor oil reservoir while delivering high-quality compressed air with extremely low oil carryover.

Constructed with heavy-duty steel components, high-efficiency fiberglass filtration media, and corrosion-resistant internal structures, the separator is designed to operate reliably under continuous high-pressure and high-temperature industrial conditions. Its optimized flow path minimizes pressure loss, helping improve compressor efficiency while reducing energy consumption and extending maintenance intervals.

Featuring an outer diameter of 240 mm and a weight of 4.9 kg, the Ingersoll Rand 47623613001 / 23708423 Air-Oil Separator provides dependable performance for demanding industrial compressed air systems.

Technical Specifications

Function and Working Principle

The Ingersoll Rand 47623613001 / 23708423 Air-Oil Separator performs the critical task of separating lubricant from compressed air before the air leaves the compressor package.

Compressed air mixed with lubricating oil enters the separator vessel, where centrifugal action removes larger oil droplets. The remaining fine oil mist passes through the multi-layer coalescing filter media, which captures microscopic oil particles and combines them into larger droplets. These droplets drain back into the compressor oil system by gravity, allowing clean compressed air to exit the separator with minimal residual oil content.

The optimized internal design minimizes differential pressure across the separator element, ensuring efficient airflow while maintaining high oil separation efficiency. This contributes to improved compressor performance, lower energy consumption, and reduced lubricant losses.

Key operating features include:

• High-efficiency oil separation
• Low residual oil carryover
• Multi-layer coalescing filtration media
• Low pressure differential
• Heavy-duty industrial construction
• Excellent corrosion resistance
• Improved compressor efficiency
• Extended separator service life

Role in Air Compressor Systems

Within an Ingersoll Rand rotary screw air compressor, the 47623613001 / 23708423 Air-Oil Separator is one of the most important maintenance components.

Its primary responsibilities include:

• Separating oil from compressed air
• Recovering compressor lubricant
• Reducing oil consumption
• Delivering clean compressed air
• Protecting downstream pneumatic equipment
• Improving compressor efficiency
• Lowering operating costs
• Extending compressor service life

A properly functioning separator helps maintain air quality while ensuring efficient lubrication system performance.

Industrial Applications

The Ingersoll Rand 47623613001 / 23708423 Air-Oil Separator is widely used in:

• Manufacturing Plants
• Automotive Production Facilities
• Metal Processing Plants
• Steel Mills
• Chemical Processing Plants
• Petrochemical Facilities
• Oil & Gas Operations
• Mining Industry
• Food & Beverage Processing
• Pharmaceutical Manufacturing
• Textile Production
• Paper & Pulp Mills
• Electronics Manufacturing
• Packaging Facilities
• Industrial Compressed Air Systems

Its high separation efficiency makes it ideal for continuous-duty compressor applications requiring clean compressed air and reliable lubrication recovery.

Installation and Maintenance

Proper installation and preventive maintenance maximize separator performance and compressor reliability.

Recommended maintenance procedures include:

• Shut down and isolate the compressor before servicing.
• Depressurize the separator vessel completely.
• Remove the used separator element carefully.
• Clean the separator housing and sealing surfaces.
• Install the new separator with the correct gasket alignment.
• Tighten according to the specified torque requirements.
• Restart the compressor and verify system pressure.
• Inspect for leaks during initial operation.
• Replace the separator according to scheduled maintenance intervals or differential pressure recommendations.

Routine replacement helps reduce oil carryover, maintain compressor efficiency, and prevent unnecessary downtime.

Compatible System Components

The Ingersoll Rand 47623613001 / 23708423 Air-Oil Separator commonly operates together with:

• Ingersoll Rand Rotary Screw Air Compressors
• Ingersoll Rand 24900433 Oil Filter
• Ingersoll Rand 47605764001 Panel Air Filter
• Compressor Lubricating Oil
• Oil Cooler Assemblies
• Compressor Airends
• Minimum Pressure Valves
• Thermostatic Valves
• Oil Scavenge Lines
• Compressor Controllers
• Electric Drive Motors
• Air Receiver Tanks
• Compressor Maintenance Service Kits
• Refrigerated Air Dryers
• Industrial Compressed Air Distribution Systems

Together, these components maintain clean compressed air production, efficient oil recovery, reliable lubrication, and long-term compressor performance.

Recommended Alternative Models

Key Advantages

• High-efficiency oil separation
• Extremely low oil carryover
• Low pressure differential
• Heavy-duty industrial construction
• Excellent corrosion resistance
• Reduced lubricant consumption
• Improved compressor efficiency
• Extended maintenance intervals
• Easy replacement during scheduled servicing
• Optimized for Ingersoll Rand rotary screw air compressors

Technical FAQs

What is the primary function of the Ingersoll Rand 47623613001 / 23708423 Air-Oil Separator?

The separator removes lubricating oil from compressed air, allowing the recovered oil to return to the compressor lubrication system while delivering clean compressed air to downstream equipment.

When should the air-oil separator be replaced?

The separator should normally be replaced according to the compressor manufacturer’s recommended maintenance schedule or whenever excessive pressure differential or oil carryover is observed.

What equipment commonly works with this air-oil separator?

The 47623613001 / 23708423 Air-Oil Separator is commonly installed with Ingersoll Rand rotary screw air compressors, 24900433 oil filters, 47605764001 panel air filters, compressor lubricants, oil coolers, airends, oil scavenge systems, minimum pressure valves, thermostatic valves, compressor controllers, electric motors, refrigerated air dryers, maintenance service kits, and industrial compressed air systems, providing efficient air purification and lubricant recovery.

Conclusion

The Ingersoll Rand 47623613001 / 23708423 Air-Oil Separator is a critical maintenance component for Ingersoll Rand rotary screw air compressors, providing highly efficient oil separation, reliable lubricant recovery, and clean compressed air output. Its advanced coalescing filtration technology minimizes oil carryover, reduces energy consumption, protects downstream equipment, and extends compressor service life.

With an outer diameter of 240 mm and a weight of 4.9 kg, the Ingersoll Rand 47623613001 / 23708423 Air-Oil Separator is an ideal replacement solution for manufacturing, mining, petrochemical, pharmaceutical, food processing, power generation, and other industrial compressed air applications requiring maximum reliability and long-term operational efficiency.
