Product Overview

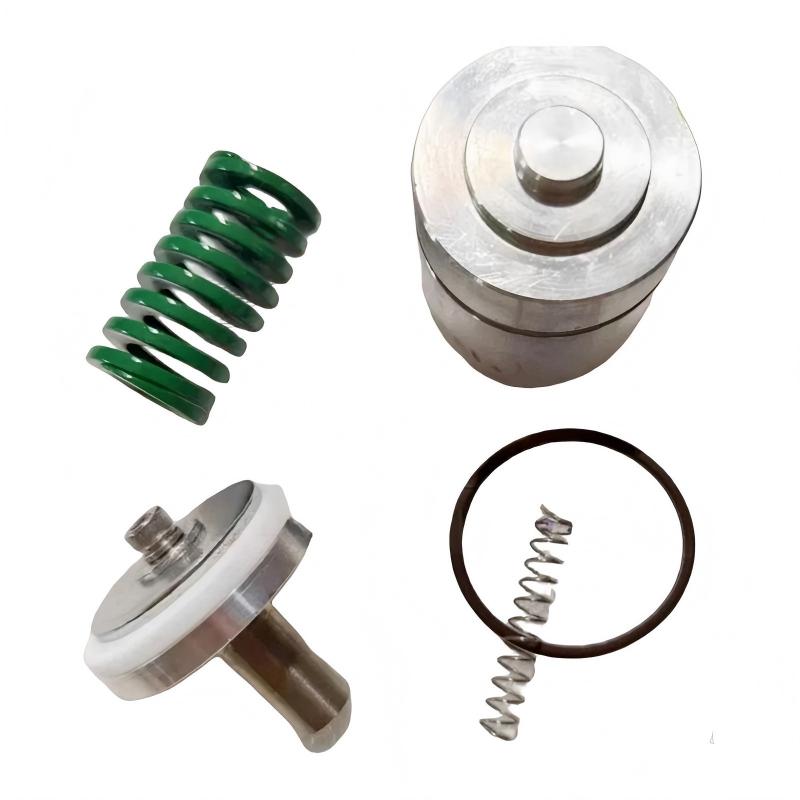

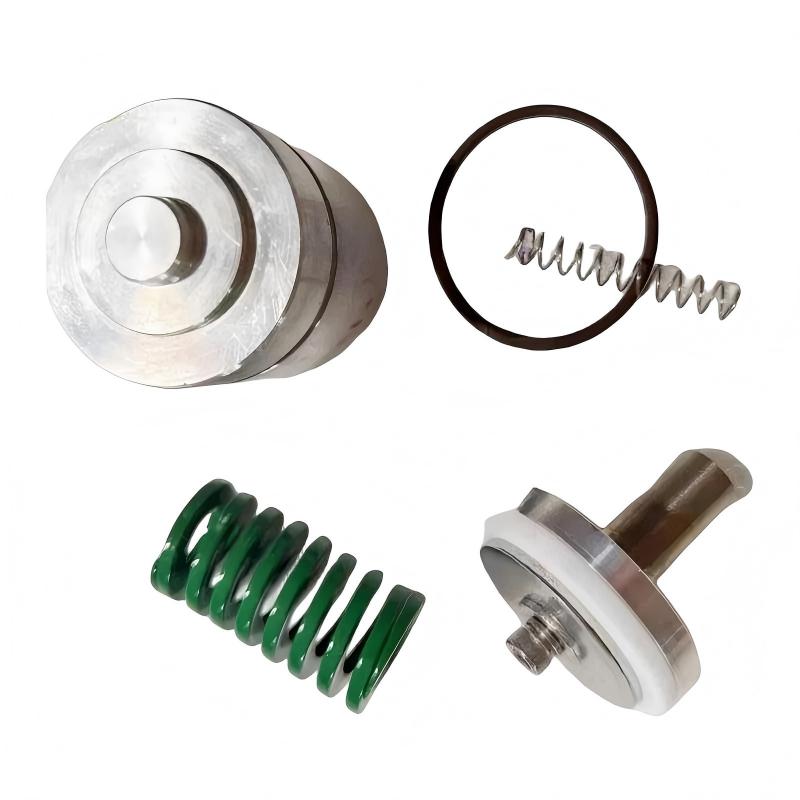

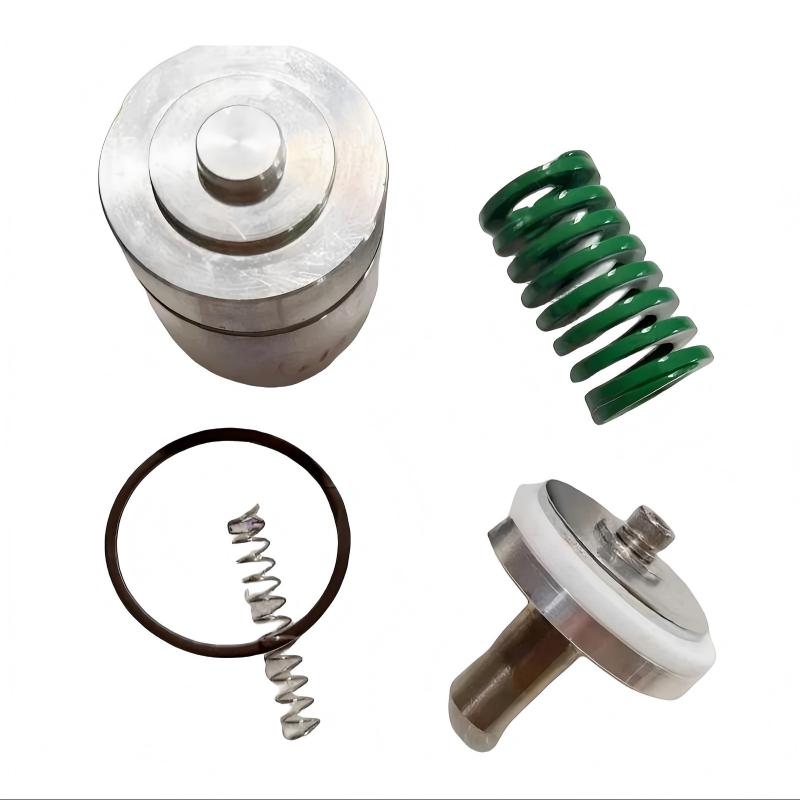

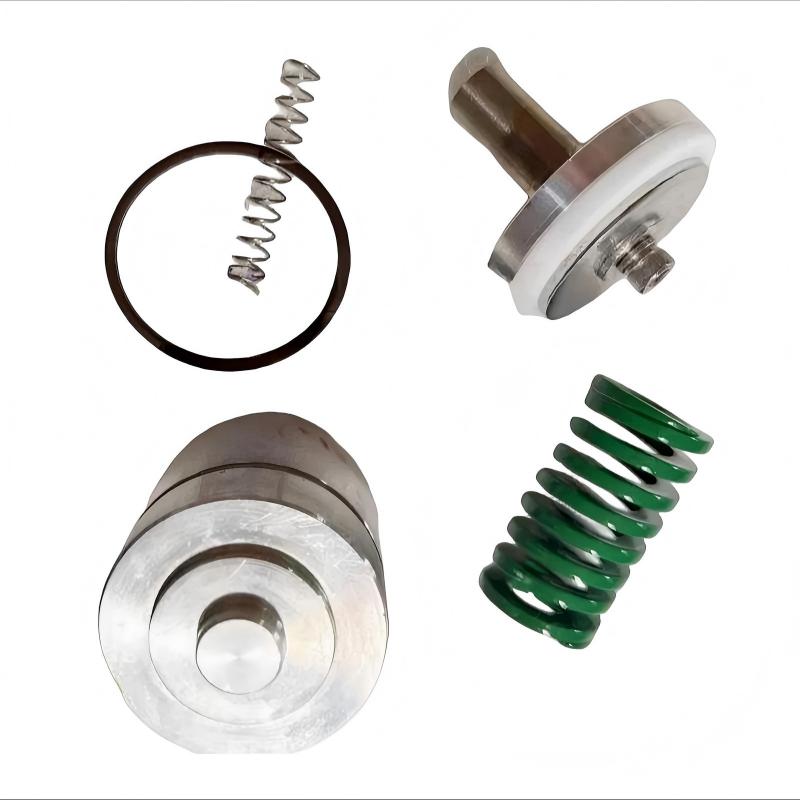

The Ingersoll Rand 47588694001 / 99289886 Minimum Pressure Valve Repair Kit is a maintenance kit designed for servicing compatible minimum pressure valve assemblies in industrial air compressor systems.
The minimum pressure valve is an important component in an oil-injected rotary screw compressor. It helps maintain the required pressure within the compressor’s oil separation system before compressed air is delivered to the downstream network. Proper valve operation also supports stable oil circulation and helps prevent undesirable operating conditions during compressor startup and shutdown.
The repair kit provides replacement components for restoring the sealing and regulating functions of a compatible minimum pressure valve assembly. Using a dedicated repair kit can be an effective alternative to replacing an entire valve when the main valve body remains serviceable.
The stated dimensions of the kit are 150 × 120 × 80 mm, with a weight of 1.2 kg.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Ingersoll Rand |
| Model | 47588694001 |
| Repair Kit Part Number | 99289886 |
| Product Type | Minimum Pressure Valve Repair Kit |
| Application | Industrial Air Compressor |
| Main Function | Minimum Pressure Valve Maintenance |
| Dimensions | 150 × 120 × 80 mm |
| Weight | 1.2 kg |
Function of the Minimum Pressure Valve
A minimum pressure valve helps maintain sufficient pressure inside the compressor system, particularly around the oil separator and during startup.
A simplified operating sequence is:
Compressor Element → Oil Separation System → Minimum Pressure Valve → Compressed Air Outlet
The valve helps regulate the transition between internal compressor pressure and downstream system pressure.
Its functions can include:
- Maintaining minimum internal pressure
- Supporting proper oil circulation
- Helping stabilize compressor operation
- Controlling compressed-air discharge
- Supporting correct oil separation
- Assisting startup operation
The exact behavior depends on the compressor design and valve configuration.
Role of the Repair Kit
A minimum pressure valve operates through a combination of mechanical and sealing components. Over time, seals, springs, gaskets, and other service components may deteriorate.
The 99289886 repair kit is intended to restore serviceable valve assemblies by replacing worn maintenance components.
Typical repair-kit functions may include:
- Replacing deteriorated seals
- Restoring sealing performance
- Replacing serviceable internal components
- Correcting minor valve leakage
- Supporting pressure regulation
- Extending valve service life
The exact contents should be verified against the applicable compressor and valve assembly before installation.
Why Minimum Pressure Valve Maintenance Is Important
A malfunctioning minimum pressure valve can affect several aspects of compressor operation.
Potential consequences include:
- Unstable operating pressure
- Startup difficulties
- Abnormal oil circulation
- Increased oil carryover
- Compressed-air performance problems
- Increased maintenance requirements
- Compressor protection alarms
Regular inspection and timely repair help maintain reliable compressor operation.
Industrial Applications
The Ingersoll Rand 47588694001 / 99289886 Minimum Pressure Valve Repair Kit is intended for compatible industrial compressor maintenance applications.
Typical environments may include:
- Manufacturing plants
- Automotive factories
- Packaging facilities
- Chemical processing plants
- Textile production
- Food processing
- Industrial workshops
- Pneumatic production systems
- General compressed-air installations
Installation and Repair Guide
Step 1: Confirm Compatibility
Before beginning the repair:
- Confirm the compressor model.
- Confirm the minimum pressure valve assembly.
- Verify the repair kit number.
- Compare replacement components with the existing assembly.
- Review the applicable maintenance procedure.
Do not install a repair kit solely based on physical appearance.
Step 2: Shut Down the Compressor
Before servicing the valve:
- Stop the compressor.
- Disconnect electrical power.
- Isolate the compressed-air outlet.
- Fully release system pressure.
- Allow hot components to cool.
The compressor must be completely depressurized before opening the valve assembly.
Step 3: Remove the Valve Assembly
Carefully remove the minimum pressure valve from the compressor.
During removal:
- Mark component orientation where necessary.
- Protect sealing surfaces.
- Keep removed components organized.
- Inspect the valve body for damage.
Step 4: Disassemble the Valve
Disassemble the valve according to the appropriate maintenance procedure.
Inspect:
- Valve body
- Valve seat
- Spring
- Piston or regulating components
- O-rings
- Gaskets
- Sealing surfaces
Do not reuse visibly damaged sealing components.
Step 5: Install the Repair Components
Install the replacement components from the 99289886 repair kit.
Pay particular attention to:
- Correct component orientation
- Proper O-ring seating
- Clean sealing surfaces
- Spring positioning
- Correct assembly sequence
Avoid damaging seals during installation.
Step 6: Reassemble the Valve
After installing the replacement parts:
- Reassemble the valve.
- Tighten fasteners correctly.
- Verify component movement.
- Check that the valve mechanism is not obstructed.
The valve should move smoothly according to its intended mechanical design.
Step 7: Reinstall the Valve
Install the repaired valve into the compressor system.
Check:
- Connections
- Sealing surfaces
- Pipe fittings
- Fasteners
- Valve orientation
Step 8: Test the Compressor
After reassembly:
- Restore power.
- Start the compressor.
- Observe startup behavior.
- Monitor operating pressure.
- Check for air or oil leakage.
- Verify stable compressor operation.
If abnormal pressure behavior remains, investigate the complete pressure-control system rather than repeatedly replacing individual components.
Common Failure Symptoms
| Symptom | Possible Cause |
|---|---|
| Unstable compressor pressure | Valve regulation problem |
| Difficult startup | Minimum pressure valve malfunction |
| Air leakage | Damaged seal or valve seat |
| Excessive oil carryover | Valve or separator system problem |
| Abnormal pressure buildup | Restricted valve |
| Compressor protection alarm | Pressure-control abnormality |
| Continuous downstream pressure issue | Valve not regulating correctly |
Troubleshooting Guide
Compressor Has Startup Problems
If the compressor struggles during startup:
- Check minimum pressure valve operation.
- Inspect the valve spring.
- Check for mechanical obstruction.
- Inspect seals and internal components.
- Verify the compressor pressure-control system.
Valve Leakage
If leakage is detected:
- Inspect O-rings.
- Check gasket condition.
- Inspect valve seating surfaces.
- Verify proper assembly.
- Replace damaged components with the appropriate repair parts.
Abnormal Internal Pressure
If compressor internal pressure is abnormal:
- Inspect the minimum pressure valve.
- Check for restrictions.
- Verify downstream pressure.
- Inspect the oil separator.
- Check related pressure-control components.
Excessive Oil Carryover
If oil appears downstream:
- Inspect the oil-gas separator.
- Check the minimum pressure valve.
- Inspect the oil return circuit.
- Verify compressor operating conditions.
- Check oil level and condition.
The minimum pressure valve should not be treated as the only possible source of oil carryover.
Preventive Maintenance
A comprehensive maintenance program should include:
- Regular valve inspection
- Seal inspection
- Compressor pressure monitoring
- Oil carryover monitoring
- Oil separator inspection
- Valve spring inspection
- Checking for air and oil leaks
- Replacement of worn repair components
Maintenance intervals should be determined according to compressor operating conditions and the applicable maintenance requirements.
Repair Kit vs. Complete Valve Replacement
A repair kit can be advantageous when the primary valve body and other major components remain serviceable.
| Repair Kit | Complete Valve |
|---|---|
| Replaces service components | Replaces complete assembly |
| Lower component replacement scope | Larger replacement scope |
| Useful for worn seals/components | Useful for severe valve damage |
| Requires disassembly | Usually simpler installation |
| Requires careful inspection | Less internal repair work |
The appropriate option depends on the condition of the existing valve.
Key Advantages
- Designed for minimum pressure valve maintenance
- Helps restore valve sealing performance
- Supports compressor pressure regulation
- Can extend service life of a serviceable valve assembly
- Helps reduce unnecessary complete-valve replacement
- Suitable for scheduled compressor maintenance
- Compact repair package
- Dimensions: 150 × 120 × 80 mm
- Weight: 1.2 kg
Technical FAQs
What is the Ingersoll Rand 47588694001 / 99289886 Repair Kit?
It is a minimum pressure valve repair kit intended for servicing compatible Ingersoll Rand industrial air compressor valve assemblies.
What does a minimum pressure valve do?
It helps maintain sufficient internal compressor pressure and supports proper oil circulation and stable compressor operation.
When should the repair kit be used?
It can be considered when the valve assembly has worn service components such as seals or other replaceable parts while the main valve body remains serviceable.
What symptoms may indicate a minimum pressure valve problem?
Possible symptoms include startup problems, abnormal pressure behavior, leakage, unstable operation, and excessive oil carryover.
What are the dimensions?
The stated dimensions are 150 × 120 × 80 mm.
What is the weight?
The repair kit weighs 1.2 kg.
Can the repair kit fix every minimum pressure valve problem?
No. If the valve body, seat, housing, or other major components are severely damaged, complete valve replacement or additional repair may be necessary.
Conclusion
The Ingersoll Rand 47588694001 / 99289886 Minimum Pressure Valve Repair Kit is an important maintenance solution for compatible industrial air compressor systems. By replacing worn service components within a serviceable minimum pressure valve, the kit can help restore sealing performance, pressure regulation, and reliable compressor operation.
With stated dimensions of 150 × 120 × 80 mm and a weight of 1.2 kg, the repair kit is convenient for industrial maintenance inventory and scheduled compressor servicing.
For compressor technicians, maintenance engineers, and plant operators, timely inspection and repair of the minimum pressure valve can help prevent pressure instability, reduce leakage, support proper oil separation, and minimize unexpected compressor downtime.
