Product Overview

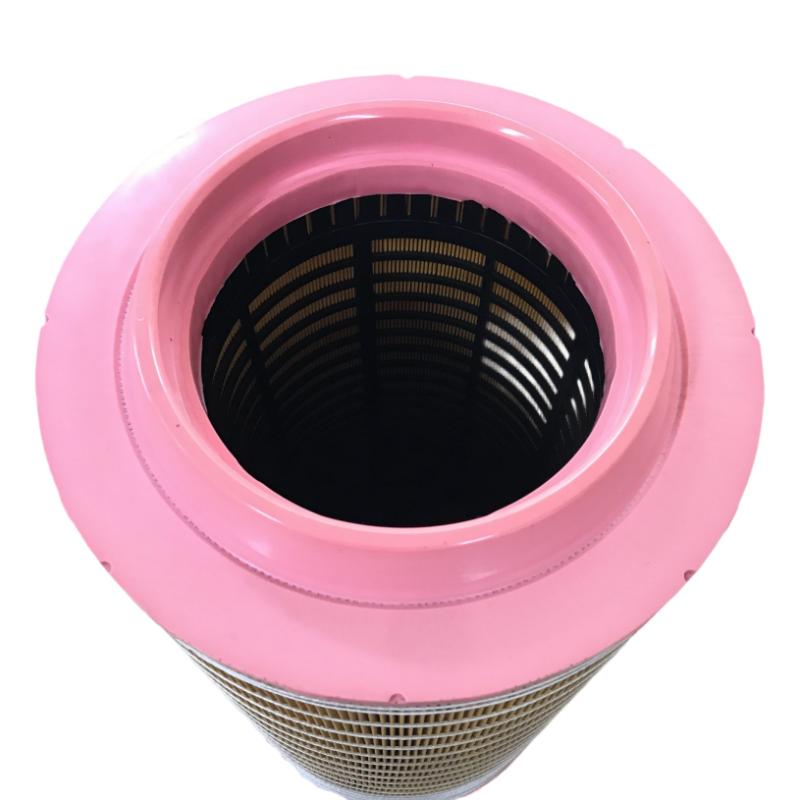

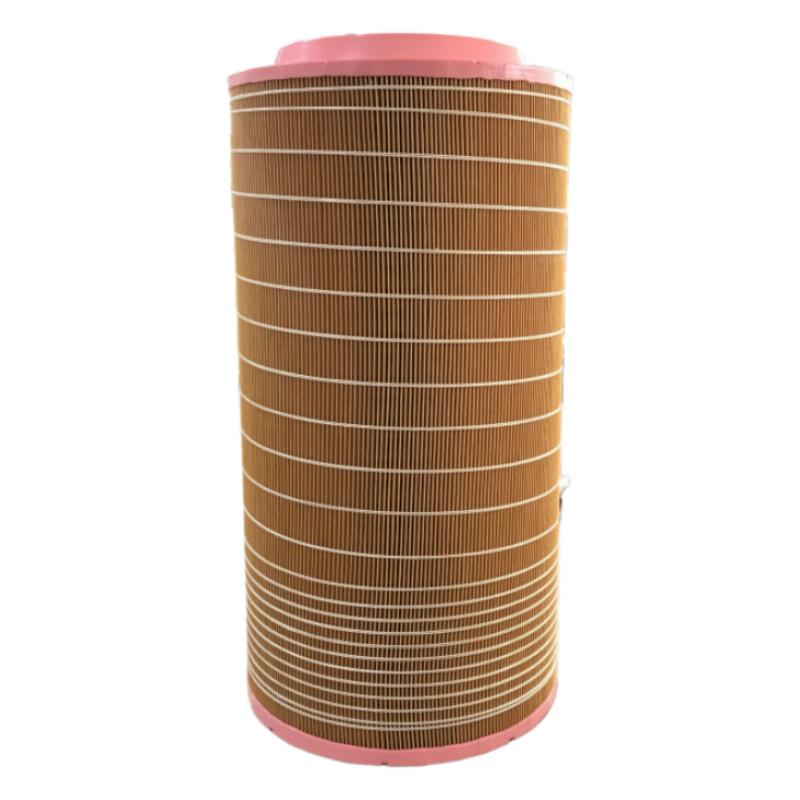

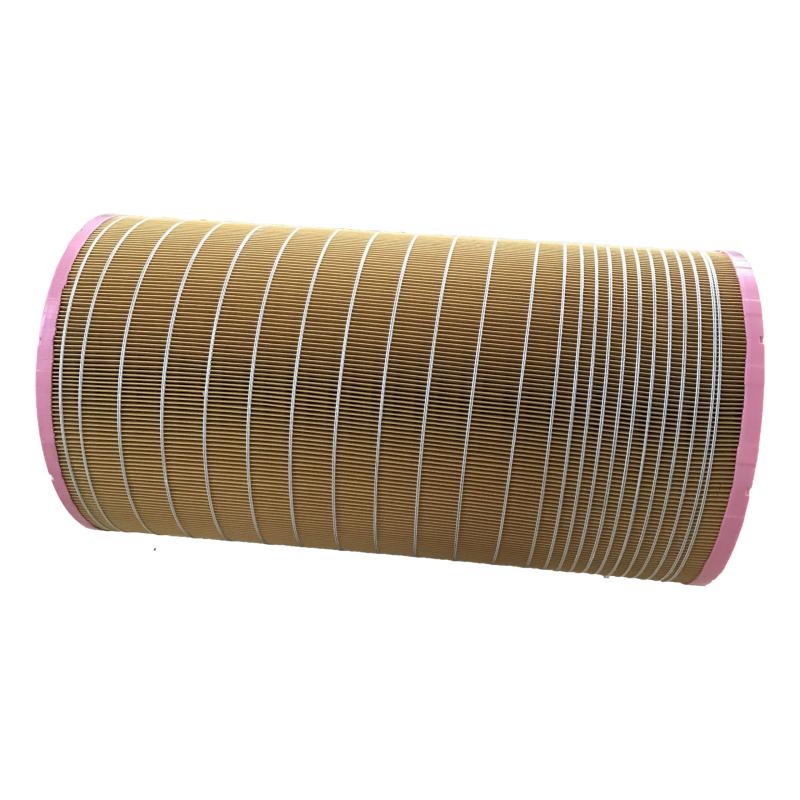

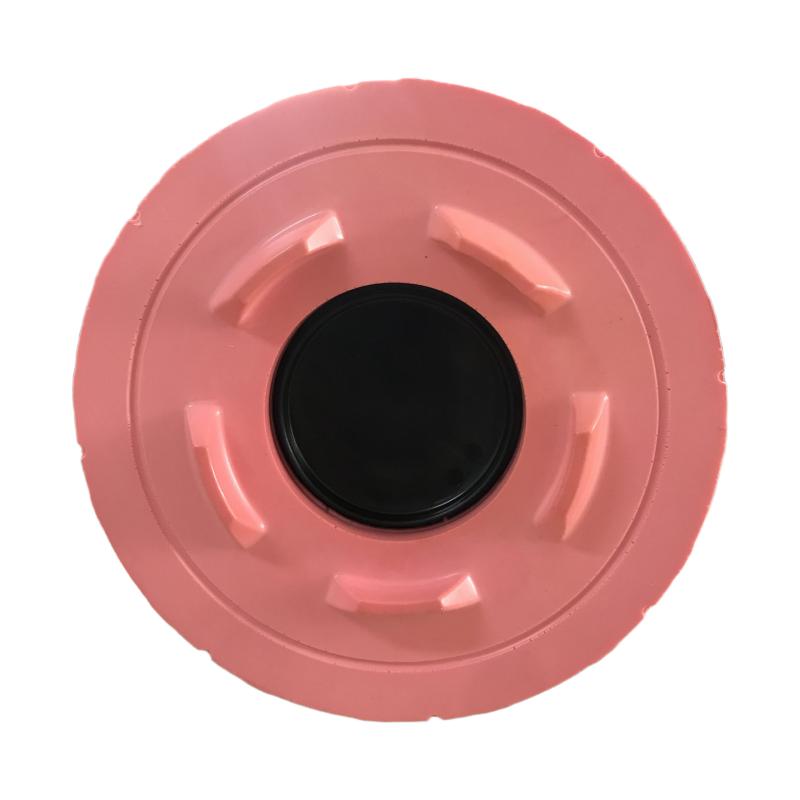

The Ingersoll Rand 47555465001 23429822 Air Filter is a replacement filtration component designed for use in compatible industrial air compressor systems. An air filter is an important part of a compressor’s intake system because it helps remove airborne contaminants before the incoming air reaches the compressor’s internal components.
Industrial environments can contain dust, dirt, fibers, oil mist, moisture-related contaminants, and other airborne particles. Without suitable intake filtration, these contaminants can enter the compressor and potentially contribute to contamination, wear, reduced performance, and increased maintenance requirements.
The Ingersoll Rand 47555465001 23429822 is identified as an Air Filter with a supplied outer diameter of 267 mm and a listed weight of 3.6 kg. These physical specifications are useful when planning replacement work, checking spare parts, managing inventory, and preparing compressor maintenance activities.
The filter should be installed only in a compatible compressor configuration. Physical dimensions such as outer diameter are useful for identification, but they should not be used as the sole basis for determining compatibility.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Reference Number | 47555465001 |
| Part Number | 23429822 |
| Product Type | Air Filter |
| Primary Function | Compressor intake-air filtration |
| Application | Compatible industrial air compressor systems |
| Outer Diameter | 267 mm |
| Weight | 3.6 kg |
| Installation | Compressor air intake system |
| Typical Application | Industrial compressed-air equipment |
Specification note: The outer diameter and weight above are based on the information supplied. Exact filter height, inner diameter, filtration media, micron rating, airflow capacity, pressure drop, temperature limits, and compressor compatibility should be confirmed against the applicable equipment configuration before installation.
What Is the Ingersoll Rand 47555465001 23429822 Air Filter?
The Ingersoll Rand 47555465001 23429822 is an air filtration component used to help protect compatible compressor equipment from airborne contaminants.
In a typical compressor system, atmospheric air is drawn into the machine through an intake path.
A simplified arrangement is:
Ambient Air → Air Filter → Compressor Intake → Compression System → Compressed Air
The filter acts as a barrier between the external environment and the compressor’s internal air-handling components.
By removing contaminants from incoming air, the filter can help reduce the amount of unwanted material entering the compressor.
Air Filter Working Principle
The basic operating principle of a compressor air filter is straightforward.
Air Intake
The compressor draws atmospheric air into the intake system.
Filtration
The incoming air passes through the filter element.
Contaminant Retention
Particles and other contaminants are retained by the filter according to the characteristics of the filtration element.
Cleaned Intake Air
Filtered air continues toward the compressor’s internal compression system.
The actual filtration mechanism depends on the filter media and construction. Because the exact media and filtration specifications for 23429822 were not supplied, those characteristics should be confirmed before making detailed performance assumptions.
Importance of Compressor Intake Filtration
Air filtration has a direct relationship with compressor cleanliness and maintenance.
Protection Against Contamination
Industrial ambient air can contain airborne particles that may be harmful to internal compressor components.
The intake filter provides an important first stage of protection.
Support for Compressor Reliability
Keeping unwanted contaminants out of the compressor can help reduce contamination-related maintenance problems.
Airflow Management
A clean filter allows the intake system to operate with the intended airflow characteristics.
As a filter becomes restricted, airflow resistance can increase.
Reduced Internal Contamination
Effective intake filtration can help reduce the amount of dust and particulate matter entering the compressor.
Maintenance Cost Control
Regular filter inspection and replacement can help prevent avoidable problems associated with excessive contamination or restricted airflow.
Role in an Industrial Compressor System
The 23429822 Air Filter is part of the compressor’s intake-air management system.
A simplified compressor architecture is:
Atmospheric Air
↓
47555465001 / 23429822 Air Filter
↓
Compressor Intake
↓
Compression Element
↓
Air-Oil Separation / Air Treatment
↓
Compressed-Air Outlet
The air filter therefore operates at the beginning of the compression process.
Its condition can influence the quality and availability of the air entering the compressor.
Industrial Applications
Manufacturing Facilities
Manufacturing plants often rely on compressed air for pneumatic tools, automation systems, cylinders, valves, and production machinery.
A properly maintained intake filter helps protect the compressor supplying this air.
Packaging Machinery
Packaging equipment frequently uses compressed air for actuators, grippers, positioning systems, and other pneumatic functions.
Stable compressor operation supports consistent machine performance.
Automotive Production
Automotive factories use compressed air throughout assembly and manufacturing operations.
Maintaining clean compressor intake air is part of general compressor maintenance.
Material Handling
Pneumatic material-handling systems depend on reliable compressed-air supplies.
Regular compressor filter maintenance helps support equipment availability.
Process Industries
Industrial process plants may use compressed air for control valves, instrumentation, actuators, and utility functions.
The compressor intake filter contributes to overall compressor maintenance.
General Industrial Utilities
Compressed-air systems used for plant utilities also require routine intake filtration maintenance.
Signs of a Restricted Air Filter
An air filter does not necessarily fail suddenly. Progressive contamination can gradually increase airflow resistance.
Possible indications of filter restriction may include:
- Reduced compressor intake airflow
- Increased pressure drop
- Reduced compressor performance
- Increased energy demand
- Abnormal compressor operating conditions
- Increased maintenance requirements
- Filter contamination visible during inspection
These symptoms can also result from other compressor problems, so diagnosis should consider the complete intake system.
Causes of Air Filter Contamination
The rate at which an air filter becomes contaminated depends on the surrounding environment and compressor operating conditions.
Dusty Environment
Construction sites, workshops, cement facilities, mining areas, and other dusty environments can increase filter loading.
Industrial Fibers
Textile and manufacturing environments may contain airborne fibers and particulate material.
Poor Intake Location
An intake located near dust-producing equipment may experience higher contamination levels.
High Operating Hours
Long compressor operating periods naturally expose the filter to more air and therefore more airborne contaminants.
Inadequate Maintenance
Failure to inspect and replace the filter when required can increase restriction.
Air Filter Installation Guide
Correct replacement is important for maintaining proper compressor intake performance.
Step 1: Identify the Compressor
Confirm the compressor model and configuration before ordering the replacement filter.
Step 2: Verify the Part Number
Check:
47555465001
and
23429822
The complete identification should match the required replacement component.
Step 3: Confirm Physical Characteristics
The supplied outer diameter is:
267 mm
Compare the physical characteristics with the existing filter and installation arrangement.
Step 4: Shut Down the Compressor
Stop the compressor according to the applicable operating procedure.
Step 5: Isolate the Equipment
Follow the required isolation procedure before opening the intake-filter housing.
Step 6: Remove the Existing Filter
Remove the used filter carefully to avoid allowing accumulated dirt to enter the intake system.
Step 7: Inspect the Housing
Check the filter housing, sealing surfaces, intake duct, and associated components for contamination or damage.
Step 8: Install the New Filter
Install the 23429822 Air Filter in the correct orientation and position.
Step 9: Check the Seal
Ensure the filter is properly seated and that the relevant sealing surfaces are clean.
Step 10: Close the Housing
Secure the filter housing according to the applicable compressor maintenance procedure.
Step 11: Restart and Inspect
After startup, monitor compressor operation and check for abnormal intake noise, airflow behavior, or other unusual conditions.
Preventive Maintenance
Regular maintenance of the compressor intake filter is important.
Visual Inspection
Inspect the filter and housing for visible contamination, damage, or improper seating.
Monitor Filter Condition
The filter should be evaluated based on operating conditions and the maintenance requirements of the compressor.
Monitor Compressor Performance
Changes in compressor performance can sometimes indicate an intake restriction.
Maintain the Filter Housing
The housing and surrounding intake system should remain clean.
Replace When Required
Filter replacement should follow the applicable maintenance schedule and actual operating conditions.
A heavily contaminated filter should not be kept in service simply because it has not reached a predetermined calendar date.
Troubleshooting
Reduced Compressor Performance
Possible causes include:
- Restricted air filter
- Intake obstruction
- Incorrect filter installation
- Intake-system leakage
- Compressor mechanical problems
- Other airflow restrictions
The complete intake system should be checked.
Increased Pressure Drop
An increasing pressure drop across the intake filter can indicate progressive contamination or restriction.
Inspect the filter and verify the airflow path.
Abnormal Compressor Noise
Possible causes include:
- Intake restriction
- Loose filter housing
- Damaged filter
- Intake duct problems
- Other compressor issues
The intake system should be inspected before replacing unrelated components.
Filter Becomes Dirty Quickly
Rapid contamination may indicate:
- High dust concentration
- Poor intake location
- Unusual environmental conditions
- Excessive operating hours
- Problems with the surrounding intake system
The operating environment should be evaluated.
Dust Appears Inside the Filter Housing
Possible causes include:
- Damaged filter element
- Poor sealing
- Incorrect installation
- Housing damage
- Improper filter selection
The complete filter installation should be inspected.
Replacement and Compatibility Considerations
When sourcing an Ingersoll Rand 47555465001 23429822 Air Filter, the complete part identification should be verified.
Important information includes:
- Reference number
- Part number
- Compressor model
- Compressor configuration
- Filter housing
- Outer diameter
- Filter installation arrangement
- Sealing arrangement
- Maintenance requirements
The supplied outer diameter is 267 mm, but diameter alone does not establish compatibility.
Other physical and functional characteristics may be equally important.
A filter with a similar outer diameter may have different dimensions, sealing characteristics, filtration performance, or airflow properties.
Physical Dimensions and Weight
The supplied physical information for the Ingersoll Rand 47555465001 23429822 Air Filter is:
Product Type: Air Filter
Outer Diameter: 267 mm
Weight: 3.6 kg
These specifications are useful for:
- Spare-parts identification
- Compressor maintenance
- Inventory management
- Transportation planning
- Warehouse storage
- Installation preparation
- Replacement verification
The 3.6 kg weight should also be considered when handling and transporting the filter during maintenance.
Storage and Handling
A replacement air filter should be protected from contamination before installation.
Recommended general handling practices include:
- Keep the filter in suitable protective packaging until required.
- Protect the filter from dust and moisture.
- Avoid impact or deformation.
- Do not install a damaged filter element.
- Keep sealing surfaces clean.
- Store the filter in a suitable dry environment.
Because filtration performance depends on the physical condition of the filter media and sealing surfaces, careless storage can compromise the component before installation.
Related Compressor Components
The air filter normally works together with other compressor components.
| Component | General Function |
|---|---|
| Air Filter | Removes contaminants from intake air |
| Intake Housing | Supports and encloses the filter |
| Intake Valve | Controls compressor intake conditions |
| Compression Element | Compresses incoming air |
| Oil Filter | Filters circulating compressor lubricant |
| Air-Oil Separator | Separates oil from compressed air |
| Oil Cooler | Helps control lubricant temperature |
| Air Cooler | Helps reduce compressed-air temperature |
| Downstream Filter | Provides additional air treatment |
| Air Dryer | Reduces moisture in compressed air |
The exact component arrangement varies by compressor model.
Engineering Best Practices
Verify the Complete Part Number
Confirm both 47555465001 and 23429822 before ordering or installing the filter.
Do Not Rely on Diameter Alone
The supplied 267 mm outer diameter is useful for identification but does not independently confirm compatibility.
Keep the Intake Area Clean
A clean intake environment can help reduce premature filter contamination.
Monitor Operating Conditions
Dust concentration, operating hours, and compressor location can influence filter service life.
Inspect the Filter Housing
A new filter cannot perform correctly if the housing or sealing system is damaged.
Maintain Replacement Records
Record the filter part number and replacement date to improve maintenance planning.
Key Advantages
The Ingersoll Rand 47555465001 23429822 Air Filter provides an important intake-filtration function for compatible industrial compressor systems.
Key characteristics include:
- Designed for compressor intake-air filtration
- Helps reduce airborne contamination entering the compressor
- Supports compressor cleanliness
- Contributes to reliable intake airflow
- Suitable for planned replacement and maintenance
- 267 mm supplied outer diameter
- 3.6 kg listed weight
- Ingersoll Rand reference 47555465001
- Part number 23429822
Technical FAQs
What is the Ingersoll Rand 47555465001 23429822?
It is an Air Filter designed for use in compatible Ingersoll Rand industrial compressor systems.
What is the main function of this air filter?
Its main function is to filter incoming ambient air before it enters the compressor’s internal air-handling and compression system.
What is the outer diameter of the 23429822 Air Filter?
The supplied outer diameter is 267 mm.
How much does the air filter weigh?
The supplied weight is 3.6 kg.
Why is compressor intake filtration important?
It helps reduce airborne contaminants entering the compressor and can support cleaner internal operating conditions.
What can cause an air filter to become restricted?
Dust, dirt, fibers, environmental contamination, long operating hours, and unsuitable intake conditions can contribute to filter loading.
Can another 267 mm air filter replace the 23429822?
Not necessarily. Outer diameter alone does not establish compatibility. The complete part number, compressor model, filter housing, sealing arrangement, and filtration requirements should be verified.
How often should the filter be replaced?
Replacement should follow the applicable compressor maintenance requirements and actual operating conditions. A heavily contaminated or damaged filter may require earlier replacement.
What should be checked during filter replacement?
Inspect the filter housing, sealing surfaces, intake duct, installation position, and surrounding components before installing the new filter.
Can a dirty air filter affect compressor performance?
Yes. A significantly restricted intake filter can increase airflow resistance and may affect compressor operating conditions and performance.
Conclusion
The Ingersoll Rand 47555465001 23429822 Air Filter is an important intake-filtration component for compatible industrial air compressor systems. By filtering incoming ambient air before it reaches the compressor, the filter helps limit the amount of airborne contamination entering the machine and supports the cleanliness and reliability of the compression system.
The supplied specifications identify an outer diameter of 267 mm and a weight of 3.6 kg. These values are useful for replacement identification, equipment maintenance, storage, transportation, and installation planning.
For reliable service, the complete 47555465001 / 23429822 part identification should be verified against the specific compressor configuration. The outer diameter should be treated as a physical identification parameter rather than the sole compatibility criterion.
Regular inspection, appropriate replacement intervals, clean filter-housing conditions, and proper installation can help maintain effective compressor intake filtration and support dependable industrial compressed-air operation.
