Product Overview

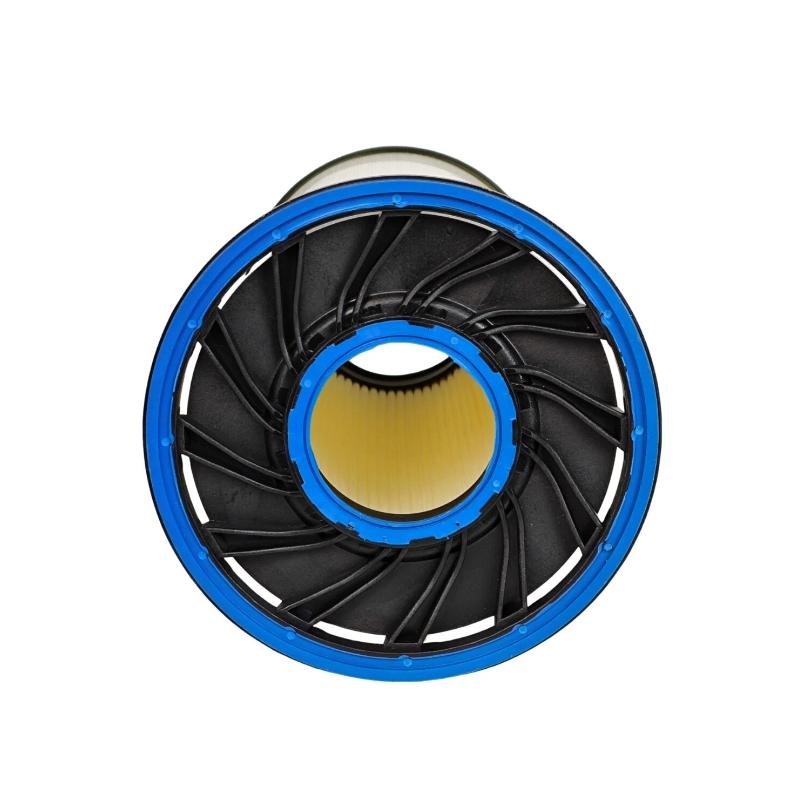

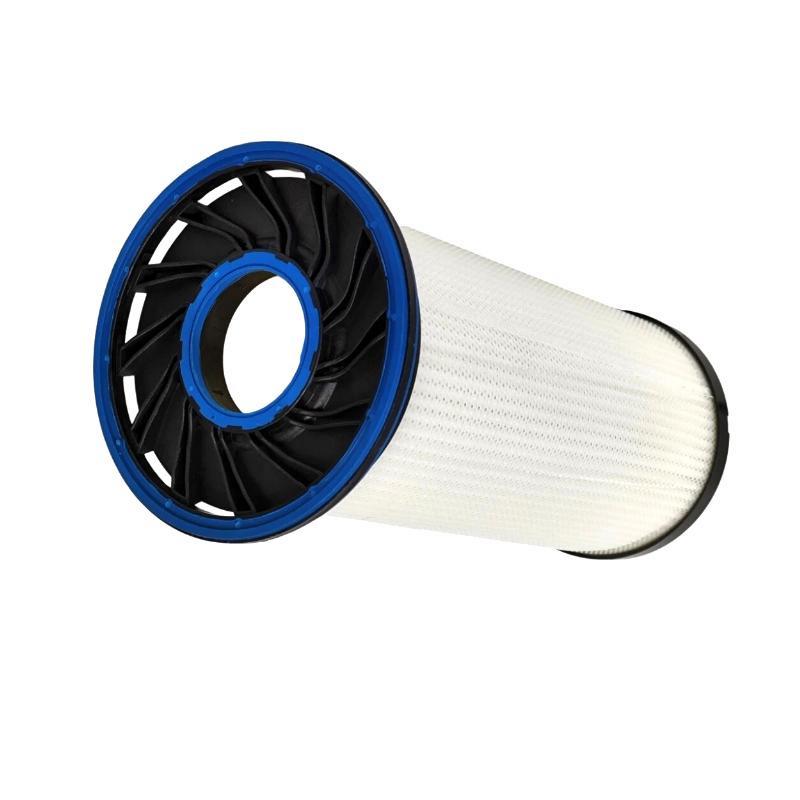

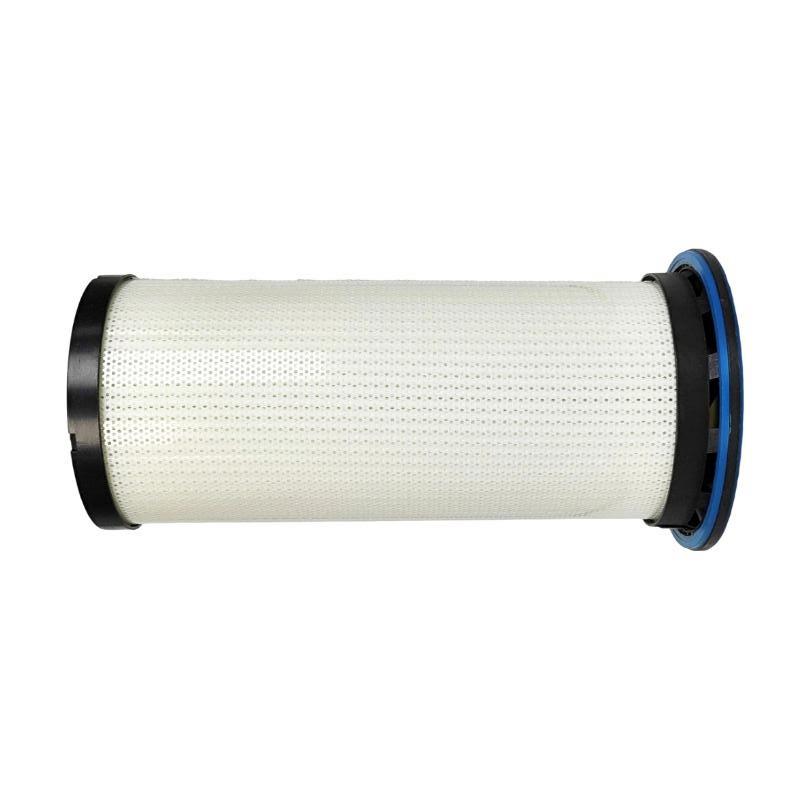

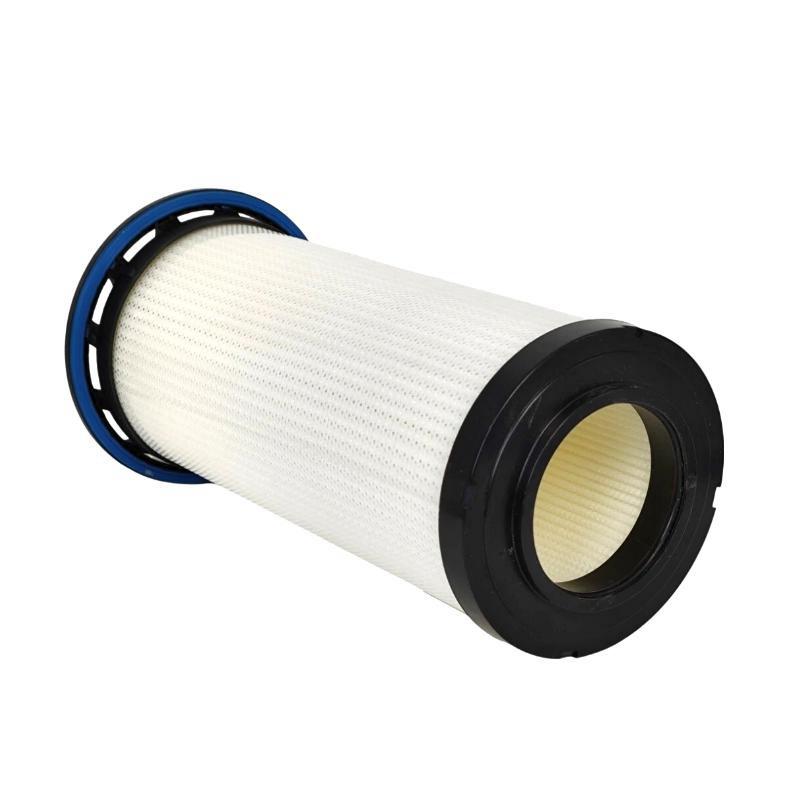

The Ingersoll Rand 47555465001 23424922 Oil Filter Element is an industrial replacement filtration component designed for use in compatible Ingersoll Rand compressor systems. Oil filtration is an essential part of lubricated air compressor operation because circulating lubricant can collect particles, wear debris, oxidation products, and other contaminants during continuous operation.

By helping remove unwanted contaminants from the compressor lubrication circuit, an oil filter element supports cleaner lubricant circulation and contributes to the protection of internal compressor components. Maintaining an effective filtration system is particularly important in industrial environments where compressors operate for extended periods under demanding load conditions.

The Ingersoll Rand 47555465001 23424922 is identified as an Oil Filter Element with listed dimensions of 232.2 × 114.3 × 96.5 mm and a weight of 2.3 kg. These physical specifications are useful when planning replacement work, checking available installation space, preparing maintenance inventory, and verifying the approximate size of the replacement component.

The filter element should always be matched to the correct compressor model and filtration system before installation. Although oil filter elements may appear similar externally, differences in dimensions, sealing arrangements, filtration characteristics, or application requirements can make apparently similar components unsuitable for a particular compressor.

---

Technical Specifications

Parameter	Specification
Manufacturer	Ingersoll Rand
Reference Number	47555465001
Part Number	23424922
Product Type	Oil Filter Element
Application	Industrial Air Compressor Lubrication System
Primary Function	Lubricant filtration
Dimensions	232.2 × 114.3 × 96.5 mm
Weight	2.3 kg
Installation	Compatible compressor filtration assembly
Application Area	Screw Compressors and Industrial Compressor Systems
Maintenance Type	Replacement / Preventive Maintenance

Exact filter media, filtration rating, pressure-drop characteristics, temperature limits, seal configuration, and compressor compatibility should be confirmed against the applicable equipment configuration before installation.

---

What Is the Ingersoll Rand 47555465001 23424922 Oil Filter Element?

The 47555465001 23424922 is an oil filter element intended to support the filtration of compressor lubricant.

In an oil-injected compressor, lubricant performs several important functions within the compressor package. Depending on the compressor design, the lubricant can contribute to component lubrication, heat transfer, sealing, and protection of internal moving parts.

During operation, however, lubricant can become contaminated. Particles may enter the lubrication circuit from the operating environment, while internal component wear and lubricant degradation can also introduce contaminants.

The oil filter provides a filtration stage that helps reduce the circulation of these unwanted materials.

A simplified compressor lubrication path can be represented as:

Lubricant Reservoir → Oil Filter → Compressor Lubrication Circuit → Compressor Components → Return/Recirculation

The exact arrangement depends on the compressor design and oil circuit architecture.

The filter element therefore forms part of a larger lubrication and compressor protection system rather than functioning as an independent component.

---

Oil Filtration Working Principle

The basic purpose of an oil filter element is to allow the lubricant to pass through a filtration structure while retaining undesirable particles and contaminants.

During compressor operation, contaminated lubricant enters the filtration assembly. The filter element provides a controlled filtration path through which the lubricant continues toward the relevant components of the lubrication system.

Particles larger than the effective filtration characteristics of the element are retained by the filter structure.

The filtered lubricant can then continue circulating through the compressor system.

The effectiveness of this process depends on several factors, including:

• Filter condition
• Lubricant condition
• Contaminant concentration
• Operating temperature
• Lubricant viscosity
• Compressor operating conditions
• Correct filter installation
• Correct filter selection

The exact filtration media and performance characteristics of the 23424922 should not be assumed from physical dimensions alone.

---

Importance of Oil Filtration in Compressors

Oil filtration plays an important role in maintaining the condition of lubricated compressor systems.

Protection of Moving Components

Compressor components operate under mechanical load and require appropriate lubrication. Contaminants circulating in the lubricant can contribute to wear when filtration performance is inadequate.

Maintaining an effective oil filtration system helps reduce the amount of unwanted particulate material circulating through the lubrication circuit.

Lubricant Cleanliness

Clean lubricant is important for maintaining consistent lubrication performance. As lubricant accumulates contaminants, its condition can deteriorate.

Replacing the oil filter element at an appropriate maintenance interval helps maintain the filtration stage of the compressor lubrication system.

Support for Compressor Reliability

A properly maintained filtration system contributes to overall compressor maintenance. While an oil filter cannot prevent every type of compressor failure, maintaining the filter helps support the intended lubrication-system operating conditions.

Preventive Maintenance

Oil filter replacement is commonly included within compressor preventive maintenance programs.

Replacing the filter before excessive restriction or contamination develops can help reduce the possibility of lubrication-system problems.

---

Role in Industrial Compressor Systems

The Ingersoll Rand 47555465001 23424922 Oil Filter Element can form part of the maintenance architecture of an industrial compressor package.

Industrial compressors are frequently used for:

• Factory compressed-air systems
• Manufacturing equipment
• Packaging machinery
• Pneumatic production systems
• Process equipment
• Automotive manufacturing
• Food and beverage production
• Chemical processing
• Pharmaceutical manufacturing
• General industrial utilities

In these environments, compressor availability can directly affect production continuity.

For this reason, routine inspection and replacement of consumable components such as oil filters are important parts of maintenance planning.

---

Signs of an Oil Filter Element Requiring Attention

The actual maintenance interval depends on the compressor model, operating environment, lubricant condition, and manufacturer’s maintenance requirements. However, several conditions may indicate that the filtration system requires inspection.

Increased Filter Restriction

As contaminants accumulate, the filter element may become increasingly restricted.

A restricted filter can affect lubricant flow through the filtration circuit.

Abnormal Differential Pressure

Where the compressor system provides differential-pressure monitoring, an abnormal increase may indicate filter loading or another restriction within the lubrication system.

The applicable alarm limits should be taken from the compressor’s control and maintenance documentation.

Changes in Compressor Operating Condition

Unexpected temperature changes, lubrication-system alarms, or other abnormal operating conditions may require inspection of the filter and associated lubrication circuit.

Contaminated Lubricant

Visible contamination or abnormal lubricant condition can indicate that the lubrication system requires further inspection.

Replacing the filter alone may not resolve a problem if the lubricant or another component of the oil circuit is also contaminated.

Maintenance Interval Reached

A filter may require replacement simply because the scheduled service interval has been reached, even when no obvious symptoms are present.

---

Installation and Replacement Guide

Correct installation is important for maintaining the performance of the compressor lubrication system.

1. Confirm the Replacement Part

Before beginning maintenance, verify:

• Reference number
• Part number
• Compressor model
• Existing filter identification
• Filter dimensions
• Seal arrangement
• Maintenance requirements

The replacement should be confirmed as Ingersoll Rand 47555465001 / 23424922 where this is the specified component for the equipment.

2. Shut Down the Compressor

The compressor should be stopped according to the appropriate shutdown procedure.

The system must be isolated and made safe before maintenance begins.

Because compressor lubrication circuits may remain hot or pressurized after shutdown, sufficient time should be allowed for the equipment to reach a safe maintenance condition.

3. Relieve Stored Pressure

Stored pressure and hot lubricant can present hazards during filter replacement.

The applicable compressor isolation and pressure-release procedures should therefore be followed before opening the filtration assembly.

4. Remove the Existing Filter Element

Remove the existing filter according to the compressor manufacturer’s maintenance procedure.

Avoid introducing dirt or foreign material into the open lubrication circuit.

5. Inspect the Filter Housing

Before installing the replacement element, inspect the surrounding filter housing and sealing surfaces.

Look for:

• Contamination
• Oil deposits
• Damaged sealing surfaces
• Foreign material
• Signs of leakage
• Mechanical damage

6. Install the Replacement Element

Install the 23424922 Oil Filter Element according to the correct compressor maintenance procedure.

The element should be seated correctly and any associated seals should be installed in their specified positions.

Do not force a filter element into an incompatible housing.

7. Reassemble and Check

After installation, reassemble the filter housing and verify that all relevant connections are secure.

The compressor should then be returned to service according to the normal commissioning procedure.

8. Inspect for Leakage

After startup, inspect the filter area for signs of oil leakage.

Any abnormal leakage should be investigated before the compressor is returned to normal continuous operation.

---

Maintenance Recommendations

A properly planned maintenance program can improve the reliability of the compressor filtration system.

Monitor Operating Conditions

Compressor load, ambient conditions, operating hours, lubricant condition, and contamination levels can all influence filter service requirements.

Follow the Correct Service Interval

The filter replacement interval should be based on the applicable compressor maintenance requirements rather than on physical appearance alone.

Inspect Seals During Replacement

Where the filter assembly uses replaceable sealing components, inspect the sealing surfaces during filter replacement.

Damaged or improperly installed seals can result in leakage.

Keep the Filtration Area Clean

Prevent dirt and foreign material from entering the lubrication system during maintenance.

Record Filter Replacement

Maintenance records should include:

• Replacement date
• Compressor operating hours
• Installed part number
• Observed filter condition
• Lubricant condition
• Any abnormal findings

This information can help maintenance personnel identify changes in compressor operating behavior over time.

---

Troubleshooting Oil Filtration Problems

Oil Filter Restriction

If the compressor indicates an abnormal filtration restriction, possible causes may include:

• Filter element loading
• Excessive lubricant contamination
• Incorrect filter element
• Lubricant viscosity changes
• Unusual operating conditions
• Problems elsewhere in the lubrication circuit

The filter should be inspected together with the rest of the lubrication system.

Oil Leakage Around the Filter

Potential causes include:

• Incorrect installation
• Damaged seal
• Contaminated sealing surface
• Incorrect filter
• Damaged filter housing
• Loose or improperly secured components

The filter should not simply be tightened repeatedly without determining the actual cause of the leakage.

Abnormal Lubricant Condition

If the lubricant appears unusually dirty or degraded, replacing the filter may be only one part of the required maintenance.

The lubricant, compressor operating conditions, contamination sources, and oil circuit should also be evaluated.

Repeated Filter Loading

If a replacement filter becomes restricted unusually quickly, investigate the cause rather than repeatedly replacing the element.

Potential contributors can include excessive contamination, abnormal compressor wear, unsuitable lubricant, or operating conditions outside the intended application.

---

Replacement and Compatibility Considerations

When sourcing an Ingersoll Rand 47555465001 23424922 Oil Filter Element, the complete identification should be checked carefully.

Important details include:

• Reference number: 47555465001
• Part number: 23424922
• Product type: Oil Filter Element
• Dimensions: 232.2 × 114.3 × 96.5 mm
• Weight: 2.3 kg
• Compressor model
• Filter housing configuration
• Seal arrangement
• Maintenance requirements

Physical dimensions alone should not be used to determine compatibility.

Two filter elements can have similar dimensions while having different filtration characteristics or sealing arrangements.

The complete compressor configuration should therefore be confirmed before ordering or installing a replacement.

---

Physical Dimensions and Weight

The listed physical specifications of the Ingersoll Rand 47555465001 23424922 Oil Filter Element are:

Dimensions: 232.2 × 114.3 × 96.5 mm
Weight: 2.3 kg

These dimensions can be useful for:

• Maintenance planning
• Spare-parts storage
• Packaging preparation
• Installation-space verification
• Warehouse identification
• Replacement logistics

The 2.3 kg value is the listed product weight provided for this component.

---

Storage and Handling

Oil filter elements should be stored in a clean and dry environment before installation.

Recommended handling practices include:

• Keep the element in its protective packaging until required.
• Protect the filter from dust and moisture.
• Avoid impacts or deformation.
• Do not place heavy equipment on the filter.
• Keep sealing surfaces protected from contamination.
• Check packaging condition before installation.
• Verify the part number before removing the component from storage.

A clean storage environment helps reduce the possibility of contamination before the filter enters the compressor lubrication system.

---

Related Compressor Maintenance Components

The oil filter element operates as part of a larger compressor maintenance system.

Other components that may be involved in compressor service include:

• Air filter elements
• Air-oil separators
• Compressor lubricant
• Oil coolers
• Thermostatic valves
• Oil hoses
• O-rings and seals
• Intake valves
• Service kits
• Pressure-control components
• Temperature-monitoring components

The exact combination depends on the compressor design.

Replacing an oil filter should therefore be considered within the context of the complete compressor maintenance schedule.

---

Engineering Best Practices

For industrial compressor maintenance, several practices can improve service consistency.

Use Correct Part Identification

Always verify the complete 47555465001 / 23424922 identification before installation.

Avoid Unverified Substitutions

A visually similar filter should not automatically be treated as a suitable replacement.

Keep Maintenance Records

Tracking filter changes and compressor operating hours makes it easier to identify unusual trends.

Investigate Abnormal Filter Loading

Repeated premature filter restriction can indicate a larger system problem.

Protect the Lubrication Circuit

Prevent dirt, moisture, and foreign material from entering the oil circuit during maintenance.

Inspect Before Restarting

After replacement, verify correct installation and inspect for leaks or abnormal operating conditions before returning the compressor to normal service.

---

Key Advantages

The Ingersoll Rand 47555465001 23424922 Oil Filter Element provides several practical benefits when correctly matched to the applicable compressor system:

• Supports compressor lubricant filtration
• Helps reduce circulating contaminants
• Supports protection of lubrication-system components
• Contributes to preventive compressor maintenance
• Suitable for planned filter replacement programs
• Clearly identifiable by reference and part number
• Compact dimensions for maintenance planning
• 2.3 kg listed weight for handling and logistics planning
• Designed for integration into compatible Ingersoll Rand compressor systems

---

Technical FAQs

What is the Ingersoll Rand 47555465001 23424922?

The 47555465001 23424922 is an Oil Filter Element used as part of the lubrication and filtration system of compatible Ingersoll Rand compressor equipment.

What are the dimensions of the 23424922 Oil Filter Element?

The listed dimensions are 232.2 × 114.3 × 96.5 mm.

How much does the 23424922 filter element weigh?

The listed weight is 2.3 kg.

What is the function of an oil filter element in a compressor?

An oil filter element helps remove unwanted particulate contaminants from circulating compressor lubricant, supporting cleaner lubrication and protection of internal components.

When should the oil filter be replaced?

Replacement should follow the maintenance requirements applicable to the compressor model and operating conditions. Filter restriction, contamination, operating hours, and maintenance schedules can all be relevant.

Can any filter with similar dimensions replace the 23424922?

No. Similar dimensions do not guarantee compatibility. The complete part number, filter characteristics, sealing arrangement, and compressor configuration should be verified before replacement.

What can cause an oil filter to become restricted quickly?

Possible causes include excessive contamination, abnormal compressor wear, unsuitable lubricant, severe operating conditions, or an incorrect filter element.

Does replacing the oil filter solve all lubrication problems?

No. A filter is only one component of the lubrication system. Problems involving lubricant condition, oil coolers, valves, seals, hoses, sensors, or internal compressor components may require separate investigation.

What should be checked after installing the replacement?

Verify correct installation, secure the relevant connections, start the compressor according to the normal procedure, and inspect the filter area for leakage or abnormal operating conditions.

---

Conclusion

The Ingersoll Rand 47555465001 23424922 Oil Filter Element is an industrial compressor filtration component intended to support clean lubricant circulation in compatible compressor systems. Effective oil filtration helps reduce unwanted particulate contamination and supports the protection and reliability of compressor lubrication circuits.

With listed dimensions of 232.2 × 114.3 × 96.5 mm and a weight of 2.3 kg, the component is also straightforward to identify for maintenance planning, inventory management, and replacement logistics.

For reliable service, the complete 47555465001 / 23424922 identification should be verified before installation. Proper compressor shutdown, pressure isolation, clean installation practices, inspection of sealing surfaces, and post-installation leakage checks are important parts of a professional replacement procedure.

The exact filtration performance, media construction, pressure-drop characteristics, temperature limits, and equipment compatibility should always be confirmed for the specific compressor configuration before the Ingersoll Rand 23424922 Oil Filter Element is installed.
