Product Overview

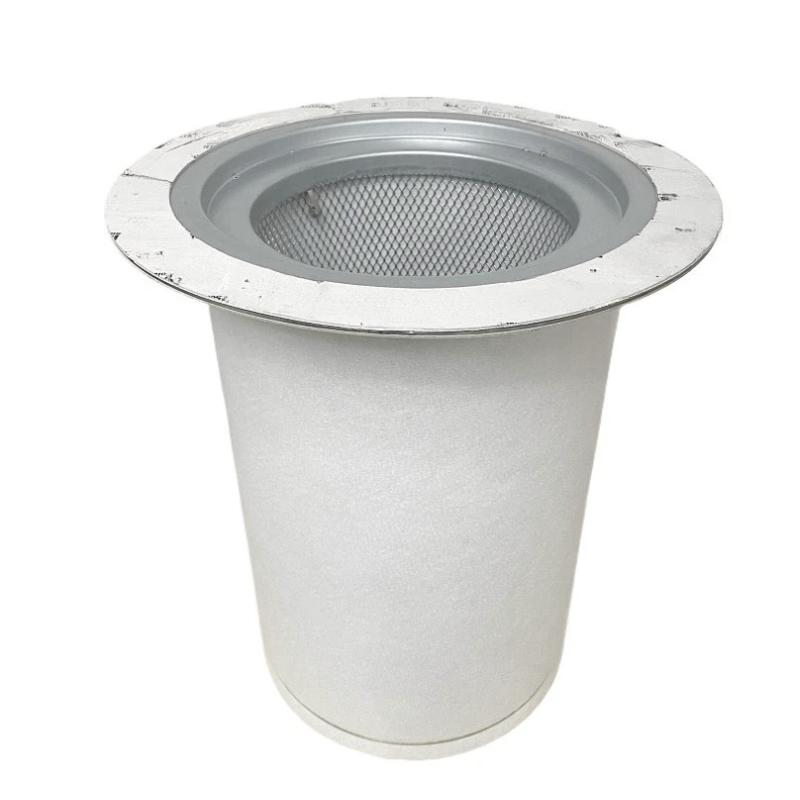

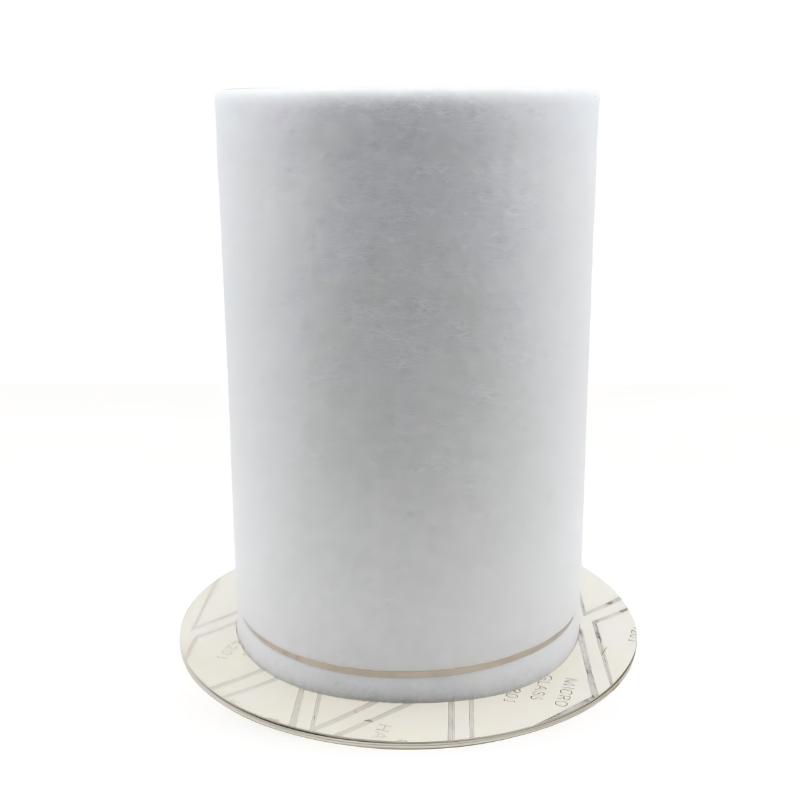

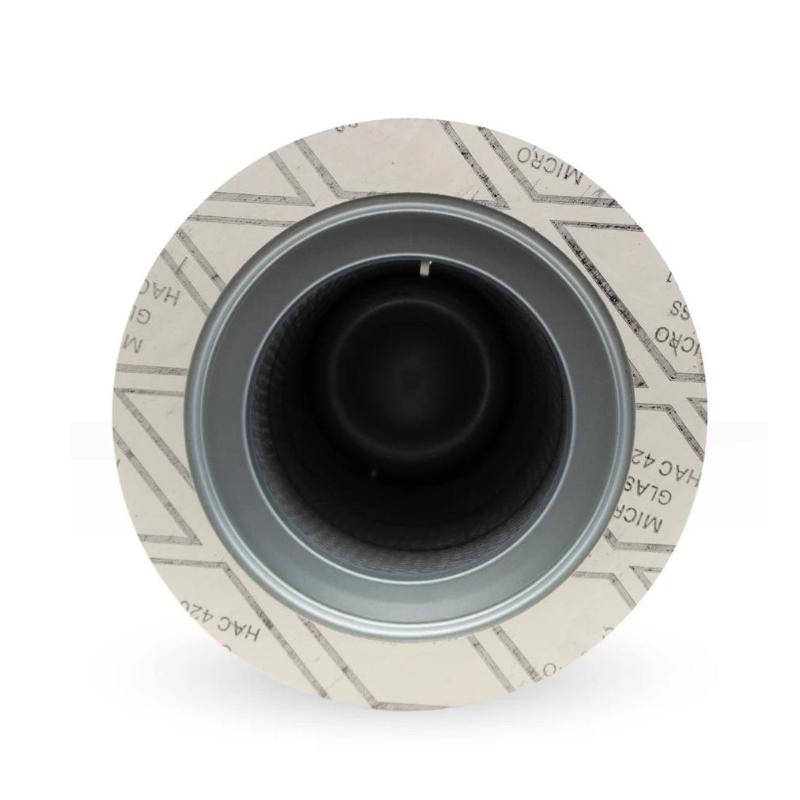

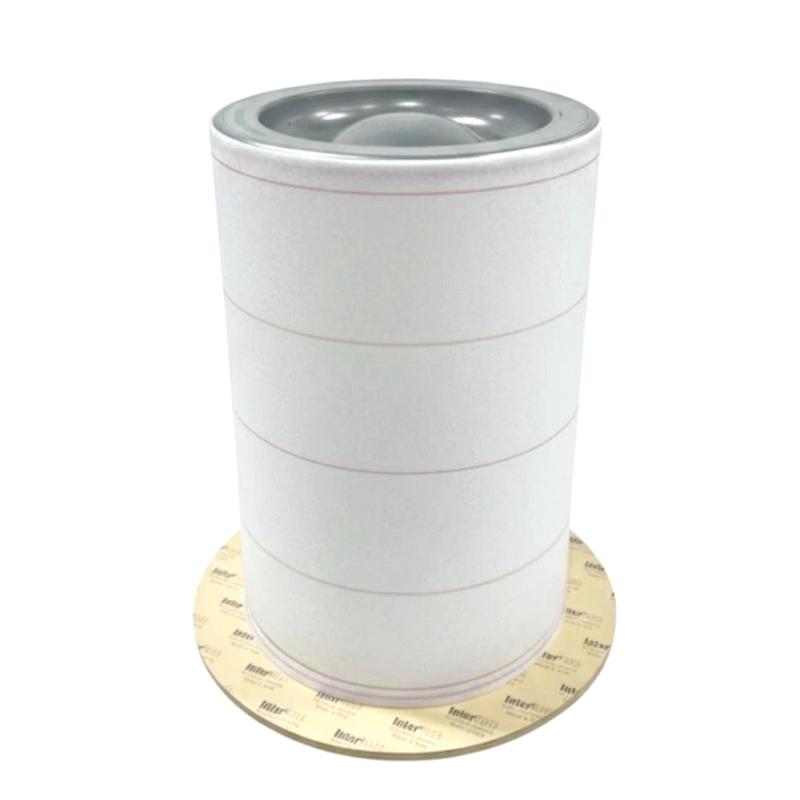

The Ingersoll Rand 47545144001 54509427 Air/Oil Separator is a replacement separation component used in compatible oil-injected compressor systems. It works within the compressor’s air/oil separation stage to separate entrained compressor oil from compressed air before the air continues toward the downstream air circuit.

In an oil-injected compressor, a controlled amount of oil is introduced during the compression process for functions such as lubrication, cooling, and sealing. After compression, the resulting air stream contains oil that must be separated before the compressed air leaves the compressor. The air/oil separator forms part of this separation process and helps return separated oil to the compressor’s oil circuit.

Separator condition is therefore closely related to both compressed-air quality and the compressor’s oil-management system. During scheduled maintenance, technicians normally consider the separator together with oil condition, differential pressure indications where applicable, oil carryover, operating hours, and the condition of associated separation components.

Technical Specifications

Product Features

• Air/oil separation component for compatible Ingersoll Rand compressor systems.
• Separates entrained compressor oil from the compressed-air stream.
• Supports control of oil carryover into the downstream compressed-air circuit.
• Works as part of the compressor’s integrated air and lubrication system.
• Supports recovery of separated oil to the lubrication circuit where applicable.
• Suitable for scheduled compressor maintenance and separator replacement.
• Can be included in preventive maintenance programs for oil-injected compressor equipment.
• Helps maintain the intended separation stage of the compressor system.

Working Principle

1. Oil and air leave the compression stage together

In an oil-injected compressor, lubricant is present during compression. After the compression process, the resulting mixture contains compressed air together with entrained oil.

2. The mixture enters the separation stage

The air/oil mixture is directed into the separator assembly. The separator provides the filtration and separation surface required to remove oil from the compressed-air stream.

3. Oil is retained and separated

As the mixture passes through the separator, oil is captured and separated from the air. The separated lubricant can then be directed back toward the compressor’s oil circuit through the applicable oil-return arrangement.

4. Cleaner compressed air continues downstream

After the separation stage, the compressed air contains substantially less entrained oil and can continue into the downstream air system. The separator therefore contributes to management of oil carryover from the compressor.

5. Separator condition changes during service

Over time, contamination and accumulated oil can affect the condition of the separator. Changes in operating conditions, oil quality, compressor loading, and service history can also influence separator performance. Maintenance personnel should evaluate relevant operating indications rather than relying on a single symptom.

Role in an Ingersoll Rand Oil-Injected Compressor Architecture

The 47545144001 54509427 Air/Oil Separator sits between the compression process and the downstream compressed-air circuit. It links the compressor’s air path with the oil-management system by separating entrained lubricant from compressed air and supporting the return of separated oil.

Industrial Applications

Installation and Maintenance

1. Confirm the replacement part — Verify the 47545144001 and 54509427 identification against the applicable compressor documentation before installation.
2. Shut down the compressor — Stop the compressor and place the equipment in the approved maintenance condition before accessing the separator system.
3. Relieve stored pressure — Follow the equipment safety procedure to release compressed-air and other stored energy before opening the separation system.
4. Allow the equipment to cool — Wait until the compressor and associated components reach a safe service condition before beginning work.
5. Inspect the removed separator — Examine the existing separator for contamination, oil accumulation, damage, or other abnormal conditions.
6. Inspect the separation housing — Check the separator housing, internal seating area, and accessible connections for contamination or damage.
7. Check sealing surfaces — Clean and inspect applicable sealing interfaces before installing the replacement separator.
8. Inspect the oil-return path — Check accessible oil-return components for blockage, contamination, leakage, or other conditions that could affect oil recovery.
9. Install the replacement separator — Fit the separator according to the compressor maintenance procedure and ensure that all relevant connections are correctly restored.
10. Check the surrounding air and oil circuits — Inspect accessible connections for leakage and confirm that hoses, fittings, and related components are correctly positioned.
11. Monitor operation after startup — After returning the compressor to service, observe relevant operating indications and check for abnormal oil carryover or leakage.
12. Record the maintenance work — Document the separator replacement, service date, operating condition, and any abnormal findings identified during inspection.

Related Components

Recommended Related Models

Key Advantages

• Supports separation of entrained oil from compressed air.
• Helps control oil carryover into the downstream air circuit.
• Supports coordinated operation of the compressor’s air and oil systems.
• Suitable for scheduled air/oil separator maintenance.
• Provides a replacement component for compatible Ingersoll Rand compressor systems.
• Supports preventive maintenance of the compressor separation stage.

Technical FAQs

What is the function of the Ingersoll Rand 47545144001 54509427 Air/Oil Separator?

It separates entrained compressor oil from compressed air after the compression process. The separated oil can be managed through the applicable oil-return circuit while the cleaner air continues downstream.

What symptoms can indicate an air/oil separator requires inspection?

Possible indications include increased oil carryover, abnormal separation-system operating conditions, or changes in compressor oil consumption. These symptoms should also be investigated alongside oil condition, oil-return components, and other parts of the compressor system.

Why is the oil-return path important when replacing the separator?

The separator removes oil from the compressed-air stream, but separated oil must be managed by the associated oil-return arrangement. A restricted or contaminated return path can affect oil management even when the separator itself has been replaced.

What should be checked after installing a new air/oil separator?

Verify correct installation and sealing, inspect accessible air and oil connections, confirm the oil-return path is in proper condition, and monitor the compressor after startup for abnormal leakage, operating indications, or oil carryover.
