- Ingersoll Rand
- 47545144001 24172215
- Air Filter
- USA
- 126.2 × 126.2 × 209.6 mm
- 4.32 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 3
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

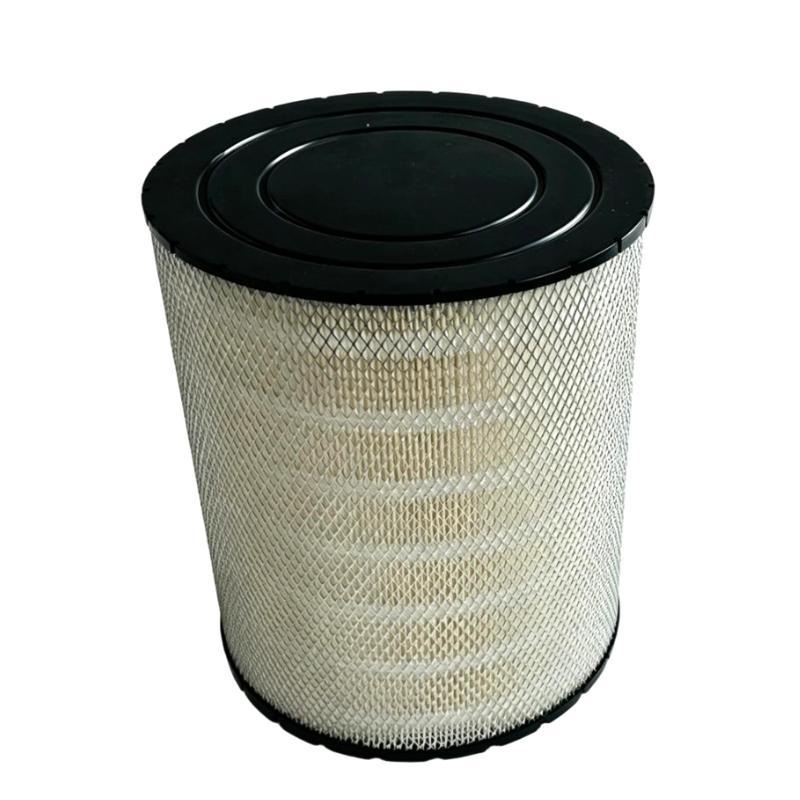

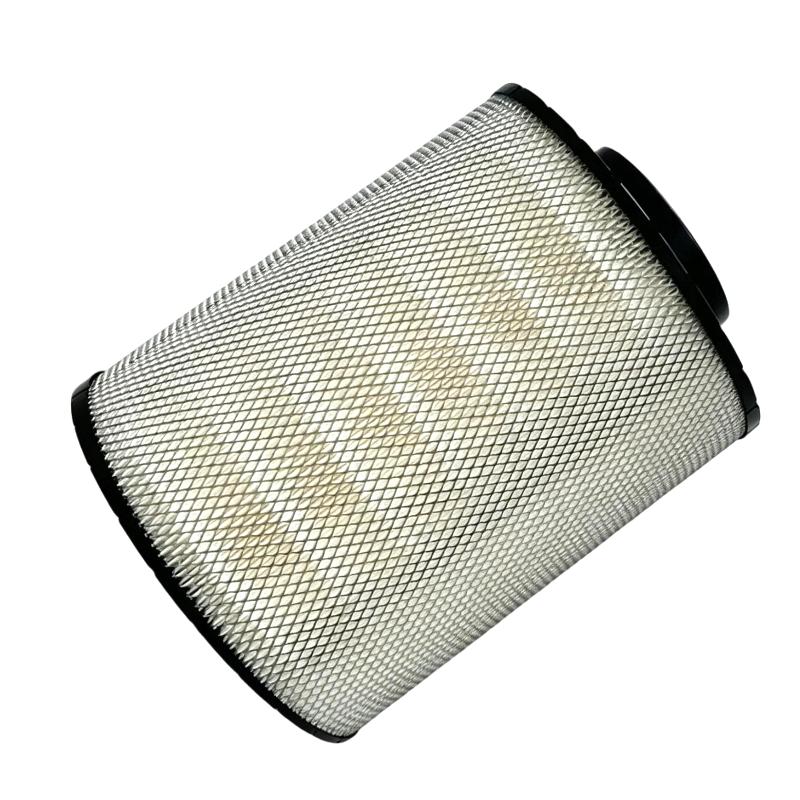

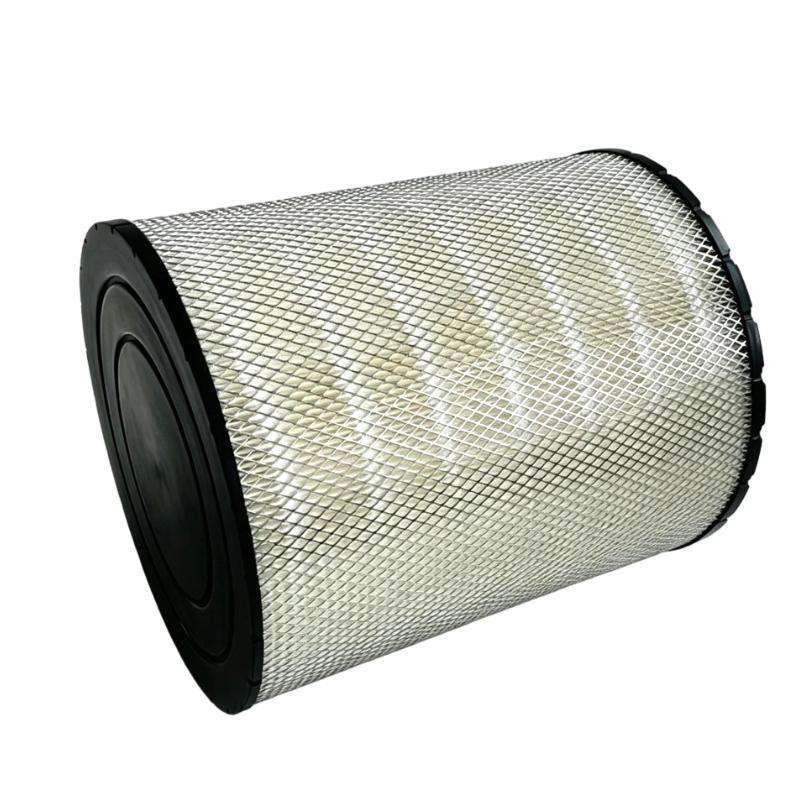

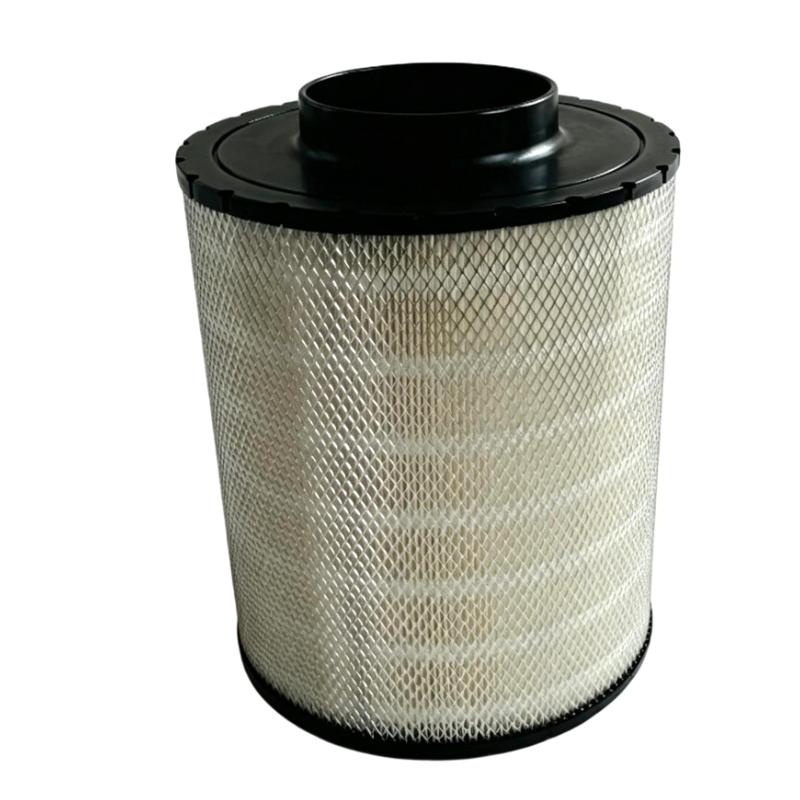

The Ingersoll Rand 47545144001 24172215 Air Filter is a replacement filtration component for compatible Ingersoll Rand compressor equipment. It is installed in the compressor’s air intake path to capture airborne dust, dirt, and other particulate contamination before the incoming air reaches downstream compressor components.
For an industrial compressor, the quality of intake air directly affects the internal operating environment. Dust and particulate matter entering with the intake air can accumulate on internal surfaces and contribute to contamination of the air and lubrication circuits. The air filter acts as the first filtration stage, reducing the amount of unwanted material entering the machine during normal operation.
This filter is primarily a maintenance component and is typically considered during scheduled compressor servicing. Its condition should be evaluated together with operating hours, ambient dust levels, differential pressure indications where available, and the manufacturer’s maintenance requirements. Replacing a service-worn filter helps maintain the intended intake-air filtration path.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 47545144001 |
| Alternate Part Number | 24172215 |
| Product Type | Air Filter |
| Product Family | Ingersoll Rand Compressor Parts |
| Component Category | Air Intake Filter |
| Filtration Function | Removal of airborne contaminants |
| System Role | Compressor intake-air filtration |
| Application | Compatible Ingersoll Rand compressor systems |
| Installation Position | Air intake path |
| Service Function | Intake air cleanliness control |
| Maintenance Type | Periodic filter replacement |
| Operating Environment | Industrial compressor applications |
| Compatibility | Equipment-specific filter application |
| Dimensions | 126.2 × 126.2 × 209.6 mm |
| Weight | 4.32 kg |
Product Features
- Air intake filtration component for compatible Ingersoll Rand compressor systems.
- Captures airborne particulate contamination before it enters the compressor.
- Supports cleaner intake air during compressor operation.
- Helps reduce the amount of dust and debris reaching downstream compressor components.
- Suitable for routine compressor maintenance and filter replacement.
- Can be incorporated into preventive maintenance programs for industrial compressor equipment.
- Supports consistent operation of the compressor intake filtration stage.
- Useful as a replacement component when the existing air filter reaches its service condition.
Working Principle
1. Intake air enters the filter
During compressor operation, ambient air is drawn into the compressor through the intake path. The air filter is positioned in this path so that airborne contamination encounters the filter before entering the downstream machine.
2. Particles are captured by the filter media
Dust, dirt, and other suspended particles are retained by the filter media as air passes through it. The filtration stage therefore reduces the concentration of particulate contamination carried into the compressor.
3. Filtered air continues downstream
After passing through the filter, the cleaner air continues toward the compressor’s intake and compression stages. This helps maintain a more controlled internal air environment during operation.
4. Contamination accumulates during service
As the filter operates, captured particles gradually accumulate on the filtration media. The actual service condition depends on factors such as operating hours, ambient air quality, dust concentration, and compressor operating conditions.
5. Filter replacement restores the intake filtration stage
Once the filter reaches the applicable service condition, replacement restores a clean filtration element to the intake path. Proper installation is important because an incorrectly seated filter can compromise the intended filtration path.
Role in a Compressor Air Intake System
The 47545144001 24172215 Air Filter forms the first protective filtration stage of the compressor air path. It does not control compressor operation or perform compression itself; its function is to limit the amount of airborne contamination entering the machine.
| System Layer | Typical Function | Relationship with Air Filter |
|---|---|---|
| Ambient Air | Provides the compressor intake source | Contains the airborne particles that must be filtered |
| Air Intake Path | Directs ambient air into the compressor | Routes incoming air through the filtration stage |
| Air Filter | Removes airborne particulate contamination | 47545144001 24172215 performs the intake filtration function |
| Compressor Intake | Receives filtered air | Receives air after the filtration stage |
| Compression System | Compresses the incoming air | Operates downstream of the intake filtration stage |
| Lubrication System | Supports oil-dependent mechanical components | Benefits from reduced contamination entering the compressor |
| Control System | Monitors and controls compressor operation | May provide operating indications associated with intake conditions |
Industrial Applications
| Application | Use of the 47545144001 24172215 |
|---|---|
| Industrial Air Compressors | Filters incoming air in compatible compressor systems |
| Manufacturing Plants | Supports clean intake-air conditions for plant compressed-air equipment |
| Process Industries | Provides intake filtration for compressor equipment operating in industrial environments |
| Dusty Industrial Areas | Helps reduce airborne particulate entry into the compressor |
| Plant Utility Systems | Supports routine maintenance of compressed-air equipment |
| Preventive Maintenance | Replaces the air filter according to applicable service requirements |
| Compressor Overhaul | Provides a replacement intake filtration component during planned service |
| Maintenance Inventory | Suitable as a stocked replacement component for compatible equipment |
Installation and Maintenance
- Confirm the replacement part — Verify the part number and equipment compatibility before installing the new air filter.
- Shut down the compressor — Stop the compressor and place the equipment in the approved maintenance condition before accessing the intake system.
- Allow safe access — Follow the equipment safety procedure and ensure that moving components and stored energy cannot create a service hazard.
- Inspect the existing filter — Examine the removed filter for excessive dust loading, moisture, oil contamination, or unusual debris.
- Inspect the intake housing — Check the filter housing and surrounding intake path for accumulated dirt, damage, or foreign material.
- Clean the filter seating area — Remove loose contamination from the relevant sealing and mounting surfaces before installing the replacement.
- Check the filter condition before installation — Ensure that the replacement filter is clean and undamaged and that its filter media and sealing surfaces are intact.
- Install the filter correctly — Position the filter according to the equipment maintenance procedure and ensure that it is properly seated.
- Check the intake path — Confirm that the intake passage is unobstructed and that surrounding components are correctly assembled.
- Inspect after startup — After returning the compressor to operation, check for abnormal intake conditions, unusual noise, or other indications associated with the air path.
- Monitor maintenance condition — Where the compressor provides relevant filter or intake indications, observe them during subsequent operation.
- Record the replacement — Document the filter change, service date, operating condition, and any abnormal contamination found during inspection.
Related Components
| Component | Function |
|---|---|
| Compressor Air Intake Housing | Supports and contains the intake filtration stage |
| Compressor Intake Assembly | Directs filtered air toward the compression system |
| Oil Filter | Filters circulating compressor oil |
| Oil Separator | Separates oil from compressed air in compatible oil-injected systems |
| Filter Pad | Provides filtration support in applicable compressor assemblies |
| Pre-Filter | Provides an additional air filtration stage where specified |
| Compressor Lubrication System | Supports lubrication of oil-dependent internal components |
| Compressor Control System | Monitors and coordinates compressor operation |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Ingersoll Rand 24133019 | Air Filter | Related compressor air filtration component |
| Ingersoll Rand 24900458 | Oil Filter | Related compressor lubrication-system filter |
| Ingersoll Rand 47594342001 | Pre-Filter | Related compressor air filtration component |
| Ingersoll Rand 47571612001 | Filter Pad | Related compressor filtration maintenance component |
| Ingersoll Rand 47545135001 39911631 | Oil Filter | Related compressor maintenance component |
| Ingersoll Rand 47639430001 | Pre-Filter Assembly | Related compressor filtration component |
| Ingersoll Rand 47639432001 | Air Filter | Related compressor air filtration component |
Key Advantages
- Supports cleaner air entering the compressor intake system.
- Helps reduce airborne particulate contamination reaching downstream components.
- Suitable for routine compressor air filtration maintenance.
- Supports preventive maintenance of compatible Ingersoll Rand equipment.
- Provides a practical replacement component for scheduled filter service.
- Helps maintain the intended filtration stage of the compressor air path.
Technical FAQs
What is the function of the Ingersoll Rand 47545144001 24172215 Air Filter?
It filters ambient air entering the compressor and captures airborne particulate contamination before the air reaches downstream compressor components.
What factors affect the service life of an air filter?
Operating hours, ambient dust concentration, air quality, compressor loading, and the environment around the equipment can all affect filter condition. The applicable equipment maintenance procedure should be used to establish the replacement schedule.
What should be checked when replacing the air filter?
Confirm the correct replacement part, inspect the old filter and intake housing, clean the seating area, check the replacement filter for damage, and ensure that it is correctly seated so that unfiltered air cannot bypass the intended filtration path.
Can a dirty air filter affect compressor operation?
A heavily contaminated filter can restrict the intake-air path and may affect compressor operating conditions. If abnormal intake behavior occurs, the filter should be inspected together with the intake housing, air path, and other relevant compressor components.
