Product Overview

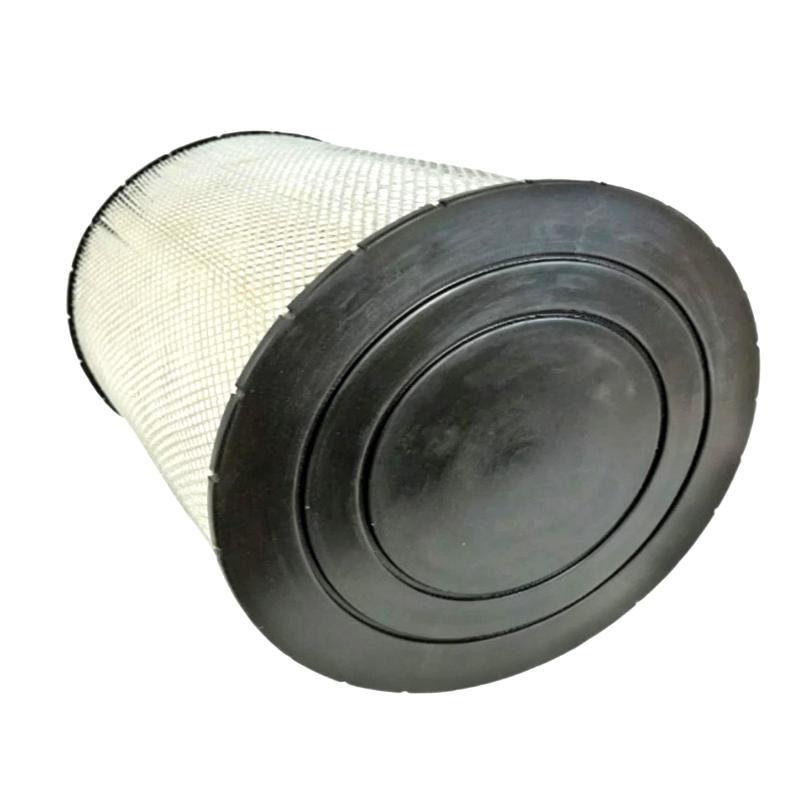

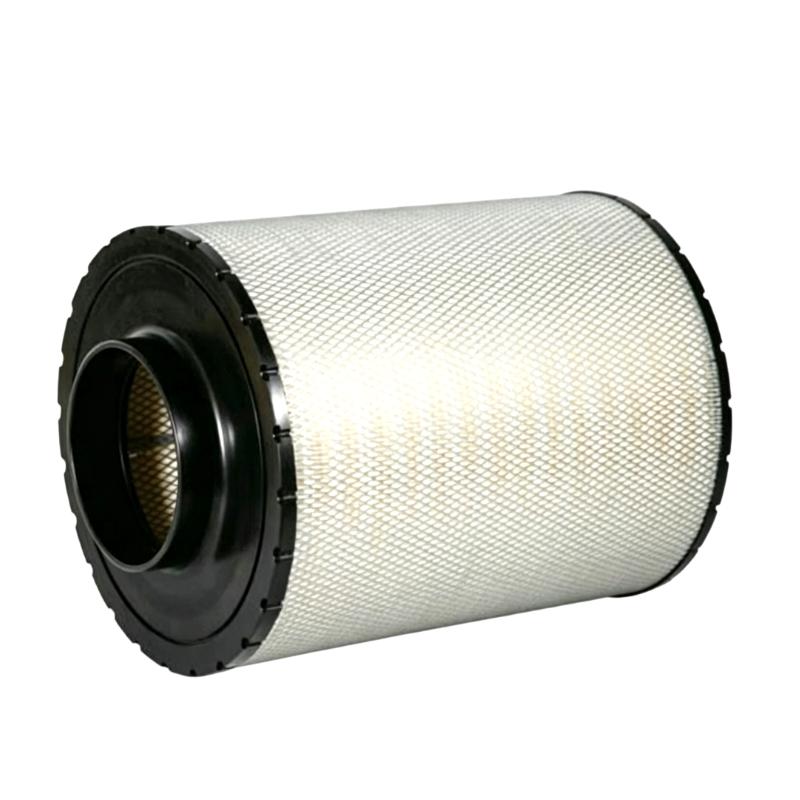

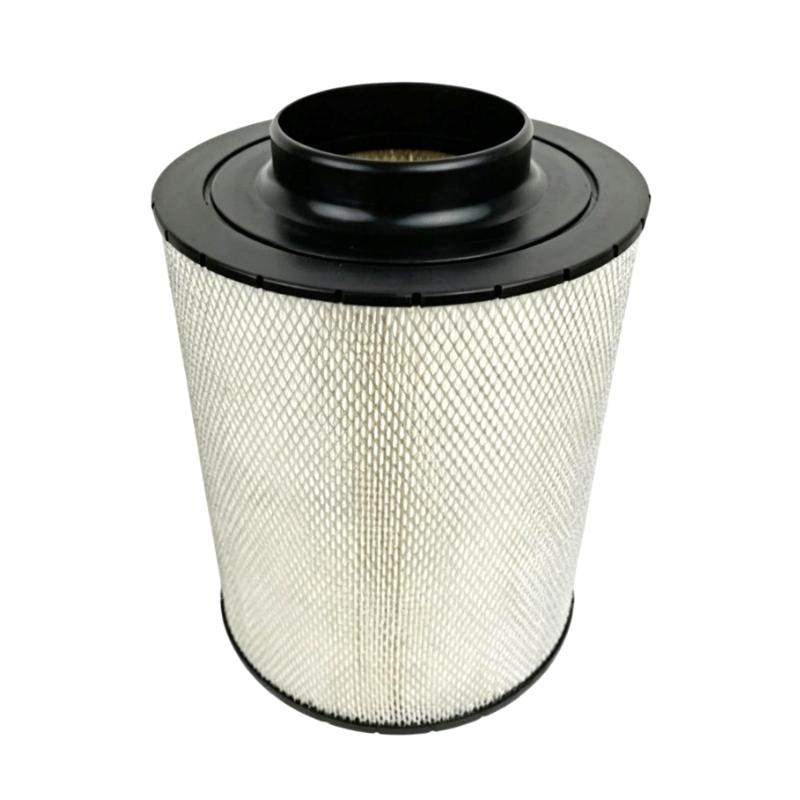

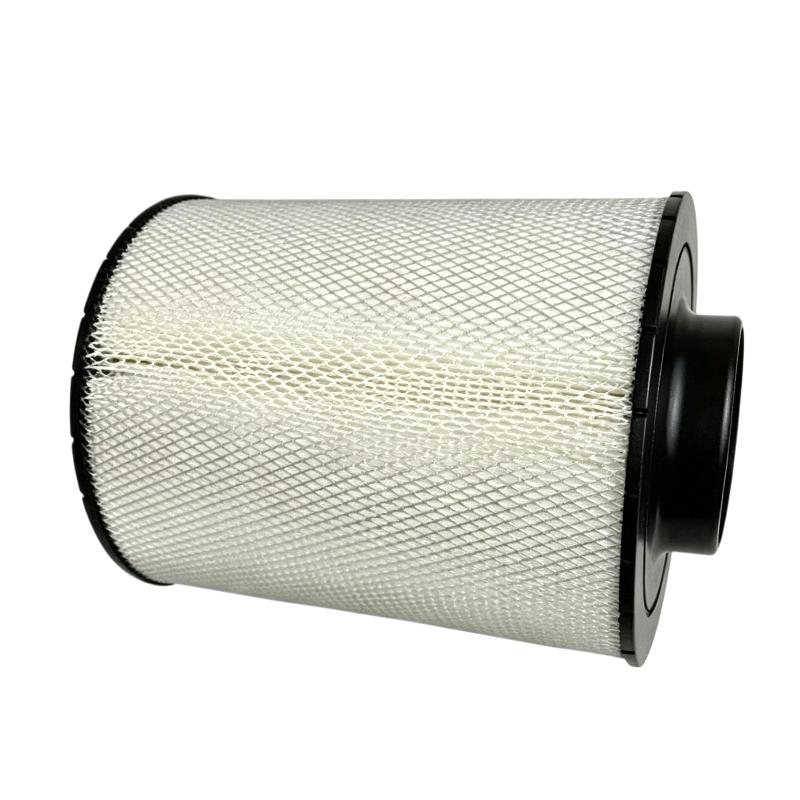

The Ingersoll Rand 47545135001 24172215 Air Filter is a replacement filtration component used in industrial compressor air systems. Its primary function is to remove airborne dust, dirt, and other particulate contamination from the incoming air before the air reaches downstream compressor components.
For compressor equipment operating in workshops, manufacturing plants, process facilities, and other industrial environments, the condition of the intake air directly affects the cleanliness of the internal air path. A suitable replacement filter helps keep contaminants from entering sensitive compressor components and supports consistent equipment operation.
The 47545135001 part number and 24172215 reference provide a specific identification point for maintenance and spare-parts procurement. The filter can be installed as part of scheduled compressor service or replaced when inspection indicates that the existing filtration element has become loaded or damaged.
As an intake filtration component, the air filter works upstream of the compressor’s main compression process. Its condition should therefore be considered when investigating restricted airflow, increased intake resistance, or changes in compressor operating performance.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Ingersoll Rand |
| Model / Part Number | 47545135001 |
| Reference Part Number | 24172215 |
| Product Type | Air Filter |
| Application | Industrial compressor air intake filtration |
| Dimensions | 126.2 × 126.2 × 209.6 mm |
| Weight | 4.32 kg |
Product Features
- Replacement air filtration component for applicable Ingersoll Rand compressor equipment.
- Removes airborne particulate contamination from the compressor intake path.
- Supports cleaner air entering downstream compressor components.
- Suitable for scheduled compressor maintenance and filter replacement.
- Helps maintain the intended intake-air path of the compressor assembly.
- Specific part and reference numbers simplify spare-parts identification.
- Suitable for industrial compressor installations operating in particulate-bearing environments.
Working Principle
The 47545135001 24172215 Air Filter operates by passing incoming air through a filtration medium that captures particulate contamination. As the compressor draws air into the intake system, airborne particles are retained by the filter while filtered air continues toward the compressor.
A typical air path can be represented as:
Ambient Air → 47545135001 Air Filter → Compressor Intake → Compression Element → Compressed-Air System
As contamination accumulates on the filter medium, airflow resistance can increase. For this reason, filter condition is relevant to compressor maintenance and should be monitored according to the equipment’s service requirements.
The filter does not regulate compressor output or control the compression process. Instead, it provides the first-stage protection that helps limit the amount of airborne contamination entering the compressor’s internal air path.
Role in a Compressor Air Intake Architecture
The 47545135001 air filter is positioned at the intake side of the compressor system, upstream of the compression element. It provides a physical barrier between the ambient environment and the internal compressor air path.
Ambient Air → Air Filter → Intake System → Compression Element → Separator / Downstream Air Circuit
| System Element | Function |
|---|---|
| Ambient Air | Supplies the air entering the compressor |
| 47545135001 Air Filter | Removes airborne particulate contamination |
| Compressor Intake | Directs filtered air toward the compression stage |
| Compression Element | Compresses the incoming air |
| Downstream Air Circuit | Carries compressed air toward the next stage of the system |
| Compressor Monitoring System | Monitors operating conditions associated with compressor operation |
A properly maintained intake filter helps preserve the cleanliness of the compressor air path and reduces the amount of particulate material entering the compression system.
Industrial Applications
| Application | Typical Use |
|---|---|
| Industrial Screw Compressors | Intake-air filtration before the compression element |
| Factory Compressed-Air Systems | Maintaining cleaner intake air for compressor equipment |
| Manufacturing Plants | Protecting compressor internals from airborne dust and particles |
| Workshop Compressor Installations | Filtering ambient air in maintenance and production environments |
| Process-Air Systems | Supporting clean intake-air conditions for compressor packages |
| Compressor Service Programs | Replacement of loaded or damaged intake filters |
Installation and Maintenance
- Verify Part Identification
Confirm the 47545135001 part number and 24172215 reference against the applicable compressor configuration before installation. - Shut Down the Compressor
Stop the equipment and follow the applicable isolation procedure before accessing the intake filter. - Inspect the Filter Housing
Check the surrounding housing for accumulated dust, foreign material, damage, or other conditions that could affect the replacement. - Remove the Existing Filter Carefully
Avoid allowing accumulated contaminants to fall into the clean side of the intake system during removal. - Inspect the Replacement Filter
Check the new filter for visible damage, deformation, contamination, or packaging-related defects. - Check Sealing Surfaces
Inspect the mating and sealing areas of the filter housing before installation. - Install in the Correct Orientation
Position the replacement filter according to the compressor’s specified installation arrangement. - Secure the Assembly
Ensure the filter is properly seated and retained before returning the compressor to service. - Inspect for Air Bypass
Check that the filter and housing connections do not provide an unintended path around the filtration medium. - Monitor Intake Restriction
Observe available maintenance indicators or operating information for signs of increasing intake resistance. - Keep the Intake Area Clean
Prevent loose dust and debris from entering the intake system during routine compressor maintenance. - Replace According to Condition or Schedule
Replace the filter when contamination, damage, excessive restriction, or the applicable maintenance schedule indicates that service is required.
Compatible System Components
| Component | Role in the System |
|---|---|
| Ingersoll Rand Compressor Assembly | Main equipment receiving filtered intake air |
| Air Intake Housing | Supports and contains the filtration element |
| Compressor Intake Line | Carries filtered air toward the compression stage |
| Compression Element | Compresses the filtered incoming air |
| Intake Monitoring Components | Provide information related to intake operating conditions |
| Compressor Control System | Supervises compressor operation and available maintenance parameters |
Recommended Related Models
| Model / Part Number | Product Type | Typical Relationship |
|---|---|---|
| Ingersoll Rand 47545135001 | Air Filter | Primary part number associated with this filter |
| Ingersoll Rand 24172215 | Air Filter Reference | Associated reference number |
| Ingersoll Rand 47545136001 | Temperature Control Valve Maintenance Kit | Related compressor maintenance component |
| Ingersoll Rand 47642700001 | Air Filter | Related compressor filtration component |
| Ingersoll Rand Compressor Air Intake Assemblies | Intake Components | Related equipment category |
Key Advantages
- Helps remove airborne particulate contamination from compressor intake air.
- Supports cleaner conditions inside the compressor air path.
- Suitable for routine compressor filter replacement.
- Provides specific part identification for maintenance procurement.
- Helps maintain the intended intake-air filtration arrangement.
- Suitable for industrial compressor service environments.
Technical FAQs
What is the function of the Ingersoll Rand 47545135001 24172215 Air Filter?
It filters incoming ambient air before the air enters the compressor’s internal air path, helping limit the amount of airborne particulate contamination reaching downstream components.
When should this air filter be replaced?
Replacement should be based on the applicable compressor maintenance schedule, filter condition, contamination level, or indications of increased intake restriction. A damaged filter should also be replaced rather than returned to service.
What can happen if the intake filter becomes heavily contaminated?
A loaded filter can increase airflow resistance and may affect the compressor intake conditions. Regular inspection and replacement help prevent excessive restriction from developing in the intake circuit.
What should be checked when installing the replacement filter?
Verify the part identification, inspect the filter housing and sealing surfaces, install the filter in the correct position, and ensure that the assembly is properly seated so that incoming air cannot bypass the filtration element.
