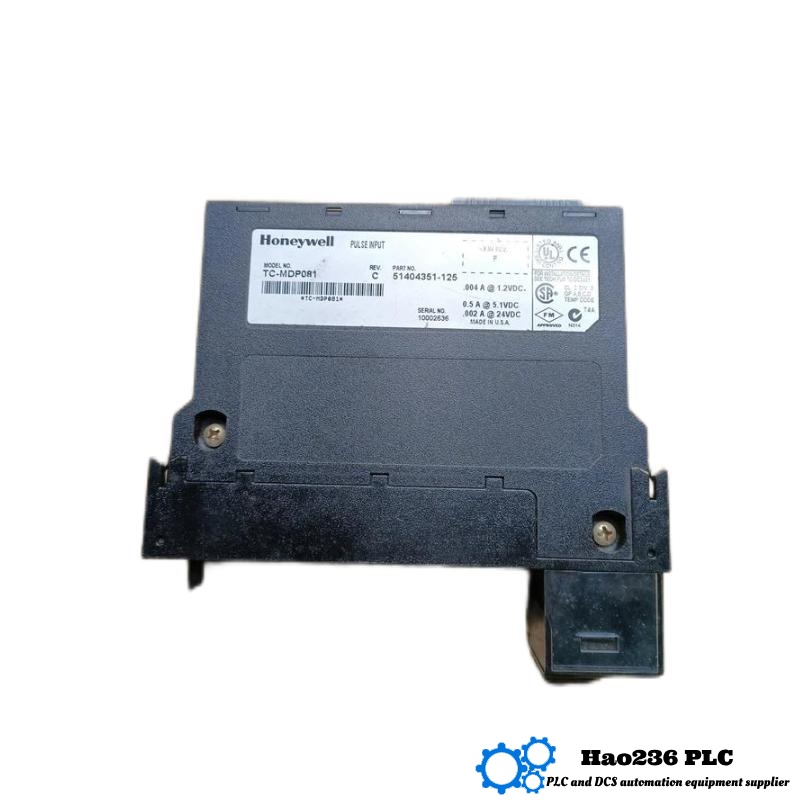

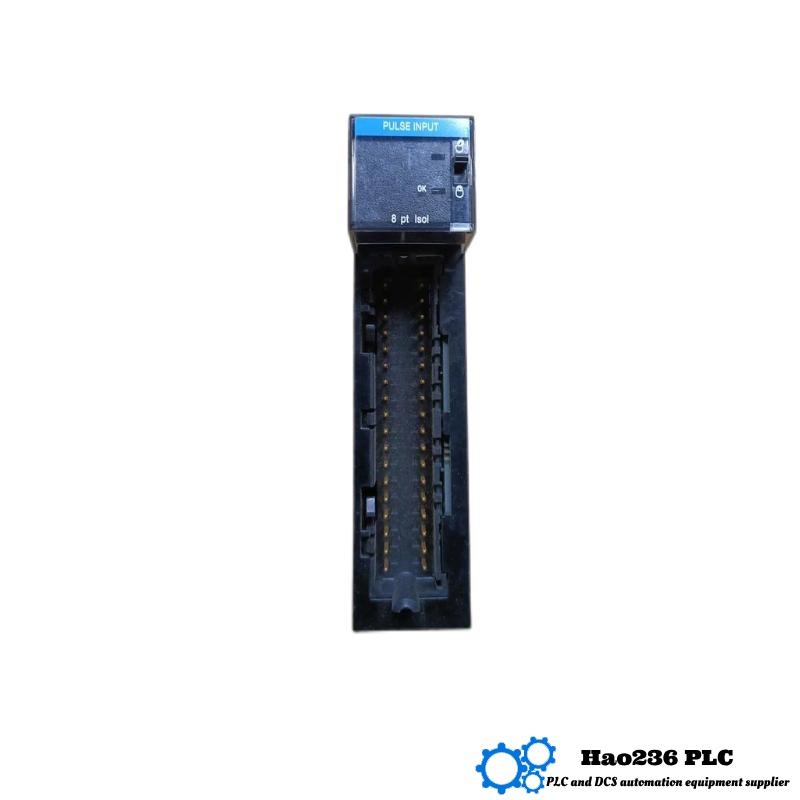

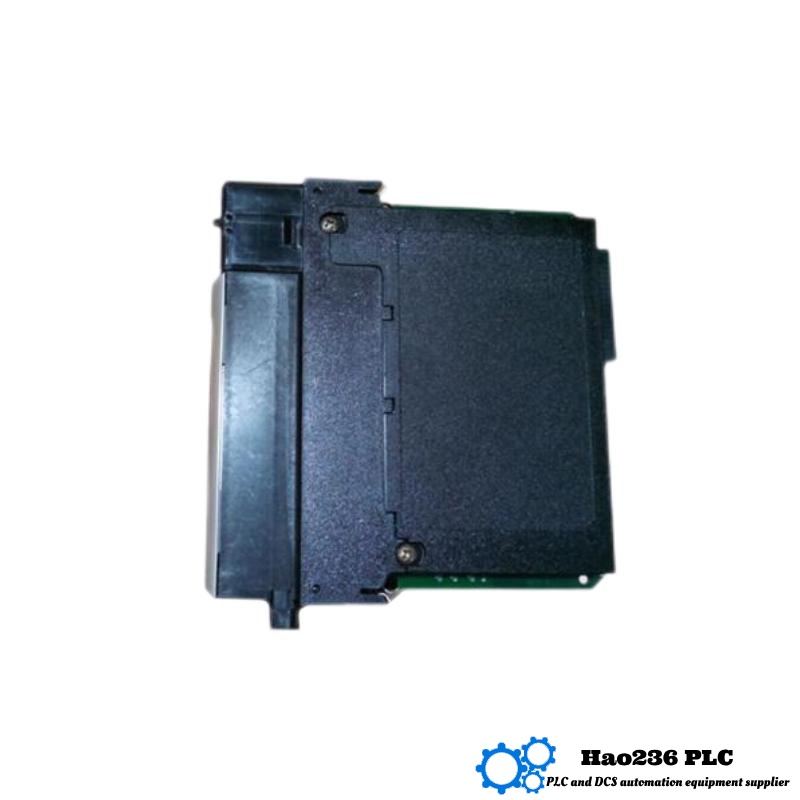

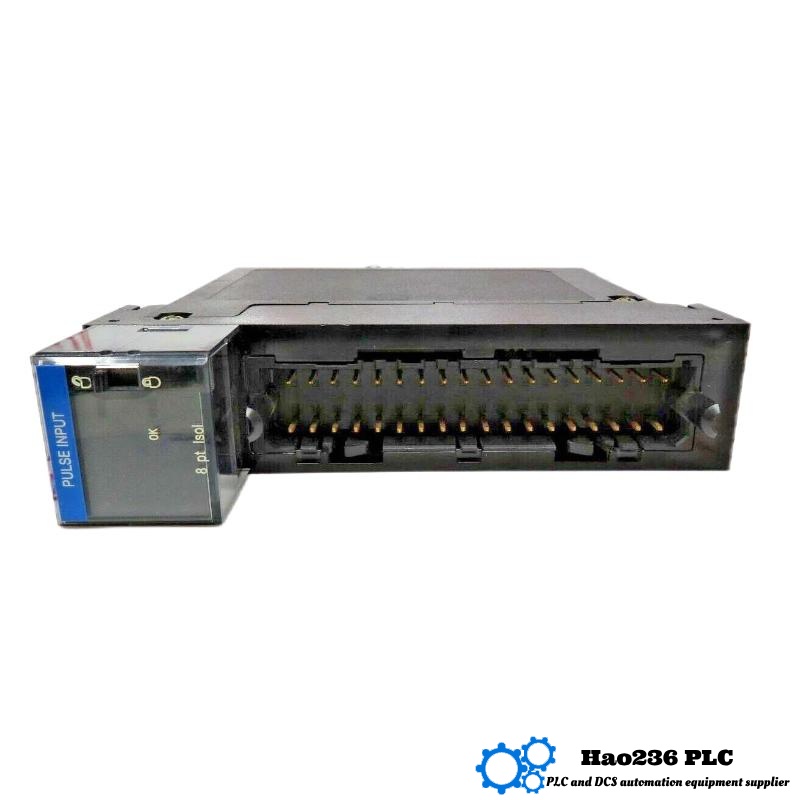

Honeywell TC-MDP081 – Experion LS Pulse I/O Module

Product Introduction

The Honeywell TC-MDP081 is an Experion LS Pulse I/O module designed for high-performance process control and automation systems. This module is specifically built to manage pulse input and output signals, allowing for precise measurement and control of flow and other similar parameters in process industries. The TC-MDP081 provides seamless integration into the Experion LS distributed control system, offering high reliability and flexibility for a wide range of industrial applications. Its compact design, along with robust functionality, ensures optimal performance even in demanding environments.

This module is ideal for handling applications where pulse-based signals are crucial, such as flow measurement, liquid level detection, and other industrial measurements that require accurate pulse inputs and outputs. It supports a broad range of pulse-generating devices and can operate reliably in various industrial environments.

Product Specifications

Product Applications

The Honeywell TC-MDP081 Pulse I/O module is ideal for several industrial applications where pulse-based measurements are required. Some common uses include:

1. Flow Measurement: The module is used to receive pulse signals from flowmeters to measure flow rates in pipes, tanks, and other systems.

2. Liquid Level Detection: It processes pulse signals generated by level sensors to detect and maintain the liquid level in various processes such as water treatment or chemical production.

3. Energy Management: The module can handle pulse signals from energy meters to monitor and manage power consumption in industrial facilities.

4. Batch Control: Used in batch processes where precise monitoring and control of materials are necessary.

5. Pumping Systems: It allows accurate pulse input and output handling for the monitoring of pumps, ensuring smooth operation in industrial processes.

Product Advantages

1. High Precision: The TC-MDP081 offers high-accuracy pulse input/output processing, crucial for applications requiring precise measurements such as flow rate and liquid levels.

2. Easy Integration: Seamless integration with Honeywell’s Experion LS control system ensures that it fits smoothly into existing industrial control setups.

3. Compact Design: With a size of 145 x 135 x 35 mm and a weight of 0.258 kg, the module’s compact form factor makes it ideal for installations in space-constrained environments.

4. Wide Operating Temperature Range: It can operate in temperatures ranging from –20°C to +60°C, making it suitable for a variety of environments.

5. Durable: The IP20 rating ensures the module is protected against dust and other environmental factors, providing long-lasting reliability.

6. Cost-Effective: By enabling real-time data collection and management, the module helps reduce operational costs associated with inefficiencies in flow or energy monitoring.

7. Versatile Application: It is versatile enough to handle various types of pulse input and output devices, which makes it highly adaptable to different industrial scenarios.

8. Robust Construction: Designed for industrial use, the module is robust and able to withstand the challenges of heavy-duty applications.

Brand: Honeywell

Honeywell is a global leader in automation and control solutions. The company provides advanced technology and innovative solutions for various industries, including process control, building automation, and safety systems. The Experion LS control system by Honeywell is known for its reliability, scalability, and ease of integration, making it a preferred choice for many industries.
