- Honeywell
- MU-TAIH12

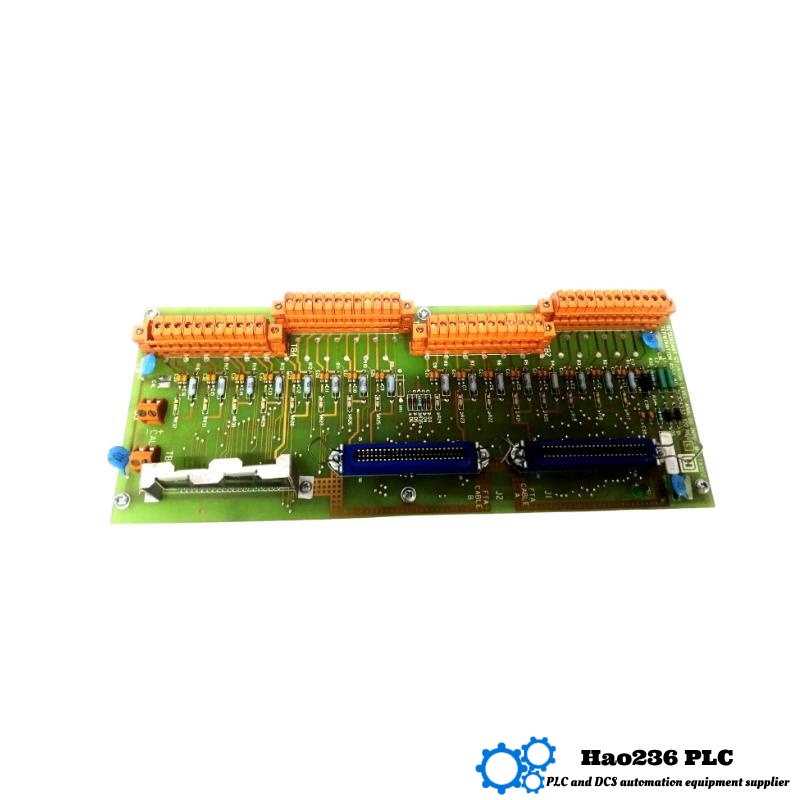

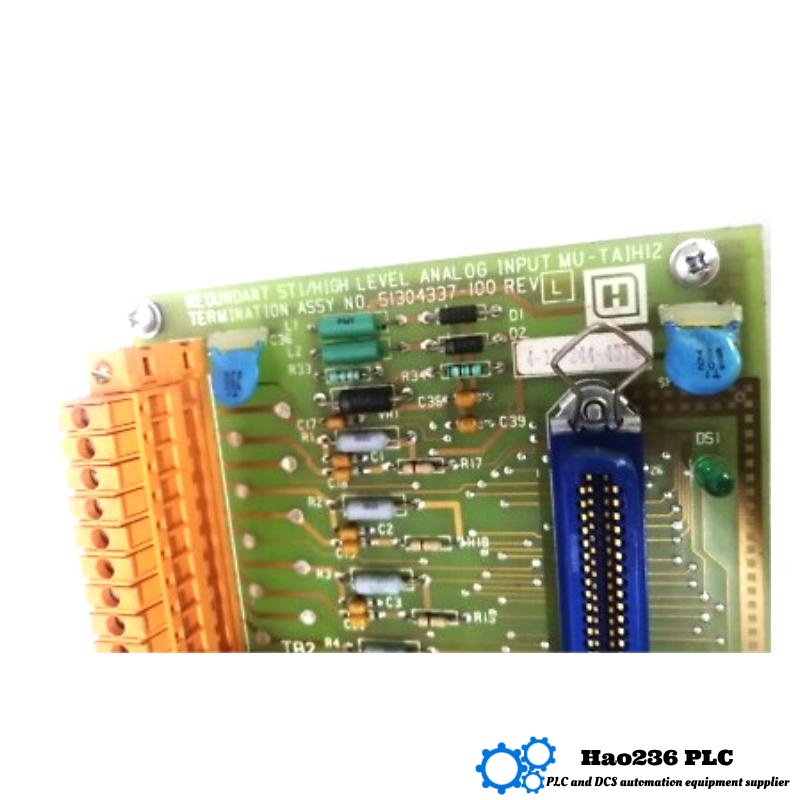

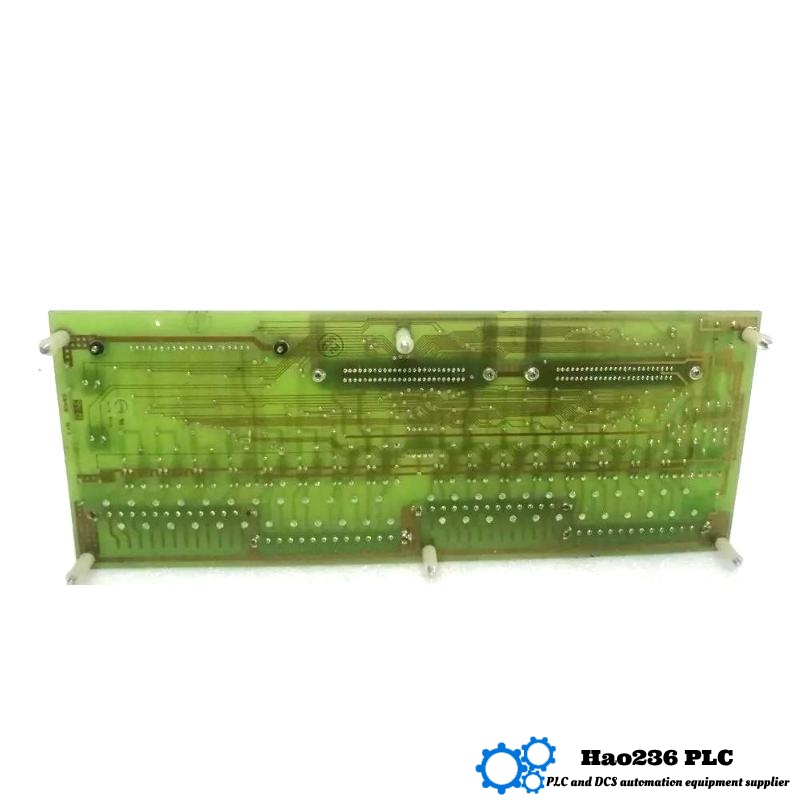

- High Level Analog Input/STI FTA for Redundancy (16 Inputs)
- USA
- 250 mm × 40 mm × 140 mm
- 0.75kg
- 51304337-100
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 58
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| sales@plc-automations.com | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
📘 Honeywell MU-TAIH12 (51304337-100) — Product Profile
🔍 Product Introduction
The Honeywell MU-TAIH12 (51304337-100) is a high-density analog input module designed for Honeywell’s robust TDC 3000/Experion Process Knowledge System (PKS). It is tailored to meet the demanding requirements of distributed control systems (DCS), allowing accurate and real-time acquisition of analog signals from field devices such as pressure transmitters, temperature sensors, flow meters, and other instrumentation.
This module ensures precise signal conditioning, conversion, and diagnostics, making it a foundational component in industries that demand reliability, redundancy, and high channel density.
📊 Product Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MU-TAIH12 (51304337-100) |
| Input Channels | 12 isolated analog input channels |
| Input Type | 4–20 mA, 1–5V, thermocouple, RTD, millivolt inputs |
| Resolution | 16-bit A/D conversion |
| Sampling Rate | Up to 50 samples/sec per channel |
| Channel Isolation | 2500 V (channel-to-channel and channel-to-ground) |
| Accuracy | ±0.1% of full scale |
| Input Impedance | >1 MΩ (voltage), 250 Ω (current) |
| Power Supply | 24 VDC ±10% |
| Diagnostics | Built-in channel diagnostics and open-loop detection |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5–95% RH non-condensing |
| Protection Rating | IP20 enclosure |
| Dimensions (L×W×H) | 250 mm × 40 mm × 140 mm |
| Weight | 0.75 kg |
| Compliance Standards | CE, UL, CSA, RoHS, IEC 61131 |
| Series | TDC 3000 / Experion PKS I/O Modules |
🏭 Product Applications
| Application Area | Description |
|---|---|
| Chemical & Petrochemical | Reliable monitoring of flow, level, and pressure in refining and processing plants. |
| Power Generation | Accurate data acquisition for steam turbines, generators, and substation controls. |
| Oil & Gas | Field measurement of pipeline pressure, wellhead temperature, and reservoir monitoring. |
| Water & Wastewater Treatment | Supervises water levels, chemical dosing, and filtration processes. |
| Food & Beverage | Monitors temperatures and process variables in production lines. |
🛠️ Product Advantages
-
High-Density Inputs: Supports 12 independent analog inputs, reducing the number of modules required in large systems.
-
Multi-Signal Compatibility: Handles a wide variety of analog signal types including current, voltage, and resistance temperature detectors (RTDs), enhancing versatility.
-
High Precision: 16-bit resolution ensures accurate signal representation critical for tight control applications.
-
Diagnostic Intelligence: Integrated fault detection and channel-level diagnostics improve system reliability and ease of troubleshooting.
-
Robust Design: Designed to perform in industrial environments with high immunity to electrical noise and temperature variations.
-
Long-Term Stability: Engineered for minimal drift over time, ensuring consistent measurements without frequent recalibration.
🏷️ Brand and Series
-
Brand: Honeywell
-
Series: TDC 3000 / Experion PKS I/O Modules
🔄 Related Models from Same Series
| Model | Type | Key Features |
|---|---|---|
| MU-TDIO01 | Digital I/O Module | 16 digital inputs and 16 outputs, with time-stamping capabilities |
| MU-TAMR03 | Analog Output Module | 8-channel output, high-accuracy signal generation |
| MU-TSTX03 | Thermocouple Input Module | 12 isolated TC channels, auto cold-junction compensation |
| MU-PDIO02 | Pulse I/O Module | Supports frequency and pulse signal acquisition |
| MU-PAIH03 | Isolated AI Module | 8-channel 4–20mA input with HART communication support |
🌟 Popular Honeywell Models (Other Series)
| Model | Type | Key Features |
|---|---|---|
| CC-PAIN01 | Analog Input Module | Experion PKS series, 16-channel, HART-enabled |
| CC-PDIL01 | Digital Input Module | 32 digital inputs, opto-isolated, LED indicators |
| CC-PDOB01 | Digital Output Module | 32 digital outputs, solid-state relays |
| CC-TDIL01 | Time-stamped Input Module | Inputs with sub-millisecond time resolution |
| CC-TAOX01 | Analog Output Module | 16-channel voltage/current output, high resolution |
❓ Frequently Asked Questions (FAQ)
Q1: What kind of signals does the MU-TAIH12 module support?
A1: It supports multiple signal types including 4–20 mA current, 1–5V voltage, thermocouples, RTDs, and millivolt signals.
Q2: How many channels are available on the MU-TAIH12 module?
A2: It offers 12 individually isolated analog input channels.
Q3: Is the MU-TAIH12 hot-swappable?
A3: No, the module must be powered down before replacement to prevent hardware damage.
Q4: Does the module support HART communication?
A4: The MU-TAIH12 itself does not support HART. For HART-enabled versions, other models like MU-PAIH03 are recommended.
Q5: What is the input resolution?
A5: The module provides 16-bit resolution for high-precision analog input conversion.
Q6: What’s the module’s diagnostic capability?
A6: It includes built-in diagnostics for open loop detection, over-range alerts, and channel health.
Q7: Can the module handle both voltage and current input?
A7: Yes, it can handle both types depending on configuration and terminal wiring.
Q8: What is the isolation level between channels?
A8: Each channel is isolated at 2500V, preventing signal interference and ensuring safety.
Q9: Is there any need for calibration after installation?
A9: The module is factory-calibrated, but field calibration may be performed for critical applications.
Q10: What is the expected operational life of the module?
A10: Designed for industrial environments, it offers a lifecycle of over 10 years under normal conditions.
