Product Overview

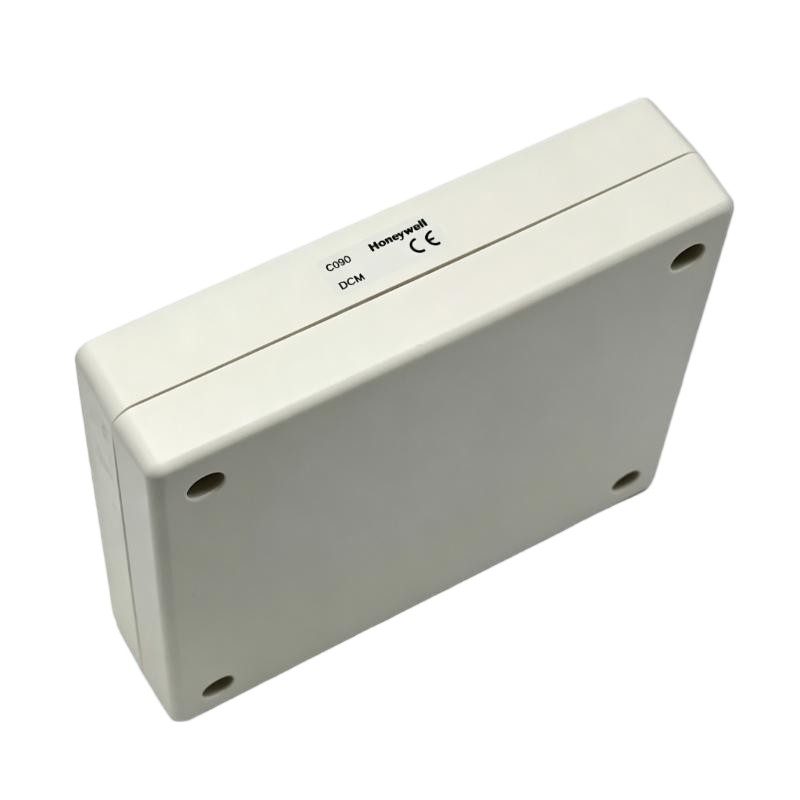

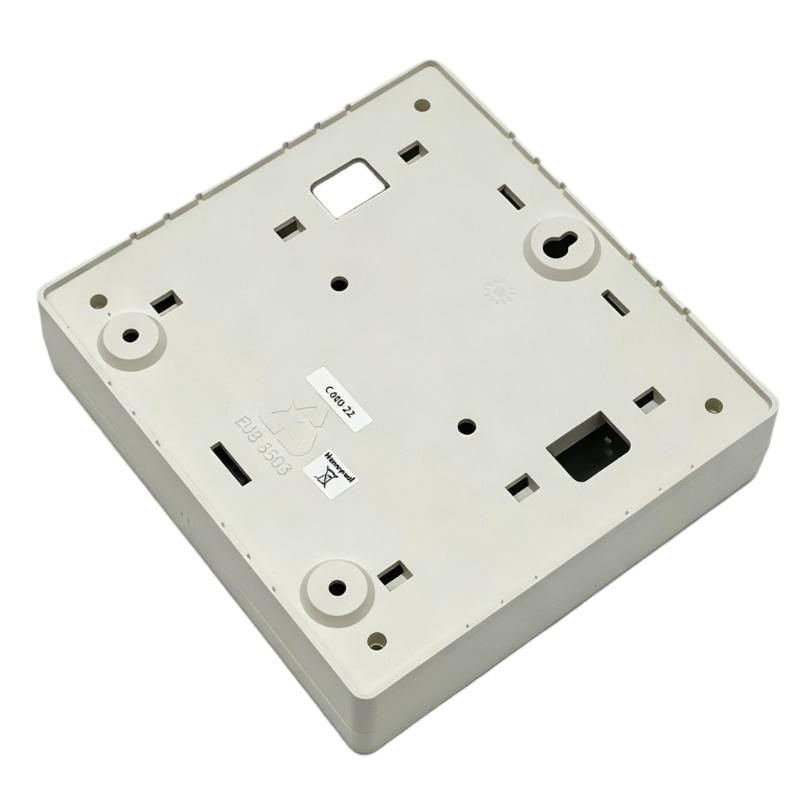

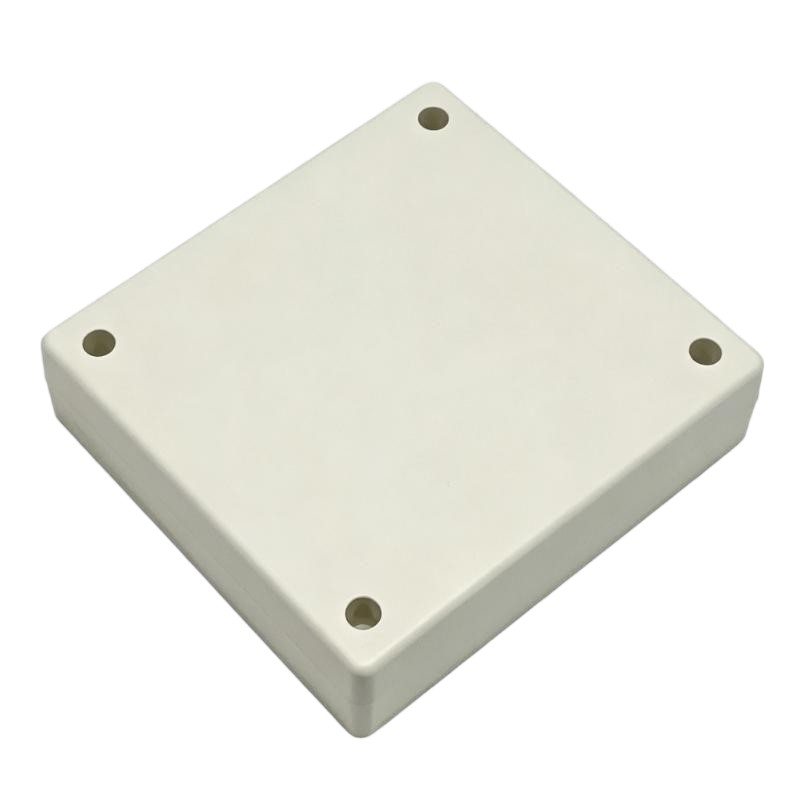

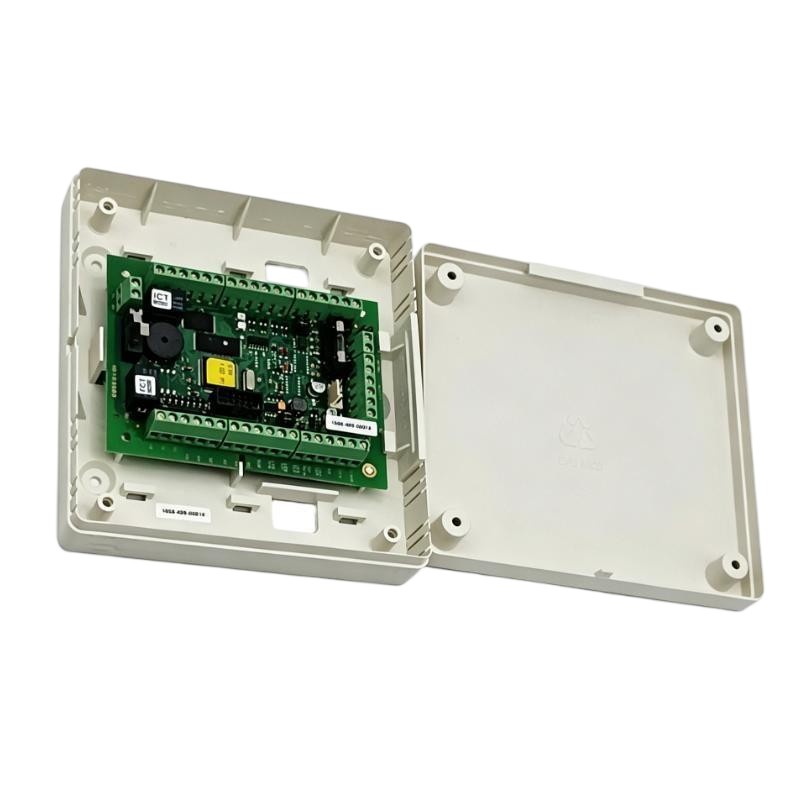

The Honeywell C080 is a door control module used within the Galaxy Dimension security system for managing door-related access control functions. It works as part of the distributed system architecture, allowing door equipment and associated monitoring devices to be connected to the central Galaxy control platform.
The module is suited to installations where multiple controlled doors need to be integrated with a centralized security system. Typical installations can include commercial buildings, industrial facilities, offices, warehouses, and other sites requiring controlled entry together with centralized event monitoring.
A door control arrangement can include access readers, door contacts, request-to-exit devices, locking equipment, and related inputs or outputs. The C080 handles the interface between these field devices and the Galaxy Dimension system so that door conditions and access events can be incorporated into the overall security configuration.
For maintenance personnel, the module is useful as a local point for tracing door-related wiring and identifying whether a problem originates from a field device, connection, door hardware, or the Galaxy communication/control system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | C080 |
| Product Family | Galaxy Dimension Series |
| Product Type | Door Control Module |
| Primary Function | Door access control and monitoring interface |
| System Role | Distributed door control interface |
| Application | Security, access control, and door monitoring |
| Dimensions | 162 × 39 × 150 mm |
| Weight | 0.31 kg |
Product Features
- Galaxy Dimension Series door control module.
- Interfaces door-related field devices with the Galaxy security system.
- Supports distributed door control within a centralized security architecture.
- Suitable for access control and door status monitoring applications.
- Can be incorporated into systems using door readers, contacts, exit devices, and locking equipment.
- Helps reduce the need to route every door signal directly to the central control panel.
- Suitable for commercial, industrial, institutional, and facility-security installations.
- Useful for expansion, replacement, and maintenance of existing Galaxy Dimension systems.
Working Principle
The C080 operates as an interface between door-side equipment and the Galaxy Dimension control system. Door devices generate electrical input conditions, while associated control outputs can be used for door-related functions according to the configured security application.
A typical signal path can be represented as:
Access Reader / Door Sensor → C080 Door Control Module → Galaxy Dimension System → Security Management / Alarm Functions
When an authorized access event is detected, the Galaxy system processes the relevant information and applies the configured access-control logic. Door monitoring devices can also report conditions such as door position or other configured events back through the module.
The C080 therefore acts primarily as a field interface within the access-control architecture. The overall security logic, event handling, user permissions, and system response remain dependent on the Galaxy Dimension controller and its configuration.
Role in a Honeywell Galaxy Dimension Security Architecture
The C080 forms part of the distributed field-control layer of a Galaxy Dimension installation. Instead of connecting every door-side device directly to the main control equipment, door-related signals can be organized through the dedicated door control interface.
Door Devices → C080 → Galaxy Dimension Control System → Alarm / Access Management
| System Element | Function |
|---|---|
| Access Reader | Identifies an access credential or user |
| Door Contact | Reports the configured door condition |
| Request-to-Exit Device | Provides an exit request signal |
| Door Locking Equipment | Performs the configured locking or release function |
| C080 | Interfaces door devices with the Galaxy system |
| Galaxy Dimension Controller | Processes security and access-control functions |
| Security Management System | Provides monitoring, event handling, and operator control |
This distributed arrangement is particularly useful when door equipment is located away from the main security control cabinet.
Industrial Applications
| Application | Typical Use |
|---|---|
| Industrial Facilities | Controlled access to production and restricted areas |
| Warehouses | Door access and personnel-entry monitoring |
| Commercial Buildings | Office and facility access control |
| Equipment Rooms | Restricted access to technical and electrical areas |
| Security-Controlled Entrances | Credential-based entry and door status monitoring |
| Multi-Door Facilities | Distributed management of multiple controlled doors |
| Institutional Facilities | Centralized monitoring of authorized and unauthorized access |
Installation and Maintenance
- Confirm that the C080 is suitable for the existing Galaxy Dimension system before installation or replacement.
- Isolate the relevant system power and follow the approved security-system maintenance procedure before working on field wiring.
- Identify all door-related connections before disconnecting the existing module.
- Verify the wiring of door contacts, access readers, exit devices, and associated control equipment.
- Check terminal connections for loose wires, damaged conductors, or incorrect termination.
- Ensure field wiring is routed and supported appropriately within the installation.
- Check that connected door hardware operates mechanically without binding or abnormal resistance.
- Verify the communication path between the C080 and the Galaxy control system.
- Confirm that door status information is correctly recognized by the security system.
- Test configured access-control functions using an approved commissioning or maintenance procedure.
- Investigate repeated door faults by checking the field device, wiring, module interface, and system configuration separately.
- After replacement, verify all affected doors, access functions, monitoring signals, and alarm events before returning the security system to normal operation.
Compatible System Components
| Component | Function |
|---|---|
| Honeywell Galaxy Dimension | Central security and access-control platform |
| Access Card / Proximity Reader | Provides credential information for access decisions |
| Door Contact | Monitors configured door position |
| Request-to-Exit Device | Provides controlled exit input |
| Electric Lock / Door Hardware | Performs the physical locking or release function |
| Alarm Devices | Provides configured audible or visual indication |
| Security Management Interface | Provides operator monitoring and system management |
| Door Cabling | Carries field signals between door equipment and C080 |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Honeywell Galaxy Dimension | Security Control System | Centralized security and access management |
| Honeywell Galaxy Series | Intrusion and Access System | Building security applications |
| Honeywell Galaxy Door Modules | Door Control Modules | Distributed door interface |
| Honeywell Access Control | Access Control Equipment | Controlled personnel entry |
| Honeywell Galaxy Keypads | Security Keypad | Local system operation and user interaction |
| Honeywell Galaxy RIO Modules | Remote I/O Modules | Distributed security-system field interface |
Key Advantages
- Integrates door-related field equipment into the Galaxy Dimension architecture.
- Supports distributed door control rather than concentrating all field wiring at the main controller.
- Suitable for access monitoring and controlled-entry applications.
- Simplifies organization of door-side inputs and control circuits.
- Useful for multi-door installations where field equipment is distributed throughout a facility.
- Provides a practical interface point for troubleshooting door-related system faults.
Technical FAQs
What types of devices are normally associated with a C080 door control module?
A door-control installation can include access readers, door contacts, request-to-exit devices, locking equipment, and other configured door inputs or outputs. The exact arrangement depends on the Galaxy Dimension system configuration and the requirements of the individual door.
What should be checked if the Galaxy system shows a door fault?
Start with the affected door’s field devices and wiring. Check the door contact, reader, exit device, locking hardware, terminal connections, and the communication path to the C080 before determining whether the module itself is defective.
Can a mechanical door problem appear as a C080 or system fault?
Yes. A door that does not close correctly, a misaligned contact, or locking hardware that does not operate properly can produce a condition that appears in the security system as an electrical or access-control fault. Mechanical and electrical checks should therefore be performed together.
What should be tested after replacing a C080?
The replacement should be checked for correct system communication and configuration first. Each affected door should then be tested for access authorization, door-status monitoring, locking or release operation, and the correct reporting of relevant security events.
