Product Overview

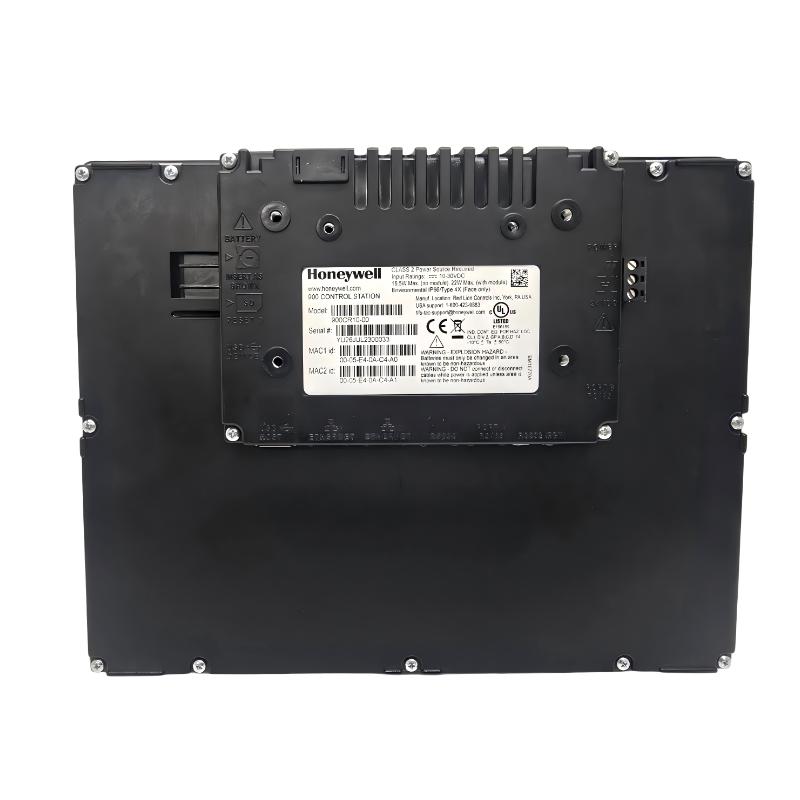

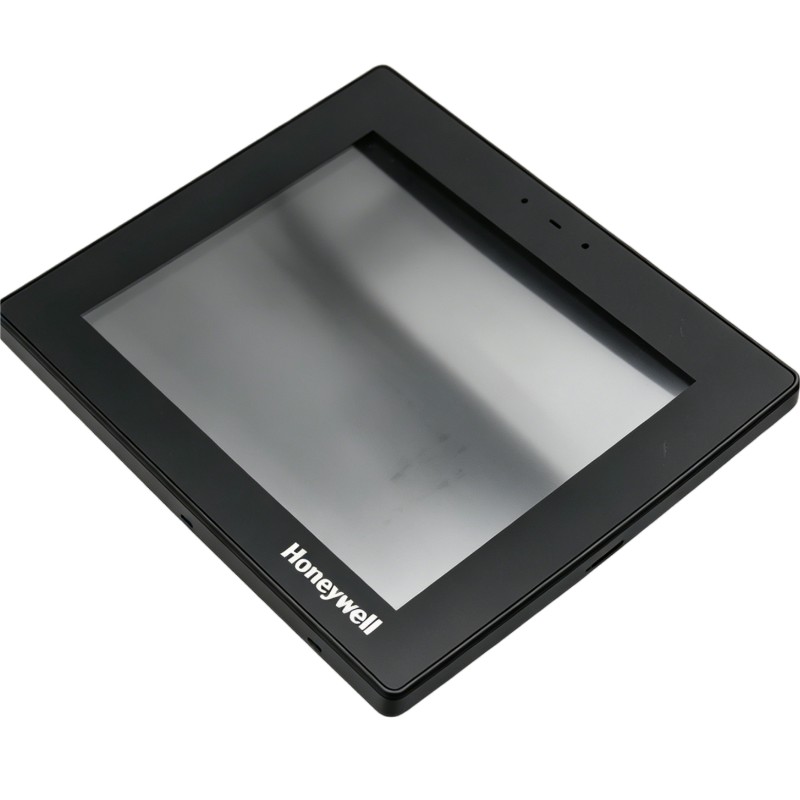

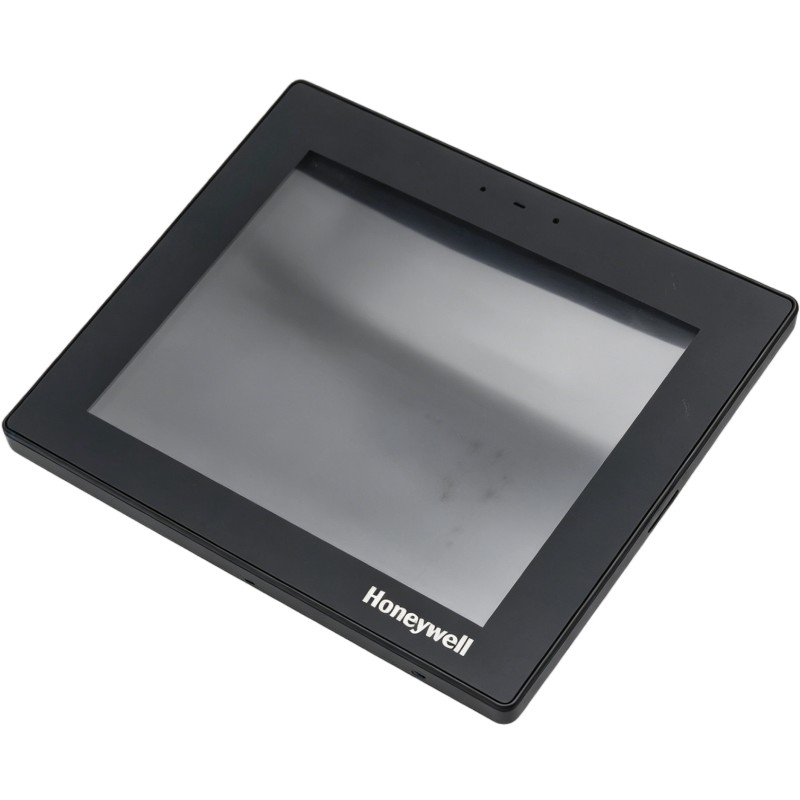

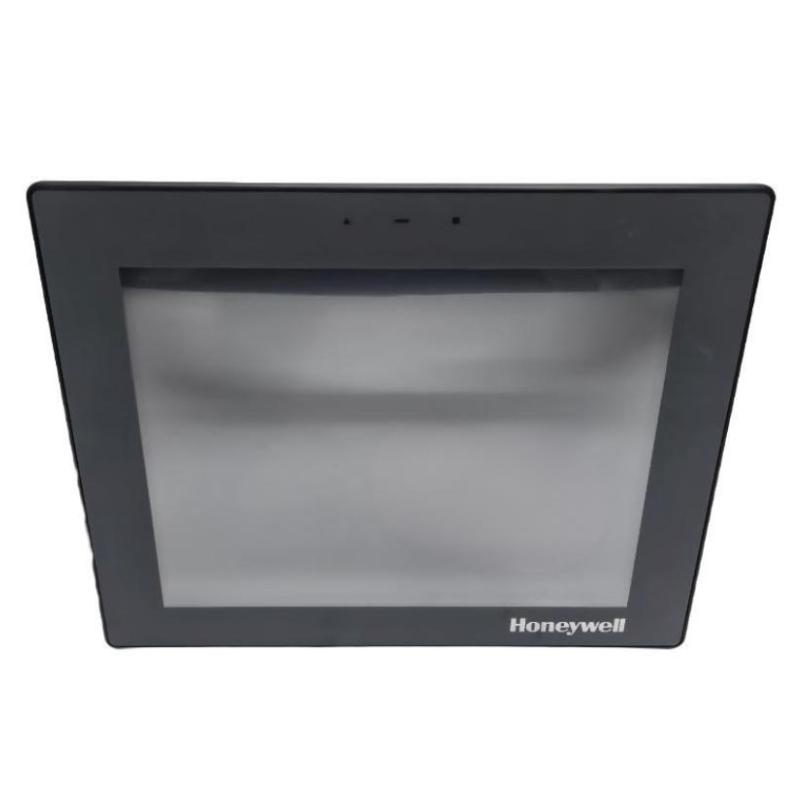

The Honeywell 900CR10-00 HC900 Control Station is an advanced human-machine interface (HMI) terminal designed to work seamlessly with the Honeywell ControlEdge HC900 Distributed Control System (DCS) platform.
It provides operators with a high-resolution touchscreen interface for real-time monitoring, process visualization, alarm management, and system control interaction. The device is engineered to enhance operator efficiency while simplifying system configuration and maintenance in industrial automation environments.
The 900CR10-00 is widely used in process industries requiring intuitive operator control, data visualization, and secure system interaction, including oil & gas, petrochemical, power generation, water treatment, and manufacturing systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Model | 900CR10-00 |
| Product Type | HC900 Control Station (HMI Panel) |
| Control System | Honeywell ControlEdge HC900 |
| Display Size | 10.4-inch industrial TFT LCD |
| Resolution | Industrial-grade color touchscreen display |
| Touch Type | Resistive touchscreen |
| Interface Type | Human-Machine Interface (HMI) |
| Communication Protocols | Ethernet (10/100 Base-T), Modbus TCP/IP, Serial Modbus RTU |
| USB Ports | 2 × USB 2.0 host ports + 1 × USB device port |
| Serial Ports | RS-232 / RS-422 / RS-485 (isolated) |
| Storage | SD card slot (up to industrial-grade SD cards) |
| Internal Memory | 512 MB flash memory |
| Operating Voltage | 10–30 V DC |
| Power Consumption | ~24 V DC industrial supply |
| Dimensions | 273.73 × 50.8 × 215.99 mm |
| Weight | 1.435 kg |
| Mounting Type | Panel-mounted industrial HMI |
| Front Protection Rating | NEMA 4X / IP66 (front panel) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Humidity Range | 0% to 85% non-condensing |
| Vibration Resistance | 2 g (5–500 Hz) |
| Shock Resistance | 30 g |
| Certifications | CE, UL, CSA, RoHS compliant |
Function and Working Principle
The 900CR10-00 Control Station operates as the operator interface layer of the HC900 automation system, bridging human operators and control logic systems.
Working principle:
- Data Visualization
Displays real-time process data from HC900 controllers and I/O systems. - Operator Interaction
Allows users to adjust setpoints, control parameters, and system states via touchscreen interface. - Alarm & Event Management
Displays alarms, warnings, and system diagnostic messages in real time. - Communication Gateway
Exchanges data with controllers via Ethernet or serial communication protocols. - Data Logging & Trending
Records process data for historical analysis and performance monitoring. - System Configuration Interface
Enables loading and transferring control system configurations and recipes.
Role in System Architecture
The 900CR10-00 module acts as the human-machine interaction layer in HC900 systems.
It is responsible for:
- Providing real-time visualization of industrial processes
- Enabling operator control and supervision of automation systems
- Supporting alarm handling and event management
- Facilitating communication between operators and controllers
- Improving system usability and operational efficiency
Within industrial automation architecture, it functions as the front-end interface between operators and the distributed control system (DCS).
Industrial Applications
The Honeywell 900CR10-00 is widely used in:
- Oil and gas production control rooms
- Petrochemical refining facilities
- Power generation plant operator stations
- Water and wastewater treatment systems
- Industrial boiler and furnace control systems
- Manufacturing and production monitoring systems
- HVAC and building automation systems
- Chemical processing plants
It is designed for continuous industrial operation requiring reliable human-system interaction and visualization.
Installation & Integration
Proper installation ensures stable HMI performance.
- Panel-mounted into industrial control cabinets
- Connected to HC900 controllers via Ethernet or serial communication
- Requires correct IP addressing and network configuration
- Must be installed in grounded, EMI-protected enclosures
- Front panel must maintain IP66/NEMA 4X sealing integrity
- Configuration performed using Honeywell Station Designer software
- USB/SD card used for configuration transfer and data logging
Compatible Components
The 900CR10-00 Control Station typically works with:
- Honeywell HC900 CPU modules (C50 / C70 / C75 series)
- Distributed I/O modules
- Communication interface modules
- SCADA supervisory systems
- Industrial Ethernet switches
- Sensor and actuator networks
- Power supply modules (24 V DC systems)
Together, these components form a complete distributed process control and visualization system.
Recommended Alternative Models
| Model | Type | Feature | Application |
|---|---|---|---|
| 900CR07-00 | HMI Control Station | Smaller 7-inch display | Compact systems |
| 900CR15-00 | HMI Control Station | Larger 15-inch display | Advanced visualization systems |
| HC900 SCADA Systems | Software Platform | Centralized monitoring | Plant-wide control |
| HC900 Controller HMI Panels | Interface System | Modular HMI solution | Industrial automation |
| Third-party Industrial HMIs | Alternative Interface | Multi-protocol support | Custom integration |
Advantages
- High-resolution industrial touchscreen interface
- Seamless integration with HC900 control systems
- Real-time process monitoring and visualization
- Robust industrial-grade environmental protection
- Flexible communication via Ethernet and serial protocols
- Built-in data logging and trend analysis functions
- Easy configuration via engineering software tools
- Reliable 24/7 industrial operation capability
FAQs
Q1: What is the main function of the 900CR10-00 module?
It provides a human-machine interface for monitoring and controlling HC900 systems.
Q2: Is it part of a PLC or DCS system?
It is part of the Honeywell HC900 Distributed Control System (DCS).
Q3: What screen size does it use?
It uses a 10.4-inch industrial TFT touchscreen display.
Q4: How does it communicate with controllers?
Via Ethernet (Modbus TCP/IP) or serial Modbus communication.
Q5: Is it suitable for harsh environments?
Yes, it has NEMA 4X/IP66 front panel protection for industrial environments.
Conclusion
The Honeywell 900CR10-00 HC900 Control Station HMI is a critical operator interface component in Honeywell’s HC900 automation system. It provides intuitive control, real-time visualization, and reliable communication between operators and industrial controllers.
Its robust design, flexible connectivity, and industrial-grade reliability make it an essential interface device for modern process automation environments requiring efficient human-system interaction.
