Product Overview

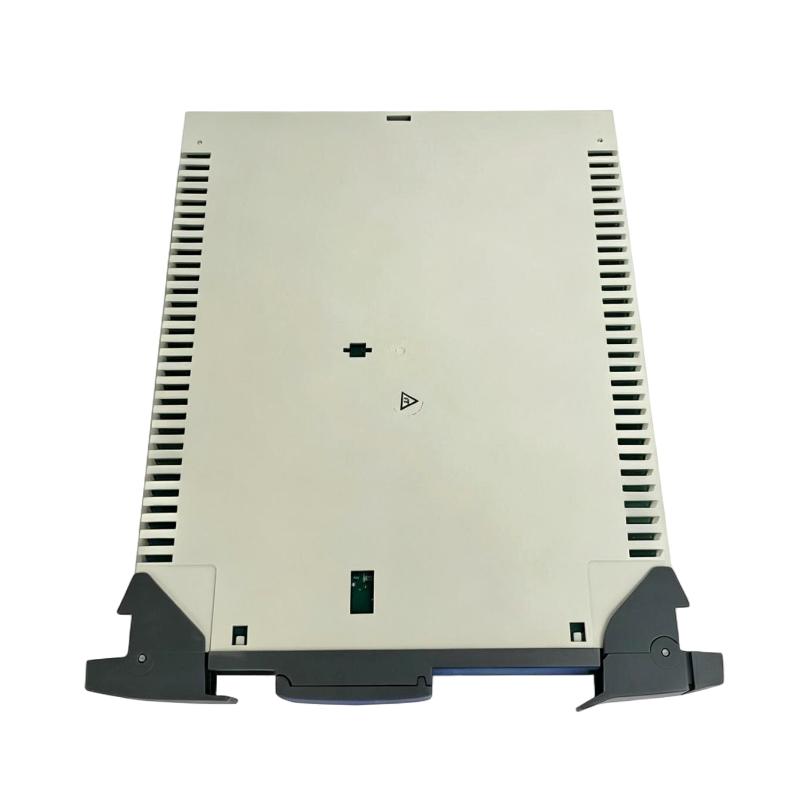

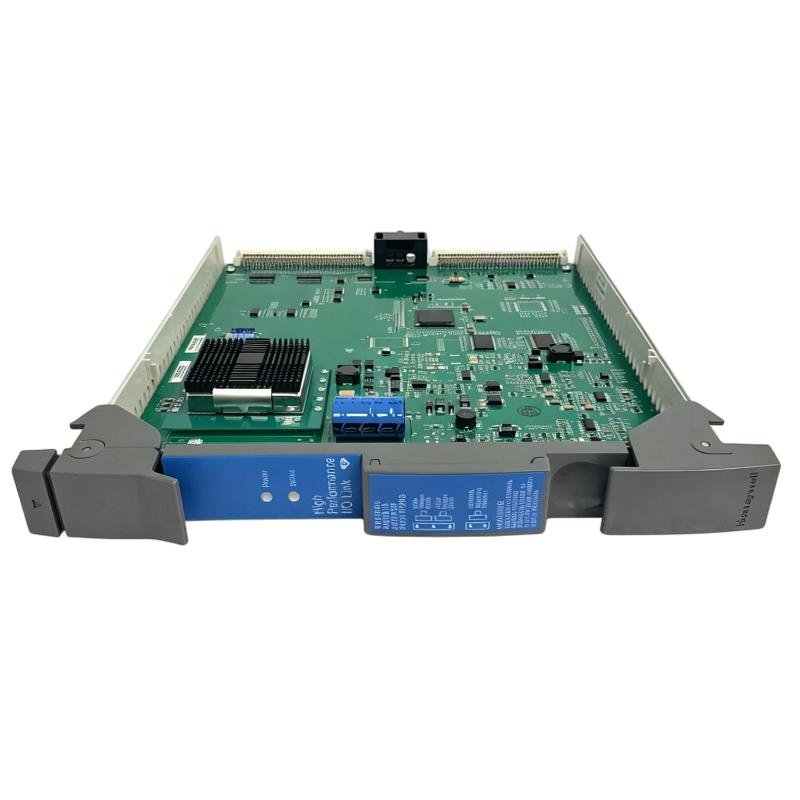

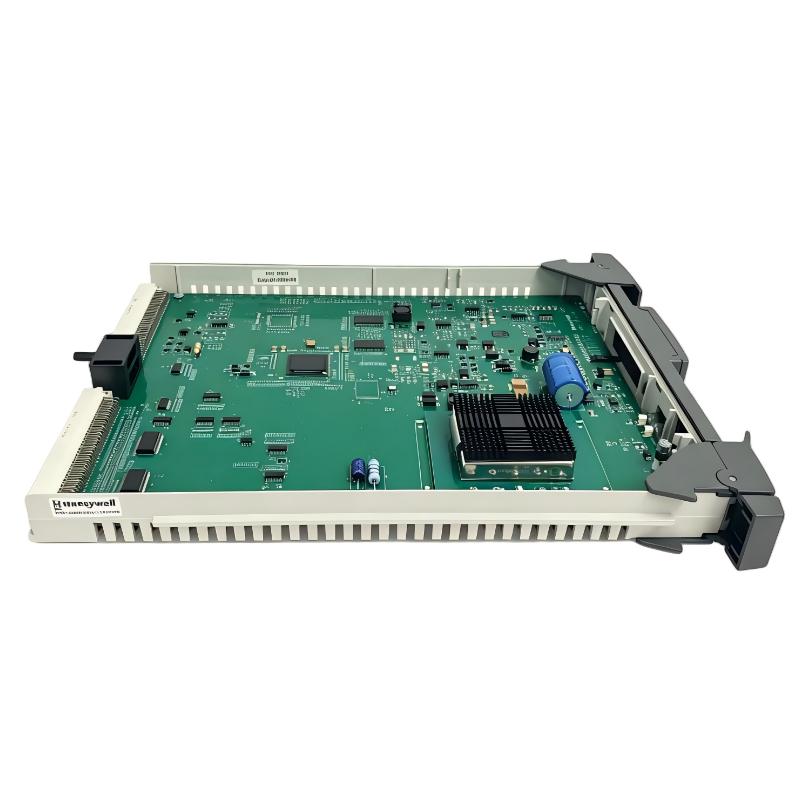

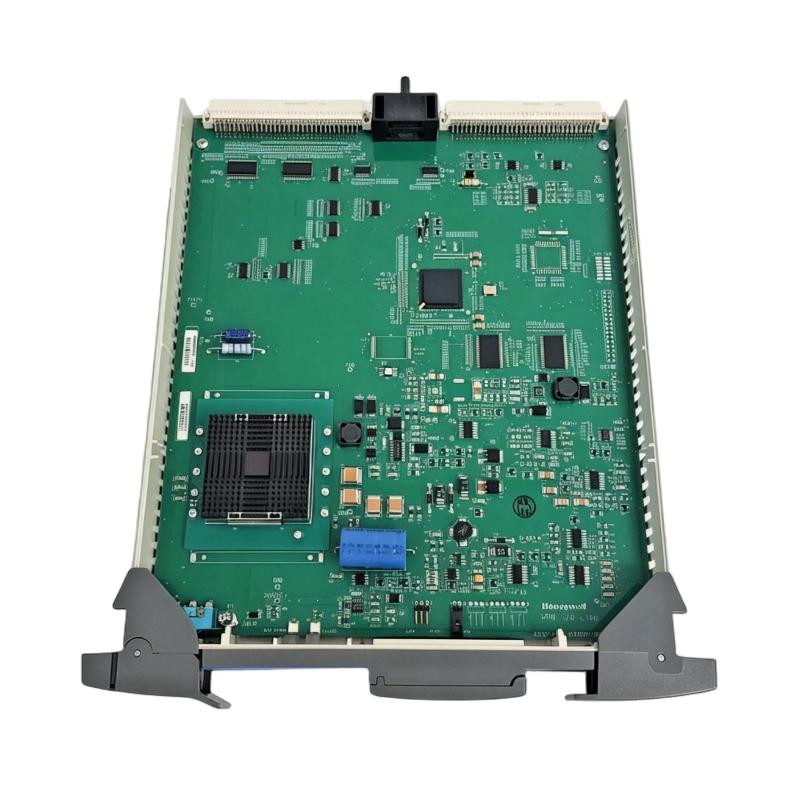

The Honeywell 51307190-150 HPM I/O Link Interface Card is a communication interface component used within Honeywell High-Performance Manager (HPM) control-system architectures. It handles the interface between the HPM controller environment and the associated I/O communication path, allowing process input and output information to be exchanged between the control processor and field-side I/O infrastructure.
The card is suited to distributed process-control installations where field signals are collected through dedicated I/O equipment rather than being wired directly to the central controller. This arrangement is commonly used in large industrial plants where control cabinets, I/O locations, and field devices may be physically separated.
Within an HPM-based system, the I/O link forms part of the communication path carrying process information between the controller and remote or associated I/O equipment. The interface card therefore works at the system communication level rather than performing the actual field measurement or control function itself.
For maintenance and troubleshooting, the 51307190-150 should be evaluated together with the HPM controller, I/O link, associated I/O modules, cabling, and field termination equipment. Communication problems can originate from any part of this path, so checking link status and physical connections is important before replacing the interface card.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | 51307190-150 |
| Product Family | HPM Series |
| Product Type | I/O Link Interface Card |
| Primary Function | HPM I/O communication interface |
| System Role | Process I/O communication interface |
| Application | Distributed process control systems |
| Dimensions | 380 × 50 × 250 mm |
| Weight | 0.5 kg |
Product Features
- HPM Series I/O Link Interface Card for Honeywell process-control architectures.
- Provides an interface between the HPM control environment and associated I/O communication infrastructure.
- Supports distributed process I/O communication.
- Suitable for installations with physically separated controller and I/O equipment.
- Helps establish the communication path between control processing and field-side I/O.
- Applicable to industrial process-control and automation systems.
- Useful for maintenance and replacement of existing HPM I/O communication hardware.
- Works as part of a larger HPM control architecture rather than as an independent field I/O module.
Working Principle
The 51307190-150 operates as an interface within the HPM I/O communication path. Process information collected by associated I/O equipment is transferred through the I/O link toward the control system, while control information generated by the HPM controller travels in the opposite direction toward the appropriate I/O devices.
Field Devices → I/O Modules → I/O Link → 51307190-150 → HPM Controller
For output operations, the direction is reversed:
HPM Controller → 51307190-150 → I/O Link → I/O Modules → Field Devices
The interface card itself does not replace the field I/O modules. Instead, it supports the communication path through which the controller exchanges process information with the distributed I/O system.
A communication interruption can therefore affect multiple process signals at the same time. When diagnosing such a condition, the interface card should be checked together with the I/O link, cable connections, associated I/O equipment, and controller communication status.
Role in a Honeywell HPM Control Architecture
The 51307190-150 occupies the communication-interface layer between HPM processing equipment and the distributed process I/O network. Its function is particularly relevant in systems where I/O hardware is located separately from the main control-processing equipment.
HPM Controller → 51307190-150 → I/O Link → Process I/O Modules → Field Devices
| System Element | Function |
|---|---|
| HPM Controller | Executes process-control and monitoring logic |
| 51307190-150 | Interfaces the HPM controller with the I/O link |
| I/O Link | Transfers process data between controller and I/O |
| Process I/O Modules | Acquires input signals and controls output signals |
| Field Instruments | Provide process measurements and equipment status |
| Final Control Devices | Perform commands generated by the control system |
| Operator Interface | Displays process information and control status |
The communication interface should be considered part of the complete I/O data path. A fault at the card, link, connector, or associated I/O equipment can prevent process information from reaching the controller or prevent controller outputs from reaching the field.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Control Plants | Distributed acquisition and control of process signals |
| Chemical Processing | Communication between HPM controllers and process I/O |
| Oil and Gas Facilities | Distributed field I/O communication |
| Power Generation | Process monitoring and control signal exchange |
| Refining Systems | Centralized control with distributed I/O infrastructure |
| Large Industrial Facilities | Long-distance separation between controllers and I/O |
| Utility Process Systems | Process signal acquisition and control |
Installation and Maintenance
- Confirm that the 51307190-150 is compatible with the installed HPM control and I/O architecture.
- De-energize the applicable control equipment according to the approved maintenance procedure before removing the card.
- Record the existing card position and I/O link connections before replacement.
- Inspect the card and its connectors for visible damage or contamination.
- Verify the I/O link wiring and connector arrangement against the system documentation.
- Check associated I/O modules for power, communication, and status indications.
- Ensure communication cables are properly supported and protected from mechanical damage.
- Check that the HPM controller is operating normally before diagnosing the interface card.
- Verify the I/O link communication status after installation or replacement.
- Confirm that expected process inputs are correctly received by the controller.
- Check output communication and associated field responses when investigating control-side problems.
- After replacement, perform a complete I/O communication and process-control verification before returning the system to normal operation.
Compatible System Components
| Component | Function |
|---|---|
| Honeywell HPM Controller | Executes process-control logic and manages I/O data |
| HPM I/O Link | Provides communication between control and process I/O |
| Honeywell Process I/O Modules | Interfaces process signals with the control system |
| I/O Termination Equipment | Provides field wiring and signal termination |
| Process Transmitters | Supplies measurement signals to the I/O system |
| Control Valves | Performs process-control commands |
| Discrete Field Devices | Provides equipment status and control signals |
| Operator Interface | Provides process monitoring and operator interaction |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Honeywell HPM Series | High-Performance Manager | Process control and automation |
| Honeywell HPM I/O Modules | Process I/O Modules | Distributed process signal interfacing |
| Honeywell HPM I/O Link | I/O Communication Interface | Controller-to-I/O communication |
| Honeywell HPM Controller Modules | Process Controller | Process logic and control execution |
| Honeywell HPM Termination Units | I/O Termination Equipment | Field signal connection and termination |
| Honeywell TDC 3000 | Distributed Control System | Industrial process automation |
| Honeywell Universal I/O | Universal I/O Platform | Flexible process signal interfacing |
Key Advantages
- Provides a dedicated communication interface for HPM process I/O.
- Supports distributed I/O architectures where field I/O is separated from the controller.
- Connects controller-level processing with the associated I/O communication path.
- Helps organize process signal exchange within larger Honeywell control systems.
- Useful for centralized troubleshooting of controller-to-I/O communication problems.
- Suitable for maintenance and replacement of existing HPM I/O interface hardware.
Technical FAQs
What is the difference between the 51307190-150 and a conventional process I/O module?
The 51307190-150 functions as an I/O link interface card rather than directly serving as a field signal input or output channel. It supports communication between the HPM control environment and the associated process I/O infrastructure.
What symptoms can indicate an HPM I/O link interface problem?
A communication failure can affect multiple I/O points simultaneously and may appear as missing process values, unavailable I/O modules, communication alarms, or loss of expected output responses. The I/O link and associated equipment should also be checked before identifying the interface card as the fault source.
Why is the I/O link important in a distributed HPM installation?
The I/O link allows process I/O equipment to communicate with the HPM controller without requiring every field signal to be individually routed into the controller cabinet. This supports distributed cabinet layouts and helps accommodate larger process-control installations.
What should be verified after replacing the 51307190-150?
Verify the card position, I/O link connections, associated I/O equipment, and controller communication status. The complete communication path should then be tested by checking representative process inputs and outputs before the control system is returned to normal operation.
