Product Overview

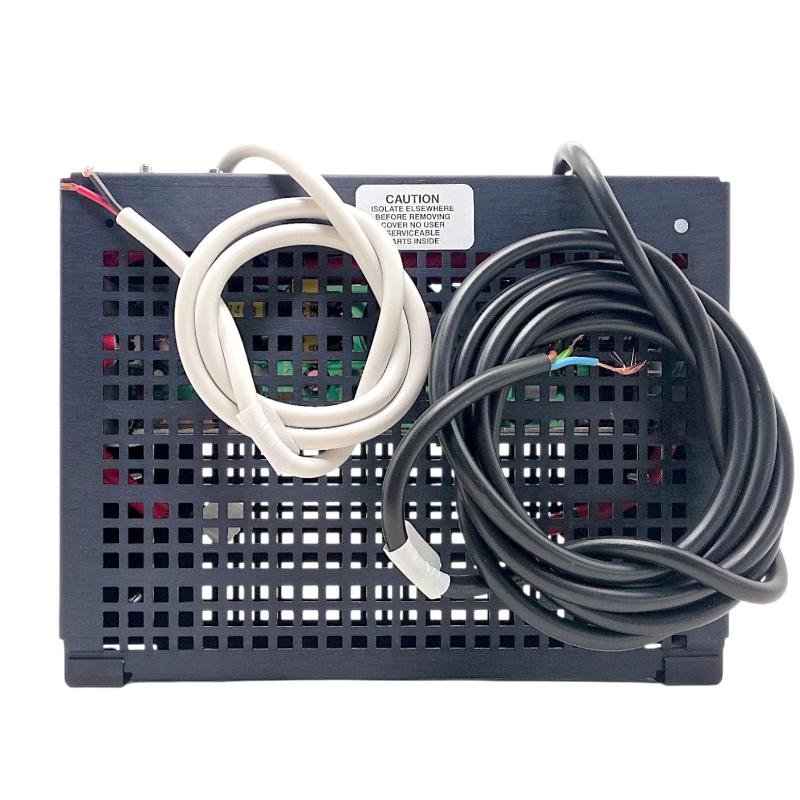

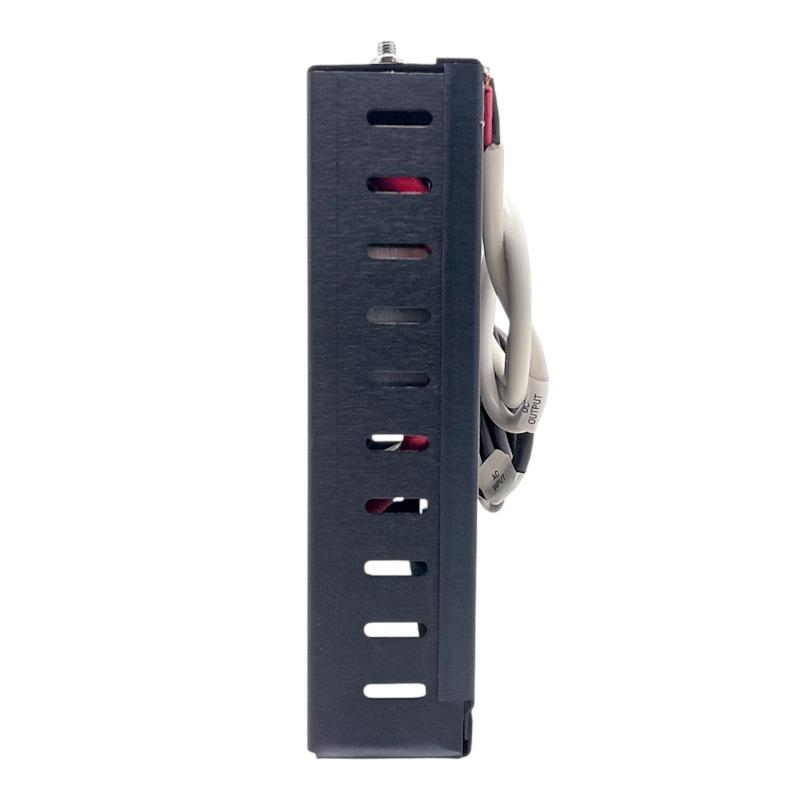

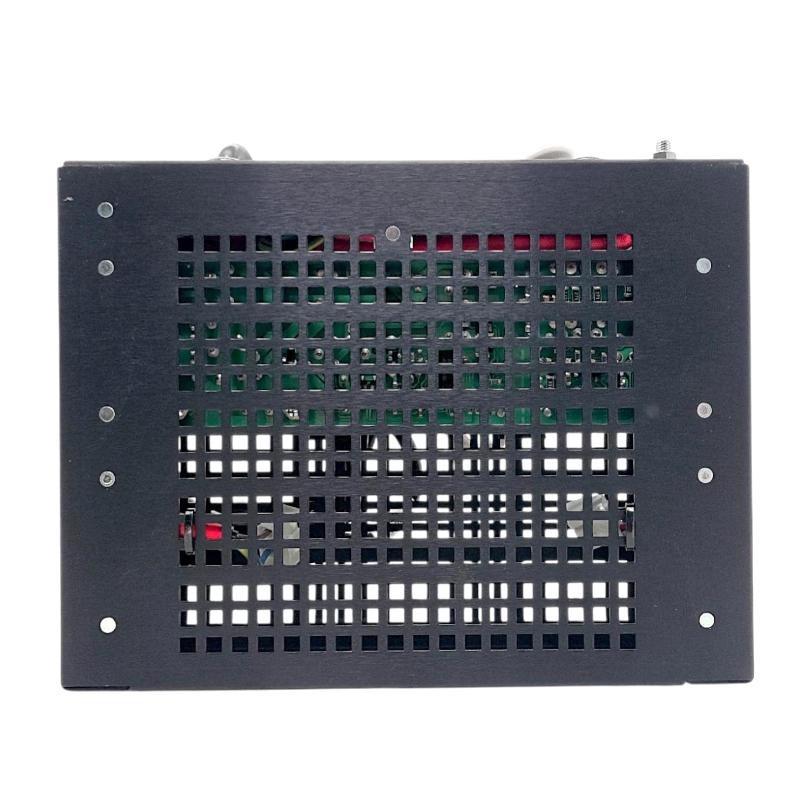

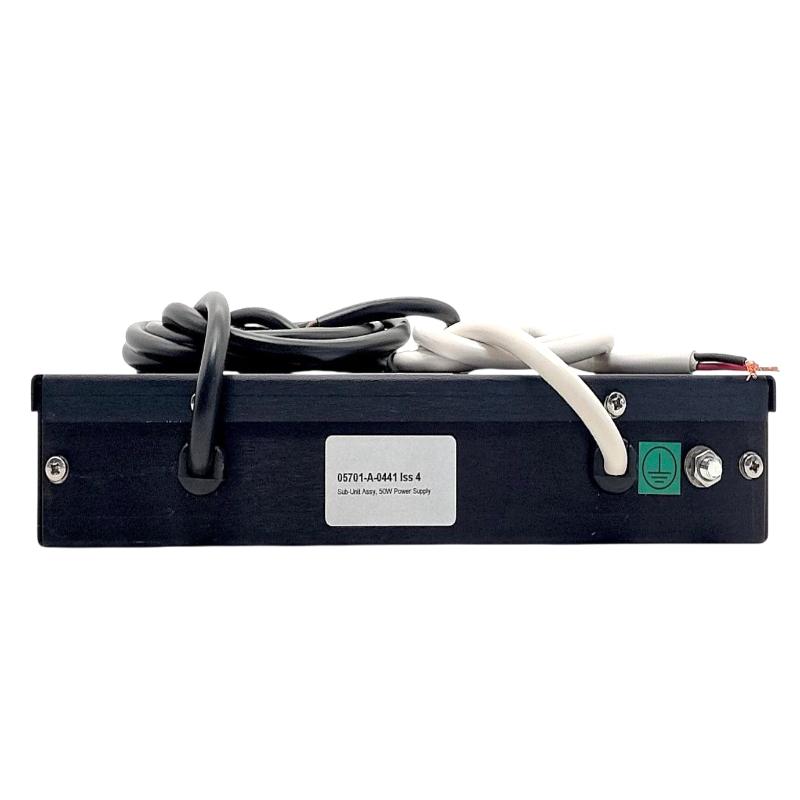

The Honeywell 05701-A-0441 is a System 57 Power Supply Subunit used within Honeywell System 57 gas detection and alarm installations. It forms part of the power infrastructure that supports the field interface and alarm-monitoring equipment used to supervise gas detection points.
Within a System 57 installation, the power supply section must maintain the electrical supply required by connected detection and control modules. The 05701-A-0441 is therefore associated with the system power layer rather than gas measurement or alarm logic itself.
The subunit is suited to installations where multiple System 57 components operate together as part of a centralized gas detection and alarm arrangement. Maintaining the power path is essential because a supply interruption can affect several connected detection channels or alarm functions simultaneously.
For maintenance personnel, the unit is typically inspected when power-related faults, module shutdowns, or abnormal supply conditions are observed. Troubleshooting should consider the subunit together with the incoming supply, downstream distribution, protection devices, and connected System 57 equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | 05701-A-0441 |
| Product Family | System 57 |
| Product Type | Power Supply Subunit |
| Primary Function | Power supply for System 57 control equipment |
| System Role | Gas detection system power infrastructure |
| Application | Gas detection, alarm, and safety monitoring |
| Dimensions | 350 × 60 × 208 mm |
| Weight | 1.5 kg |
Product Features
- Power supply subunit for Honeywell System 57 installations.
- Supports the electrical infrastructure of gas detection systems.
- Suitable for centralized gas detection and alarm configurations.
- Supplies power to associated System 57 system components.
- Forms part of the system power-distribution architecture.
- Useful for maintenance and replacement of System 57 power equipment.
- Supports continuous operation of connected detection and alarm modules.
- Suitable for industrial gas detection and safety-monitoring environments.
Working Principle
The 05701-A-0441 operates within the power section of a System 57 installation. Electrical power is supplied to the subunit and distributed through the appropriate System 57 power arrangement to support connected detection, interface, and alarm equipment.
The subunit does not directly measure gas concentration or determine alarm conditions. Those functions are handled by the associated gas detection and control modules. Instead, the power supply maintains the electrical conditions required for those modules to operate.
A fault in the supply path can have a wider effect than a failure of a single detection channel because several System 57 components may depend on the same power infrastructure.
AC / System Power Input → 05701-A-0441 Power Supply Subunit → System 57 Power Distribution → Detection / Interface Modules → Alarm & Safety Response
The actual downstream power arrangement depends on the System 57 cabinet configuration and installed modules.
Role in a System 57 Gas Detection and Alarm Architecture
The 05701-A-0441 occupies the power-supply layer of the System 57 architecture. It supports the modules responsible for receiving detector signals, processing system information, and generating alarm or safety responses.
Power Source → 05701-A-0441 → System 57 Modules → Gas Detectors / Interfaces → Alarm & Safety System
| System Element | Function |
|---|---|
| System Power Source | Provides electrical power to the gas detection installation |
| 05701-A-0441 | Supplies and supports System 57 power distribution |
| System 57 Control Modules | Process detector signals and system conditions |
| Gas Detection Modules | Receive signals from connected gas detectors |
| Gas Detectors | Detect the presence or concentration of target gases |
| Alarm Equipment | Provides visual or audible indication of detected conditions |
| Safety Response System | Initiates configured protective actions when required |
The power supply subunit supports system availability but does not replace the detection, alarm-processing, or safety-response functions of the other System 57 modules.
Industrial Applications
| Application | Typical Use |
|---|---|
| Gas Detection Systems | Power infrastructure for System 57 detection equipment |
| Oil and Gas Facilities | Supporting centralized gas monitoring installations |
| Chemical Plants | Power supply for industrial gas detection systems |
| Petrochemical Plants | System 57 cabinet power infrastructure |
| Refineries | Supporting gas detection and alarm equipment |
| Industrial Process Plants | Centralized gas monitoring and safety systems |
| Hazardous Area Monitoring | Supporting connected gas detection equipment |
| Safety Instrumented Facilities | Power infrastructure for gas alarm and monitoring arrangements |
Installation and Maintenance
- Verify that the 05701-A-0441 is the correct power-supply subunit for the installed System 57 configuration.
- Isolate the relevant electrical supply before beginning maintenance work.
- Identify incoming and outgoing power connections before disconnecting the existing subunit.
- Inspect terminals, connectors, wiring, and protective devices for visible damage or overheating.
- Confirm that the replacement is installed in the correct System 57 cabinet position.
- Check all power connections against the existing approved wiring arrangement before energizing.
- Verify that downstream System 57 modules are correctly connected to the intended power distribution path.
- Restore power under controlled conditions and check the expected power status.
- Monitor connected System 57 modules for abnormal power-related indications after installation.
- Investigate repeated power interruptions by checking the supply subunit, upstream source, distribution wiring, and connected loads.
- Keep the power-supply area clean and free from excessive dust, moisture, and contamination.
- After replacement, verify the complete System 57 power path and confirm normal operation of connected gas detection and alarm functions.
Compatible System Components
| Component | Function |
|---|---|
| Honeywell System 57 Control Modules | Process gas detection and alarm information |
| System 57 Field Interface Cards | Interface with connected gas detection devices |
| Gas Detectors | Detect target gases in monitored areas |
| Alarm Modules | Provide visual or audible gas alarm indication |
| System 57 Power Distribution | Routes electrical power to connected system equipment |
| Terminal Blocks | Provides electrical circuit termination |
| Circuit Protection Devices | Protects power-distribution circuits |
| Control Cabinet | Houses System 57 power, detection, and interface equipment |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Honeywell 05701-A-0441 | System 57 Power Supply Subunit | System power supply |
| Honeywell System 57 Series | Gas Detection System | Gas detection and alarm monitoring |
| Honeywell System 57 Power Supply Units | Power Supply Unit | System power distribution |
| Honeywell System 57 Field Interface Cards | Field Interface Card | Gas detector signal interfacing |
| Honeywell System 57 Control Modules | Control Module | Gas detection and alarm processing |
| Honeywell System 57 Alarm Modules | Alarm Module | Gas and fault indication |
| Honeywell System 57 Gas Detectors | Gas Detector | Gas concentration detection |
Key Advantages
- Supports the power infrastructure of Honeywell System 57 installations.
- Provides a dedicated supply function for connected gas detection equipment.
- Suitable for centralized industrial gas detection and alarm systems.
- Helps maintain power availability across connected System 57 modules.
- Useful for maintenance and replacement of legacy System 57 power equipment.
- Separates power-supply functions from gas detection and alarm-processing functions.
Technical FAQs
What part of the System 57 architecture does the 05701-A-0441 support?
It belongs to the system power layer and supports the electrical supply arrangement for associated System 57 detection, interface, and alarm equipment. It does not perform gas measurement itself.
Why can a power-supply fault affect several System 57 channels?
Multiple System 57 modules can depend on the same cabinet-level power infrastructure. An interruption in the supply path can therefore cause several detection or interface modules to lose normal operation at the same time.
What should be checked if System 57 modules lose power intermittently?
Check the incoming supply, 05701-A-0441 connections, terminals, protective devices, distribution wiring, and downstream loads. Intermittent power loss should be investigated across the complete supply path rather than assuming that the subunit itself has failed.
What should be verified after replacing the 05701-A-0441?
Verify the power connections and downstream distribution first, then confirm that the System 57 modules receive the expected supply. Gas detector inputs, alarm indications, and associated system functions should also be checked before returning the installation to normal service.
