Honeywell 05701-A-0301 Fault Behavior in PLC-Based Gas Detection Control Systems

Honeywell 05701-A-0301 troubleshooting cases in industrial plants are frequently misdiagnosed as module failure, while real field data shows most issues originate from loop instability, grounding defects, or configuration corruption rather than hardware damage in PLC controller systems.

This single channel control card reacts strongly to micro-level signal distortion, especially in 4–20 mA loops operating near alarm thresholds.

Table of Contents – Fault Diagnosis Workflow

• Fault Symptoms in Field Operation
• Signal Path Diagnostic Thinking
• 4–20 mA Loop Failure Mechanism
• Real Field Case Study
• Repair & Recovery Strategy
• Engineering FAQ
• Final Diagnostic Summary

Honeywell 05701-A-0301 PLC Module Fault Symptoms in Field Systems

In real industrial environments, Honeywell 05701-A-0301 faults often appear intermittent and non-reproducible during bench testing.

• Random FAULT LED activation without process change
• Signal oscillation between stable mA values
• Alarm triggering at inconsistent thresholds
• Channel freeze during temperature rise cycles

In one refinery compressor station, alarms triggered every 12–18 minutes despite stable gas readings confirmed by handheld calibration equipment.

Honeywell 05701-A-0301 Fault Diagnosis Through Signal Path Thinking

Effective troubleshooting requires full signal chain thinking rather than module replacement.

Sensor → Field Loop → Input Stage → Processing Logic → Relay Output

In one field case, replacing the module did not resolve the issue. The root cause was a 2.3Ω intermittent resistance spike at a corroded terminal block.

This minor resistance variation was enough to distort threshold-level signal interpretation.

Common Causes of Honeywell 05701-A-0301 Signal Instability

• EMI coupling from VFD motor cables
• Poor grounding structure in PLC cabinet
• Shielding termination errors (floating or double-grounded shield)
• Loop resistance variation under vibration stress

In one offshore facility, signal fluctuated between 9.2 mA and 13.4 mA. Investigation revealed parallel routing with a 600V power feeder over a long distance.

Real Field Case Study – Honeywell 05701-A-0301 False Alarm Scenario

We observed a case where alarms repeatedly triggered during compressor startup cycles. Initial assumption was module failure, but sensor output remained stable during direct measurement.

Root cause analysis identified thermal expansion causing micro-displacement in backplane connectors, resulting in intermittent contact resistance changes.

Field Diagnostic Commands:
- Measure loop current stability (mA fluctuation check)
- Perform terminal resistance test (< 1Ω target)
- Execute channel swap validation

After tightening backplane assembly and cleaning contact surfaces, system stability returned immediately.

Honeywell 05701-A-0301 Fault Recovery & Repair Procedure

1. Verify 4–20 mA loop stability under operating load
2. Check terminal contact resistance consistency
3. Inspect backplane connector seating condition
4. Perform module swap test for isolation
5. Reinitialize configuration memory if parameter drift exists

If the fault follows the module, internal hardware failure is confirmed. If the fault remains in field wiring, the issue is external to the PLC module.

Engineering FAQ – Honeywell 05701-A-0301 Troubleshooting

Why does the module show intermittent FAULT status?

This is usually caused by signal noise or grounding instability rather than internal hardware failure.

Why do alarms trigger at incorrect current levels?

Most cases are related to configuration drift or incorrect scaling parameters inside the PLC system setup.

Is module replacement a reliable first step?

No. Field experience shows replacement without loop diagnosis often leads to repeated failure symptoms.

Final Diagnostic Summary – Honeywell 05701-A-0301

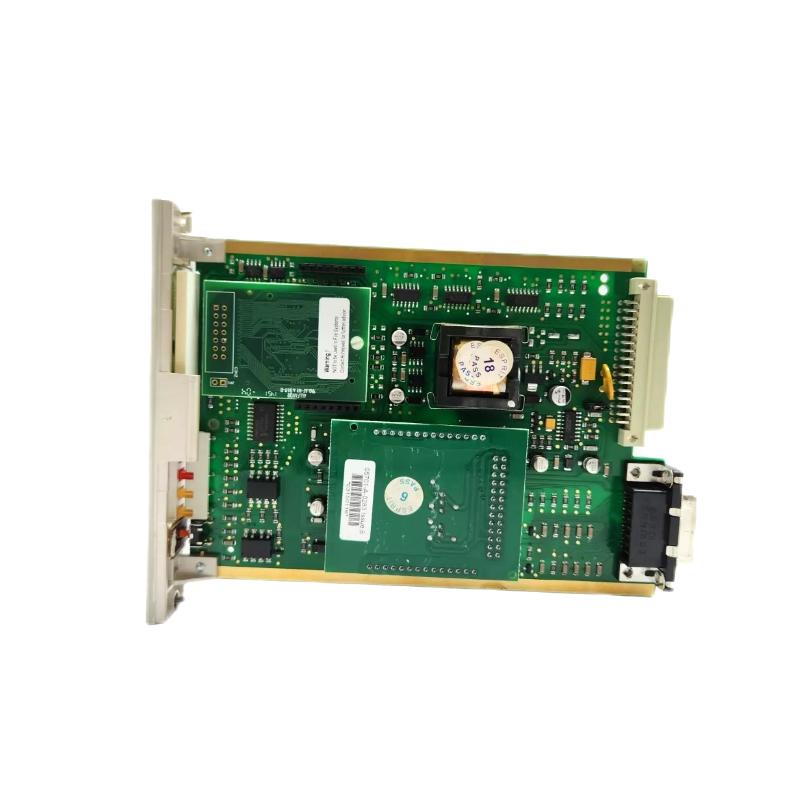

The Honeywell 05701-A-0301 single channel control card is highly stable but extremely sensitive to signal integrity, grounding quality, and configuration consistency.

In real industrial troubleshooting practice, system-level diagnosis delivers far higher success rates than component-level replacement, especially in PLC-based safety instrumented systems.
