📦 Product Overview

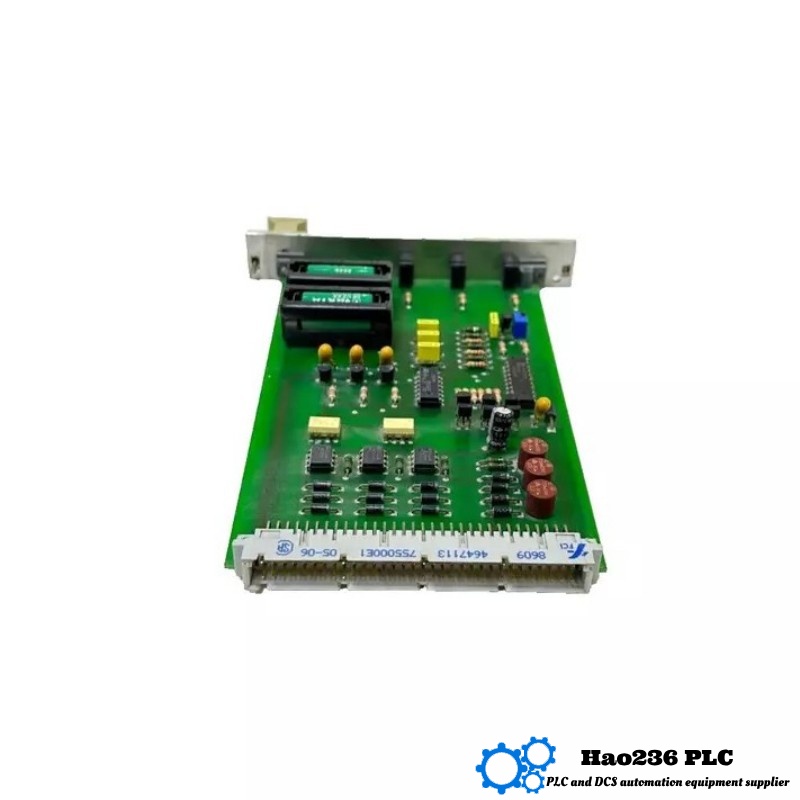

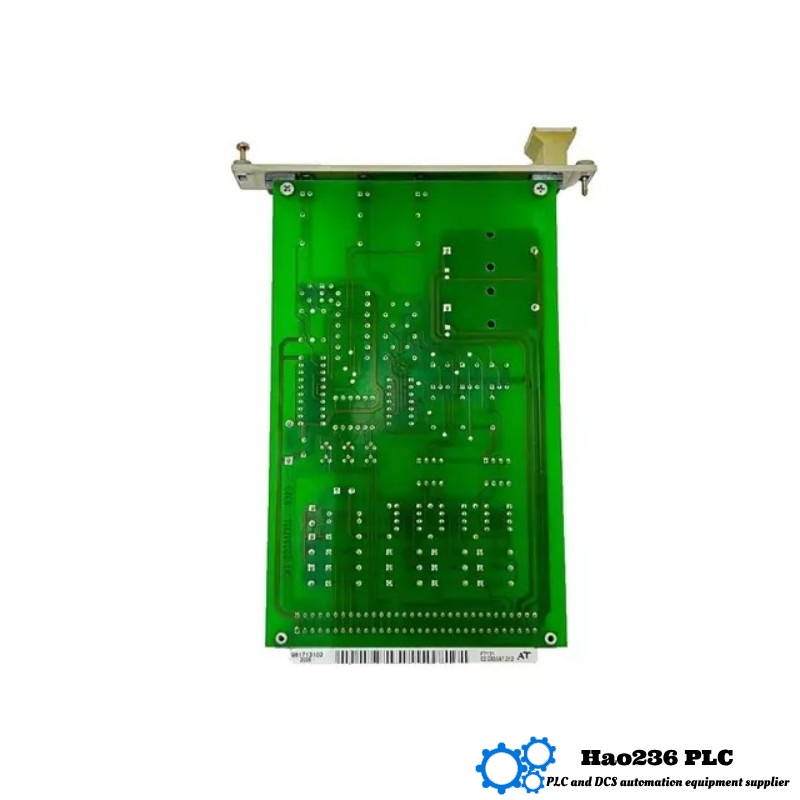

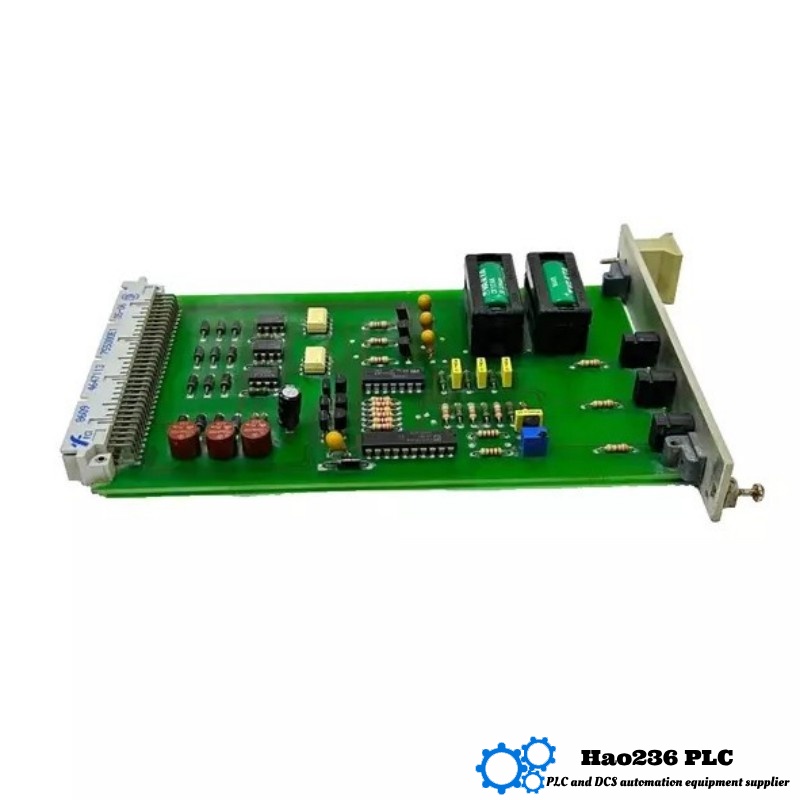

Model: HIMA F7131
Brand: HIMA
Series: Power Supply Monitoring / Distribution Modules
The F7131 is a compact power supply monitoring and distribution module designed for safety-related automation systems. It plays a crucial role in ensuring that critical components such as CPUs and interface modules receive clean, stable, and protected power. The module monitors supply rails, distributes power safely, and signals faults via LEDs and internal diagnostics.
📐 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | F7131 |
| Function | Power supply monitoring and distribution |
| Input Voltage | 24 V DC |
| Output Voltage | 5 V DC (CPU logic); 24 V DC (interface power) |
| Output Current | 5 V: 110 mA; 24 V: 180 mA (typical) |
| Monitoring | LEDs for input, CPU 5 V, interface 24 V |
| Protection | Overvoltage, short circuit, current limitation |
| Redundancy Support | Yes |
| Operating Temperature | –25°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Humidity Tolerance | 5–95% non-condensing |
| Isolation | Yes (input to output) |
| Dimensions (L×W×H) | 120 mm × 100 mm × 30 mm |
| Weight | 0.25 kg |
🌐 Product Applications
-
Safety PLC systems in industrial automation
-
Process plants such as oil & gas, chemical, and energy
-
Redundant power supply setups for safety systems
-
Monitoring of distributed power rails
-
Protection of control electronics from unstable power
-
Water treatment plants, power stations, and refineries
✅ Product Advantages
-
Reliable Monitoring: Real-time indication of power status using built-in LEDs
-
Fault Protection: Prevents downstream failures with built-in short circuit and overload protection
-
Redundant System Ready: Ideal for systems with multiple power supplies
-
Space-Saving: Slim, lightweight design fits compact cabinets
-
Robust: Wide temperature tolerance and strong industrial build
-
Quick Diagnostics: LED status indicators make troubleshooting fast and efficient
-
Safe Isolation: Electrical separation between inputs and outputs improves system safety
-
Versatile Usage: Supports both logic and interface power management
🔄 Related / Similar Models
| Model | Function Description |
|---|---|
| F7126 | Power supply module with 10 A output for CPU logic |
| F7130A | Power distribution with extended diagnostic capability |
| F7133 | 4-channel power distributor with fuse monitoring |
| F7125 | Compact power converter, 5 V DC output |
| F8627X | I/O controller with power and signal management capabilities |
🌟 Popular Models from Same Brand
| Model | Function Description |
|---|---|
| F6217 | 8-channel analog input module, high precision, SIL-certified |
| F3237 | Digital input module for NAMUR signals |
| F3330 | 16-channel digital output module for actuator control |
| H4135A | High-speed digital I/O module for rapid safety reactions |
| F8650X | Central processing unit with multiple interface capabilities |
❓ Frequently Asked Questions (FAQ)
Q1: What is the primary purpose of the F7131?
A1: The F7131 is designed to monitor and distribute stable power (5 V and 24 V DC) to safety-related modules and indicate the health of those power rails via LEDs.
Q2: Does it protect against short circuits?
A2: Yes. The module includes built-in short-circuit protection on all outputs.
Q3: Can F7131 be used in redundant power setups?
A3: Absolutely. It is ideal for redundant power supply configurations and helps monitor the status of each rail.
Q4: What are its output voltages?
A4: The module outputs 5 V DC for CPU/safety logic and 24 V DC for interface or peripheral devices.
Q5: How does it indicate power status?
A5: It has LED indicators for input voltage, 5 V output (CPU), and 24 V output (interface bus).
Q6: Is the module isolated?
A6: Yes, it features electrical isolation between input and output to improve system safety.
Q7: What kind of applications use F7131?
A7: Industrial safety systems, especially in oil & gas, chemicals, power plants, and manufacturing facilities.
Q8: Is it suitable for high-temperature environments?
A8: Yes. It operates safely within a –25°C to +70°C range and stores up to –40°C or +85°C.
Q9: Can this module prevent total power failure?
A9: While it doesn’t generate power, it ensures safe distribution and indicates issues before a complete failure occurs.
Q10: Is the F7131 a heavy module?
A10: No. It is compact and lightweight, weighing approximately 0.25 kg, making it easy to install and maintain.
