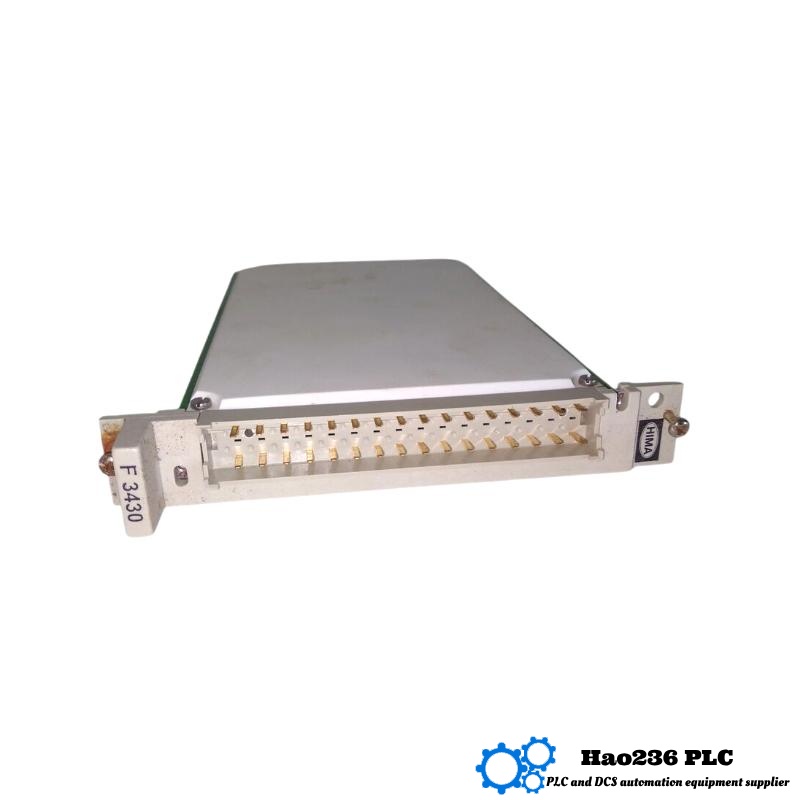

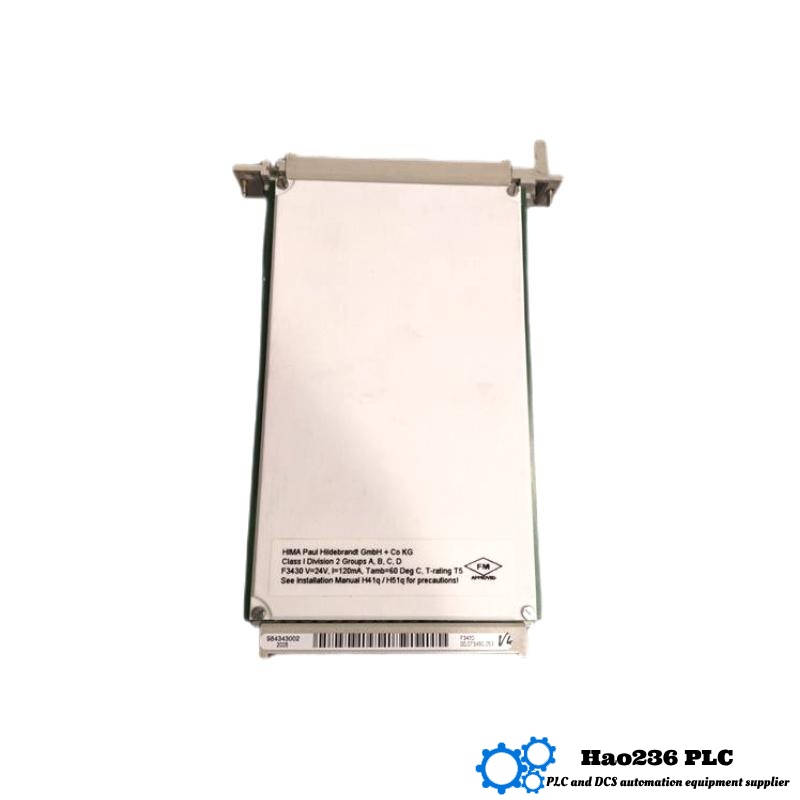

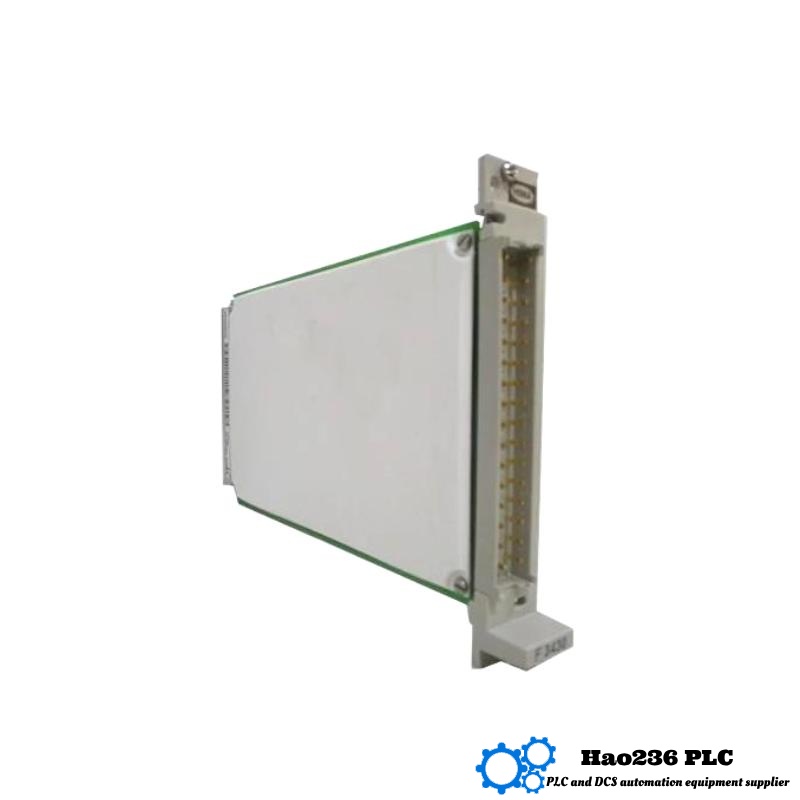

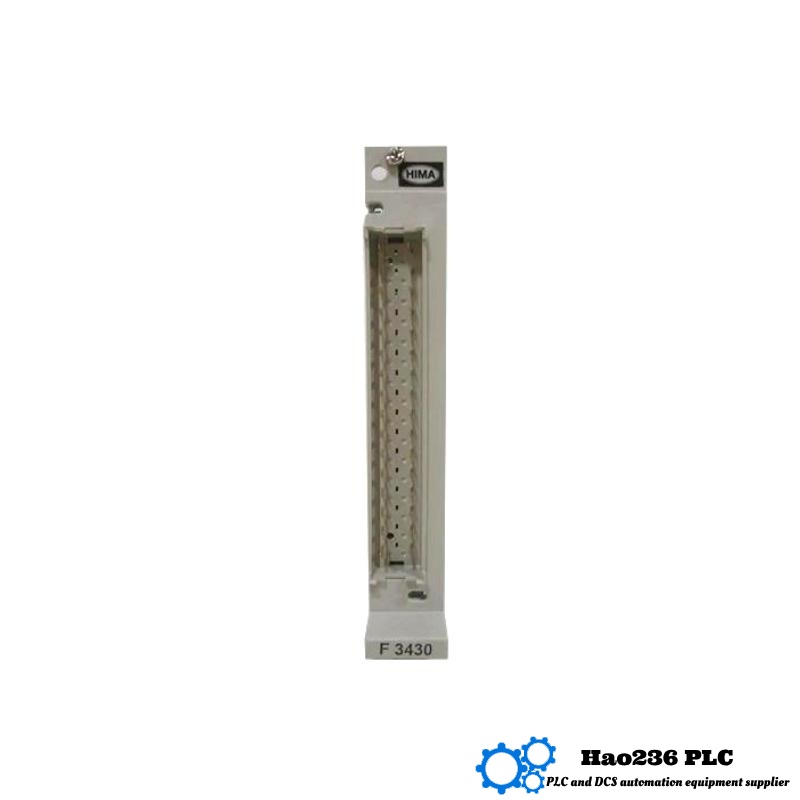

HIMA F3430 4-Channel Relay Module
Product Introduction
The HIMA F3430 is a 4-channel relay output module designed for integration within the HIMA Planar F series safety systems. It is engineered to deliver reliable, fail-safe relay switching capabilities for critical industrial control and safety applications. This module is a vital component in ensuring system integrity and operational safety by controlling external devices such as alarms, shutdown valves, and actuators through its relay outputs.
With a compact and rugged design, the module measures 120 x 45 x 100 mm and weighs 0.5 kg, making it suitable for installation in tight control panels without compromising durability. The F3430 supports high-voltage isolation and robust contact design, enhancing both safety and longevity in harsh environments.
The HIMA F3430 relay module is widely used in industries requiring stringent safety standards and dependable relay operations such as oil and gas, power generation, chemical processing, and manufacturing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | F3430 |
| Dimensions | 120 x 45 x 100 mm |
| Weight | 0.5 kg |
| Number of Relay Channels | 4 |
| Relay Contact Type | SPDT (Single Pole Double Throw) |
| Contact Rating | 6 A @ 250 V AC / 30 V DC |
| Isolation Voltage | 2500 V AC |
| Operating Temperature Range | -20 °C to +60 °C |
| Mounting Type | DIN Rail |
| Compliance Standards | IEC 61508 SIL 3 |
| Status Indicators | LED for relay status |
Product Applications
The HIMA F3430 relay module is employed in critical safety control environments including:
-
Oil & Gas: Controls emergency shutdown valves, alarms, and safety interlocks to prevent hazardous events.
-
Power Generation: Interfaces with protection relays and breaker controls for safe power plant operation.
-
Chemical Processing: Manages fail-safe relay outputs for process shutdown and safety interlocks.
-
Manufacturing: Integrates with safety instrumented systems (SIS) to ensure machine safety and compliance.
-
Infrastructure: Used in safety systems for water treatment, transportation, and building automation.
Product Advantages
-
High Safety Integrity: Certified to SIL 3, meeting the most demanding safety standards for critical process control.
-
Compact & Durable: Small footprint with robust housing suited for industrial environments.
-
Reliable Relay Contacts: Rated for high switching currents and designed for long operational life.
-
Easy Installation: DIN rail mounting facilitates quick and secure panel integration.
-
Visual Status Feedback: Integrated LEDs provide immediate status indication for each relay channel.
-
Robust Electrical Isolation: High voltage isolation between channels ensures safe operation and prevents interference.
Brand
HIMA is a globally recognized leader in industrial safety systems, providing reliable, high-integrity automation solutions with decades of experience in mission-critical applications. The Planar F series represents their advanced modular safety platform.
Recommended Models (HIMA Planar F Series or Related)
| Model Number | Description | Channels | Contact Type | Dimensions (mm) | Weight (kg) | Notes |
|---|---|---|---|---|---|---|
| F3420 | 2-Channel Relay Module | 2 | SPDT | 120 x 45 x 100 | 0.4 | Compact, fewer channels |
| F3440 | 8-Channel Relay Module | 8 | SPDT | 160 x 45 x 100 | 0.9 | More channels, same footprint |
| F3450 | Solid State Relay Module | 4 | SSR | 120 x 45 x 100 | 0.5 | Solid state output variant |
| F3460 | Analog Output Module | 4 | Analog | 120 x 45 x 100 | 0.6 | Supports analog control outputs |
| F3470 | Digital Input Module | 16 | Digital Inputs | 120 x 90 x 100 | 0.7 | High-density digital inputs |
Popular HIMA Models
| Model Number | Description | Primary Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| F3430 | 4-Channel Relay Module | Relay output | 120 x 45 x 100 | 0.5 |
| F3210 | CPU Module | Core processing unit | 200 x 150 x 100 | 1.2 |
| F3100 | Power Supply Module | Power supply for Planar F system | 150 x 90 x 80 | 1.1 |
| F3220 | Communication Module | Fieldbus interface | 140 x 90 x 80 | 1.0 |
| F3250 | Analog Input Module | High precision analog inputs | 120 x 90 x 100 | 0.6 |
Frequently Asked Questions (FAQ)
Q1: How many relay channels does the HIMA F3430 have?
A1: The module provides 4 relay output channels.
Q2: What type of relay contacts are used?
A2: The F3430 uses SPDT (Single Pole Double Throw) relay contacts.
Q3: What is the maximum contact rating?
A3: Contacts are rated for 6 A at 250 V AC or 30 V DC.
Q4: What is the size and weight of the module?
A4: The dimensions are 120 x 45 x 100 mm and it weighs 0.5 kg.
Q5: What safety certification does the module have?
A5: It is certified to IEC 61508 SIL 3 standards.
Q6: How is the module mounted?
A6: It is designed for DIN rail mounting.
Q7: What kind of status indication is available?
A7: Each relay channel features an LED indicator for operational status.
Q8: Can this module operate in harsh industrial environments?
A8: Yes, it is designed for industrial conditions with robust electrical isolation and temperature tolerance.
Q9: Is the module compatible with other Planar F series components?
A9: Yes, it integrates seamlessly within the Planar F modular safety system.
Q10: What maintenance is required for the F3430?
A10: Routine inspection and testing of relay operation is recommended; no frequent maintenance is necessary.
