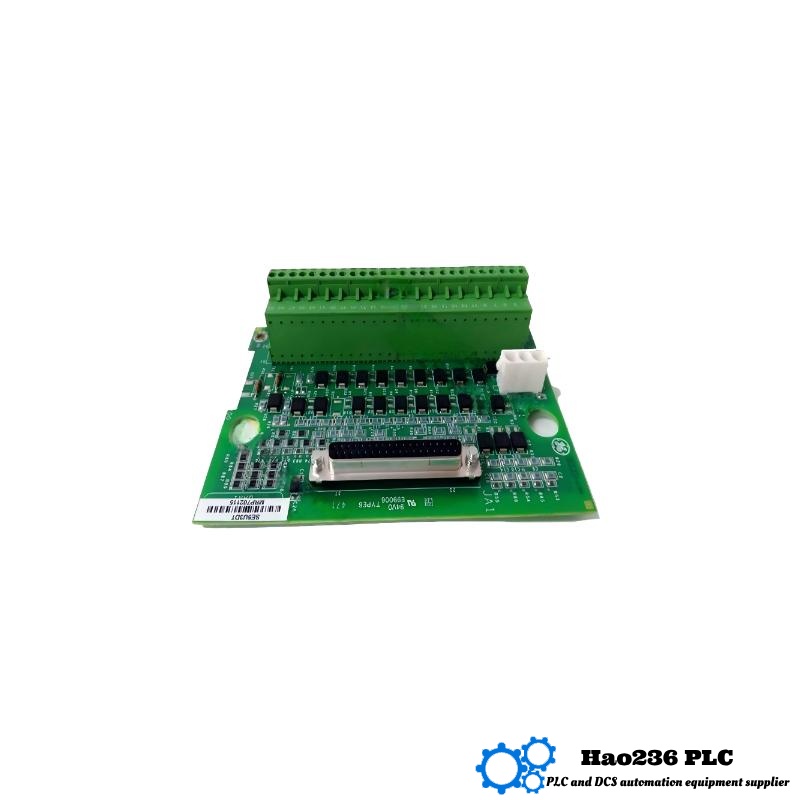

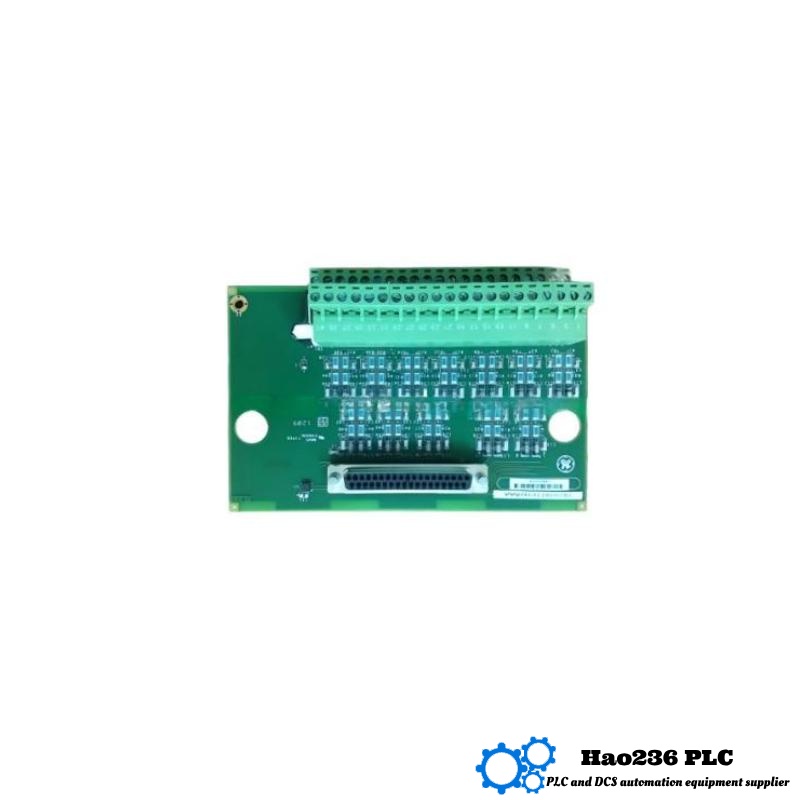

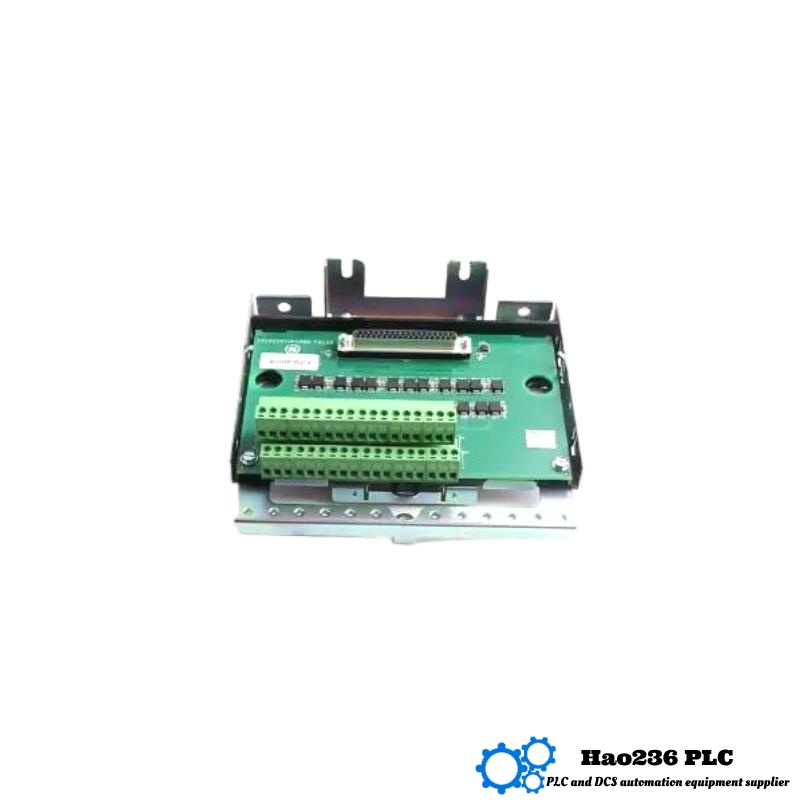

GE IS200STTCH2A DIN Rail Mounted Thermocouple Terminal Board
Product Overview:
The GE IS200STTCH2A is a high-quality thermocouple terminal board specifically designed for use in the Mark VI series of distributed control systems. This terminal board is engineered for DIN rail mounting, making it an ideal solution for installation in space-constrained environments. It provides reliable and accurate measurement of temperature using thermocouples, which are often used in industrial applications to monitor the temperature of critical equipment, such as turbines, compressors, and boilers.
The IS200STTCH2A is an integral part of the GE Mark VI system, which is widely used in power generation, oil and gas, chemical processing, and manufacturing industries. This terminal board allows for easy connection of thermocouple inputs to the control system, converting the temperature readings from thermocouples into electrical signals that can be used for control and monitoring purposes. With robust construction and compliance to industry standards, this product ensures optimal performance and high reliability in demanding industrial environments.
Product Specifications:
| Specification | Details |
|---|---|
| Model Number | GE IS200STTCH2A |
| Type | Thermocouple Terminal Board |
| Mounting Type | DIN Rail |
| Dimensions | 50 x 120 x 150 mm |
| Weight | 0.4 kg |
| Temperature Range | -200°C to 1800°C |
| Thermocouple Type | Type J, K, T, E, R, S, B, N |
| Input Channels | 8 Channels |
| Voltage Range | 0-10 V DC |
| Operating Temperature | -40°C to 85°C |
| Compliance | UL, CE, RoHS |
Applications:
-
Power Generation:
In power plants, GE IS200STTCH2A terminal boards are used to monitor the temperature of critical components such as turbines, steam generators, and cooling systems. Accurate temperature monitoring helps optimize performance and ensures safe operations. -
Oil and Gas Industry:
This terminal board plays a vital role in the oil and gas sector, where temperature monitoring is essential for preventing overheating, ensuring safety, and optimizing the performance of drilling equipment and pipelines. -
Chemical Processing:
The IS200STTCH2A is used in chemical plants to monitor reaction temperatures in reactors and other critical equipment. It helps control process temperatures to ensure the safe production of chemicals and materials. -
Manufacturing Automation:
Used in various automated manufacturing systems, this thermocouple terminal board ensures precise temperature readings for machines, furnaces, and ovens, contributing to product quality and energy efficiency. -
HVAC Systems:
The terminal board is widely used in HVAC systems to monitor the temperatures in cooling and heating systems, ensuring they operate within optimal conditions for energy efficiency and performance.
Advantages:
-
High Accuracy and Precision:
The GE IS200STTCH2A provides highly accurate temperature measurements, offering precise thermocouple inputs that enable reliable control and monitoring of industrial systems. -
Versatile Thermocouple Support:
This terminal board supports a wide range of thermocouple types (J, K, T, E, R, S, B, N), making it versatile and compatible with various temperature measurement needs. -
DIN Rail Mounting for Easy Integration:
Designed for DIN rail mounting, the board ensures quick and easy installation, even in environments with limited space, making it an ideal choice for control panels and industrial automation systems. -
Wide Temperature Range:
With a broad operating temperature range from -40°C to 85°C, the IS200STTCH2A can perform reliably in both cold and hot environments, providing flexibility for diverse industrial applications. -
Compliance with Industry Standards:
The terminal board complies with UL, CE, and RoHS standards, ensuring safety, environmental protection, and high-quality manufacturing for long-term operation in industrial environments.
Brand and Series:
-
Brand: General Electric (GE)
-
Series: Mark VI Series (Distributed Control System)
Related Models from the Same Series:
| Model | Specification |
|---|---|
| IS200STTCH3A | Dual-Channel Thermocouple Input Board, DIN Rail Mounting |
| IS200STTCH4A | Multi-Channel Thermocouple Input Terminal, 16 Channels |
| IS200STTCID1A | Thermocouple Input, Integrated Signal Conditioning |
| IS200STTCIH1A | High-Speed Thermocouple Terminal Board, 8 Channels |
| IS200STTCIH2A | 16-Channel Thermocouple Input with Isolated Ground |
Top 5 Popular GE Models:
| Model | Specification |
|---|---|
| IS200TBCIH1A | Thermocouple Input Module, 8 Channels |
| IS200SPFBG1A | Signal Processor, 4 I/O Channels |
| IS200FCPFG1A | Field Communication Processor, 16 Channels |
| IS200REBFH1A | Relay Output Terminal Board, Compact |
| IS200PCCFG1A | Power Conditioning Module, 24 V DC |
FAQs:
-
Q: What types of thermocouples are supported by the GE IS200STTCH2A?
A: The IS200STTCH2A supports Type J, K, T, E, R, S, B, and N thermocouples. -
Q: What is the input channel capacity of the GE IS200STTCH2A terminal board?
A: The terminal board can accommodate 8 channels for thermocouple inputs. -
Q: What is the operating temperature range for the GE IS200STTCH2A?
A: The operating temperature range is -40°C to 85°C. -
Q: How is the GE IS200STTCH2A mounted?
A: The terminal board is designed for DIN rail mounting, making it easy to integrate into control panels. -
Q: What is the size and weight of the GE IS200STTCH2A?
A: The dimensions are 50 x 120 x 150 mm, and it weighs 0.4 kg. -
Q: Can the GE IS200STTCH2A handle high-temperature applications?
A: Yes, the board supports thermocouple measurements up to 1800°C, making it suitable for high-temperature applications. -
Q: Does the GE IS200STTCH2A comply with industry standards?
A: Yes, it complies with UL, CE, and RoHS standards for safety and environmental regulations. -
Q: Can the GE IS200STTCH2A be used for industrial automation?
A: Yes, it is widely used in industrial automation applications such as power generation, manufacturing, and process control. -
Q: How does the GE IS200STTCH2A improve system reliability?
A: By providing accurate thermocouple input measurements, it ensures the control system receives precise temperature data, enhancing system reliability and performance. -
Q: What industries can benefit from the GE IS200STTCH2A?
A: It is ideal for industries such as power generation, oil and gas, chemical processing, manufacturing, and HVAC systems.
