Product Overview

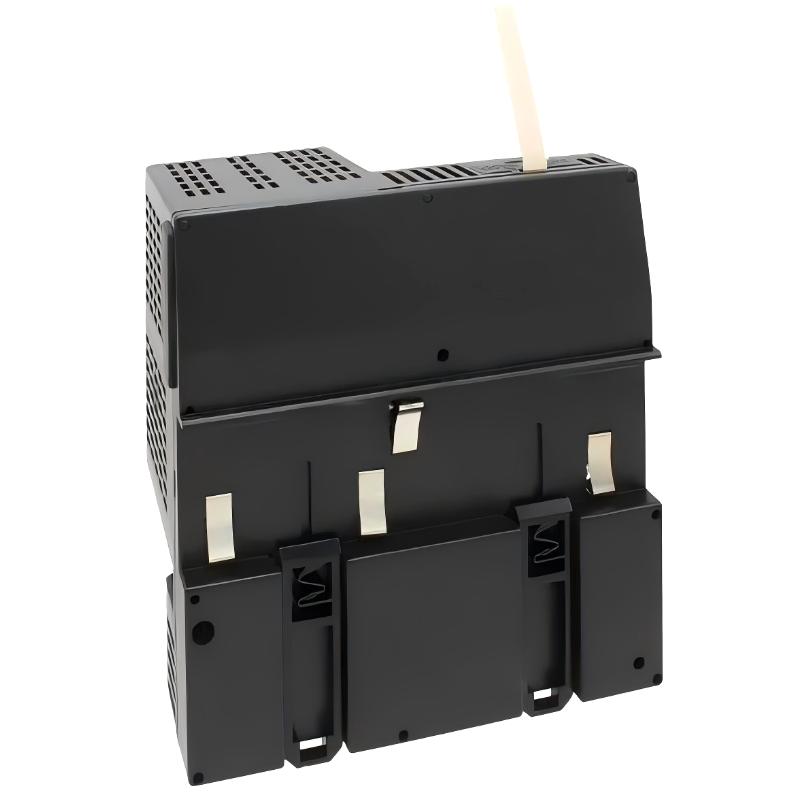

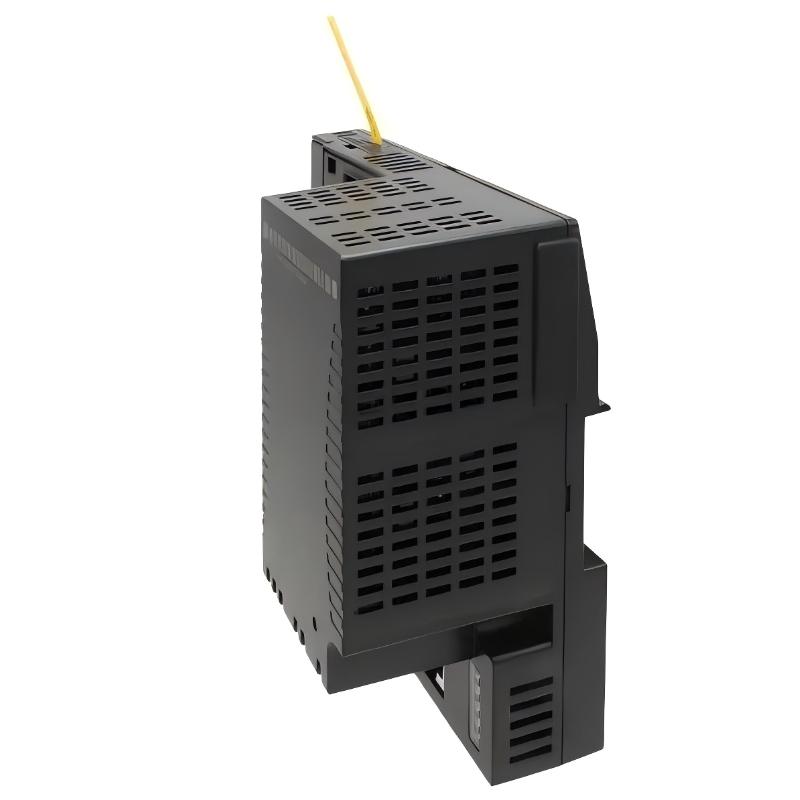

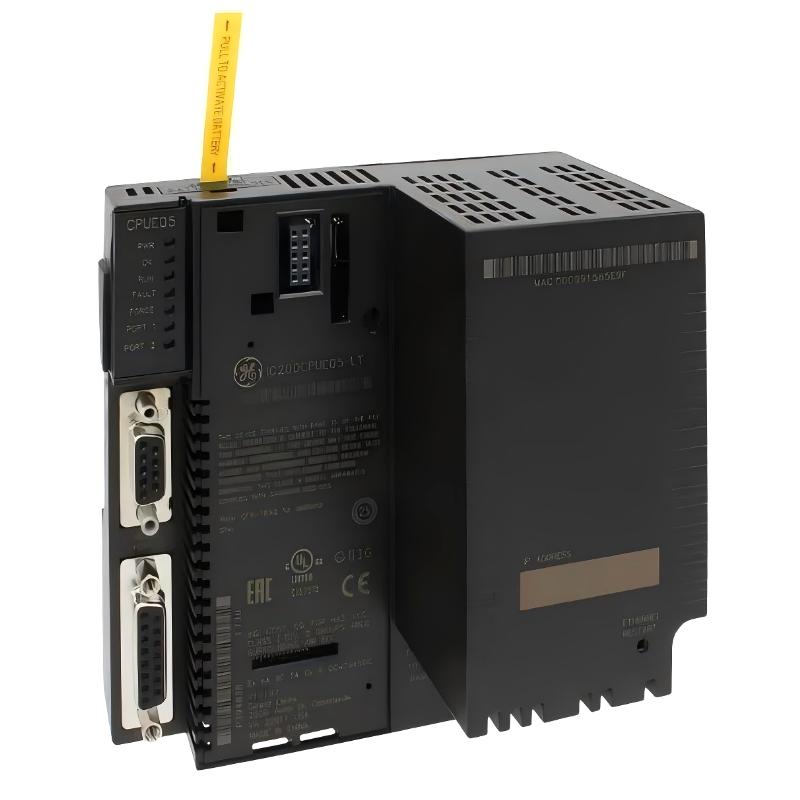

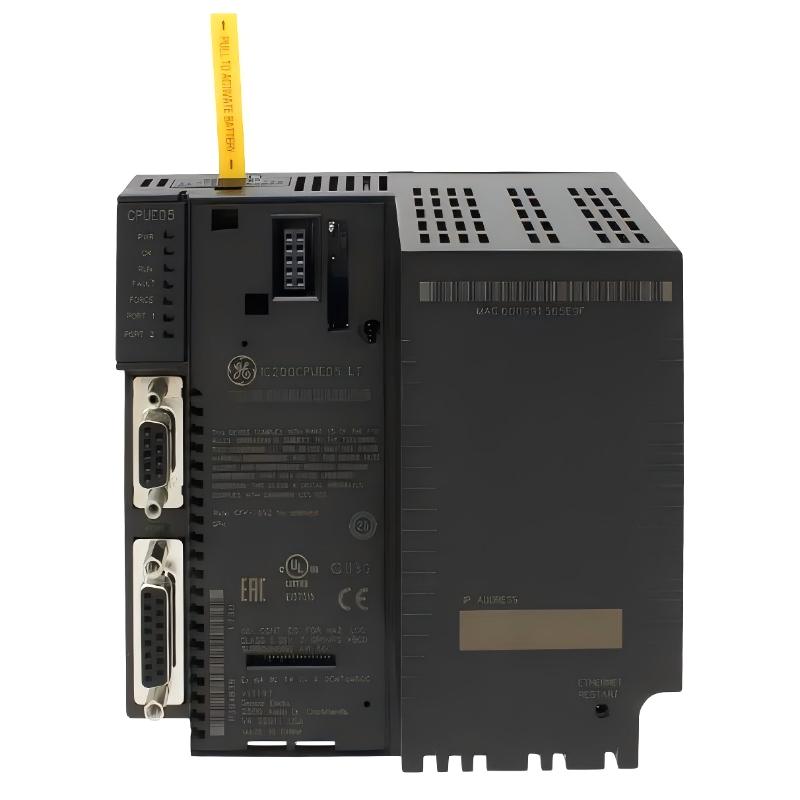

The GE IC200CPUE05 VersaMax CPU Module is a central processing module for the GE VersaMax automation platform. It executes the control program, processes I/O data, and coordinates communication between the control logic and connected VersaMax I/O devices.
In a typical VersaMax installation, the CPU works with discrete and analog I/O modules to monitor field conditions and execute programmed control sequences. It can therefore serve as the main processing element of a compact PLC or distributed control station.
The IC200CPUE05 is intended for applications where machine control, sequencing, equipment monitoring, and communication functions need to be integrated into a VersaMax-based control architecture.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE |
| Model | IC200CPUE05 |
| Product Series | VersaMax |
| Product Type | CPU Module |
| System Role | Central Processing / Control |
| Application | Industrial Automation / PLC Control |
| Dimensions | 128 × 69.1 × 126 mm |
| Weight | 0.281 kg |
Product Features
- GE VersaMax CPU module
- Provides central processing for the VersaMax control system
- Executes programmed control logic
- Processes data from connected I/O modules
- Coordinates control-system operation
- Suitable for machine and process automation
- Supports integration with VersaMax I/O hardware
- Compact module format
- Dimensions: 128 × 69.1 × 126 mm
- Weight: 0.281 kg
Working Principle
The IC200CPUE05 operates as the processing center of a VersaMax control system.
A typical control path is:
Field Devices → VersaMax I/O Modules → IC200CPUE05 CPU → Control Logic → Outputs
Input data collected by connected I/O modules is made available to the CPU. The CPU executes the programmed control logic and determines the required output states. These commands are then transferred through the appropriate I/O modules to connected actuators and other field devices.
The CPU can also coordinate communication with other components within the automation architecture, allowing process data and control information to move between the controller and associated system devices.
Industrial Applications
| Application | Typical Use |
|---|---|
| Machine Automation | Sequencing and machine control |
| Manufacturing | Production equipment control |
| Process Automation | Monitoring and control of process equipment |
| Material Handling | Conveyor and handling-system control |
| Packaging Machinery | Machine sequencing and I/O processing |
| Pump Systems | Equipment monitoring and control |
| Utility Systems | Automated equipment operation |
| Distributed I/O | Central processing for VersaMax I/O stations |
Compatible System Components
| Component | Function |
|---|---|
| GE IC200CPUE05 | Executes control logic and processes I/O data |
| GE IC200ALG432 | Analog input/output interface |
| VersaMax Discrete I/O Modules | Digital field signal acquisition and output |
| VersaMax Terminal Assemblies | Field wiring connections |
| VersaMax Power Supply | Supplies system power |
| VersaMax Communication Modules | Provides system/network communication |
| Programming / Configuration Software | CPU configuration and program management |
| Field Sensors and Actuators | Provide input signals and receive control outputs |
The exact compatible components should be confirmed against the installed VersaMax hardware configuration and CPU requirements.
Installation and Maintenance
The IC200CPUE05 should be installed as part of the appropriate VersaMax system architecture. The CPU depends on the surrounding I/O, power, communication, and configuration hardware to form a complete control system.
Recommended checks include:
- Confirm the complete IC200CPUE05 part number.
- Verify VersaMax system compatibility.
- Check the CPU’s mounting position and adjacent modules.
- Verify the power supply arrangement.
- Inspect communication and I/O connections.
- Confirm that connected I/O modules are correctly recognized.
- Check the controller program and configuration.
- Review diagnostic indications during commissioning.
- Back up the control program before replacing an existing CPU where applicable.
- Verify I/O operation after installation or replacement.
If the system fails to execute correctly, check power, CPU status, I/O configuration, communication connections, and the control program before replacing the processor.
Recommended Related Models
| Model / Component | Type | Primary Function | Application |
|---|---|---|---|
| GE IC200CPUE05 | VersaMax CPU Module | Central control processing | PLC / automation |
| GE IC200ALG432 | VersaMax Analog Mixed Module | Analog signal interfacing | Process control |
| GE IC670MDL640 | Discrete Input Module | Discrete signal acquisition | Industrial control |
| GE IC670MDL740 | Discrete Output Module | Discrete output control | Industrial automation |
| GE IC670MDL930 | Discrete Output Module | Discrete output control | Industrial automation |
| GE IC694MDL330 | PACSystems Rx3i Discrete Output Module | Digital output control | PLC systems |
When selecting a replacement CPU, verify the exact VersaMax CPU model, system architecture, program requirements, communication configuration, and connected I/O rather than relying on physical dimensions alone.
Key Advantages
- VersaMax CPU architecture
- Central processing for control applications
- Executes programmed automation logic
- Coordinates connected I/O modules
- Suitable for machine and process control
- Supports distributed I/O architectures
- Compact installation format
- Dimensions of 128 × 69.1 × 126 mm
- Stated weight of 0.281 kg
Technical FAQs
What is the GE IC200CPUE05 used for?
The IC200CPUE05 is a VersaMax CPU module used to execute control logic, process I/O data, and coordinate the operation of connected automation hardware.
Is the IC200CPUE05 an I/O module?
No. The IC200CPUE05 is a CPU module. It processes information from connected I/O modules such as analog and discrete input/output modules.
What components typically work with the IC200CPUE05?
A complete system can include VersaMax I/O modules, power supplies, terminal assemblies, communication hardware, field sensors, actuators, and the software used to configure and program the controller.
What should be checked before replacing an IC200CPUE05?
Verify the complete CPU model, VersaMax system compatibility, installed I/O modules, communication configuration, power arrangement, and control program requirements. A CPU should not be selected based on physical dimensions alone.
