Product Overview

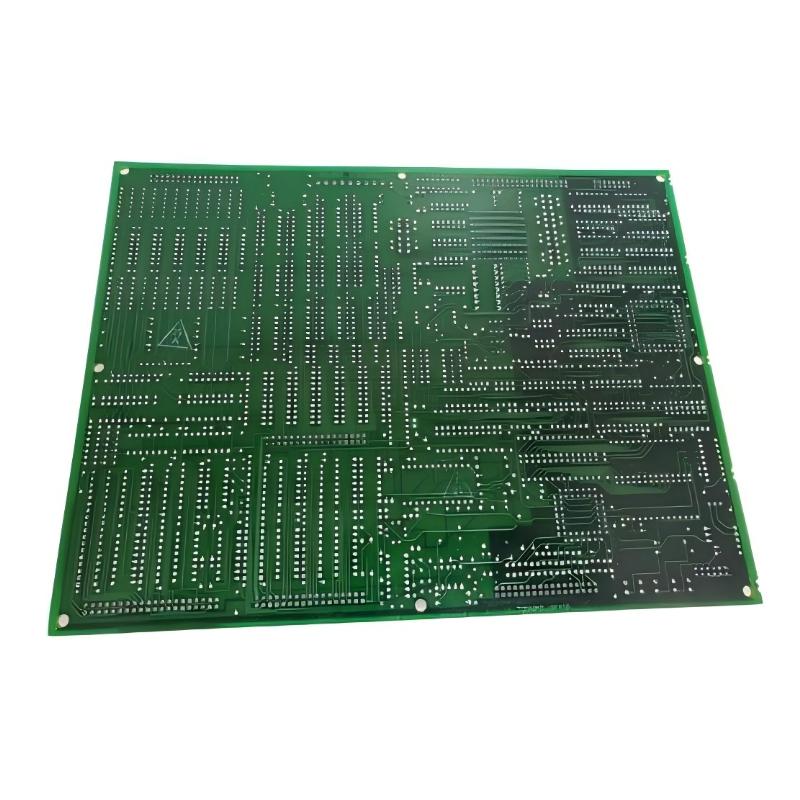

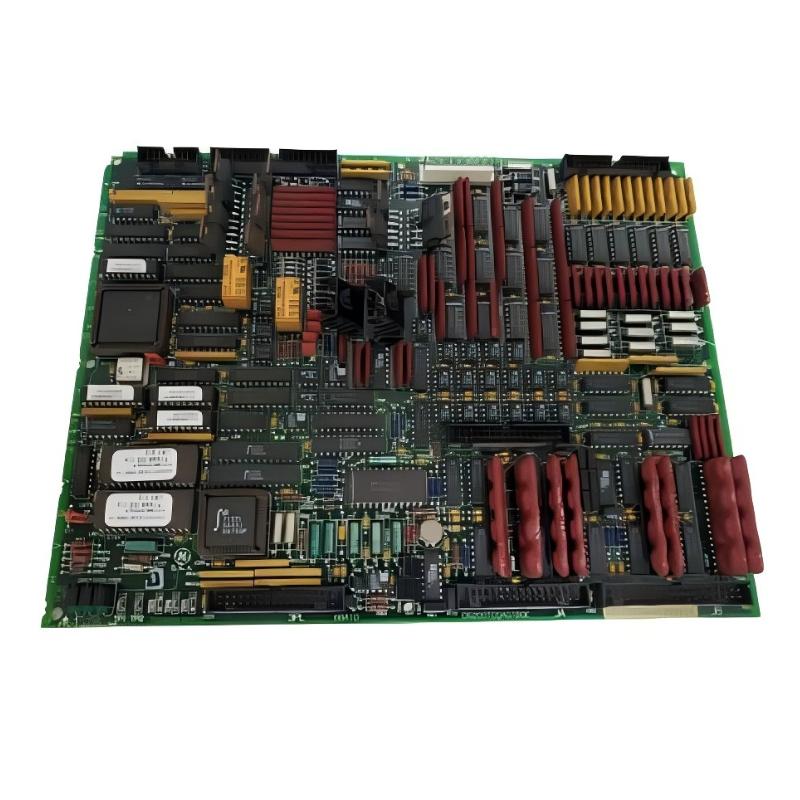

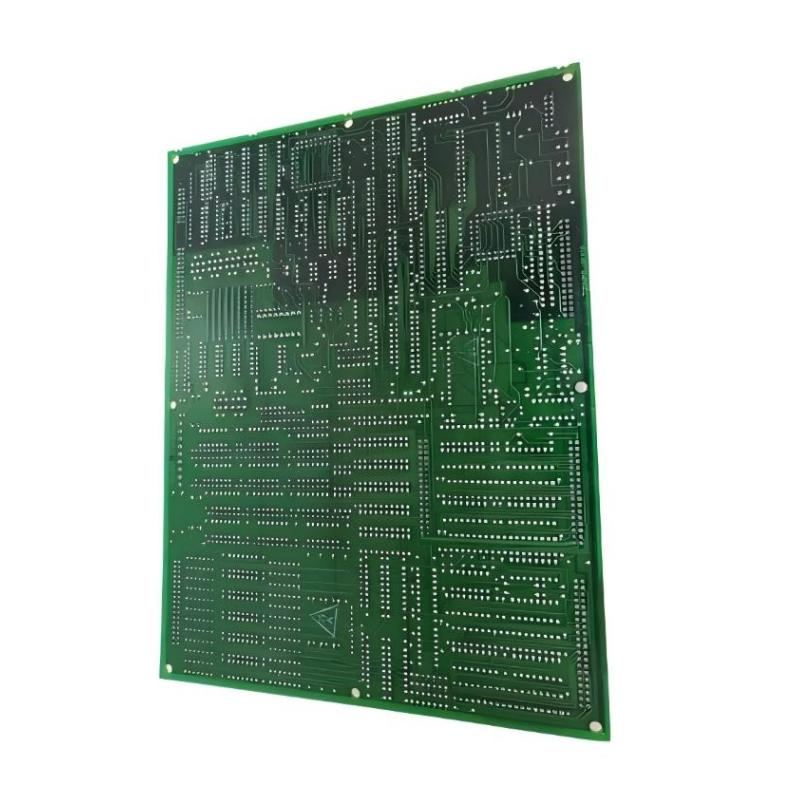

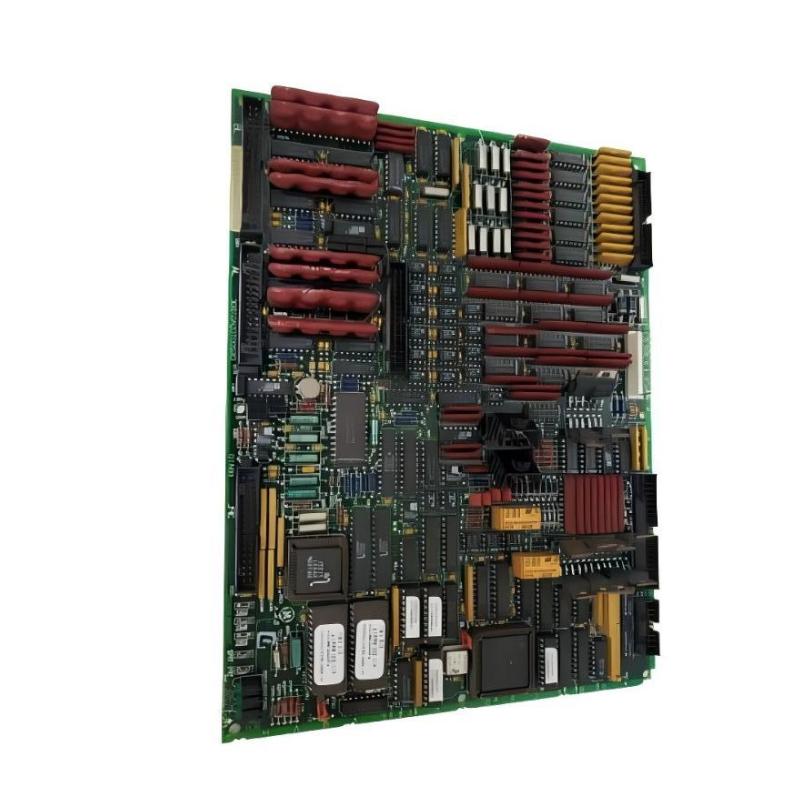

The GE DS215TCQAG1BZZ01A with the associated DS200TCQAG1BEC is an Analog I/O Board used in compatible GE Mark V Speedtronic turbine control systems. The board is part of the TCQA family and provides important analog signal processing and interface functions between field devices and the turbine control architecture.

In a turbine control system, many operating parameters are continuously variable rather than simply ON or OFF. Temperature, pressure, valve position, fuel-related measurements, vibration-related information, actuator position, and other process values can require analog signal acquisition and conditioning.

The DS200TCQAG1BEC is designed to process and condition analog information within the Mark V control architecture. It can interface with different types of terminal-board signals and provide processed information to the turbine control system. It can also support analog output functions used by control devices and actuators, depending on the specific system configuration.

The associated DS215TCQAG1BZZ01A identifies the configured board assembly, while DS200TCQAG1BEC identifies the associated DS200-series TCQA board. When identifying replacement hardware, both numbers should be retained because the configured assembly and board-level identification are important for compatibility verification.

The specified physical dimensions of this product are 262 × 185 × 39 mm, and the specified weight is 0.8 kg.

The board is particularly relevant to maintenance of legacy GE Mark V turbine installations where reliable analog signal processing is required for continued operation of the existing control architecture.

Technical Specifications

Function and Working Principle

The primary function of the DS200TCQAG1BEC is to process and condition analog signals used by the Mark V turbine control system.

The board can receive analog information from associated terminal boards and field instrumentation. These signals can represent physical operating conditions or actuator feedback.

A simplified analog input path is:

Field Sensor → Terminal Board → TCQA Analog I/O Board → Control Processor → Control Logic

For an analog output, the signal path can operate in the opposite direction:

Control Logic → TCQA Board → Terminal Board → Field Device / Actuator

The TCQA board therefore forms an important bridge between field-level instrumentation and the Mark V control system.

The board can be involved with several types of analog information depending on the system configuration, including:

• 4–20 mA process signals
• Voltage-based analog signals
• Thermocouple-related signals
• LVDT and LVDR position signals
• Servo-valve control signals
• Vibration-related signals
• Pulse-related signals
• Generator and line-related signals
• Fuel-related measurements
• Compressor-related measurements

The exact signal assignment depends on the particular Mark V installation and its engineering configuration.

Analog Signal Scaling and Conditioning

One of the most important functions associated with the TCQA board is analog signal scaling and conditioning.

Field devices can produce signals in different electrical forms. The control processor, however, requires properly conditioned information that corresponds to the engineering variable being monitored.

Signal conditioning can include functions such as:

• Signal scaling
• Signal filtering
• Signal conditioning
• Input interface processing
• Output signal conditioning
• Position signal processing
• Current signal interfacing
• Voltage signal interfacing

This allows the control system to work with signals originating from different types of field instrumentation.

For example, a transmitter may provide a current signal representing pressure. The analog I/O system processes the signal so that the Mark V control system can interpret it as a process value and use it within the appropriate control or monitoring function.

RST Analog I/O Function

The DS200TCQAG1BEC is associated with the RST Analog I/O portion of the Mark V architecture.

The TCQA board processes analog signals associated with terminal boards located in the R1, R2 and R3 I/O cores.

This architecture allows analog information from different parts of the turbine system to be collected, conditioned, and transferred into the control system.

The board can also interact with other Mark V boards through dedicated connectors and communication paths.

Examples of associated interfaces can include connections for:

• Board power distribution
• Data-bus conditioned signals
• Thermocouple inputs
• Cold-junction compensation signals
• Terminal-board inputs and outputs
• Trip signals
• Output and pulse signals
• LVDT/LVDR position inputs
• Vibration inputs

This multi-interface structure makes the TCQA board an important analog-processing element within the overall Mark V control architecture.

Role in Industrial Control Systems

The GE DS215TCQAG1BZZ01A DS200TCQAG1BEC plays an interface role between field instrumentation, terminal boards, control processors, and turbine control algorithms.

A typical industrial control loop can be represented as:

Physical Process → Sensor → Analog I/O → Control Processor → Control Output → Actuator → Physical Process

The TCQA board participates in this closed-loop control structure by processing the analog information required by the controller.

For example, if a valve position changes, a position feedback device can generate an electrical signal. The signal can be transmitted through the appropriate terminal-board interface and processed by the TCQA hardware. The controller can then compare the actual position with the desired position and generate a corresponding control response.

This type of continuous feedback is fundamental to stable turbine operation.

Industrial Applications

The DS215TCQAG1BZZ01A DS200TCQAG1BEC is associated with GE Mark V turbine control applications.

Typical application environments include:

• Gas turbine power plants
• Combined-cycle power generation
• Industrial gas turbine installations
• Steam turbine control environments
• Cogeneration facilities
• Process-industry turbine systems
• Mechanical drive turbine systems
• Compressor drive systems
• Legacy GE Speedtronic installations

Within these applications, analog I/O hardware provides the connection between physical process variables and digital turbine-control logic.

The board is especially useful when maintaining existing Mark V systems where the original architecture remains operational and compatible replacement hardware is required.

Typical Signals and Functions

These signal categories describe typical functions associated with the TCQA architecture. The actual channel assignment must be confirmed against the specific turbine configuration.

Compatible System Components

The DS200TCQAG1BEC is normally integrated with several other components rather than operating as a standalone controller.

The exact combination of terminal boards and associated hardware varies by turbine model and control-panel configuration.

Installation and System Integration

Installation of the DS215TCQAG1BZZ01A DS200TCQAG1BEC should be performed carefully because incorrect analog wiring or configuration can affect turbine monitoring and control.

Before removing an existing board, maintenance personnel should document the original configuration.

A general replacement procedure includes:

1. Place the turbine and control system into the approved maintenance condition.
2. Follow site lockout and electrical isolation procedures.
3. Verify that applicable control power has been isolated.
4. Identify the installed board and assembly numbers.
5. Record the DS215TCQAG1BZZ01A identification.
6. Record the DS200TCQAG1BEC identification.
7. Document the board position.
8. Record all cable and connector locations.
9. Record jumper positions and configuration information.
10. Inspect the replacement board before installation.
11. Check connectors for contamination or physical damage.
12. Install the board in the correct position.
13. Reconnect all cables to their original locations.
14. Verify connector engagement.
15. Check grounding and shielding.
16. Restore power according to the approved procedure.
17. Verify board diagnostics.
18. Verify analog input values.
19. Verify analog output functions.
20. Perform the required commissioning checks.

The exact installation procedure should always be adapted to the specific Mark V cabinet and turbine engineering documentation.

Connector and Wiring Considerations

The DS200TCQAG1BEC uses multiple board-level connectors to communicate with associated Mark V hardware.

Because several connectors can carry different categories of signals, connector identification is important during replacement.

Typical interface categories include:

• Board power
• Data-bus signals
• Thermocouple signals
• Analog inputs
• Analog outputs
• Trip signals
• Pulse signals
• LVDT/LVDR position signals
• Vibration signals

Technicians should label cables before removing the original board. A connector that fits mechanically into a board does not necessarily mean that it belongs in that position.

Correct connector orientation and secure engagement are essential for reliable operation.

Configuration and Jumper Settings

Hardware jumpers are an important consideration when replacing a TCQA board.

The DS200TCQAG1BEC family uses configurable hardware resources for certain analog output and test functions.

Depending on the board configuration, jumper settings can affect milliamp output circuits and other board-level functions.

Before replacing the board, technicians should document:

• Jumper positions
• Board revision
• Connector configuration
• Memory device arrangement
• System configuration
• Associated terminal boards
• Analog channel assignments

The replacement board should be configured to match the intended Mark V system arrangement before commissioning.

Maintenance and Troubleshooting

Troubleshooting an analog I/O problem should begin with the complete signal path rather than immediately replacing the board.

A useful diagnostic sequence is:

Field Device → Wiring → Terminal Board → TCQA Board → Control Processor → Operator Interface

This approach helps identify whether the fault is located in the field device, wiring system, terminal hardware, analog board, or control system.

Diagnosing 4–20 mA Signal Problems

4–20 mA signals are commonly used for industrial process measurements because they are relatively robust over long cable runs.

When a 4–20 mA value is incorrect, the technician should determine whether the correct current is being produced by the field device.

If the transmitter is producing the expected signal but the Mark V system displays an incorrect value, attention should move toward the wiring, terminal interface, TCQA input channel, scaling, and control-system configuration.

If the transmitter output is already incorrect, the problem may be located in the transmitter or its power supply rather than the TCQA board.

This distinction is important because replacing an analog I/O board without verifying the field signal can lead to unnecessary component replacement.

LVDT and LVDR Position Feedback

Position feedback is important for turbine actuator and servo-valve control.

LVDT and LVDR devices can be used to determine actuator position. The resulting signals are transferred through the appropriate terminal-board interface and processed by the TCQA architecture.

If position feedback is incorrect, technicians should check:

• Position sensor condition
• Mechanical sensor mounting
• Sensor wiring
• Terminal connections
• Excitation signals
• Signal conditioning
• TCQA input circuitry
• Control-system scaling

An incorrect actuator-position indication can originate from either the mechanical position sensor or the electronic signal path.

Thermocouple and Temperature Signals

Temperature measurement is another important function in turbine control.

Thermocouple signals can require appropriate conditioning and cold-junction compensation before the control system can interpret the measurement correctly.

If a temperature value appears incorrect, possible causes include:

• Damaged thermocouple
• Incorrect thermocouple wiring
• Polarity errors
• Terminal connection problems
• Cold-junction compensation issues
• Electrical noise
• TCQA input problems
• Incorrect configuration

Technicians should compare the indicated value with an independent measurement where appropriate.

Common Failure Causes

Potential causes of problems involving the DS200TCQAG1BEC include:

• Field transmitter failure
• Damaged analog wiring
• Loose connectors
• Loose terminal connections
• Incorrect jumper configuration
• Power supply instability
• Electrical interference
• Grounding problems
• Sensor degradation
• Actuator feedback problems
• Board-level component failure
• Incorrect system configuration
• Maintenance-related wiring errors

Because analog I/O faults can originate at several points, a systematic diagnostic process is more reliable than replacing boards based only on alarm symptoms.

Replacement Considerations

When sourcing a replacement for the DS200TCQAG1BEC, the complete identification should be checked.

Important information includes:

• DS215TCQAG1BZZ01A
• DS200TCQAG1BEC
• TCQA functional family
• Hardware revision
• Connector arrangement
• Jumper configuration
• Associated terminal boards
• System I/O core
• Analog channel assignment
• Existing control-system configuration

Two TCQA boards may appear similar while having different revisions or configured functions. Therefore, physical dimensions and general product description should not be the only basis for replacement selection.

For legacy Mark V systems, the safest approach is to match the complete board and assembly identification whenever possible.

Recommended Alternative Models

The following models are related GE Mark V control and I/O components that may be useful for comparison and spare-parts planning. They should not automatically be treated as direct substitutes for the DS200TCQAG1BEC.

Replacement recommendation: The preferred replacement should be an exact match for the complete DS215TCQAG1BZZ01A DS200TCQAG1BEC identification. Related TCQA variants should only be considered after checking the hardware revision, signal assignment, jumper configuration, terminal-board connections, and turbine system requirements.

Key Advantages

• Designed for compatible GE Mark V Speedtronic turbine systems
• Provides analog input and output functionality
• Supports analog signal scaling and conditioning
• Interfaces with multiple Mark V terminal-board signal types
• Supports continuous process monitoring
• Supports analog control functions
• Can process position-related feedback signals
• Supports turbine instrumentation interfaces
• Suitable for legacy Mark V maintenance and replacement
• Provides an important interface between field devices and turbine control logic

Technical FAQs

What is the GE DS215TCQAG1BZZ01A?

The GE DS215TCQAG1BZZ01A is a configured Mark V assembly associated with the TCQA analog I/O function. The board identification specified for this configuration is DS200TCQAG1BEC.

What is the DS200TCQAG1BEC?

The DS200TCQAG1BEC is an RST Analog I/O Board associated with the GE Mark V turbine control architecture. It processes and conditions analog signals used by the control system.

What is the main function of the DS200TCQAG1BEC?

Its main function is to provide analog signal scaling, conditioning, input processing, and output interfacing within the compatible Mark V control system.

What are the dimensions of the DS215TCQAG1BZZ01A DS200TCQAG1BEC?

The specified dimensions are 262 × 185 × 39 mm.

How much does the board weigh?

The specified weight is 0.8 kg.

What signals can the TCQA board process?

Depending on the system configuration, the TCQA architecture can process signals associated with 4–20 mA inputs and outputs, voltage signals, thermocouples, LVDT/LVDR position feedback, vibration, pulse signals, servo outputs, and other turbine-related analog information.

What is the relationship between DS215TCQAG1BZZ01A and DS200TCQAG1BEC?

DS215TCQAG1BZZ01A identifies the configured assembly, while DS200TCQAG1BEC identifies the associated DS200-series TCQA board configuration.

What terminal boards can work with the TCQA board?

Depending on the Mark V configuration, associated terminal-board interfaces can include TBQA, TBQB, TBQC, TCTG and other system-specific interface hardware.

Can this board process LVDT signals?

The TCQA architecture is associated with LVDT/LVDR position input processing. These signals can be used for monitoring and regulating actuator or servo-valve position.

What can cause an incorrect analog reading?

Possible causes include a faulty transmitter, damaged wiring, incorrect scaling, grounding problems, electrical interference, terminal-board faults, connector problems, or defective analog input circuitry.

Should I replace the board if one analog channel fails?

Not necessarily. The field device, wiring, terminal interface, configuration, and individual channel should be checked first. If the fault is isolated to the board, replacement or repair can then be considered.

Can DS200TCQAG1BDC replace DS200TCQAG1BEC?

They are related TCQA analog I/O configurations, but they should not automatically be considered interchangeable. The exact Mark V hardware revision, signal assignment, system configuration, and associated terminal boards should be verified before substitution.

What should be checked before installing a replacement?

Technicians should verify the complete part numbers, board revision, connector positions, jumper settings, wiring, associated terminal boards, I/O configuration, and system location before installation.

Conclusion

The GE DS215TCQAG1BZZ01A DS200TCQAG1BEC Analog I/O Board is an important component within compatible GE Mark V Speedtronic turbine control systems. As part of the TCQA family, it provides analog signal scaling, conditioning, processing, and interfacing functions between field instrumentation and the turbine control architecture.

The board can be associated with a broad range of turbine-related signals, including 4–20 mA inputs and outputs, voltage signals, thermocouples, LVDT/LVDR position feedback, vibration signals, pulse inputs, and other analog information depending on the specific system configuration.

The specified physical dimensions are 262 × 185 × 39 mm, and the specified weight is 0.8 kg. The complete identification DS215TCQAG1BZZ01A DS200TCQAG1BEC should be retained when identifying replacement hardware or planning Mark V maintenance.

For maintenance engineers and system integrators, accurate identification is especially important because TCQA boards can have different revisions and configurations. Connector arrangement, jumper settings, terminal-board interfaces, signal assignments, and system-specific configuration should all be verified before installation.

When correctly integrated with the surrounding Mark V hardware, the GE DS215TCQAG1BZZ01A DS200TCQAG1BEC provides a reliable analog interface for turbine monitoring and control. Its ability to process and condition multiple categories of analog information makes it an important component for maintaining legacy GE turbine automation systems and supporting continued operation of established Speedtronic control architectures.
