Product Overview
In industrial power electronics and automation systems, accurate gate pulse control is essential for the reliable operation of switching devices such as power converters, drives, and control modules. Gate pulse amplifier boards provide signal amplification and transmission functions, ensuring that low-level control signals can effectively drive power switching components.

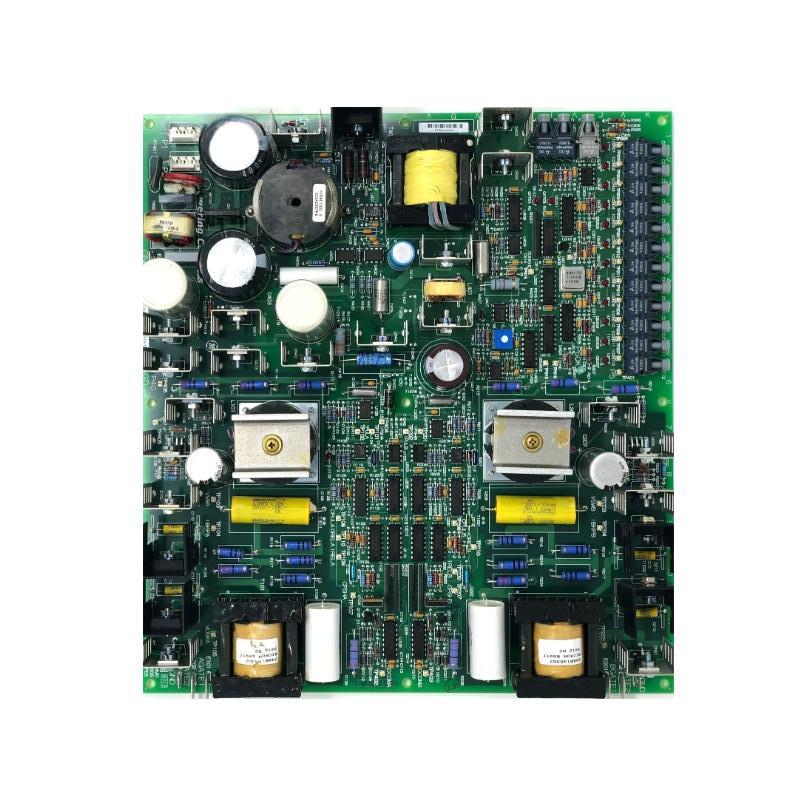

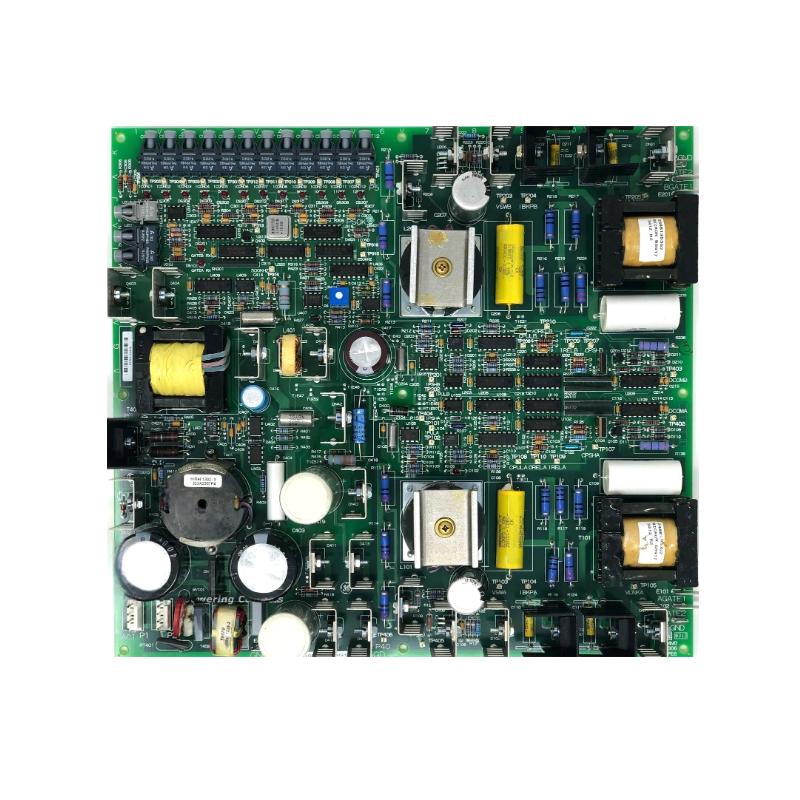

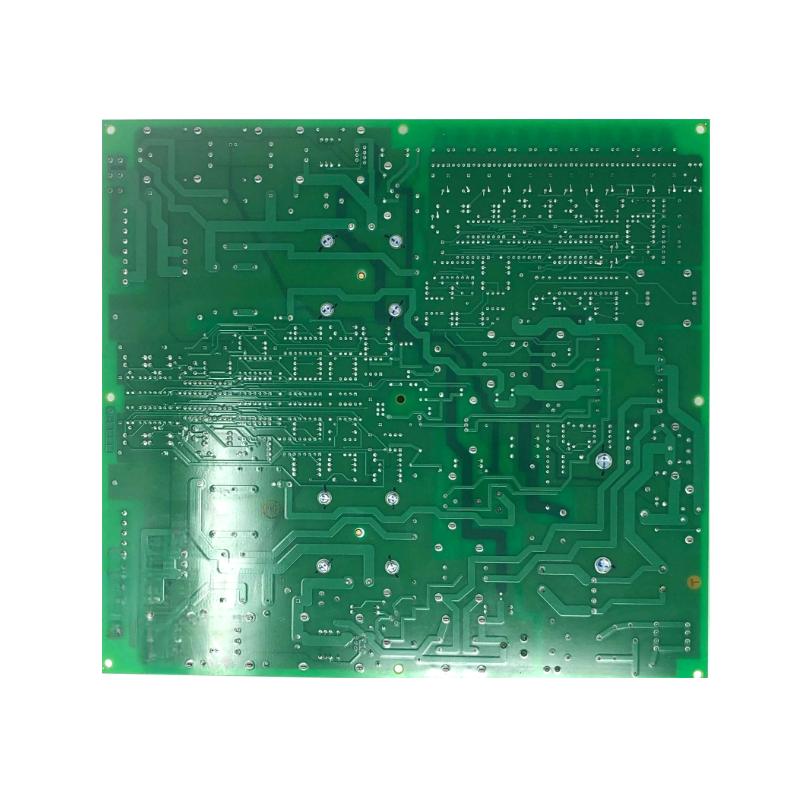

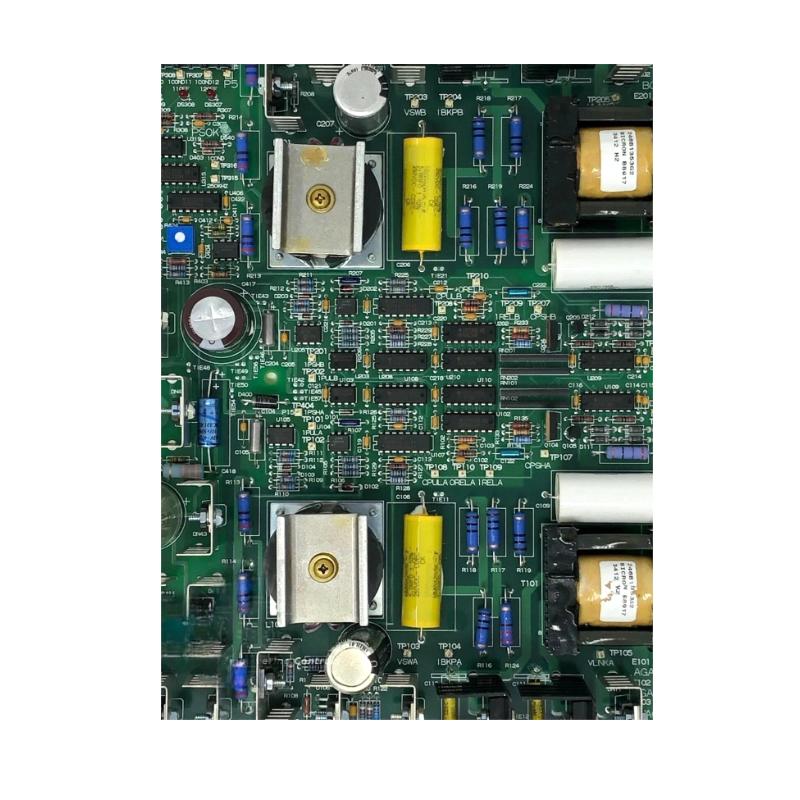

The GE DS200FGPAG1ALD Gate Pulse Amplifier Board is an industrial control circuit board designed for GE automation and power control applications. It provides gate pulse amplification, signal conditioning, and communication between control circuits and power switching devices.
The board plays an important role in improving switching reliability by strengthening gate control signals and ensuring accurate transmission between the control system and power modules.
With dimensions of 175 × 100 × 30 mm and a weight of 0.4 kg, the GE DS200FGPAG1ALD Gate Pulse Amplifier Board features a compact design suitable for installation inside industrial control cabinets and power electronic assemblies.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE |
| Model | DS200FGPAG1ALD |
| Product Type | Gate Pulse Amplifier Board |
| Application | Industrial Power Control System |
| Function | Gate Pulse Amplification and Signal Interface |
| Board Type | Control Circuit Board |
| Installation Type | Cabinet / Equipment Mounting |
| Signal Function | Gate Drive Signal Processing |
| Dimensions | 175 × 100 × 30 mm |
| Weight | 0.4 kg |
Function and Working Principle
The GE DS200FGPAG1ALD Gate Pulse Amplifier Board operates as an interface between the control system and power switching circuits.
The basic signal flow is:
Control Pulse Signal → Amplification Circuit → Gate Drive Output → Power Switching Device
Working process:
- Receives gate control pulse signals from the control system.
- Processes and amplifies the incoming low-level signals.
- Adjusts signal strength and stability through onboard circuits.
- Sends amplified pulse signals to power switching components.
- Enables accurate switching operation according to system commands.
The board ensures that switching devices receive reliable gate signals, improving overall system performance and control accuracy.
Role in Industrial Automation Systems
The GE DS200FGPAG1ALD Gate Pulse Amplifier Board is an important component in power control architectures.
Main functions include:
- Gate pulse signal amplification
- Switching control support
- Signal conditioning
- Power module interface
- Control circuit isolation
Typical applications include:
- Industrial drive systems
- Power conversion equipment
- Motor control systems
- Energy control platforms
- GE industrial automation systems
Main Features
Reliable Gate Pulse Amplification
The board improves the strength and quality of control pulse signals.
Advantages:
- Stable gate signal transmission
- Improved switching accuracy
- Reduced signal loss
- Enhanced system response
Efficient Power Device Control
Gate pulse amplification helps power switching components operate correctly.
Benefits:
- Better switching performance
- Reduced control errors
- Improved equipment efficiency
- Increased system reliability
Compact Industrial Design
With dimensions of 175 × 100 × 30 mm, the board is designed for efficient installation.
Advantages:
- Space-saving structure
- Easy integration
- Convenient replacement
- Suitable for compact control cabinets
Stable Industrial Operation
The DS200FGPAG1ALD is designed for demanding industrial environments.
Features:
- Reliable electronic components
- Stable signal processing
- Durable circuit design
- Long-term operational support
Industrial Applications
Industrial Drive Systems
Industrial drives require accurate gate control signals for power switching.
Applications include:
- Variable speed drives
- Motor controllers
- High-power drive systems
- Motion control equipment
The gate pulse amplifier board supports precise switching control.
Power Conversion Systems
Power converters depend on reliable gate pulse signals.
Applications:
- Power conversion units
- Inverter systems
- Electrical regulation equipment
- Energy control systems
Automation Control Equipment
Industrial automation equipment requires stable signal transmission.
Applications:
- Control cabinets
- Power electronic modules
- Automated production equipment
- Electrical control systems
Installation Guide
Step 1: Confirm System Compatibility
Before installation, verify:
- Correct board model
- Equipment configuration
- Installation position
- Signal connection requirements
Ensure the board matches the existing control system.
Step 2: Disconnect Power
Before replacing the board:
- Shut down equipment
- Disconnect power supply
- Follow electrical safety procedures
- Confirm no remaining voltage exists
Step 3: Remove Existing Board
Carefully remove the existing gate pulse amplifier board.
Inspect:
- Connectors
- Signal cables
- Mounting points
- Nearby components
Step 4: Install DS200FGPAG1ALD
Install the new board in the designated position.
Check:
- Correct orientation
- Secure mounting
- Proper connector connection
- Stable electrical contact
Step 5: Commission the System
After installation:
- Restore power
- Verify gate pulse signals
- Check communication
- Test switching operation
- Confirm system performance
Common Failure Symptoms
| Fault Symptom | Possible Cause |
|---|---|
| Power device does not switch | Gate pulse failure |
| Incorrect switching timing | Signal amplification problem |
| Drive alarm | Board communication fault |
| Intermittent operation | Poor connection |
| System shutdown | Gate control malfunction |
Troubleshooting Guide
Check Signal Connections
Inspect:
- Input pulse connections
- Output gate connections
- Board connectors
Loose connections may interrupt signal transmission.
Verify Gate Pulse Output
Check:
- Pulse waveform
- Signal stability
- Output response
Abnormal pulse signals may indicate board failure.
Inspect Board Condition
Check:
- Burn marks
- Damaged components
- Overheating signs
- Connector wear
Replace damaged boards when necessary.
Check Related Power Modules
Verify:
- Switching device condition
- Power circuit operation
- Drive system parameters
Problems in connected equipment may affect gate pulse operation.
Maintenance Recommendations
To maintain reliable operation of the GE DS200FGPAG1ALD Gate Pulse Amplifier Board:
- Keep cabinets clean and dry
- Maintain proper cooling
- Inspect connectors regularly
- Monitor switching performance
- Check signal quality
- Perform preventive maintenance
Regular inspection helps reduce unexpected equipment failures.
Compatible Automation Components
| Component | Function |
|---|---|
| Gate Pulse Amplifier Board | Amplifies switching control signals |
| Power Switching Module | Performs electrical switching |
| Control Board | Generates control commands |
| Drive System | Controls motor operation |
| Interface Board | Supports signal communication |
Key Advantages
- Reliable gate pulse signal amplification
- Supports industrial power control applications
- Compact installation design
- Improves switching accuracy
- Enhances system stability
- Simplifies maintenance and troubleshooting
Technical FAQs
What is GE DS200FGPAG1ALD used for?
The GE DS200FGPAG1ALD Gate Pulse Amplifier Board is used to amplify and transmit gate control signals for industrial power switching applications.
What is the main function of this board?
Its main function is to strengthen gate pulse signals and provide reliable communication between control circuits and power switching devices.
Where is it installed?
It is installed inside industrial control cabinets or power electronic equipment.
What are the dimensions?
The dimensions are 175 × 100 × 30 mm.
What is the weight?
The weight is 0.4 kg.
Why is gate pulse amplification important?
Gate pulse amplification ensures that power switching devices receive accurate and stable control signals, improving system reliability and performance.
Conclusion
The GE DS200FGPAG1ALD Gate Pulse Amplifier Board is a reliable industrial control component designed for power switching and automation applications.
With accurate gate signal amplification, compact design, and stable operation capability, it helps improve switching performance, control accuracy, and system reliability.
For automation engineers, maintenance specialists, and industrial system integrators, the DS200FGPAG1ALD provides an effective solution for maintaining reliable power control systems, reducing downtime, and supporting continuous industrial automation operation.
