Product Overview

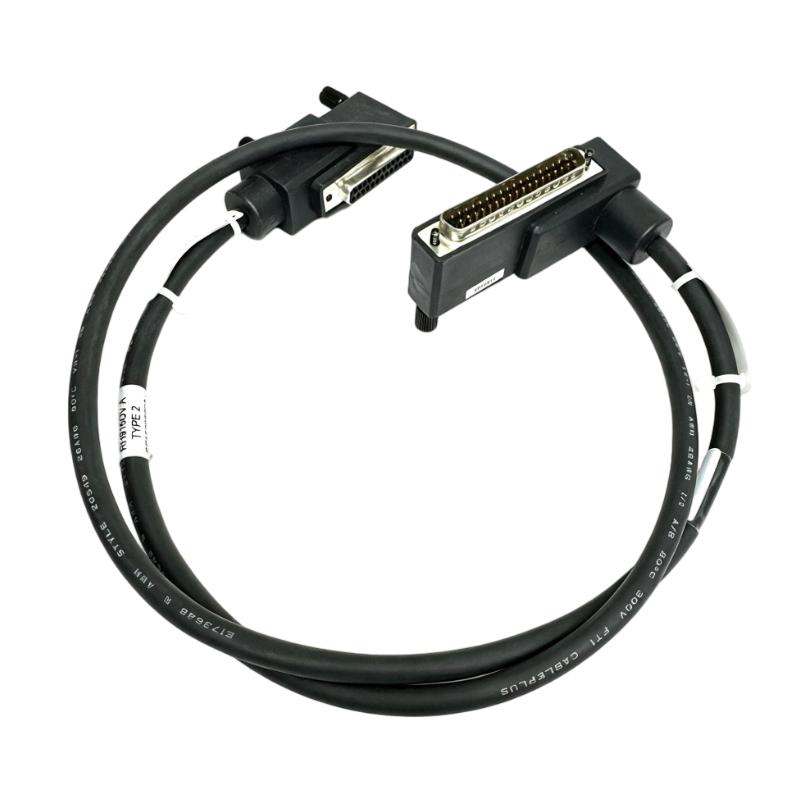

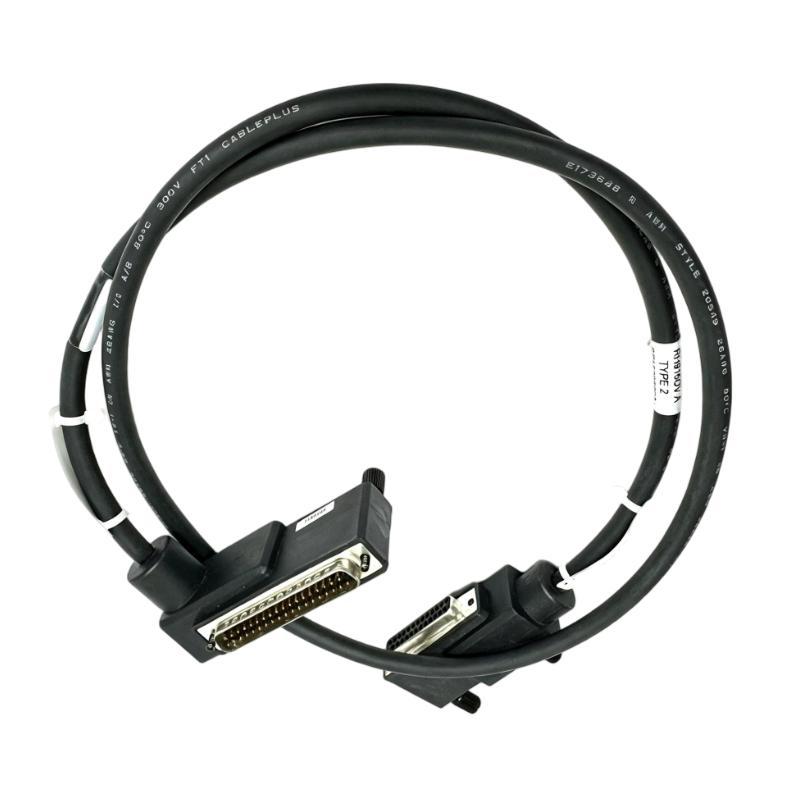

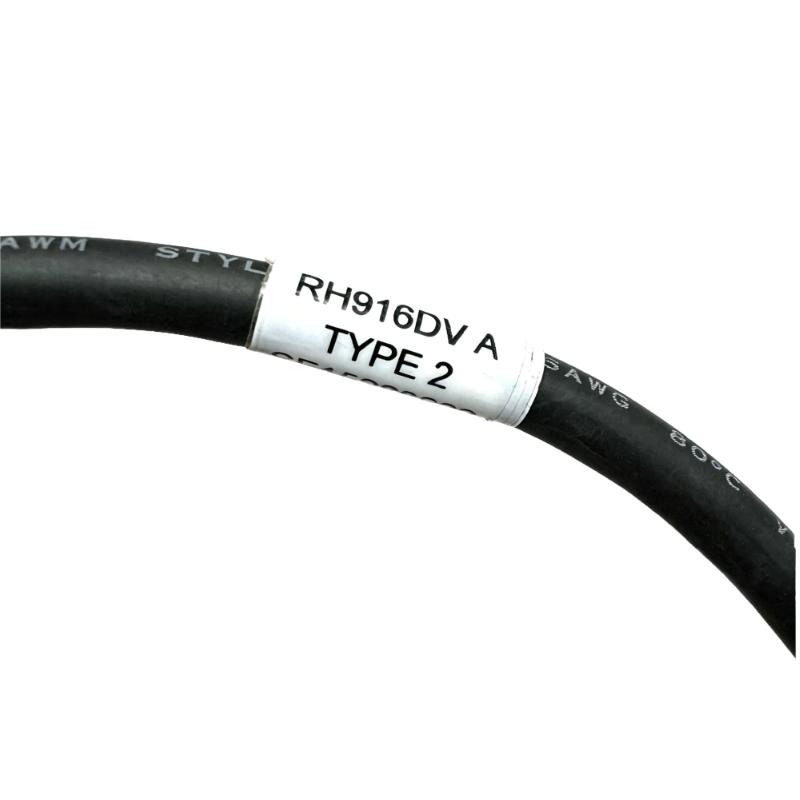

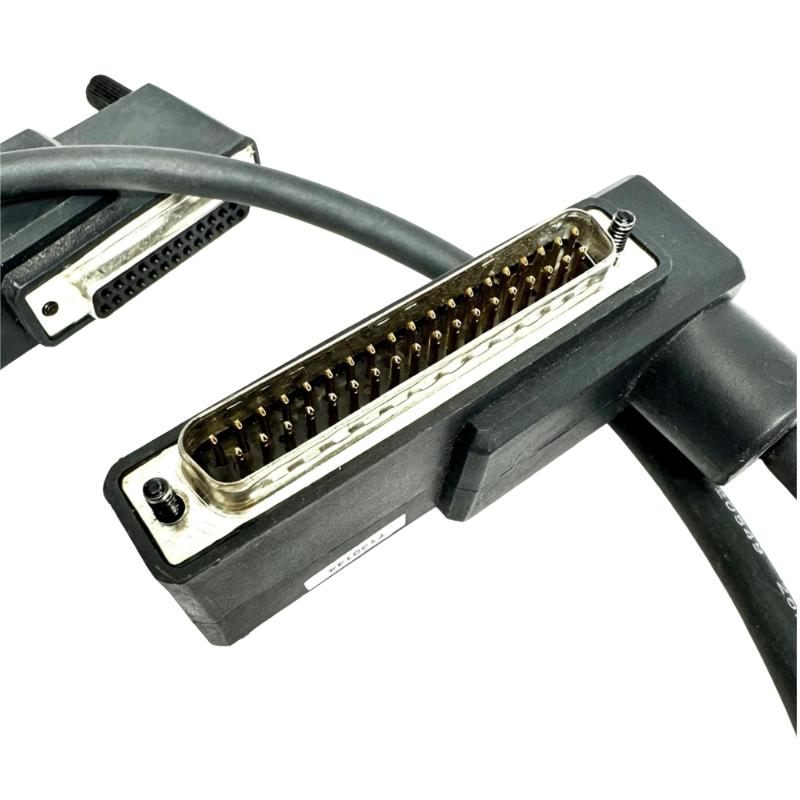

The Foxboro RH916DV is an I/A Series 200 Type 2 P/PVC termination cable used to connect compatible field termination assemblies with Foxboro FBM interfaces. It belongs to the RH916 family of Type 2 termination cables used in I/A Series 200 field wiring arrangements.
The cable forms the electrical connection between the field termination side and the associated FBM interface. Field signals can pass through the termination assembly and cable connection before reaching the appropriate I/O circuitry in the control system.
RH916DV is the successor to the legacy P0916DV designation. It is therefore relevant when replacing an existing P0916-series cable while maintaining the established termination architecture and wiring arrangement.
The P/PVC construction uses a polyurethane outer jacket with semi-rigid PVC primary conductor insulation. This construction is intended for industrial control cabinet and field termination applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | RH916DV |
| Product Family | I/A Series 200 Termination Cable |
| Cable Type | Type 2 |
| Cable Construction | P/PVC |
| Application | Field Wiring / Termination Assembly Connection |
| System | Foxboro I/A Series 200 |
| Associated Modules | FBM2xx |
| Cable Jacket | Polyurethane |
| Primary Conductor Insulation | Semi-rigid PVC |
| Temperature Range | -20 to +80°C (-4 to +176°F) |
| Predecessor Model | P0916DV |
| Cable Length | 1 meter |
| Shipping Weight | 3 kg |
Product Features
- Type 2 P/PVC termination cable for Foxboro I/A Series 200 systems.
- Intended for compatible FBM2xx field wiring arrangements.
- Connects termination assemblies with the associated system interface.
- Uses a polyurethane outer jacket with semi-rigid PVC conductor insulation.
- Supports organized routing of field signals between termination hardware and FBM interfaces.
- Suitable for maintenance and replacement work on established I/A Series 200 systems.
- Provides the current RH916-series designation corresponding to P0916DV.
- Suitable for industrial control cabinet termination applications.
Working Principle
The RH916DV is a passive electrical interconnection component. It does not perform signal conversion, amplification, isolation, or processing. Its function is to maintain the required electrical paths between the termination assembly and the connected FBM interface.
For an input circuit, the field signal travels from the field device through the termination assembly and cable to the FBM input circuitry. The FBM then makes the signal available to the I/A Series control system for processing.
For an output circuit, the electrical path operates in the opposite direction. The FBM output drives the corresponding field circuit through the termination assembly toward the connected device.
The cable therefore becomes part of the physical I/O signal path, making correct matching between the Type 2 termination arrangement, FBM, and cable assembly important during installation or replacement.
Role in an I/A Series 200 Field I/O Architecture
| System Element | Role |
|---|---|
| Field Instruments | Generate measurement signals or receive control signals |
| Field Wiring | Connects field devices with the termination assembly |
| Type 2 Termination Assembly | Provides the field-side interface |
| RH916DV | Carries electrical circuits between the termination assembly and FBM |
| FBM2xx Module | Acquires field inputs or provides field outputs |
| I/A Series 200 Control System | Processes field information and executes control functions |
| Operator / Engineering Station | Provides monitoring, configuration, diagnostics, and operator control |
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Instrumentation | Connecting field instruments with compatible FBM interfaces |
| Chemical Processing | Routing process measurement and control signals |
| Oil and Gas | Maintaining established Foxboro field wiring installations |
| Power and Utilities | Connecting field devices with centralized control system I/O |
| Manufacturing | Integrating field devices with existing I/A Series 200 architectures |
| DCS Maintenance | Replacing existing Type 2 termination cables |
| Legacy System Service | Updating P0916-series cable installations to the RH916 family |
Installation and Maintenance
- Verify the installed FBM2xx module and Type 2 termination assembly before removing the existing cable.
- Confirm that the replacement cable matches the required Type 2 P/PVC termination arrangement.
- Isolate the relevant field and control circuits according to the plant maintenance procedure before disconnecting the cable.
- Record the existing cable routing and termination points before removal.
- Inspect the termination assembly and connector interfaces for contamination, loose connections, or mechanical damage.
- Route the replacement cable through the established cabinet wiring path without excessive bending or mechanical stress.
- Maintain appropriate separation from wiring that may introduce electrical interference where cabinet installation rules require it.
- Ensure the cable connections are fully seated and secured before restoring the associated circuits.
- Perform continuity checks when required by the maintenance procedure.
- Verify the corresponding FBM channels after installation to confirm correct signal transmission.
- Compare the installed cable identification with the system wiring drawings and maintenance records.
- Record the RH916DV installation and replacement information in the equipment maintenance documentation.
Related Components
| Component | Function |
|---|---|
| Foxboro FBM2xx Modules | Provide field input and output interfaces |
| Type 2 Termination Assembly | Provides the field-side wiring interface |
| Field Wiring | Connects instruments and control devices to the termination assembly |
| I/A Series 200 Control System | Processes field signals and executes control functions |
| RH916 Termination Cable Family | Provides Type 2 and other compatible termination cable options |
Recommended Related Models
| Model | Application / Relationship |
|---|---|
| P0916DV | Legacy model corresponding to RH916DV |
| RH916DU | Type 2 P/PVC termination cable for an alternative connection length |
| RH916DW | Type 2 P/PVC termination cable for a longer connection |
| RH916DX | Type 2 P/PVC termination cable for an extended connection |
| RH916DY | Type 2 P/PVC termination cable for longer field wiring applications |
Key Advantages
- Current RH916-series designation for the P0916DV termination cable.
- Type 2 P/PVC construction for compatible I/A Series 200 applications.
- Supports organized field-to-FBM signal connections.
- Suitable for FBM2xx termination arrangements.
- Useful for maintenance of established Foxboro control systems.
- Simplifies replacement of legacy P0916DV installations.
Technical FAQs
What is the Foxboro RH916DV used for?
RH916DV is a Type 2 P/PVC termination cable used to connect compatible field termination assemblies with Foxboro FBM2xx interfaces in I/A Series 200 systems.
What is the relationship between RH916DV and P0916DV?
RH916DV is the successor designation for the legacy P0916DV model. Both belong to the Type 2 P/PVC termination cable family.
What does P/PVC mean on the RH916DV?
P/PVC refers to a polyurethane outer jacket combined with semi-rigid PVC primary conductor insulation.
Can RH916DV be used to replace P0916DV?
RH916DV is the corresponding successor model for P0916DV. The installed termination assembly, FBM configuration, and system wiring should still be checked before replacement.
