Product Overview

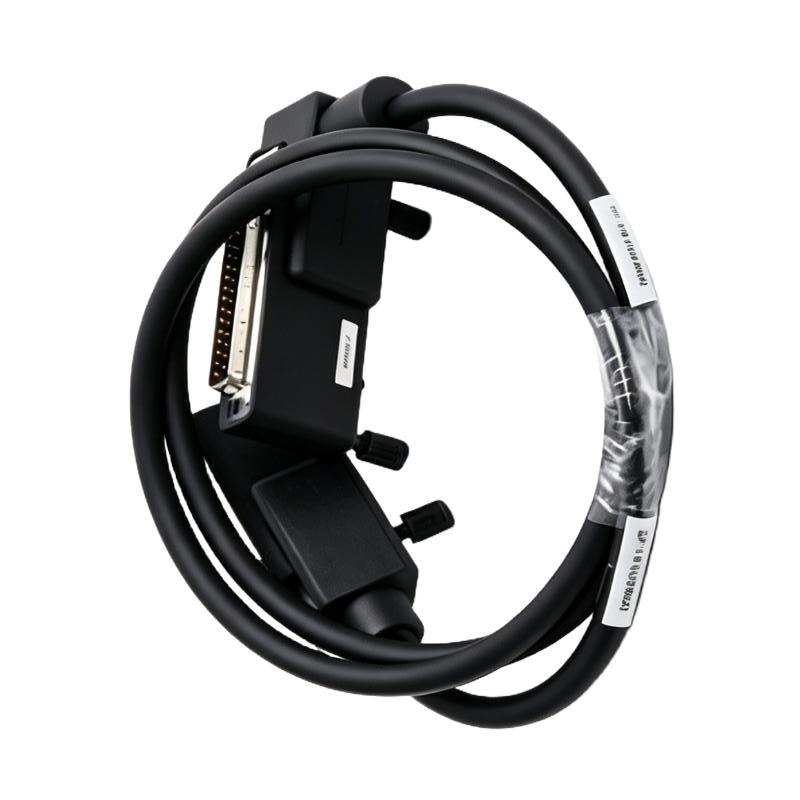

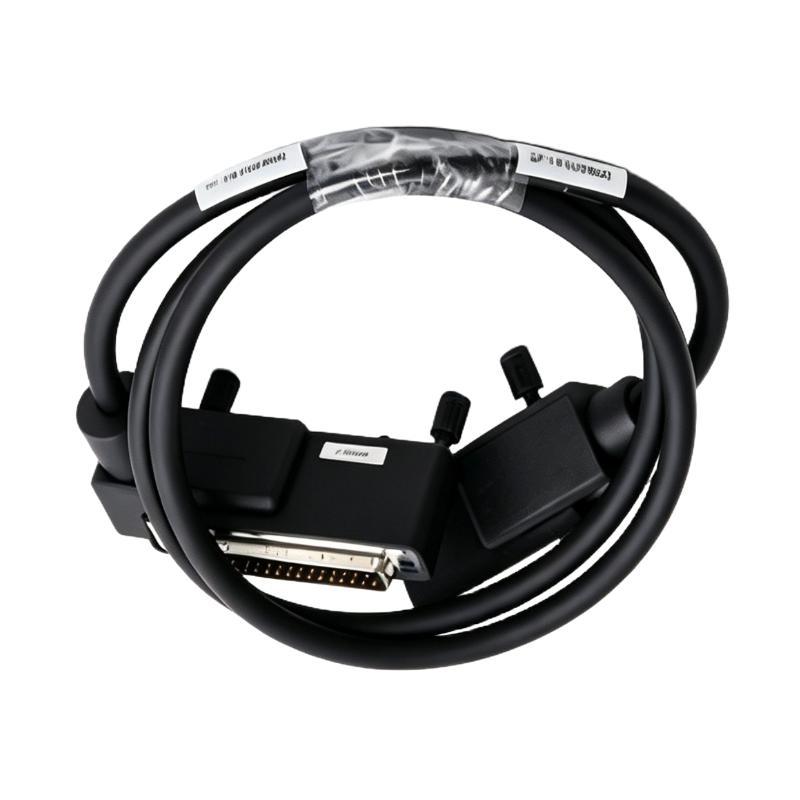

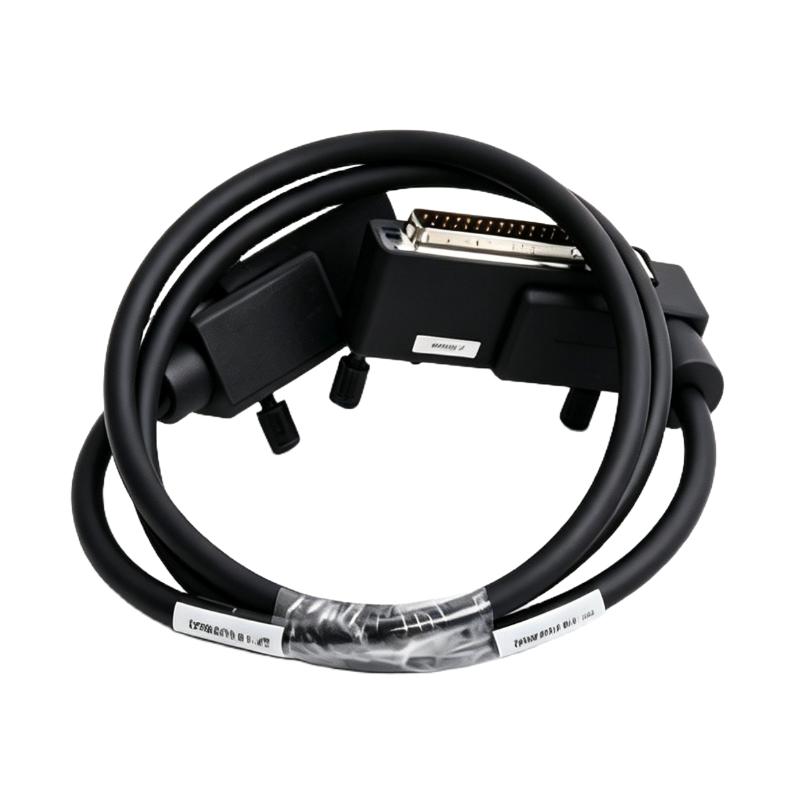

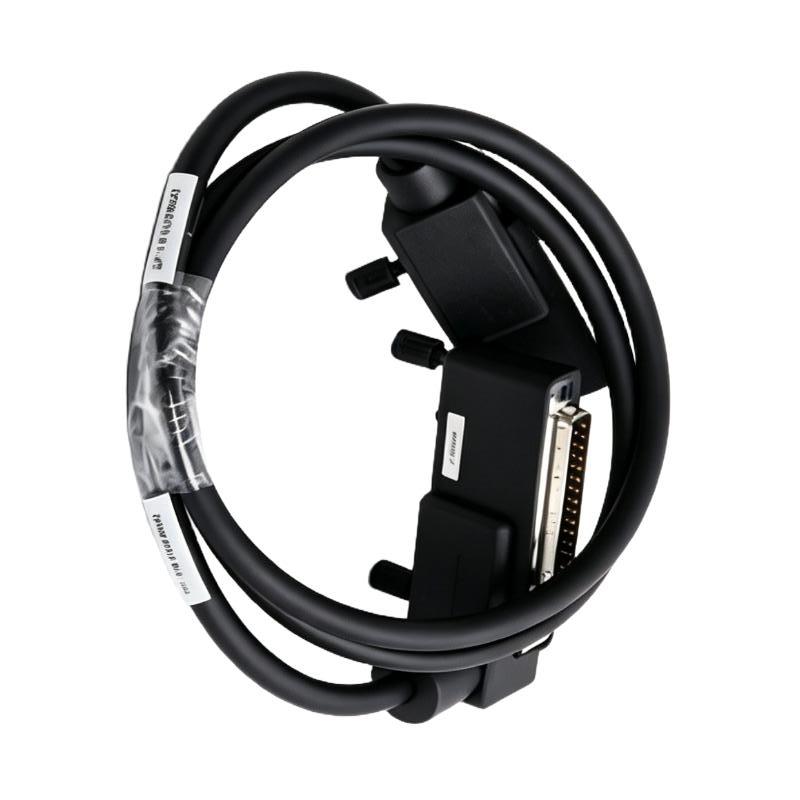

The Foxboro RH916DG is an I/A Series 200 Type 1 P/PVC termination cable used to connect compatible field termination assemblies with Foxboro system interfaces. It belongs to the RH916 family of termination cables used for organized field wiring connections in I/A Series 200 installations.
The cable forms the electrical connection between the termination assembly and the associated fieldbus module or system interface. This arrangement keeps field wiring organized while allowing signals from field instruments and control devices to reach the appropriate I/O channels.
RH916DG is the current replacement for the legacy P0916DG designation. This makes it useful both for new replacement requirements and for maintenance work on existing Foxboro I/A Series 200 systems where the original P0916-series cable is being replaced.
The P/PVC construction uses a polyurethane outer jacket with semi-rigid PVC primary conductor insulation. This construction is suited to industrial control cabinet wiring and field termination applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | RH916DG |
| Product Family | I/A Series 200 Termination Cable |
| Cable Type | Type 1 |
| Cable Construction | P/PVC |
| Application | Field Wiring / Termination Assembly Connection |
| System | Foxboro I/A Series 200 |
| Cable Jacket | Polyurethane |
| Primary Conductor Insulation | Semi-rigid PVC |
| Temperature Range | -20 to +80°C (-4 to +176°F) |
| Predecessor Model | P0916DG |
| Cable Length | 20 meters |
| Shipping Weight | 3 kg |
Product Features
- Type 1 P/PVC termination cable for Foxboro I/A Series 200 systems.
- Connects compatible termination assemblies with the associated system interface.
- Polyurethane outer jacket with semi-rigid PVC conductor insulation.
- Intended for organized industrial control system wiring.
- Supports field signal routing between termination hardware and I/O interfaces.
- Suitable for maintenance and replacement of established I/A Series 200 installations.
- RH916DG provides the current model designation corresponding to P0916DG.
- Fits within the RH916 family of Type 1 P/PVC termination cables.
Working Principle
The RH916DG is a passive interconnection cable. It does not process or convert the field signal; instead, it maintains the electrical connection between the termination assembly and the connected I/A Series system interface.
Field instruments and control devices are connected to the field termination assembly. The corresponding signal circuits then pass through the termination cable toward the appropriate fieldbus module or I/O interface, where the signals are acquired or used for control functions.
For output circuits, the electrical path works in the opposite direction. Control signals generated by the system pass through the interface and termination arrangement toward the connected field device.
Because the cable is part of the physical signal path, correct cable identification and termination matching are important when replacing an existing assembly.
Role in an I/A Series 200 Field Wiring Architecture
| System Element | Role |
|---|---|
| Field Instruments | Generate measurement signals or receive control signals |
| Field Wiring | Carries electrical signals between field devices and termination hardware |
| Type 1 Termination Assembly | Provides the field-side wiring interface |
| RH916DG | Connects the termination assembly with the system-side interface |
| Foxboro FBM | Acquires input signals or provides output signals |
| I/A Series Control System | Processes field information and executes control functions |
| Operator / Engineering Station | Provides monitoring, configuration, diagnostics, and control |
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Connecting field termination hardware with I/A Series 200 interfaces |
| Chemical Processing | Routing instrumentation and control circuits within process control systems |
| Oil and Gas | Maintaining established Foxboro field wiring installations |
| Power and Utilities | Connecting field devices with centralized control system I/O |
| Manufacturing | Integrating field instrumentation with existing I/A Series 200 architectures |
| DCS Maintenance | Replacing aging or damaged termination cables |
| Legacy System Service | Updating P0916-series cable installations to the RH916 family |
Installation and Maintenance
- Verify the installed termination assembly and associated I/A Series 200 interface before removing the existing cable.
- Confirm that the replacement cable matches the required Type 1 P/PVC termination arrangement.
- Isolate the relevant field and control circuits according to the site’s maintenance procedure before disconnection.
- Record the existing cable routing and termination points before removing the cable.
- Inspect the termination assembly and connector interfaces for mechanical damage, contamination, or loose connections.
- Route the replacement cable along the established cabinet wiring path without excessive bending or mechanical tension.
- Maintain appropriate separation from wiring that may introduce electrical interference where cabinet wiring rules require it.
- Ensure all connectors and termination points are fully seated before restoring the associated circuits.
- Perform continuity checks when required by the maintenance procedure.
- Verify the corresponding I/O channels after installation to confirm that field signals are correctly received or transmitted.
- Compare the installed cable identification with the plant wiring drawings and maintenance documentation.
- Record the RH916DG installation in the equipment maintenance history for future troubleshooting and replacement work.
Related Components
| Component | Function |
|---|---|
| Foxboro I/A Series 200 FBM | Provides the system-side field I/O interface |
| Type 1 Termination Assembly | Provides the field-side connection point |
| Field Wiring | Connects instruments and control devices to the termination assembly |
| I/A Series Control System | Processes field inputs and generates control outputs |
| RH916 Cable Family | Provides compatible termination cable options for different wiring requirements |
Recommended Related Models
| Model | Application / Relationship |
|---|---|
| P0916DG | Legacy model corresponding to RH916DG |
| RH916DF | Type 1 P/PVC termination cable for a shorter cable run |
| RH916DH | Type 1 P/PVC termination cable for a longer cable run |
| RH916DE | Type 1 P/PVC termination cable used for shorter termination connections |
| RH916DJ | Type 1 P/PVC termination cable for extended termination connections |
Key Advantages
- Current RH916-series designation for the P0916DG termination cable.
- Intended for Foxboro I/A Series 200 field wiring architectures.
- Type 1 P/PVC construction.
- Supports organized connections between termination assemblies and system interfaces.
- Suitable for maintenance and replacement applications.
- Simplifies identification when updating legacy P0916-series installations.
Technical FAQs
What is the Foxboro RH916DG used for?
The RH916DG is a Type 1 P/PVC termination cable used to connect compatible field termination assemblies with Foxboro I/A Series 200 system interfaces.
What is the relationship between RH916DG and P0916DG?
RH916DG is the current replacement designation for the legacy P0916DG model. They belong to the same Type 1 P/PVC termination cable family.
What does the P/PVC construction mean?
P/PVC refers to a polyurethane outer jacket combined with semi-rigid PVC insulation for the individual conductors.
Can RH916DG be used when servicing an older P0916DG installation?
RH916DG is the successor model for P0916DG, making it the appropriate model to consider when replacing the legacy cable. The installed termination hardware and system wiring should still be checked before replacement.
