Product Overview

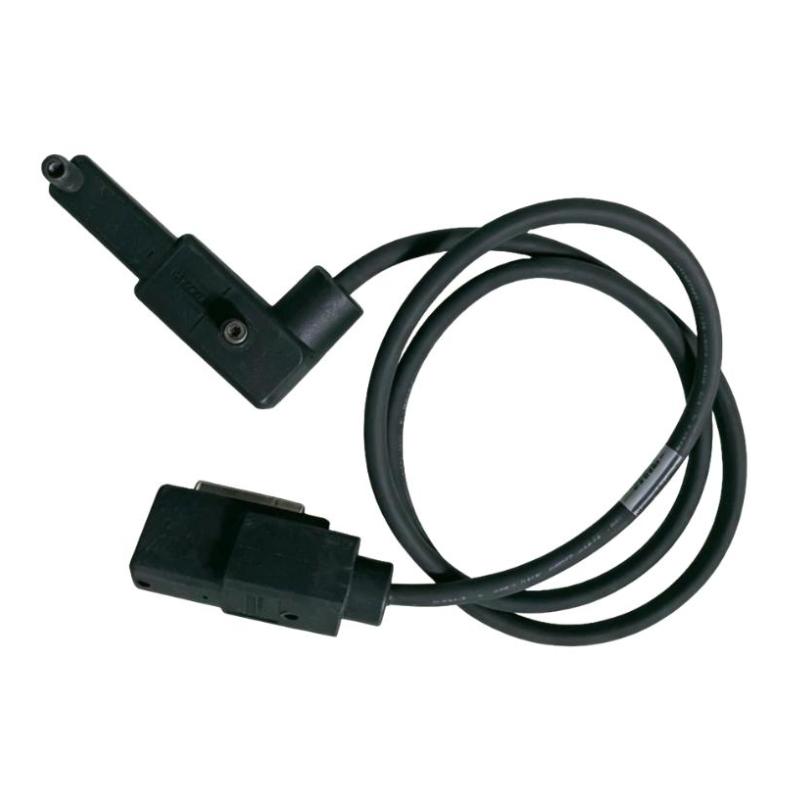

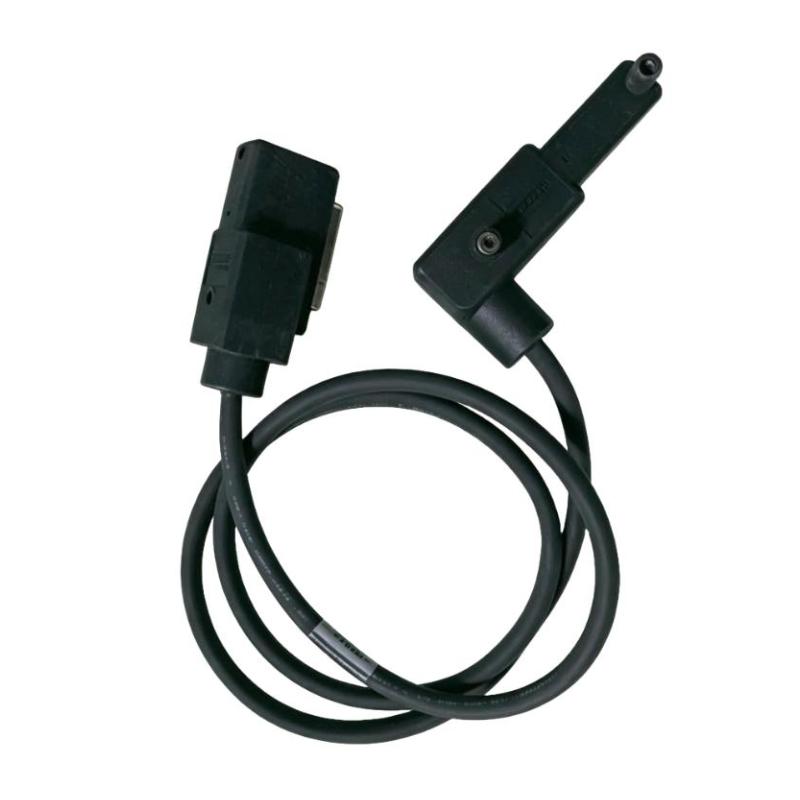

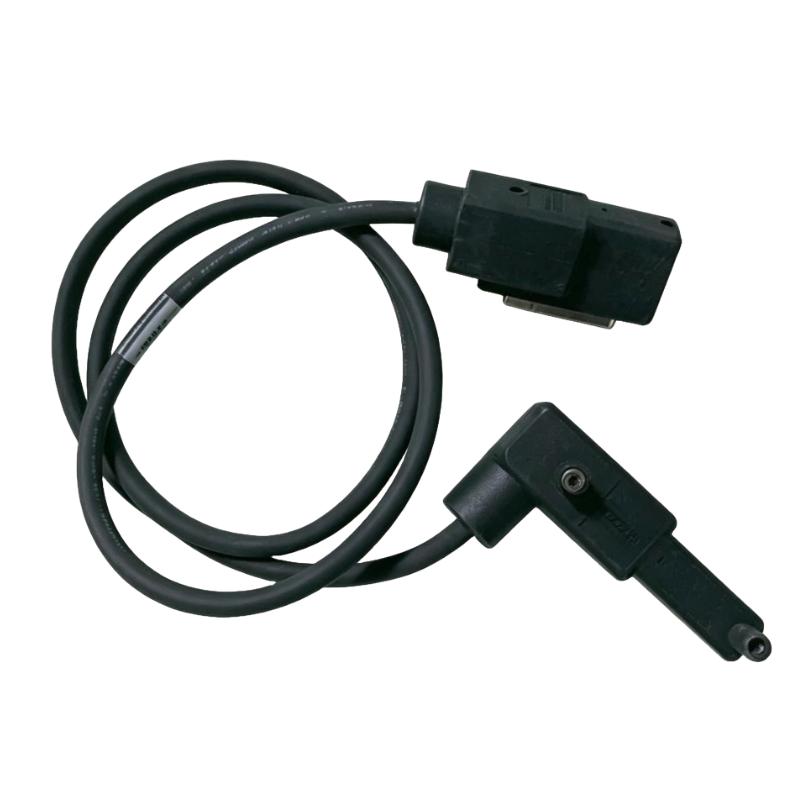

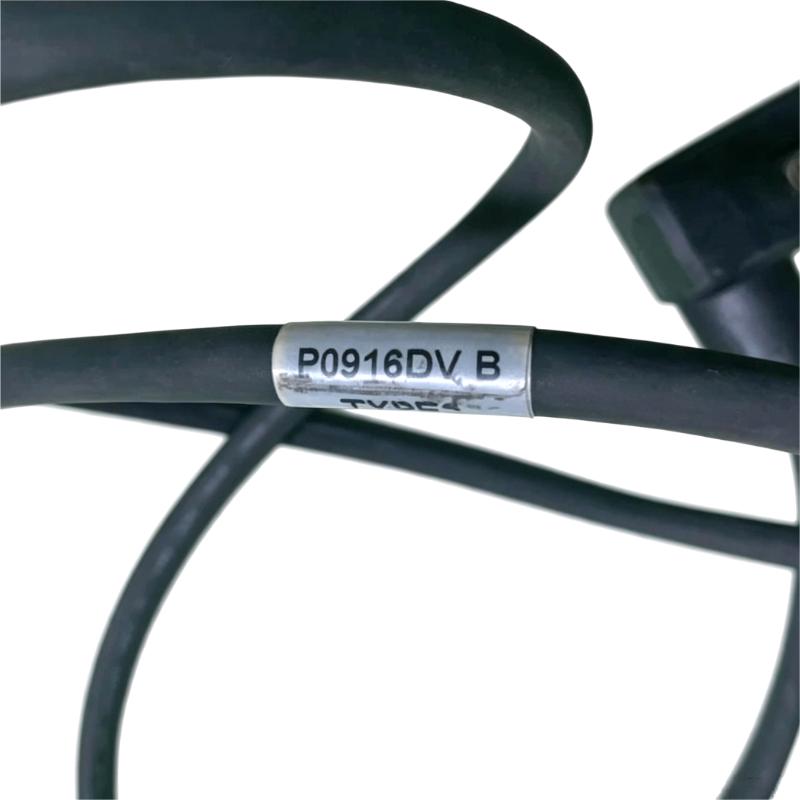

The Foxboro P0916DV is an I/A Series 200 Type 2 P/PVC termination cable used to connect compatible field termination assemblies with Foxboro FBM interfaces. It belongs to the Type 2 termination cable family used with FBM2xx fieldbus modules and associated termination assemblies.
The cable forms the electrical connection between the field termination side and the system-side FBM interface. Field signals can therefore pass between the connected field devices and the I/A Series control system through the termination assembly and cable connection.
P0916DV is part of a family of Type 2 P/PVC cables available for different connection distances. The Type 2 arrangement is used with compatible I/A Series 200 field wiring configurations, including applications involving FBM input interfaces.
The P/PVC construction uses a polyurethane outer jacket and semi-rigid PVC primary conductor insulation. This cable construction is intended for industrial control system wiring and field termination applications.
P0916DV has been superseded by RH916DV. The legacy P0916DV designation remains useful when identifying existing installations, historical system documentation, and replacement requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | P0916DV |
| Product Family | I/A Series 200 Termination Cable |
| Cable Type | Type 2 |
| Cable Construction | P/PVC |
| Application | Field Wiring / Termination Assembly Connection |
| System | Foxboro I/A Series 200 |
| Associated Modules | FBM2xx |
| Cable Jacket | Polyurethane |
| Primary Conductor Insulation | Semi-rigid PVC |
| Temperature Range | -20 to +80°C (-4 to +176°F) |
| Replacement Model | RH916DV |
| Cable Length | 1 meter |
| Shipping Weight | 3 kg |
Product Features
- Type 2 P/PVC termination cable for Foxboro I/A Series 200 systems.
- Intended for compatible FBM2xx termination arrangements.
- Provides the electrical connection between field termination hardware and FBM interfaces.
- Uses a polyurethane outer jacket with semi-rigid PVC conductor insulation.
- Suitable for industrial control cabinet and field wiring applications.
- Supports organized routing of field signals into the I/A Series control system.
- Useful for servicing and replacing existing Type 2 termination cable assemblies.
- P0916DV is superseded by RH916DV in the current cable family.
Working Principle
The P0916DV is a passive wiring component within the I/A Series 200 field I/O path. It does not perform signal conversion or processing. Instead, it maintains the required electrical connections between the termination assembly and the associated FBM interface.
A field instrument or control device connects to the field-side termination assembly. The corresponding electrical circuits pass through the termination cable and reach the FBM, where input signals can be acquired or output circuits can be driven according to the control configuration.
For an input channel, the signal travels from the field device through the termination assembly and cable to the FBM input circuitry. For an output channel, the signal path is reversed toward the field device.
Correct matching between the termination assembly, FBM, and cable type is important because Type 1 and Type 2 termination cables belong to different termination arrangements.
Role in an I/A Series 200 Field I/O Architecture
| System Element | Role |
|---|---|
| Field Instruments | Generate measurement signals or receive control signals |
| Field Wiring | Connects field devices with the termination assembly |
| Type 2 Termination Assembly | Provides the field-side interface |
| P0916DV | Carries the electrical circuits between termination hardware and FBM |
| FBM2xx Module | Acquires field inputs or provides field outputs |
| I/A Series Control System | Processes field information and executes control logic |
| Operator / Engineering Station | Provides monitoring, configuration, diagnostics, and operator control |
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Instrumentation | Connecting field instruments with FBM2xx interfaces |
| Chemical Processing | Routing measurement and control signals through termination assemblies |
| Oil and Gas | Maintaining established Foxboro I/A Series field wiring |
| Power and Utilities | Connecting field signals with centralized process control equipment |
| Manufacturing | Integrating field devices with existing I/A Series 200 systems |
| DCS Maintenance | Replacing worn or damaged Type 2 termination cables |
| Legacy System Service | Maintaining installations using P0916-series field wiring |
Installation and Maintenance
- Verify the installed FBM2xx module and termination assembly before removing the existing cable.
- Confirm that the application requires a Type 2 termination cable rather than another termination cable type.
- Isolate the relevant field and control circuits according to the site’s maintenance procedure before disconnecting the cable.
- Record the existing cable routing and termination points before removal.
- Inspect the termination assembly interface for loose connections, contamination, or mechanical damage.
- Route the replacement cable through the established cabinet wiring path without excessive bending or mechanical stress.
- Keep the cable away from wiring routes that may introduce excessive electrical interference where installation rules require separation.
- Check that the cable connections are fully seated and correctly secured before restoring the circuit.
- Perform continuity checks when required by the plant maintenance procedure.
- Verify the associated FBM channels after installation to confirm correct signal transmission.
- Compare the cable identification with the system wiring drawings and maintenance records.
- Record the replacement model and installation information in the equipment maintenance documentation.
Related Components
| Component | Function |
|---|---|
| Foxboro FBM2xx Modules | Provide field input and output interfaces |
| Type 2 Termination Assembly | Provides the field-side connection point |
| Field Wiring | Connects instruments and control devices to the termination assembly |
| I/A Series 200 Control System | Processes field signals and executes control functions |
| Termination Assembly Adapter | Provides an alternative field wiring interface for supported upgrade arrangements |
Recommended Related Models
| Model | Application / Relationship |
|---|---|
| RH916DV | Current replacement model for P0916DV |
| P0916DU | Type 2 P/PVC termination cable for a shorter connection |
| P0916DW | Type 2 P/PVC termination cable for a longer connection |
| P0916DX | Type 2 P/PVC termination cable for extended termination connections |
| P0916DY | Type 2 P/PVC termination cable for longer field wiring runs |
Key Advantages
- Type 2 termination cable for Foxboro I/A Series 200 architectures.
- Compatible with applicable FBM2xx field wiring arrangements.
- P/PVC construction for industrial termination applications.
- Supports organized field-to-FBM signal connections.
- Suitable for maintenance of established Foxboro installations.
- Provides a successor path through the RH916DV model.
Technical FAQs
What is the Foxboro P0916DV used for?
P0916DV is a Type 2 P/PVC termination cable used to connect compatible field termination assemblies with Foxboro FBM2xx interfaces in I/A Series 200 systems.
What is the difference between P0916DV and P0916DG?
P0916DV belongs to the Type 2 P/PVC termination cable family, while P0916DG belongs to the Type 1 P/PVC family. They are intended for different termination arrangements and should not be selected solely by cable length.
What does P/PVC mean on the P0916DV?
P/PVC refers to a polyurethane outer jacket combined with semi-rigid PVC primary conductor insulation. The specified operating temperature range for this construction is -20 to +80°C (-4 to +176°F).
What is the replacement model for P0916DV?
RH916DV is the successor model for P0916DV in the Type 2 P/PVC termination cable family.
