Product Overview

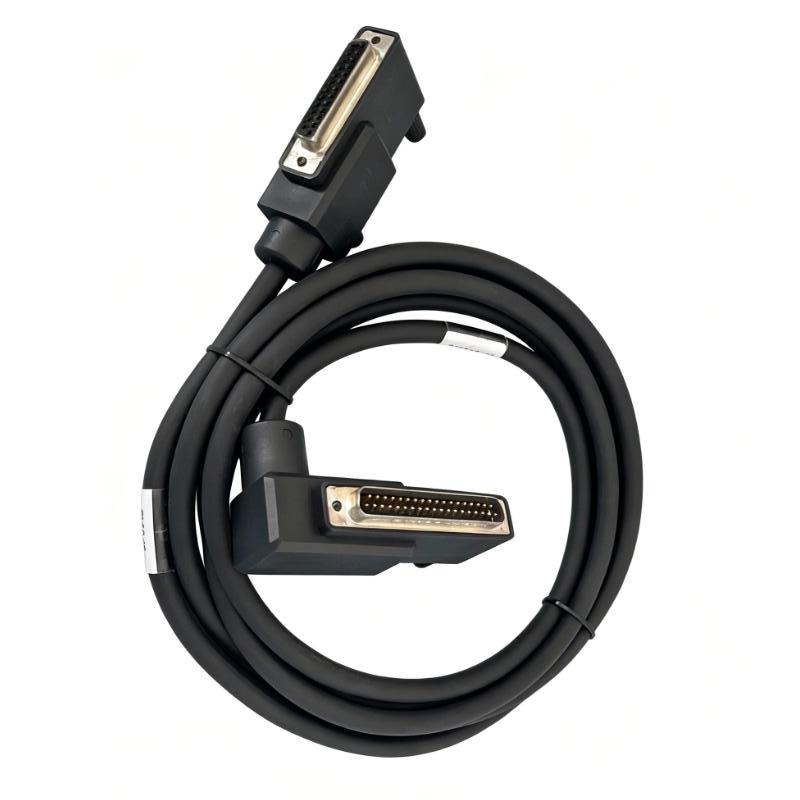

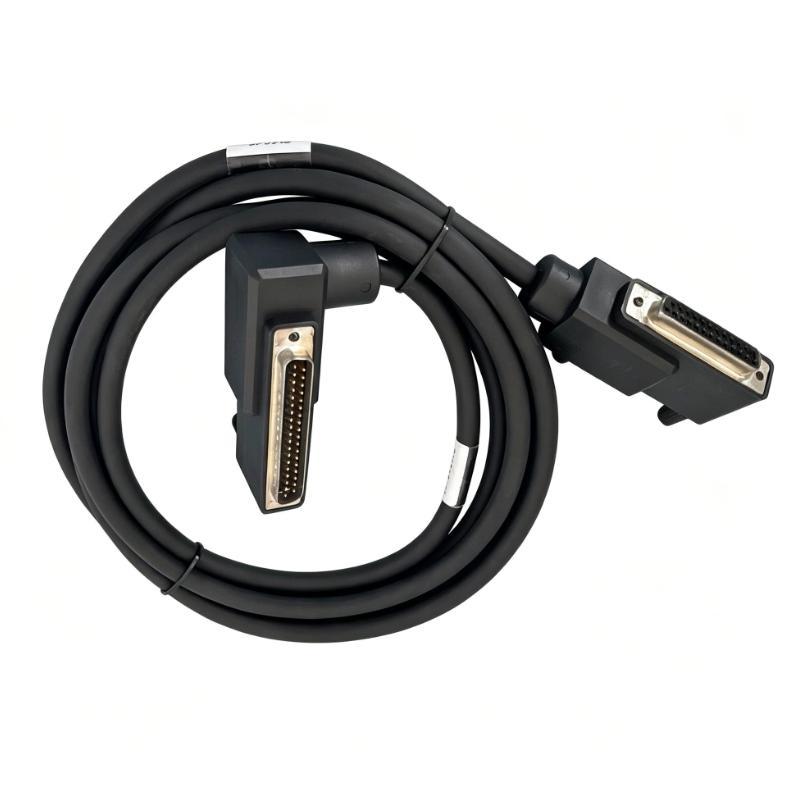

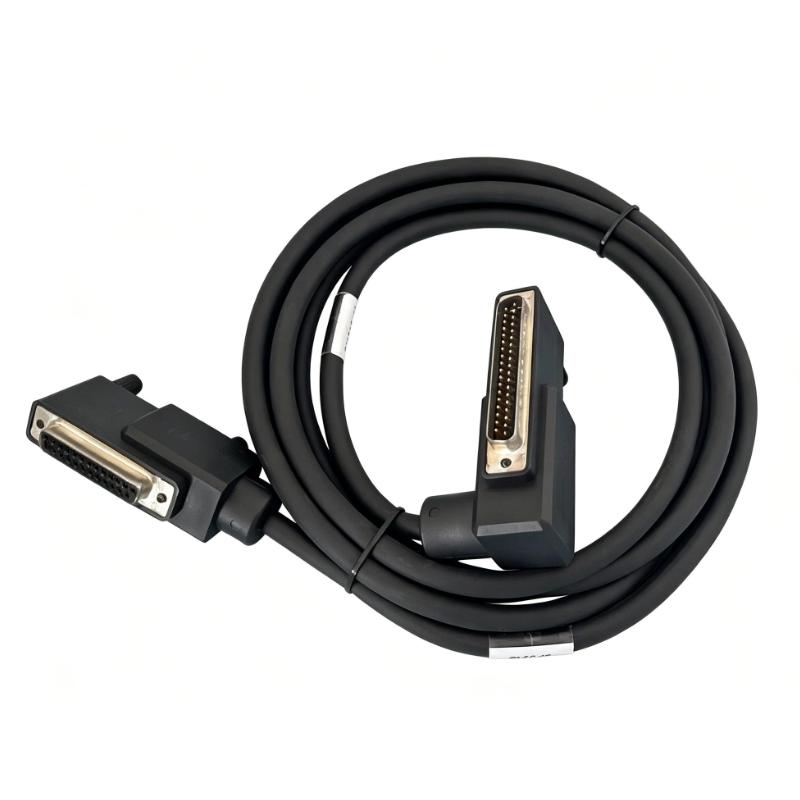

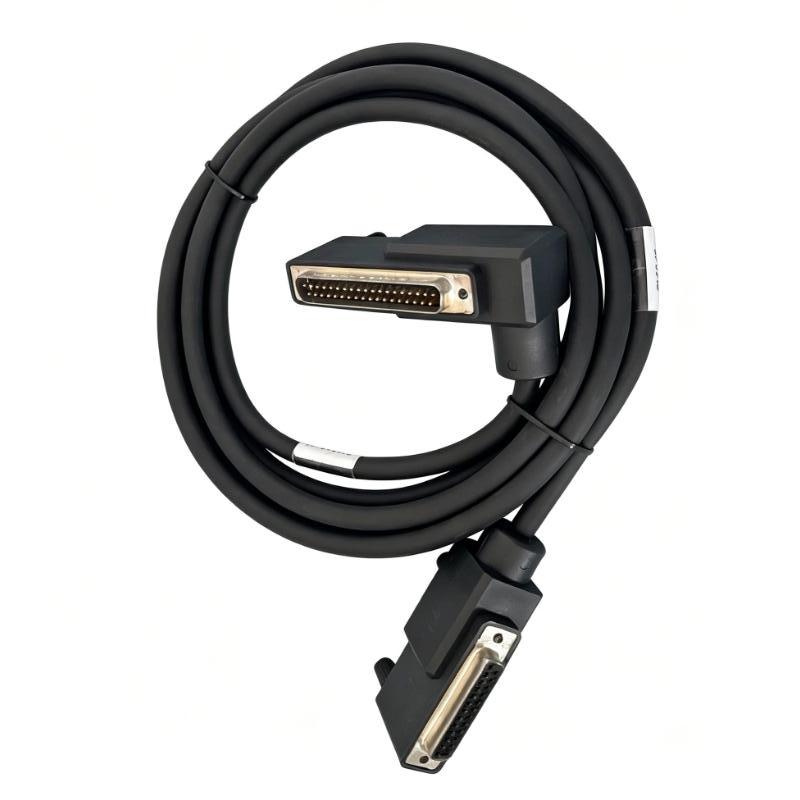

The Foxboro P0916DF is a Type 1 P/PVC termination cable used in I/A Series 200 field I/O systems. It provides the electrical connection between a compatible fieldbus module baseplate and its associated termination assembly.
The P0916DF belongs to the P0916 termination cable family, which includes multiple cable lengths for different installation requirements. The 15-meter version is intended for systems where the distance between the I/O equipment and termination assembly requires a longer preassembled connection.
The cable is used as part of the fixed wiring path in a distributed control system. Field wiring is connected at the termination assembly, while the P0916DF carries the corresponding signals between the termination hardware and the fieldbus module.
The P0916DF uses Type 1 P/PVC cable construction. Its polyurethane outer jacket and semi-rigid PVC primary conductor insulation make it suitable for industrial control cabinet and process automation wiring applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Family | I/A Series 200 |
| Product Type | Type 1 P/PVC Termination Cable |
| Cable Series | P0916 |
| Cable Type | Type 1 |
| Cable Construction | P/PVC |
| Outer Jacket | Polyurethane |
| Primary Conductor Insulation | Semi-Rigid PVC |
| Application | I/A Series 200 Field I/O |
| Connection Function | Fieldbus Module to Termination Assembly |
| System Application | Distributed Control System |
| Installation | Control Cabinets and I/O Enclosures |
| Temperature Range | -20 to +80 °C |
| Cable Length | 15 meters |
| Shipping Weight | 3 kg |
Product Features
- Type 1 P/PVC termination cable for I/A Series 200 systems.
- Provides a preassembled connection between compatible fieldbus equipment and termination hardware.
- 15-meter configuration for installations requiring a longer connection path.
- Polyurethane outer jacket with semi-rigid PVC primary conductor insulation.
- Supports organized field I/O wiring in industrial control cabinets.
- Suitable for fixed wiring between termination assemblies and fieldbus modules.
- Part of the P0916 series of I/A Series termination cables.
- Can be used for system installation, I/O expansion, and replacement applications.
Working Principle
The P0916DF functions as the electrical signal path between the fieldbus module side and the termination assembly. It does not perform signal conversion, amplification, or control processing.
Field instruments connect to the field-side termination assembly. Signals from those instruments pass through the termination hardware and travel through the P0916DF to the corresponding fieldbus module.
For output channels, the signal path operates in the opposite direction. The fieldbus module sends the required output signal through the P0916DF to the termination assembly, where it is connected to the appropriate field device.
The cable therefore forms an intermediate connection within the I/A Series 200 I/O architecture, allowing the field termination hardware and electronic I/O equipment to be installed as separate parts of the control cabinet arrangement.
Role in an I/A Series 200 Distributed Control Architecture
| System Layer | Typical Component | Role |
|---|---|---|
| Field Device Layer | Sensors, transmitters, switches, actuators | Generates or receives process signals |
| Field Wiring Layer | Field Cables | Connects process devices to termination hardware |
| Termination Layer | I/A Series 200 Termination Assembly | Provides field wiring termination |
| Cable Interface Layer | P0916DF | Connects termination hardware with the fieldbus module |
| I/O Layer | I/A Series 200 Fieldbus Module | Processes field input and output signals |
| Control Layer | I/A Series Controller | Executes process control logic |
| Operator Layer | HMI or Operator Workstation | Provides process monitoring and operator control |
Industrial Applications
| Application | Use of P0916DF |
|---|---|
| I/A Series 200 I/O Cabinets | Connects fieldbus modules with termination assemblies |
| Process Control Systems | Carries field signals between termination and I/O hardware |
| Distributed Field I/O | Provides an organized connection within the I/O subsystem |
| Control Cabinet Expansion | Supports additional field I/O installation |
| System Maintenance | Provides a replacement cable for compatible termination arrangements |
| Long Cable Routing | Provides a 15-meter connection between separated system components |
Installation and Maintenance
- Verify system compatibility: Confirm that the fieldbus module and termination assembly are compatible with the P0916DF termination cable arrangement.
- Confirm cable type: Check that the required installation calls for a Type 1 P/PVC cable rather than another cable construction.
- Inspect the cable before installation: Check the outer jacket and connector ends for cuts, deformation, contamination, or other damage.
- Identify the correct connection points: Match the termination assembly with the corresponding fieldbus module before connecting the cable.
- Plan the cable route: The 15-meter cable should be routed so that it does not obstruct cabinet access or interfere with other equipment.
- Avoid excessive bending: Do not sharply bend, twist, or pull the cable during installation.
- Protect the cable jacket: Keep the P/PVC cable away from sharp cabinet edges and other sources of mechanical damage.
- Secure the cable: Use suitable cable-management methods to prevent unnecessary movement or connector loading.
- Check connector engagement: Confirm that each end is fully seated in its corresponding interface before system startup.
- Maintain wiring separation: Keep the termination cable properly routed relative to power wiring and other circuits that may introduce interference.
- Verify signal continuity: After installation or replacement, check the corresponding I/O signal paths before returning the system to normal operation.
- Inspect during maintenance: Check for damaged insulation, loose connections, contamination, and mechanical stress during scheduled maintenance.
Related Components
| Component | Function |
|---|---|
| I/A Series 200 Fieldbus Module | Provides the field I/O interface |
| Fieldbus Module Baseplate | Provides the module-side connection arrangement |
| Type 1 Termination Assembly | Provides field wiring termination |
| Field Wiring | Connects process instruments and field devices |
| I/A Series Controller | Processes I/O information and executes control functions |
| Control Cabinet | Houses fieldbus, termination, and cable assemblies |
Recommended Related Models
| Model | Product | Application |
|---|---|---|
| P0916DA | I/A Series Type 1 P/PVC Termination Cable | 0.5-meter cable configuration |
| P0916DB | I/A Series Type 1 P/PVC Termination Cable | 1-meter cable configuration |
| P0916DC | I/A Series Type 1 P/PVC Termination Cable | 3-meter cable configuration |
| P0916DD | I/A Series Type 1 P/PVC Termination Cable | 5-meter cable configuration |
| P0916DE | I/A Series Type 1 P/PVC Termination Cable | 10-meter cable configuration |
| P0916DG | I/A Series Type 1 P/PVC Termination Cable | 20-meter cable configuration |
| P0916DH | I/A Series Type 1 P/PVC Termination Cable | 25-meter cable configuration |
| P0916DJ | I/A Series Type 1 P/PVC Termination Cable | 30-meter cable configuration |
Key Advantages
- Type 1 P/PVC termination cable construction.
- Designed for I/A Series 200 field I/O wiring.
- Provides a direct connection between termination and fieldbus hardware.
- 15-meter cable configuration for extended installation distances.
- Polyurethane outer jacket and semi-rigid PVC conductor insulation.
- Suitable for installation, expansion, and replacement work.
Technical FAQs
What is the Foxboro P0916DF used for?
The P0916DF is a Type 1 P/PVC termination cable used to connect compatible I/A Series 200 fieldbus equipment with the associated termination assembly.
What is the cable length of P0916DF?
The P0916DF has a Cable Length of 15 meters. It is the 15-meter configuration within the P0916 Type 1 P/PVC termination cable family.
What does P/PVC mean for the P0916DF cable?
P/PVC refers to a polyurethane outer jacket combined with semi-rigid PVC primary conductor insulation. The specified P/PVC cable temperature range is -20 to +80 °C.
Has the P0916DF been replaced by another model?
Yes. Current Foxboro documentation identifies RH916DF as superseding P0916DF. The RH916DF retains the 15-meter Type 1 P/PVC termination cable designation.
