Product Overview

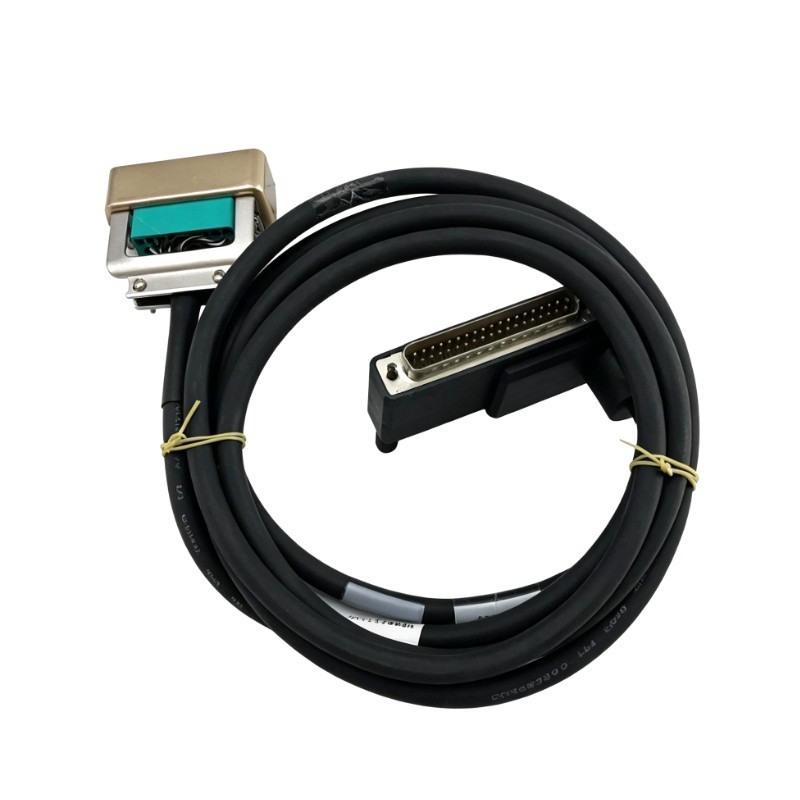

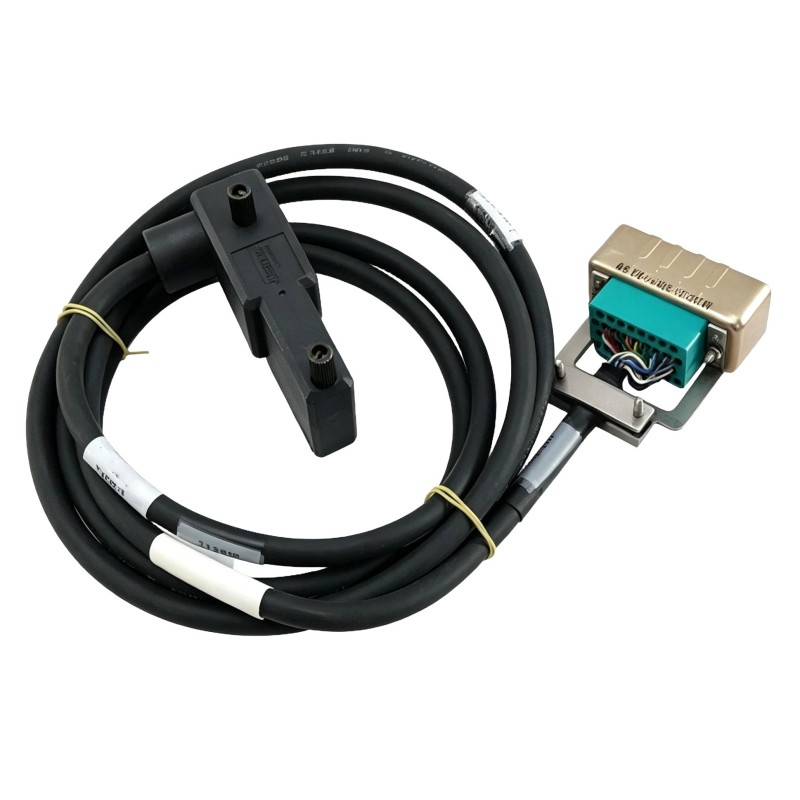

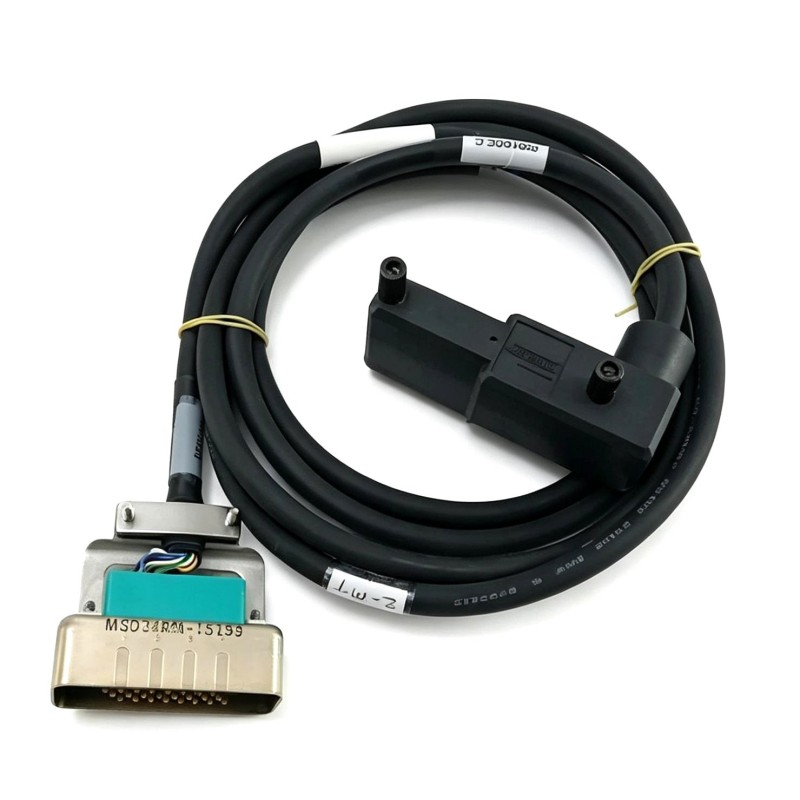

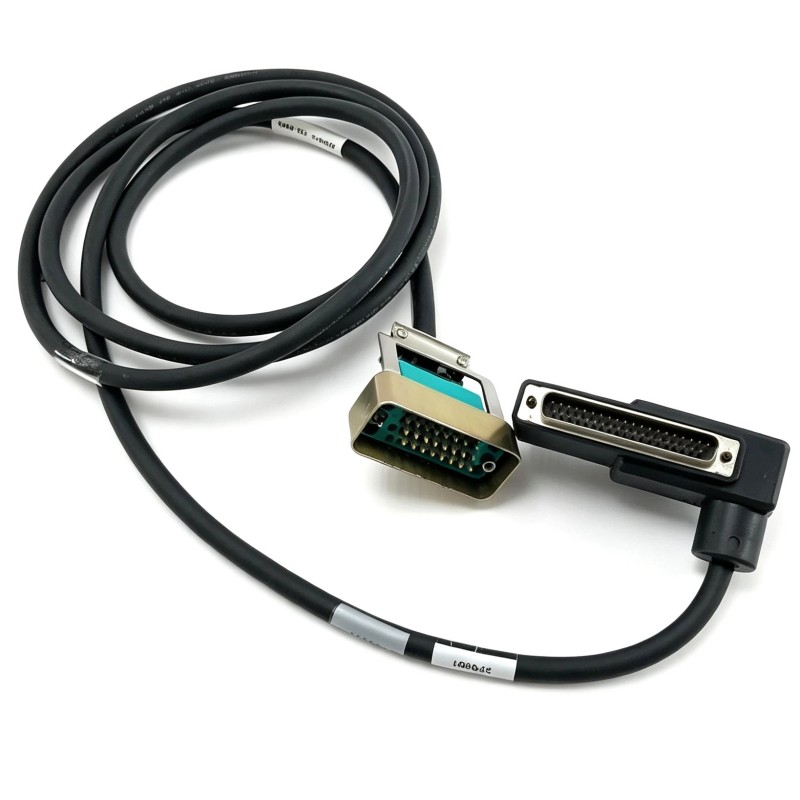

The Foxboro P0916DE is a Type 1 field wiring cable assembly used in I/A Series distributed control system installations. It provides the physical wiring connection between compatible FBM fieldbus modules and their associated termination assemblies.
The P0916DE belongs to the P/PVC Type 1 termination cable family. In the I/A Series termination cable range, this model corresponds to the 10-meter cable length and is used where the field wiring arrangement requires a longer connection between the module-side interface and the termination assembly.
This type of cable is commonly used inside control cabinets and system enclosures where FBM modules are connected to field termination hardware. It simplifies the physical wiring arrangement and keeps the field signal connection organized between the I/O module and termination point.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Family | I/A Series |
| Product Type | Field Wiring Cable Assembly |
| Cable Type | Type 1 P/PVC |
| Application | I/A Series FBM Field Wiring |
| Cable Function | Module-to-Termination Assembly Connection |
| Cable Construction | Polyurethane Outer Jacket / Semi-Rigid PVC Primary Conductor Insulation |
| Cable Temperature Range | -20 to +80 °C |
| Termination Cable Family | P0916 Series |
| Associated Termination Assembly | Type 1 Termination Assembly |
| System Application | Distributed Control System |
| Installation | Control Cabinets and System Enclosures |
| Cable Length | 10 meters |
| Shipping Weight | 3 kg |
Product Features
- Type 1 field wiring cable for Foxboro I/A Series systems.
- Used to connect compatible FBM modules with termination assemblies.
- P/PVC construction with a polyurethane outer jacket and semi-rigid PVC primary conductor insulation.
- Available as part of the I/A Series termination cable family.
- Suitable for control cabinet and field wiring applications.
- Supports organized signal routing between the module interface and termination assembly.
- Intended for industrial process control system installations.
- The 10-meter configuration is suitable where additional cable length is required between system components.
Working Principle
The P0916DE does not perform signal conversion or processing. Its function is to establish the electrical connection between compatible I/A Series FBM equipment and the associated termination assembly.
Field wiring is connected through the termination assembly, while the P0916DE carries the corresponding signals between the termination point and the FBM-side interface. This arrangement separates field wiring from the direct connection at the electronic module.
During normal operation, discrete or analog field signals travel through the termination assembly and cable assembly to the associated FBM module. Output signals generated by the control system follow the reverse path toward the field termination point.
The cable therefore acts as the physical signal path within the I/A Series field wiring architecture, with the termination assembly providing the connection point for field-side wiring.
Role in an I/A Series Distributed Control Architecture
| System Layer | Typical Component | Role |
|---|---|---|
| Field Device Layer | Sensors, switches, valves, transmitters | Generates or receives process signals |
| Field Wiring Layer | Field cables | Carries signals between field devices and termination hardware |
| Termination Layer | I/A Series Termination Assembly | Provides organized field wiring connections |
| Cable Interface Layer | P0916DE | Connects the termination assembly with compatible FBM equipment |
| I/O Layer | Foxboro FBM Module | Processes field input or output signals |
| Control Layer | I/A Series Controller | Executes process control logic |
| Operator Layer | Operator Workstation | Provides monitoring and control functions |
Industrial Applications
| Application | Use of P0916DE |
|---|---|
| Process Control Cabinets | Connects compatible FBM modules with termination assemblies |
| I/A Series I/O Systems | Provides the physical signal path between module and termination hardware |
| Distributed Field I/O | Supports organized wiring between field termination points and FBM modules |
| Control System Expansion | Used when additional I/O wiring is added to an existing I/A Series installation |
| System Replacement | Can be used when replacing an existing termination cable of the same type and length |
| Maintenance Projects | Provides a replacement cable for servicing compatible field wiring assemblies |
Installation and Maintenance
- Verify the cable type: Confirm that the application requires a Type 1 P/PVC termination cable before installation.
- Check system compatibility: Verify that the connected FBM module and termination assembly are compatible with the P0916DE cable arrangement.
- Inspect the cable: Check the outer jacket and connector ends for cuts, deformation, contamination, or other visible damage.
- Confirm cable routing: Plan the cable route so that it does not interfere with cabinet doors, terminal blocks, module removal, or other equipment.
- Avoid excessive mechanical stress: Do not sharply bend, pull, or twist the cable during installation.
- Keep signal wiring organized: Route the cable together with the appropriate system wiring and maintain separation from wiring that could introduce unwanted interference.
- Check connector engagement: Make sure both ends are correctly seated before powering the associated I/O system.
- Secure the cable: Use suitable cabinet cable management methods to prevent the cable from hanging directly from its connectors.
- Verify signal continuity: Check the corresponding signal paths when commissioning a newly installed or replaced cable.
- Inspect during maintenance: Look for damaged insulation, loose connections, or signs of mechanical stress during routine system servicing.
- Replace damaged cables: A cable with damaged insulation or connector hardware should be replaced rather than repaired in the field unless an approved repair procedure is available.
- Maintain correct identification: Keep cable identification consistent with the associated FBM module and termination assembly to simplify troubleshooting and future maintenance.
Related Components
| Component | Function |
|---|---|
| Foxboro FBM Fieldbus Modules | Provides the I/A Series field I/O interface |
| Type 1 Termination Assembly | Provides the field wiring termination point |
| I/A Series Controller | Processes I/O information and executes control functions |
| Field Wiring | Connects sensors, transmitters, switches, and actuators to the termination system |
| Control Cabinet | Houses the FBM, termination, and cable assemblies |
| I/A Series I/O Subsystem | Provides the overall field signal interface |
Recommended Related Models
| Model | Product | Application |
|---|---|---|
| P0916DA | I/A Series Type 1 Termination Cable | 0.5-meter cable configuration |
| P0916DB | I/A Series Type 1 Termination Cable | 1-meter cable configuration |
| P0916DC | I/A Series Type 1 Termination Cable | 3-meter cable configuration |
| P0916DD | I/A Series Type 1 Termination Cable | 5-meter cable configuration |
| P0916DF | I/A Series Type 1 Termination Cable | 15-meter cable configuration |
| P0916DG | I/A Series Type 1 Termination Cable | 20-meter cable configuration |
Key Advantages
- Type 1 P/PVC construction for I/A Series field wiring.
- Provides a direct module-to-termination connection.
- Suitable for FBM-based distributed I/O systems.
- Available in a 10-meter configuration.
- Simplifies organized control cabinet wiring.
- Useful for system installation, expansion, and replacement work.
Technical FAQs
What is the Foxboro P0916DE used for?
The P0916DE is a Type 1 field wiring cable assembly used to connect compatible I/A Series FBM equipment with the associated termination assembly.
Is P0916DE a field I/O module?
No. P0916DE is a cable assembly rather than an I/O module. It provides the physical electrical connection between the FBM-side interface and the termination assembly.
What type of cable is P0916DE?
P0916DE is a Type 1 P/PVC termination cable. P/PVC refers to a polyurethane outer jacket with semi-rigid PVC primary conductor insulation.
What is the difference between P0916DE and other P0916 series cables?
The main difference within the P0916 series is cable length. P0916DE corresponds to the 10-meter Type 1 P/PVC configuration, while other suffixes identify different cable lengths within the same termination cable family.
