Product Overview

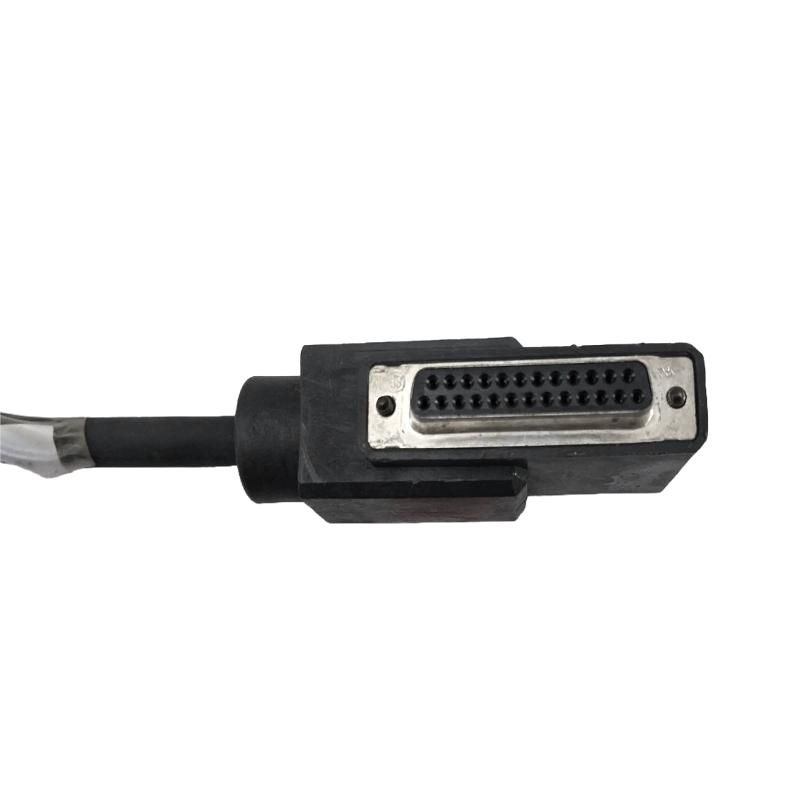

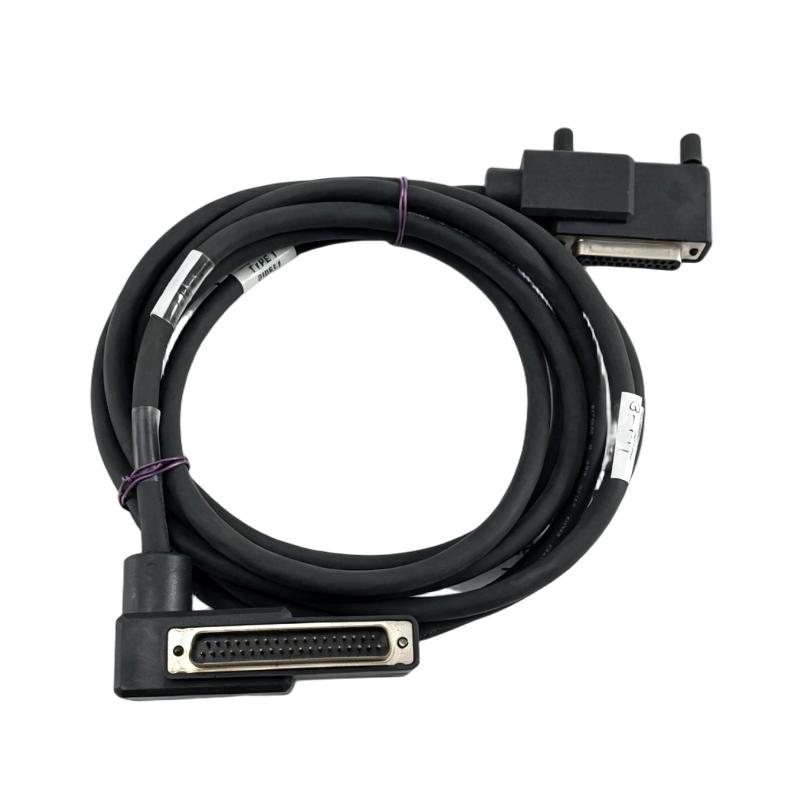

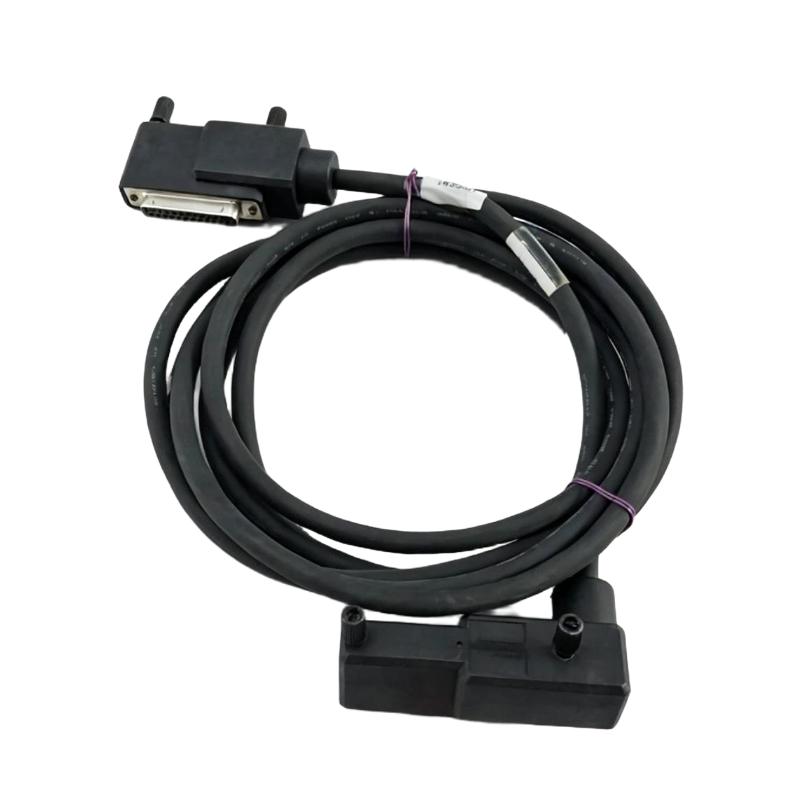

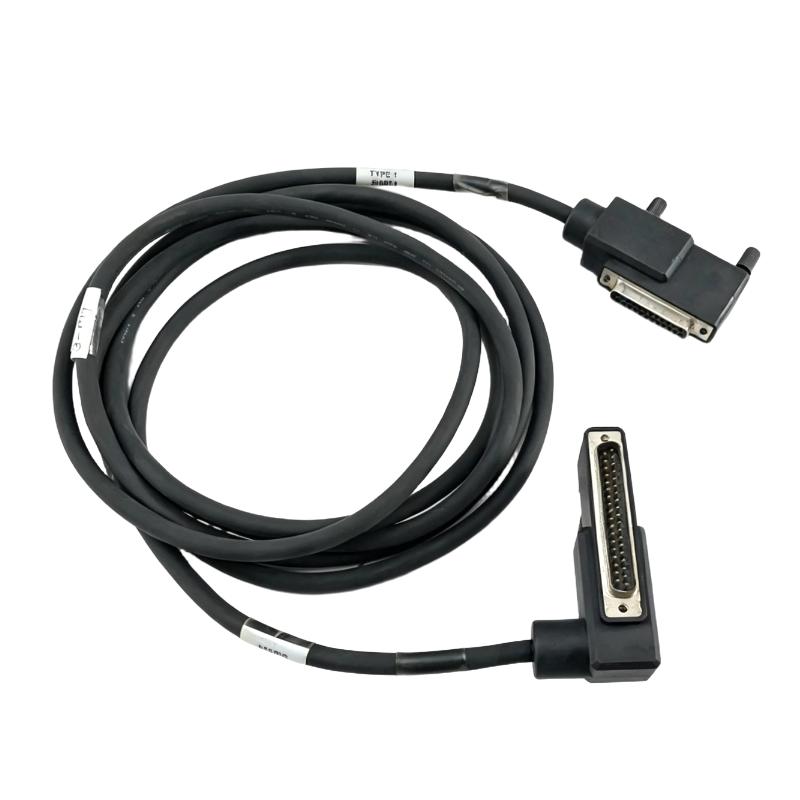

The Foxboro P0916DC is an I/A Series termination cable used within the cabinet-level wiring architecture of Foxboro process control systems. It provides the electrical connection between an I/A Series termination arrangement and the associated I/O hardware, allowing field connections to be carried from the termination side into the electronic I/O section.

In a typical installation, field instruments are wired to a termination assembly where individual process connections are organized and identified. The P0916DC then carries the corresponding connections toward the associated I/A Series I/O interface. This arrangement keeps field wiring separate from the I/O electronics and makes cabinet maintenance more manageable.

The cable is a passive interconnection component. It does not independently acquire signals, execute control logic, or perform signal processing. Its function is to preserve the intended electrical path between the termination hardware and the I/A Series I/O system.

Technical Specifications

Product Features

• I/A Series termination cable for Foxboro process control installations
• Connects the termination arrangement with associated I/A Series I/O hardware
• Supports organized field I/O signal routing inside control cabinets
• Functions as a passive electrical interconnection
• Suitable for established I/A Series control-system installations
• Useful for termination cable replacement during maintenance and refurbishment
• Maintains separation between field wiring termination and electronic I/O hardware
• Supports structured cabinet wiring and point identification
• Suitable for system service work where the existing I/A Series architecture is retained
• Provides an extended cable configuration for installations requiring greater routing distance between connected system sections

Working Principle

The P0916DC carries the electrical connections between the termination hardware and the associated I/A Series I/O interface. For an input circuit, a field instrument first sends its process signal through the field wiring to the termination assembly. From there, the corresponding connection passes through the P0916DC to the I/O hardware for acquisition and processing.

Field Device → Field Wiring → Termination Assembly → P0916DC → I/A Series I/O Hardware → Control System

For an output circuit, the signal path operates in the opposite direction. The I/A Series control system generates an output command, which passes through the appropriate I/O hardware and P0916DC before reaching the termination arrangement and connected field device.

The cable itself does not interpret, condition, or control the signal. Those functions belong to the associated I/O and control hardware. The P0916DC simply maintains the electrical connection required by the cabinet wiring architecture.

During replacement, both ends of the cable should be positively identified before removal. Correct connection to the intended termination and I/O positions is essential because a physically similar connection can still result in incorrect field-point mapping.

Role in an I/A Series Control Architecture

The P0916DC occupies the interconnection layer between field termination and the I/A Series I/O subsystem. This arrangement allows field wiring to be terminated and organized separately from the electronic I/O hardware while maintaining the required signal path.

Industrial Applications

Installation and Maintenance

1. Verify the part number — Confirm that P0916DC is the correct termination cable for the intended I/A Series cabinet and connection arrangement.
2. Review system documentation — Check the applicable cabinet drawings, I/O documentation, and termination information before starting replacement work.
3. Isolate the relevant I/O section — Follow the plant’s approved shutdown and electrical isolation procedure before disconnecting the existing cable.
4. Identify both cable ends — Mark or record the termination-side and I/O-side connection points before removing the original cable.
5. Inspect the replacement cable — Check the cable assembly for visible damage, contamination, deformation, or damaged connection areas.
6. Remove the existing cable carefully — Disconnect the original cable without placing excessive force on the termination assembly or I/O hardware.
7. Verify the intended routing — Compare the replacement route with the original cabinet arrangement and avoid unnecessary mechanical stress or sharp routing paths.
8. Install the cable — Connect the P0916DC to the designated termination and I/O interfaces and make sure each connection is fully seated.
9. Confirm point identification — Verify that the cable connections correspond to the correct termination positions and I/O points.
10. Check electrical continuity — Where required by the maintenance procedure, perform appropriate continuity checks before returning the I/O section to service.
11. Perform a controlled signal test — After the system is restored, verify the affected channels for expected input or output behavior and check for unexpected diagnostics.
12. Document the replacement — Record the installed part number, cabinet location, affected I/O section, and relevant maintenance observations for future service work.

Related Components

Recommended Related Models

Key Advantages

• Provides a dedicated connection between I/A Series termination and I/O hardware
• Supports organized field signal routing inside process-control cabinets
• Maintains the established Foxboro I/A Series wiring architecture
• Functions as a passive electrical interconnection
• Suitable for maintenance and replacement of existing termination cables
• Supports separation between field termination and electronic I/O hardware

Technical FAQs

What is the P0916DC used for in a Foxboro I/A Series system?

The P0916DC is used to carry electrical connections between an I/A Series termination arrangement and associated I/O hardware. It forms part of the fixed cabinet wiring path between field termination and the control-system I/O section.

Does the P0916DC perform signal processing?

No. The P0916DC is a passive termination cable. Signal acquisition, output control, signal processing, and control logic are handled by the associated I/A Series hardware.

Why is cable identification important when replacing a P0916DC?

The termination cable forms part of the field-point wiring path. If the cable is connected to the wrong termination or I/O position, the physical installation may appear complete while field signals are mapped to incorrect channels. Point identification should therefore be checked against the cabinet documentation before and after replacement.

What should be checked after installing the P0916DC?

The termination and I/O connections should be checked for proper seating and correct point identification. Where applicable, continuity verification and a controlled input or output signal test should then be performed before the affected system section is returned to normal operation.
