Product Overview

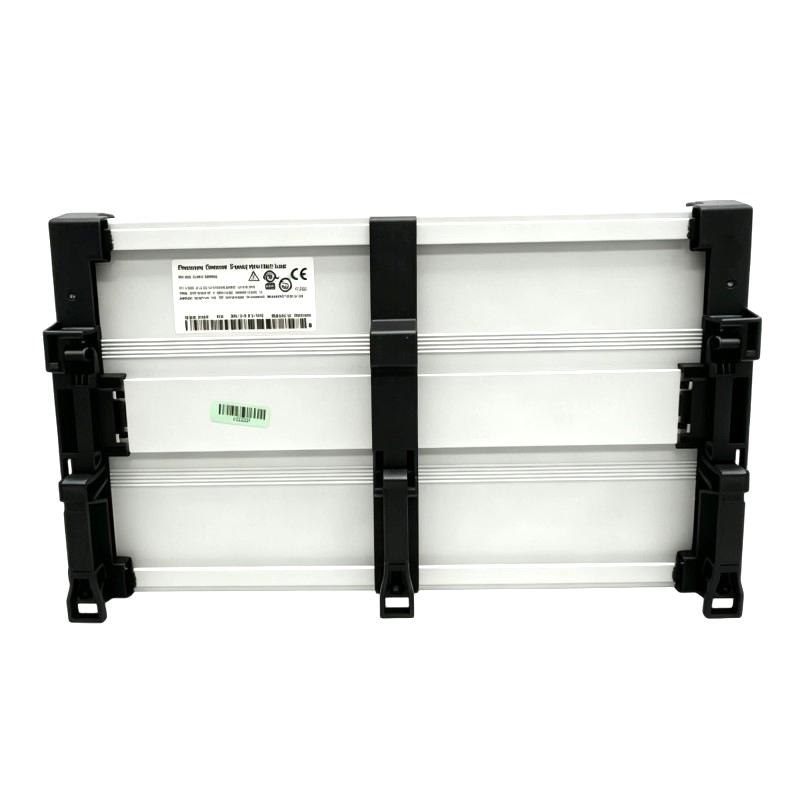

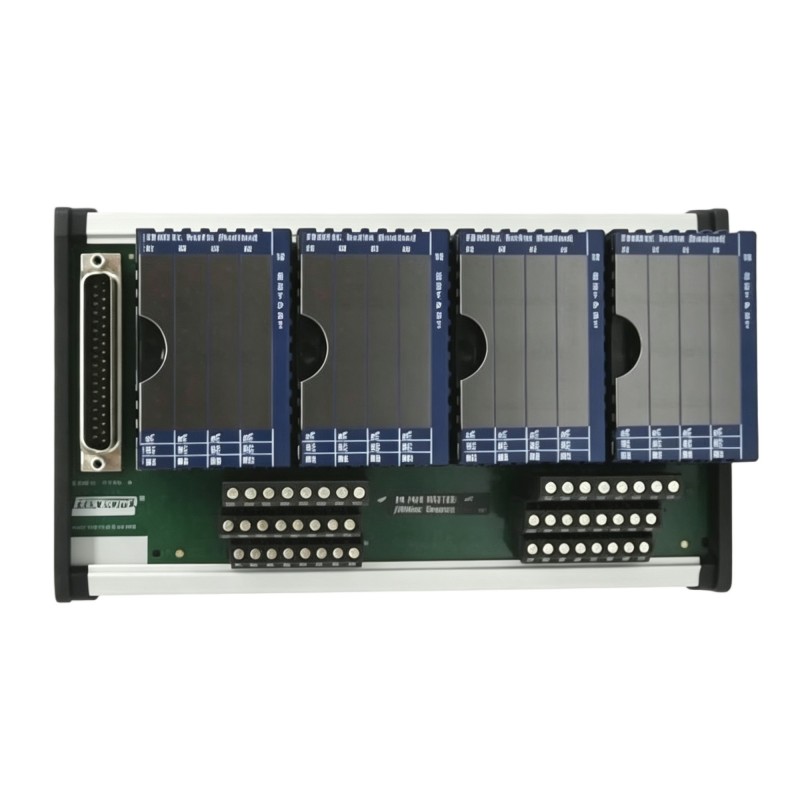

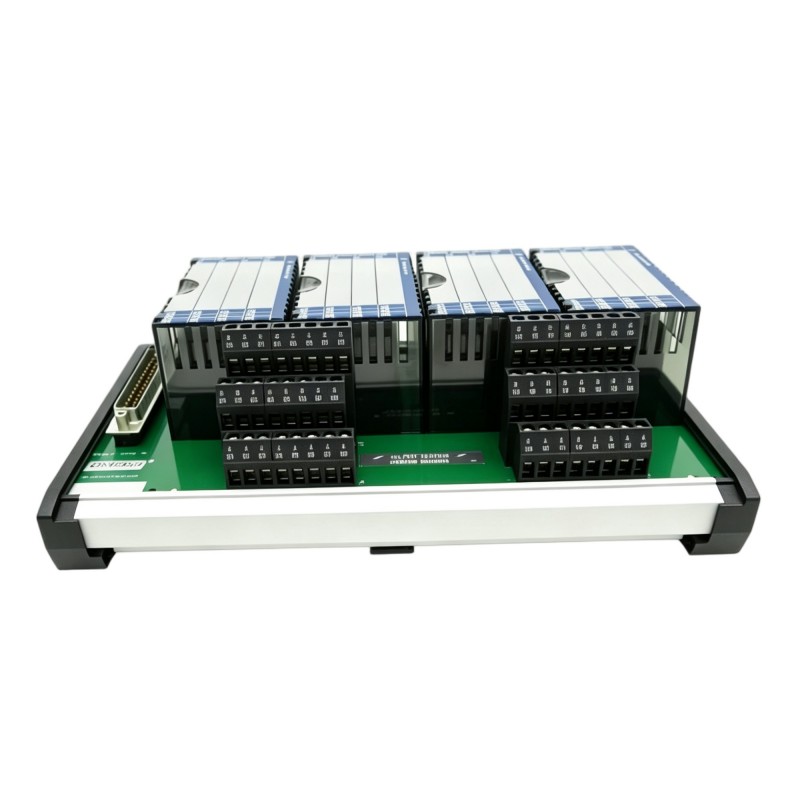

The Foxboro FBM242 RH916YY is an I/A Series compression termination assembly used to organize and terminate field wiring before the signals are connected to the associated Foxboro I/O hardware. It forms part of the physical field-interface layer in an I/A Series control installation, providing a structured termination point between field devices and the control-system I/O section.

In a typical process-control cabinet, transmitters, switches, actuators, and other field instruments are connected through cabinet wiring to the termination assembly. The FBM242 RH916YY provides the connection point where these field circuits are arranged and passed toward the corresponding I/O hardware. This separates field wiring work from the electronic I/O equipment and makes cabinet-level maintenance more manageable.

The assembly is a passive termination component. It does not independently execute control logic or perform the signal-processing functions of an I/A Series I/O module. Its value is in maintaining an organized, accessible electrical interface between the plant field wiring and the control-system electronics.

For replacement work, the FBM242 RH916YY should be considered together with the associated I/O hardware, field wiring documentation, cabinet layout, and existing termination arrangement. Correct point-to-point identification is important when restoring an operating process-control system.

Technical Specifications

Product Features

• Compression termination assembly for Foxboro I/A Series installations
• Provides an organized interface for field wiring and associated I/O hardware
• Functions as a passive electrical termination component
• Supports structured cabinet wiring for process instrumentation
• Separates field termination work from the electronic I/O section
• Suitable for established I/A Series control-system installations
• Useful for maintenance and replacement of existing termination hardware
• Supports point-to-point identification of field signal connections
• Can be incorporated into cabinet wiring arrangements for process-control applications
• Suitable for service work where the existing I/A Series termination architecture is retained

Working Principle

The FBM242 RH916YY provides the physical termination path between field wiring and the associated I/A Series I/O hardware. Field instruments first send their electrical signals through the plant and cabinet wiring to the termination assembly. The corresponding connections are then routed onward to the appropriate I/O interface.

For an analog or discrete input circuit, the general signal path can be represented as:

Field Instrument → Field Wiring → FBM242 RH916YY → Associated I/O Hardware → I/A Series Control System

The termination assembly itself does not interpret the process variable or execute control logic. Signal processing, monitoring, and control functions are handled by the associated I/O and control-system hardware.

For output circuits, the direction is reversed. A control command generated by the I/A Series system reaches the associated I/O hardware, passes through the termination arrangement, and continues through the field wiring toward the connected actuator or other final control device.

The compression termination arrangement also gives maintenance personnel a defined physical location for field-circuit connections. During troubleshooting or replacement, technicians can use cabinet drawings and point identification to trace individual circuits between the termination assembly and the field devices.

Role in a Foxboro I/A Series Control Architecture

The FBM242 RH916YY occupies the field-interface and termination layer of an I/A Series control architecture. It connects organized field wiring to the associated I/O hardware while leaving signal processing and control decisions to the electronic control-system components.

Industrial Applications

Installation and Maintenance

1. Confirm the part number — Verify that the FBM242 RH916YY matches the existing I/A Series termination arrangement and applicable cabinet documentation.
2. Review wiring documentation — Check cabinet drawings, termination schedules, and point identification before disconnecting existing field circuits.
3. Isolate the relevant system — Follow the plant’s approved shutdown, isolation, and electrical safety procedures before working on the termination assembly.
4. Identify field connections — Mark or verify each field circuit so that individual conductors can be returned to their correct termination points.
5. Inspect the assembly — Check the termination hardware, accessible connection points, mounting area, and wiring for visible damage, contamination, or loose connections.
6. Remove the existing assembly carefully — Disconnect field and system-side wiring according to the applicable maintenance procedure without placing unnecessary mechanical stress on adjacent cables.
7. Check the mounting arrangement — Verify that the replacement assembly is correctly positioned and securely mounted in the intended cabinet location.
8. Reconnect field wiring — Restore the identified field circuits to their corresponding termination points and verify each connection against the wiring documentation.
9. Verify point-to-point continuity — Check the completed wiring path between the termination assembly and associated I/O hardware before returning the system to normal operation.
10. Perform a controlled signal check — Confirm that representative input or output points respond correctly after the termination work is complete.
11. Inspect for abnormal operation — Monitor for unexpected signal loss, incorrect point indications, open circuits, or other abnormalities following replacement.
12. Document the maintenance work — Record the installed model, wiring changes if any, inspection results, and applicable test results for future I/A Series maintenance.

Related Components

Recommended Related Models

Key Advantages

• Provides a structured field-wiring termination point for I/A Series systems.
• Supports organized connection between field circuits and associated I/O hardware.
• Uses a compression termination arrangement for cabinet-level field wiring.
• Separates field wiring termination from electronic I/O processing.
• Suitable for maintenance and replacement work on established Foxboro installations.
• Helps simplify circuit identification and point-to-point verification during service.

Technical FAQs

What is the function of the Foxboro FBM242 RH916YY?

The FBM242 RH916YY is a compression termination assembly that provides the physical interface between field wiring and associated Foxboro I/A Series I/O hardware. It organizes the field circuits but does not itself perform the control-system signal-processing function.

Is the FBM242 RH916YY an active I/O module?

No. It is a passive termination assembly. The associated I/A Series I/O hardware performs the required signal processing, while the FBM242 RH916YY provides the field-wiring termination and interconnection.

What should be verified before replacing an FBM242 RH916YY?

The existing cabinet drawings, field-circuit identification, associated I/O hardware, termination arrangement, and wiring points should be checked before replacement. Each disconnected field circuit should be positively identified before it is restored.

How can wiring problems be identified after termination maintenance?

Point-to-point continuity checks, wiring-document verification, and controlled signal testing can help identify incorrect or incomplete connections. Unexpected signal loss, incorrect point status, or abnormal output behavior should be investigated across the field wiring, termination assembly, and associated I/O hardware.
