Product Overview

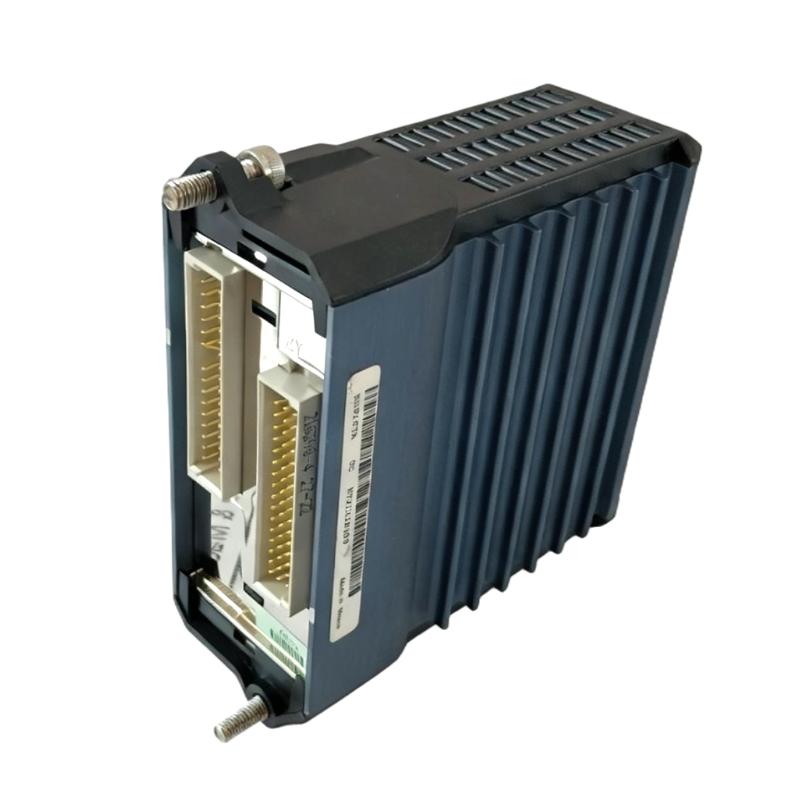

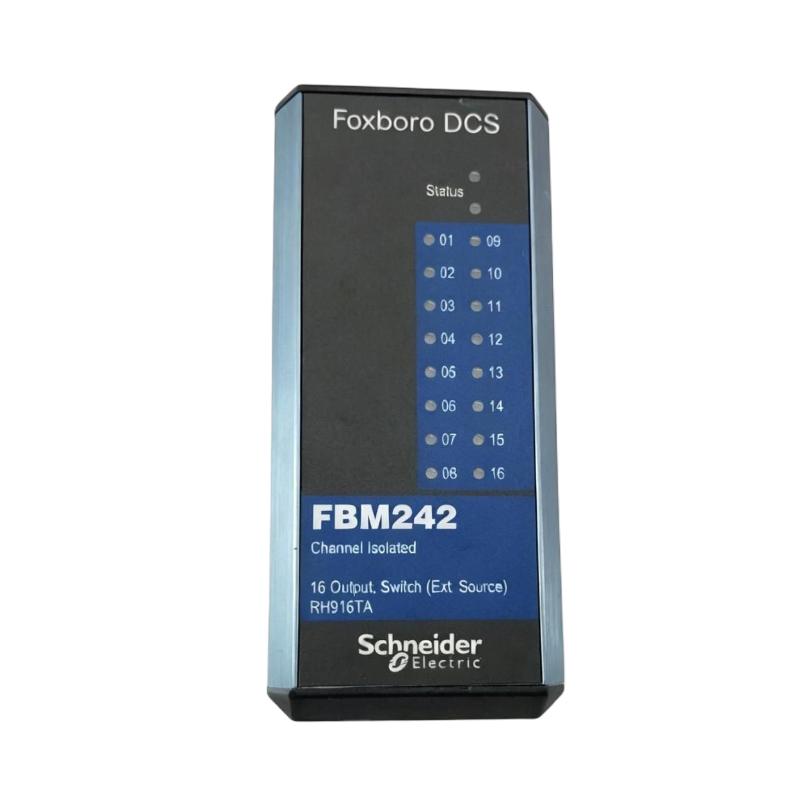

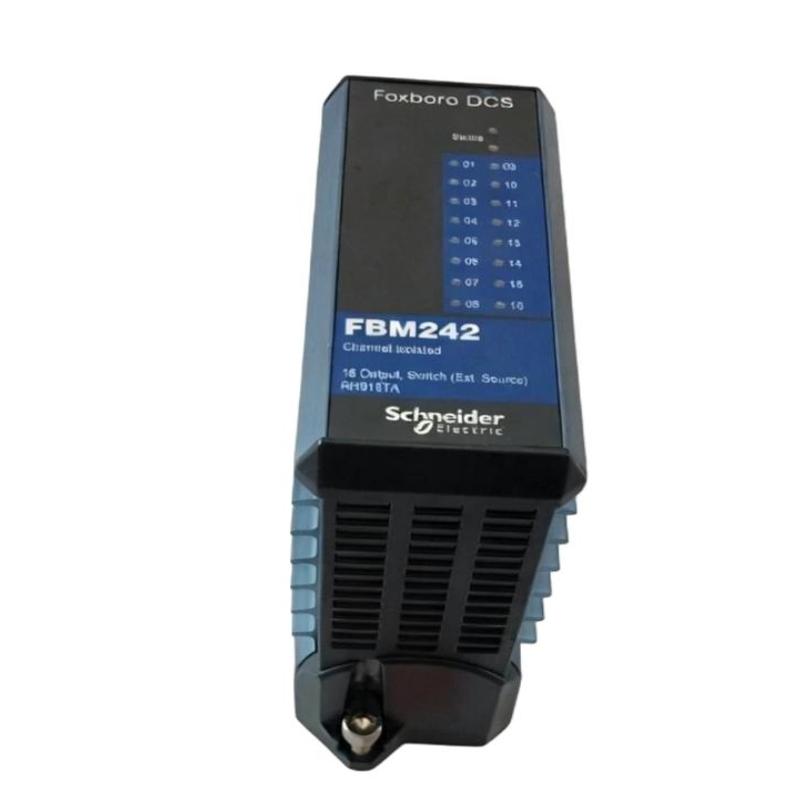

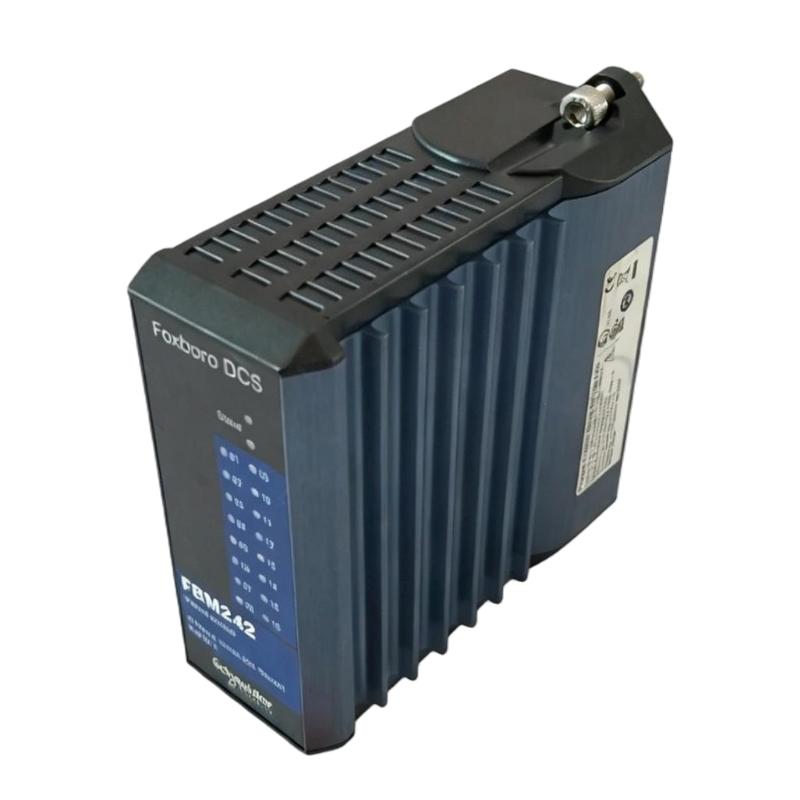

The Foxboro FBM242 RH916TA is an I/A Series Discrete Output Interface Component Module used within Foxboro process control architectures to provide a field-facing interface for discrete output commands. It belongs to the FBM family of I/O interface components and connects configured control actions with discrete field circuits.
In an I/A Series installation, the control processor determines the required state of a field output according to the configured control strategy, sequence, permissive, or interlock. The FBM242 RH916TA forms part of the I/O path through which that command reaches the associated field circuit.
Discrete output interfaces are commonly used where equipment must respond to defined states, such as starting or stopping equipment, operating switching devices, commanding discrete actuators, or initiating other two-state field actions. The module therefore serves as an interface between system-level control logic and field-level equipment.
The RH916TA designation identifies a particular configuration of the FBM242 family. For replacement work, the complete model designation and the existing I/A Series system documentation should be checked together rather than selecting a replacement based only on the FBM family number.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | FBM242 RH916TA |
| Product Type | Discrete Output Interface Component Module |
| Product Family | Foxboro FBM |
| Series | I/A Series |
| Manufacturer | Foxboro |
| Primary Function | Discrete Output Interface |
| Signal Function | Discrete Field Output |
| System Role | I/O Interface Component |
| Output Direction | Control System to Field |
| Application | Discrete Equipment and Process Control |
| Field Interface | Discrete Field Circuits |
| Control Architecture | Foxboro I/A Series |
| Dimensions | 114 × 45 × 104 mm |
| Weight | 0.284 kg |
Product Features
- Provides a discrete output interface within the Foxboro I/A Series architecture.
- Connects configured control-system output commands with field circuits.
- Supports discrete control of compatible field equipment.
- Suitable for equipment sequencing, switching, permissive-related actions, and other discrete control functions.
- Integrates with the FBM-based I/O structure of Foxboro control systems.
- Separates control strategy execution from the field-level I/O interface.
- Can operate as part of a complete I/A Series field termination and I/O arrangement.
- Supports maintenance and replacement of installed Foxboro I/A Series systems.
- Provides a defined path between system output logic and connected field devices.
- Suitable for process, utility, and industrial equipment control applications.
Working Principle
The FBM242 RH916TA forms part of the discrete output path between the Foxboro control system and the field device. The control processor first determines the required output state based on the configured application logic.
Control strategy → Foxboro control processor → FBM242 RH916TA → Termination / field wiring → Field device
When an output condition changes, the corresponding command is transferred through the I/A Series I/O architecture toward the FBM242. The module interfaces the command with the associated discrete field circuit, allowing the connected equipment to respond to the requested state.
A discrete output can be associated with functions such as equipment start/stop, switching, actuator commands, or other field actions that require a defined output state. The actual application depends on the installed control-system configuration and connected field circuit.
The FBM242 RH916TA is not responsible for determining the process-control strategy. That decision is made by the Foxboro control system. The module provides the I/O interface through which the configured command reaches the field side.
For troubleshooting, the output path can be followed from the control logic and processor status to the FBM242, associated termination and wiring, and finally the field device. This approach helps separate configuration issues from module, wiring, or field-equipment problems.
Role in a Foxboro I/A Series Discrete Output Control Architecture
The FBM242 RH916TA occupies the discrete output interface layer of the Foxboro I/A Series architecture. It connects system-generated output commands with field circuits while the higher-level control processor remains responsible for executing the control strategy.
| System Layer | Typical Component | Function |
|---|---|---|
| Process Control | Foxboro Control Processor | Executes configured control strategies, sequences, and logic |
| I/O Interface | FBM242 RH916TA | Interfaces discrete output commands with field circuits |
| Termination | I/A Series Termination Hardware | Provides organized connections for field wiring |
| Field Wiring | Discrete Output Circuit | Carries the output command toward the field |
| Field Devices | Relays / Contactors / Actuators / Valves | Responds to the configured discrete command |
| Process | Industrial Equipment | Performs the commanded equipment or process action |
Industrial Applications
| Application | FBM242 Role |
|---|---|
| Process Automation | Interfaces discrete control commands with field equipment |
| Chemical Processing | Supports equipment switching and sequence-related output functions |
| Oil and Gas | Connects I/A Series control logic with discrete field circuits |
| Power Generation | Supports discrete commands for plant equipment and auxiliary systems |
| Refining | Provides an output interface for equipment control and sequencing |
| Water Treatment | Supports discrete control of pumps, valves, and related equipment |
| Manufacturing | Connects automation logic with machine control circuits |
| Utility Systems | Provides discrete output interfaces for auxiliary equipment |
Installation and Maintenance
- Confirm that the FBM242 RH916TA matches the existing Foxboro I/A Series configuration before installation.
- Review the applicable system drawings, I/O documentation, and field loop information.
- Isolate the relevant control and field circuits according to the approved plant maintenance procedure.
- Identify the module position and associated output channels before removing existing hardware.
- Inspect the module interface and associated connectors for contamination, corrosion, or physical damage.
- Verify that the associated termination hardware corresponds to the intended discrete output circuits.
- Install the module in the designated I/A Series position according to the applicable hardware procedure.
- Check associated field wiring for loose connections, damaged conductors, incorrect assignments, or other visible abnormalities.
- Verify each output assignment against the approved control-system and field documentation.
- Restore the relevant circuits and perform a controlled output test where permitted by plant procedures.
- If an output fails to produce the expected field response, check the control logic, module status, termination, wiring, and final device in sequence.
- Record the module designation, channel assignments, and any wiring or configuration changes for future maintenance.
Related Components
| Component | Function in the System |
|---|---|
| Foxboro I/A Series Control Processor | Executes process-control logic and determines output commands |
| Foxboro I/A Series I/O Architecture | Provides the system-level interface between control logic and field circuits |
| I/A Series Termination Hardware | Organizes connections between the I/O interface and field wiring |
| Field Wiring | Carries discrete output circuits between the cabinet and field |
| Relay / Contactor | Provides a switching interface for applicable field equipment |
| Motor Starter | Receives discrete equipment-control commands |
| Control Valve / Actuator | Responds to applicable discrete control states |
| I/O Cabinet | Houses the FBM and associated termination equipment |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Foxboro FBM242 P0916TA | I/A Series Discrete Output Interface Module | Related FBM242 configuration |
| Foxboro FBM241 | I/A Series Discrete Input Interface Module | Related discrete I/O hardware |
| Foxboro FBM243 | I/A Series Discrete I/O Interface Module | Related discrete I/O hardware |
| Foxboro FBM244 | I/A Series Discrete Output Interface Module | Related discrete output hardware |
| Foxboro FBM230 RH926GH | I/A Series Compression Screw Termination Assembly | Associated field termination hardware |
Key Advantages
- Provides a dedicated discrete output interface within the Foxboro I/A Series architecture.
- Connects configured control logic with discrete field circuits.
- Supports two-state equipment and process-control commands.
- Integrates with the structured FBM and field termination architecture.
- Separates control strategy execution from field-level output interfacing.
- Suitable for maintenance, replacement, and service applications in established I/A Series systems.
Technical FAQs
What is the function of the FBM242 RH916TA?
The FBM242 RH916TA functions as a discrete output interface component within the Foxboro I/A Series architecture. It provides the interface through which configured control-system output commands are transferred toward associated discrete field circuits.
How does the FBM242 RH916TA differ from an analog output module?
A discrete output interface is intended for defined field states rather than continuously varying analog commands. Applications can include switching, equipment start/stop functions, and other control actions that use discrete states.
What should be verified when replacing an FBM242 RH916TA?
The complete model designation, I/A Series configuration, module position, associated termination hardware, output-channel assignments, and field wiring should be checked before replacement. The control-system configuration should also be verified after installation.
What can cause a discrete output command to fail at the field device?
Possible areas to investigate include the control strategy, I/O configuration, module status, termination connection, field wiring, switching interface, and the final field device. Checking these points systematically can help isolate the source of the abnormal output.
