Product Overview

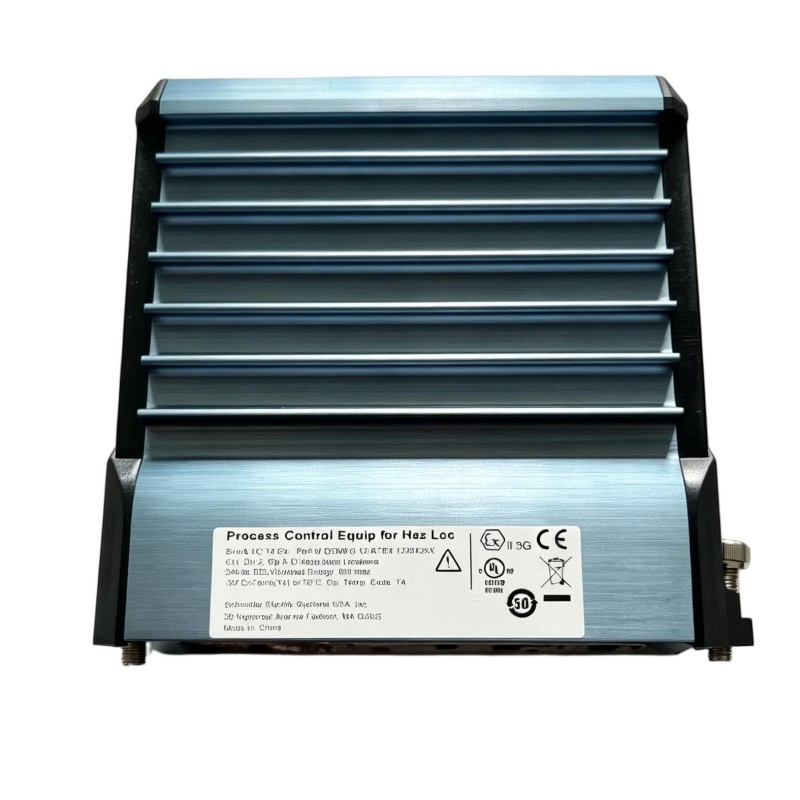

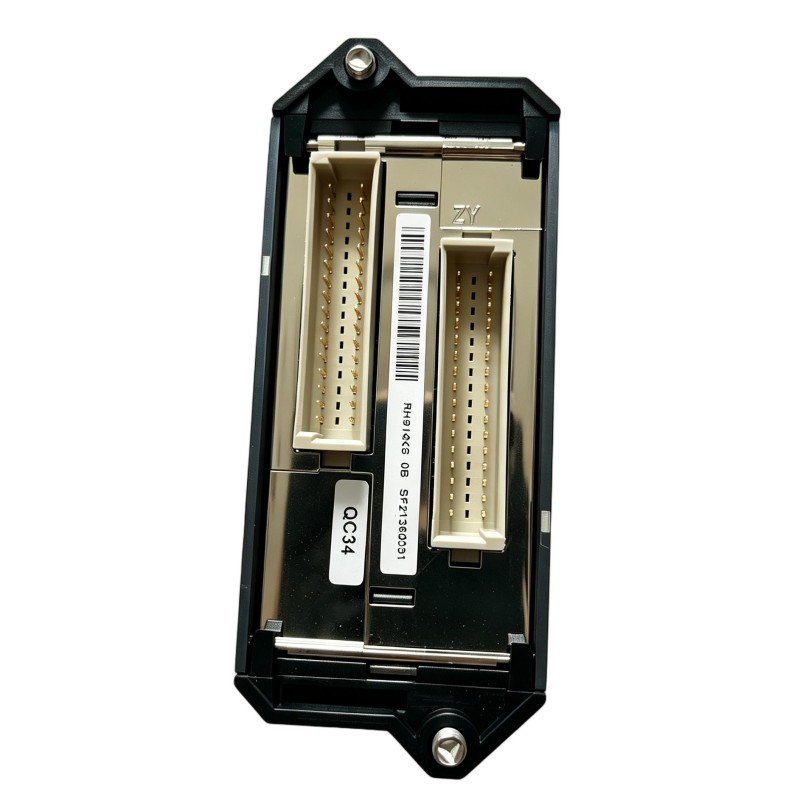

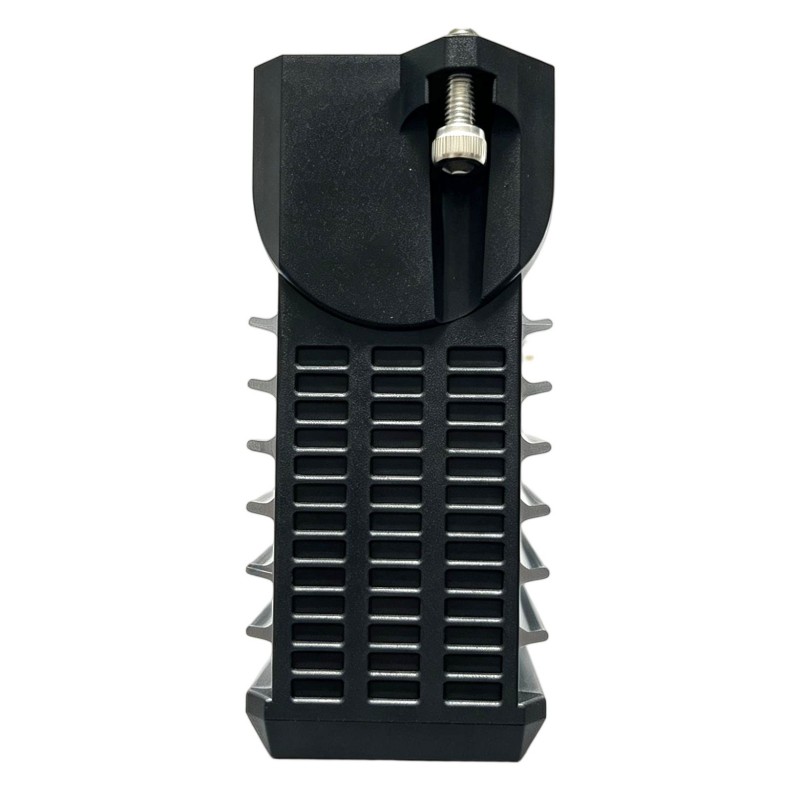

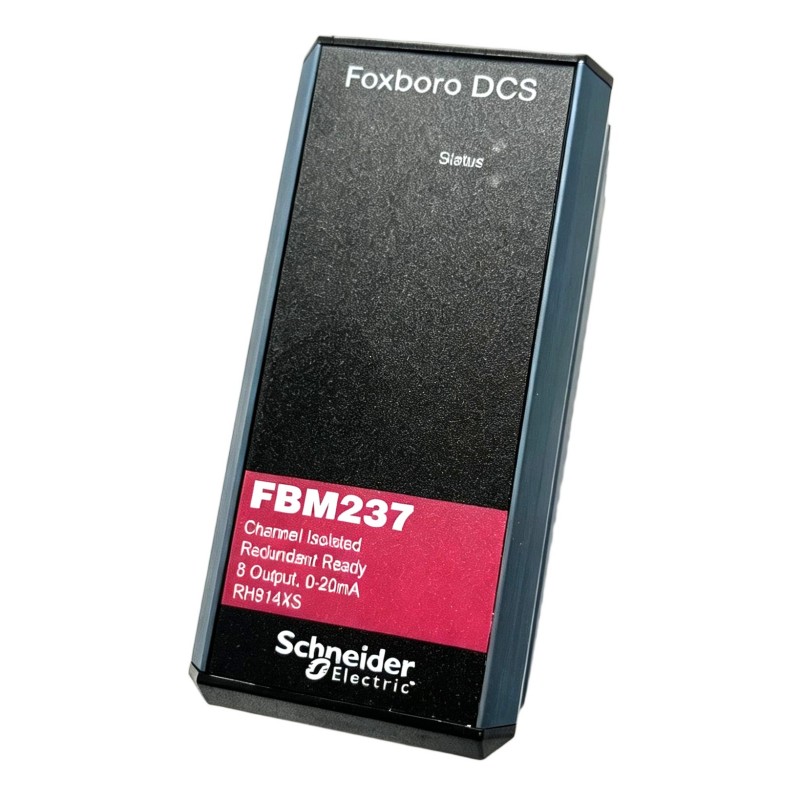

The Foxboro FBM237 RH914XS is an I/A Series 0 to 20 mA Output Module used to deliver analog current signals from the Foxboro control system to field-side devices. It belongs to the FBM family of I/O modules used for connecting process control strategies with analog actuators and other equipment that accepts current-based control signals.
A 0 to 20 mA output is commonly used where a continuously variable command is required rather than a simple ON/OFF signal. Within a process control loop, the FBM237 receives the configured output command from the control system and converts it into the corresponding analog output current for the connected field circuit.
The module is therefore positioned between the I/A Series control architecture and the field device. Typical applications include continuous control of process equipment, analog positioning devices, and other field elements where the commanded process value is represented by an output current.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | FBM237 RH914XS |
| Product Type | 0 to 20 mA Output Module |
| Product Family | Foxboro FBM |
| Series | I/A Series |
| Manufacturer | Foxboro |
| Primary Function | Analog Current Output |
| Output Range | 0 to 20 mA |
| Signal Direction | Control System to Field Device |
| Signal Type | Analog Current |
| Application | Process Control Output |
| System Role | Analog Output Interface |
| Control Architecture | Foxboro I/A Series |
| Dimensions | 114 × 45 × 104 mm |
| Weight | 0.284 kg |
Product Features
- Provides a 0 to 20 mA analog output for Foxboro I/A Series control applications.
- Converts configured control commands into continuous output current signals.
- Interfaces the control system with field devices requiring analog current input.
- Suitable for continuous process control rather than simple discrete switching.
- Supports analog output circuits used with actuators and process control equipment.
- Provides a defined output interface between I/A Series processing hardware and field circuits.
- Fits into the structured FBM I/O architecture used by Foxboro control systems.
- Supports field-loop troubleshooting through a clearly defined analog output path.
- Suitable for service, replacement, and maintenance work on established I/A Series installations.
- Can be used as part of a closed-loop process control arrangement together with suitable analog input instrumentation.
Working Principle
The FBM237 RH914XS receives an analog output command from the Foxboro I/A Series control architecture and presents the corresponding current signal to the connected field circuit.
Control strategy → Control processor → I/A Series I/O architecture → FBM237 RH914XS → 0 to 20 mA field circuit → Field device
The control system calculates or determines the required process command based on the configured control strategy. The output information is transferred through the I/A Series architecture to the FBM237, which provides the corresponding 0 to 20 mA output to the field-side circuit.
The continuous current signal allows the receiving device to interpret different command levels rather than only two states. For example, a control application may use the output to position an analog actuator or adjust another continuously variable process element.
The module forms part of the electrical output path but does not independently determine the process-control strategy. The desired output is established by the associated Foxboro control configuration, while the FBM237 provides the analog output interface to the field.
In a closed-loop application, a related input device measures the resulting process condition and sends feedback into the control system. The controller can then adjust the output command, creating a continuous measurement-and-control cycle.
Role in a Foxboro I/A Series Analog Output Control Architecture
The FBM237 RH914XS occupies the analog output layer of the Foxboro I/A Series control architecture. It converts system-level output commands into a 0 to 20 mA field signal used by compatible analog receiving devices.
| System Layer | Typical Component | Function |
|---|---|---|
| Operator Layer | Foxboro Operator Interface | Provides process monitoring and operator commands |
| Control Layer | Foxboro Control Processor | Executes configured control strategies |
| I/O Layer | I/A Series I/O Architecture | Transfers control commands to the output interface |
| Analog Output Layer | FBM237 RH914XS | Provides the 0 to 20 mA output signal |
| Field Interface | Field Wiring / Termination | Carries the analog output circuit to the field |
| Final Control Element | Analog Actuator / Control Device | Responds to the commanded current signal |
| Process Layer | Industrial Equipment | Produces the resulting process response |
Industrial Applications
| Application | Module Role |
|---|---|
| Process Automation | Provides continuous analog commands to field control equipment |
| Chemical Processing | Supports current-based control of process devices |
| Oil and Gas | Interfaces I/A Series control strategies with analog field equipment |
| Refining | Provides variable output signals for process control loops |
| Power Generation | Supports analog command signals for plant control equipment |
| Water Treatment | Interfaces continuous control commands with process equipment |
| Manufacturing | Provides analog output signals for automated machinery and process devices |
| Closed-Loop Control | Works with measurement inputs to support continuous feedback control |
Installation and Maintenance
- Confirm that the FBM237 RH914XS is suitable for the intended I/A Series analog output configuration.
- Verify that the receiving field device is compatible with a 0 to 20 mA control signal before installation.
- Review the applicable I/O drawings, loop diagrams, and cabinet documentation.
- Isolate the relevant control and field circuits according to the approved plant maintenance procedure.
- Identify the correct output channel and associated field device before disconnecting existing wiring.
- Inspect the module interface, field terminals, and wiring for contamination, corrosion, looseness, or physical damage.
- Verify output polarity and field-loop wiring against the approved system documentation.
- Install the module and secure the associated connections according to the applicable I/A Series cabinet procedure.
- Check the output-channel assignment in the control-system configuration before returning the circuit to service.
- Perform a controlled output test and verify that the field device responds as expected across the configured output range.
- If the field device does not respond correctly, check the control command, module output, wiring, loop connections, and receiving device systematically.
- Record the module designation, output channel assignment, connected field device, and any configuration changes for future maintenance.
Related Components
| Component | Function in the System |
|---|---|
| Foxboro I/A Series Control Processor | Executes process control strategies and determines output commands |
| Foxboro Analog Input Module | Provides process feedback for closed-loop control |
| Foxboro I/A Series I/O Architecture | Transfers control information between processing and field interfaces |
| Foxboro Termination Assembly | Provides organized field wiring connections |
| Field Wiring | Carries the 0 to 20 mA output circuit |
| Analog Actuator | Converts the current command into a corresponding field action |
| Control Valve | Uses the analog command to regulate process flow where applicable |
| Operator Interface | Provides monitoring and operator interaction |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Foxboro FBM237 P0914XS | I/A Series Channel Isolated Output Interface Module | Related FBM237 output interface |
| Foxboro FBM218 P0922VW | I/A Series HART Communication Redundant Output Module | Related analog output hardware |
| Foxboro FBM219 P0916RH | I/A Series Discrete I/O Interface Module | Related field I/O interface |
| Foxboro FBM230 P0926GH | I/A Series Compression Screw Termination Assembly | Related field termination hardware |
| Foxboro FBM215/218 P0917XV | I/A Series Termination Assembly | Associated I/O termination hardware |
Key Advantages
- Provides a defined 0 to 20 mA analog output for I/A Series applications.
- Supports continuously variable control commands to compatible field devices.
- Connects Foxboro control strategies with analog field equipment.
- Fits into a structured field-to-control output architecture.
- Supports closed-loop process control when paired with appropriate measurement inputs.
- Provides a clear output path for commissioning and troubleshooting.
Technical FAQs
What does the 0 to 20 mA range indicate?
The 0 to 20 mA specification identifies the analog current output range provided by the FBM237 RH914XS. The receiving field device interprets the current level according to the configured application and its own input characteristics.
What should be verified before connecting a field device?
The receiving device’s required signal type, applicable current range, wiring arrangement, channel assignment, and I/A Series configuration should be checked before connection. The field-loop documentation should be used as the primary reference for the specific installation.
How can an analog output problem be isolated?
Check the commanded output value in the control system first, then verify the FBM237 output, field wiring, termination connections, and receiving device. Measuring or otherwise verifying the field-loop signal using the plant’s approved test procedure can help identify where the output path is interrupted.
Can the FBM237 be used in a closed-loop control application?
Yes, an analog output module can form the output side of a closed-loop application when combined with suitable measurement and control hardware. A process measurement is returned to the control system, the controller determines the required correction, and the FBM237 sends the resulting analog command toward the field device.
