Product Overview

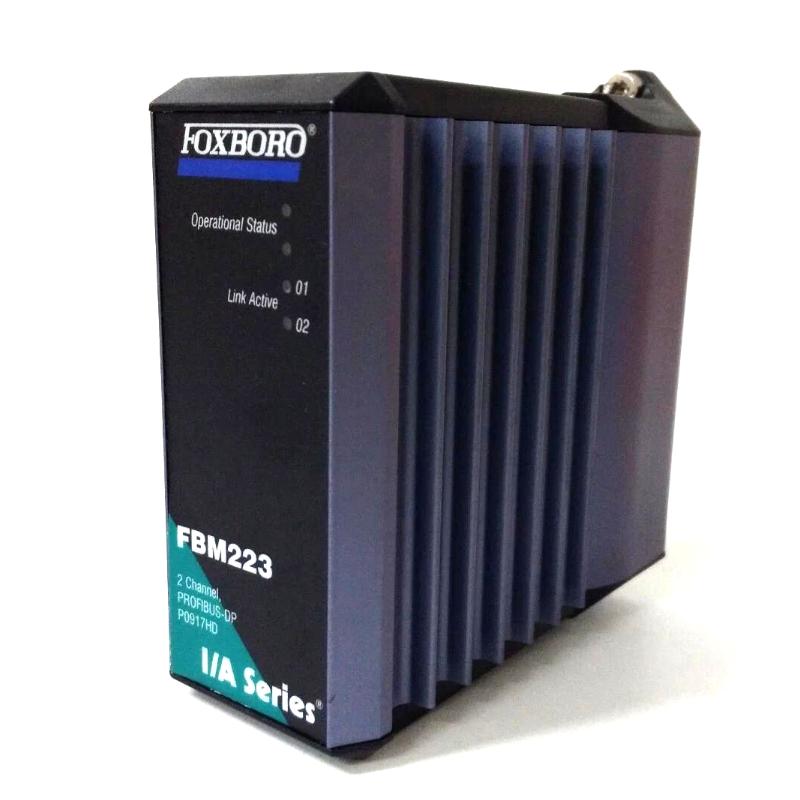

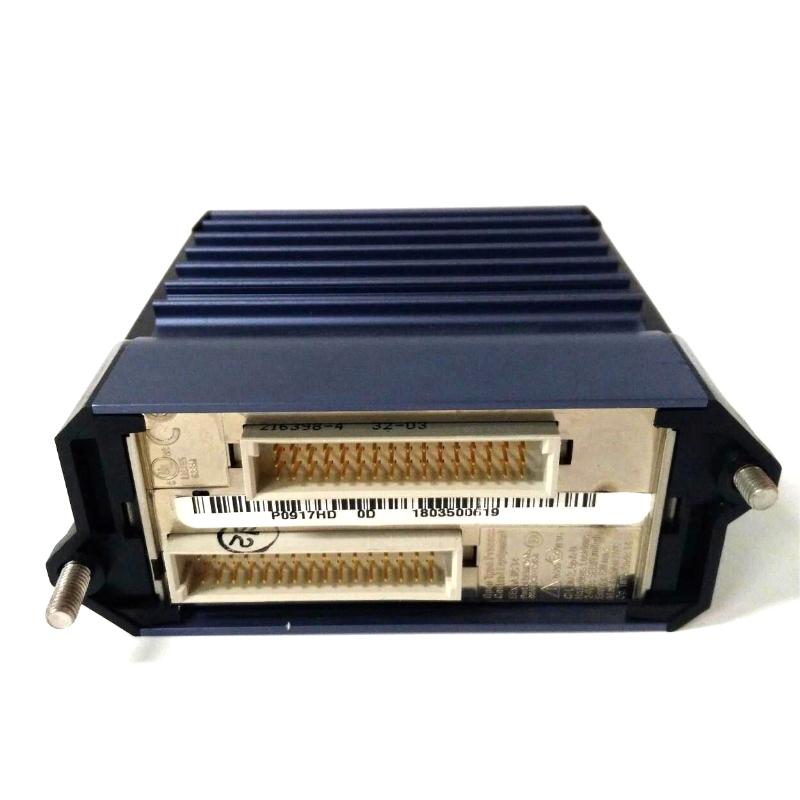

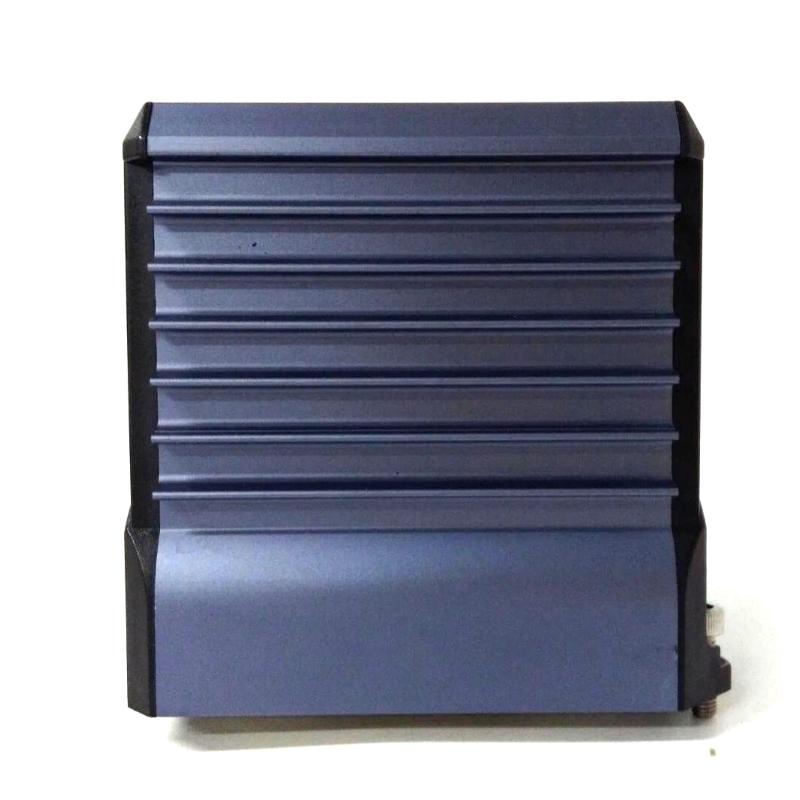

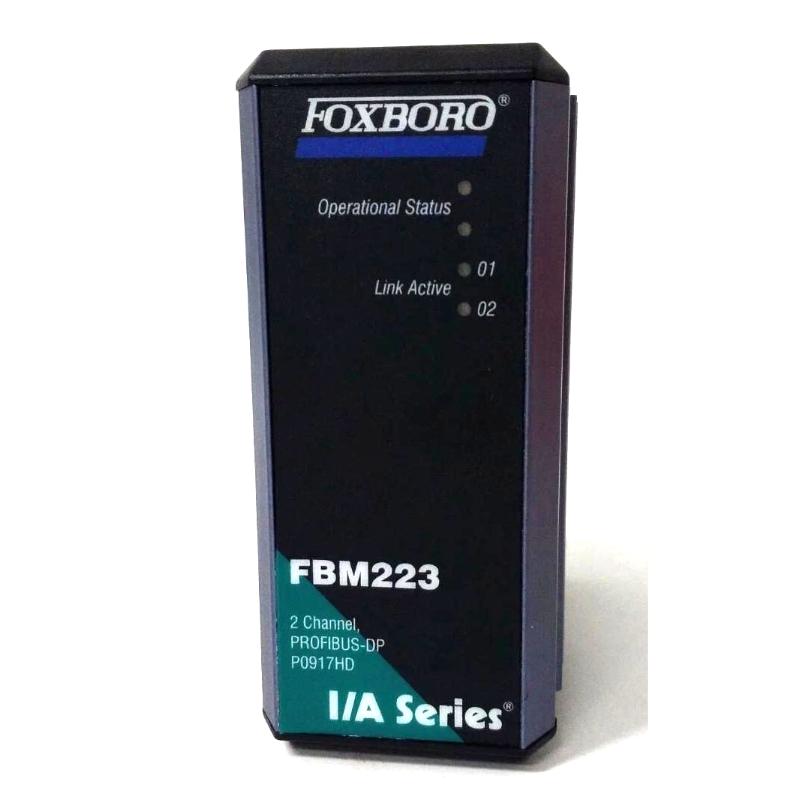

The Foxboro FBM223 P0917HD is an I/A Series PROFIBUS-DP communication interface module used to connect PROFIBUS-DP field devices and networks with the Foxboro control system. It serves as a communication layer between the control architecture and compatible PROFIBUS-DP devices, allowing process and equipment information to move through a digital fieldbus rather than relying on individual hardwired signal connections for every device.

In a typical installation, PROFIBUS-DP devices such as remote I/O stations, drives, motor-control equipment, or other compatible field devices communicate across the PROFIBUS network. The FBM223 provides the interface between that fieldbus communication environment and the I/A Series system, allowing configured process data to become available to the control application.

The module is particularly relevant to plants that use PROFIBUS-DP as part of their existing instrumentation and automation architecture. By placing the communication interface between the fieldbus and the control system, the installation can keep distributed field devices organized while maintaining a defined connection to the I/A Series control environment.

Technical Specifications

Product Features

• Provides PROFIBUS-DP communication interfacing within the Foxboro I/A Series architecture.
• Connects compatible PROFIBUS-DP field devices with the control system.
• Supports digital exchange of process and equipment information over the fieldbus.
• Suitable for distributed I/O and other PROFIBUS-DP field devices.
• Reduces the need for separate hardwired connections for every field data point where PROFIBUS communication is used.
• Provides a defined communication layer between the fieldbus network and the I/A Series control environment.
• Supports centralized supervision of distributed PROFIBUS-DP devices.
• Fits established Foxboro automation systems using PROFIBUS-DP fieldbus networks.

Working Principle

The FBM223 P0917HD functions as a communication gateway between the PROFIBUS-DP network and the Foxboro I/A Series control architecture.

1. PROFIBUS-DP devices exchange field data

Connected PROFIBUS-DP devices generate process, status, diagnostic, or equipment information. Depending on the application, these devices may include remote I/O stations, motor drives, valve-related equipment, or other intelligent field devices.

2. Digital data travels across the fieldbus

The field devices communicate through the PROFIBUS-DP network according to the configured communication architecture. Instead of routing each individual status or process point as a separate hardwired signal, the information is organized into digital communication data.

3. FBM223 interfaces the network

The FBM223 receives and handles the PROFIBUS-DP communication at the I/A Series interface level. It provides the connection through which the fieldbus data becomes available to the control system.

4. Data is presented to the control architecture

The relevant field information is transferred into the I/A Series control environment. Configured control applications can then use the data for monitoring, sequencing, control, alarming, and equipment supervision.

5. Control information can be exchanged toward the field

Where the application supports bidirectional data exchange, control commands or configured output information can be transferred from the I/A Series system through the communication interface and PROFIBUS-DP network toward the appropriate field device.

This arrangement creates a digital communication path between the control system and distributed field equipment while keeping the fieldbus network separate from the main control-processing functions.

Role in an I/A Series PROFIBUS-DP Control Architecture

The FBM223 P0917HD occupies the communication interface layer between the Foxboro I/A Series control environment and PROFIBUS-DP field devices. Its role is to transfer configured field data through the digital network so that the control system can supervise and interact with distributed equipment.

Industrial Applications

Installation and Maintenance

1. Verify that the FBM223 P0917HD is appropriate for the intended Foxboro I/A Series PROFIBUS-DP architecture before installation.
2. Confirm the connected PROFIBUS-DP devices, network arrangement, and associated I/A Series configuration from the approved system documentation.
3. Isolate the relevant communication and control equipment according to the plant’s maintenance and electrical safety procedures before replacing the module.
4. Inspect communication connectors and associated wiring for loose connections, contamination, corrosion, or mechanical damage.
5. Verify that the PROFIBUS-DP network wiring follows the established plant configuration and that field devices are correctly identified.
6. Confirm device addressing and network configuration when a communication fault affects one or more field devices.
7. Check the complete communication path from the field device through the PROFIBUS-DP network and FBM223 before replacing hardware.
8. Review I/A Series configuration data if a device is physically communicating but its process information is not correctly represented in the control system.
9. Use available system diagnostics to distinguish between a field-device problem, network problem, interface-module problem, and control-system configuration issue.
10. After module replacement, verify communication with the affected PROFIBUS-DP devices before returning the control system to normal operation.
11. Monitor for intermittent communication faults, unexpected device dropouts, or diagnostic changes that may indicate network connection problems.
12. Record module replacement, device communication status, network configuration changes, and diagnostic results in the system maintenance documentation.

Related Components

Recommended Related Models

Key Advantages

• Provides PROFIBUS-DP connectivity within the Foxboro I/A Series architecture.
• Supports digital communication with distributed field devices.
• Reduces dependence on individual hardwired signal connections for networked devices.
• Integrates remote I/O, drives, and compatible intelligent field equipment into the control environment.
• Provides a defined communication interface between fieldbus and control processing layers.
• Supports centralized monitoring and control of distributed PROFIBUS-DP equipment.

Technical FAQs

What is the primary purpose of the FBM223 P0917HD?

The FBM223 P0917HD provides a PROFIBUS-DP communication interface between compatible fieldbus devices and the Foxboro I/A Series control system. It transfers configured digital field information into the control architecture and, where applicable, supports communication toward field devices.

What types of equipment can be connected through PROFIBUS-DP?

Depending on the configured network and device compatibility, PROFIBUS-DP can connect equipment such as remote I/O stations, drives, motor-control equipment, and other intelligent field devices. The exact supported device arrangement should be confirmed from the project configuration and applicable system documentation.

What should be checked when PROFIBUS-DP communication is lost?

Begin with the physical communication path, including connectors, network wiring, device status, and communication configuration. Then check device addressing and the I/A Series interface configuration. System diagnostics can help determine whether the problem originates from an individual field device, the network, the interface module, or the control-system configuration.

Does the FBM223 replace the I/A Series control processor?

No. The FBM223 is a communication interface module, not the primary control processor. It provides the communication path between the PROFIBUS-DP field network and the I/A Series control architecture, while control strategies and higher-level processing remain with the appropriate control-system components.
