Product Overview

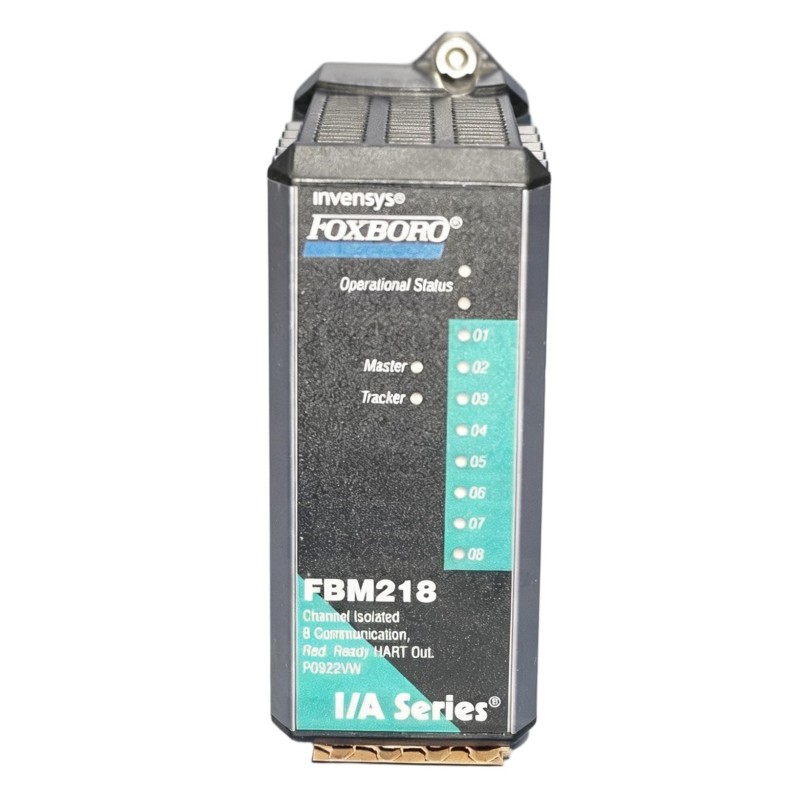

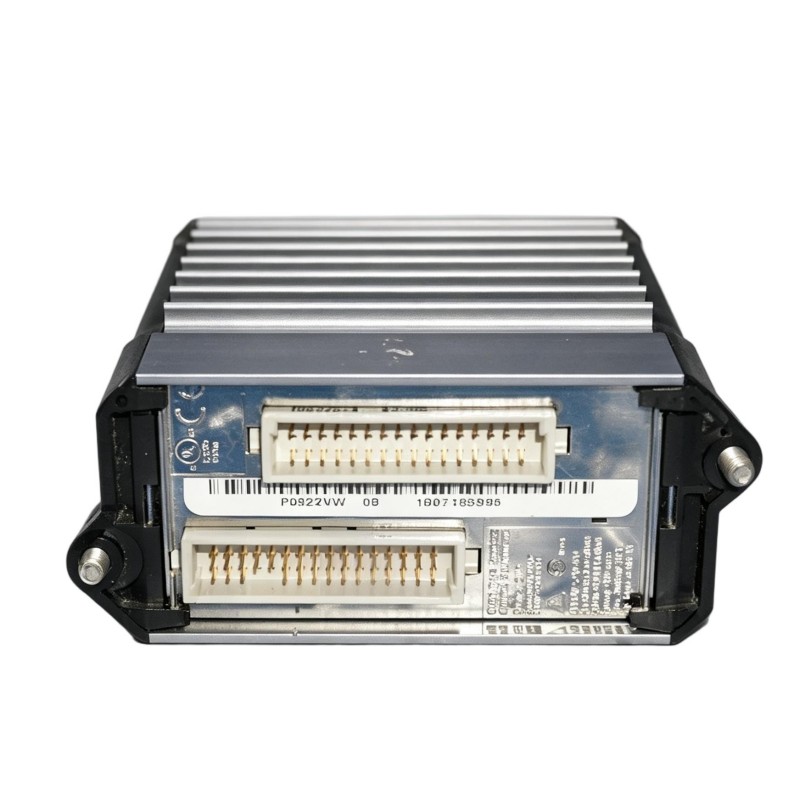

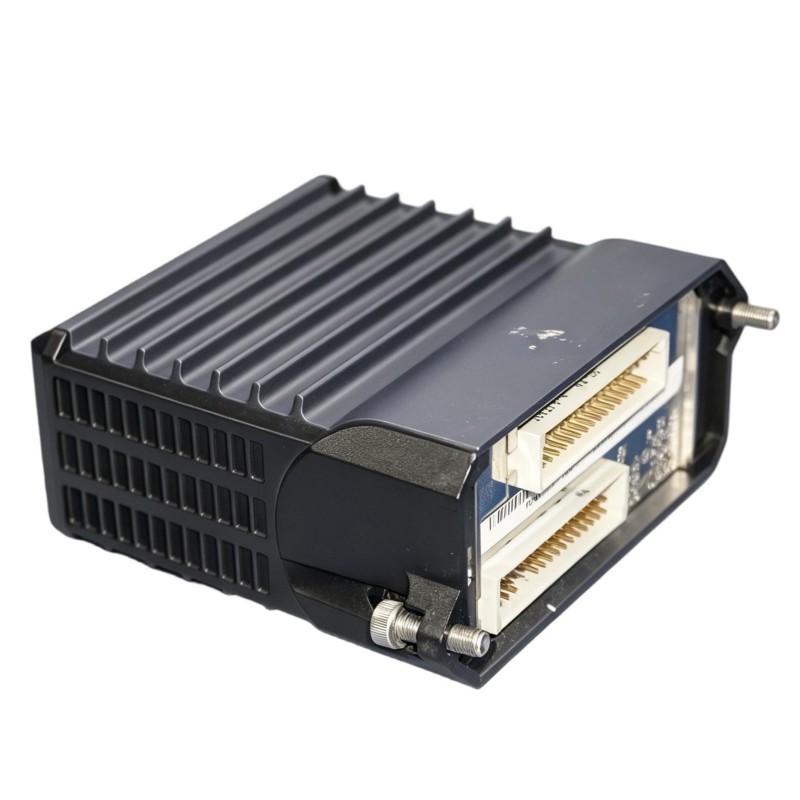

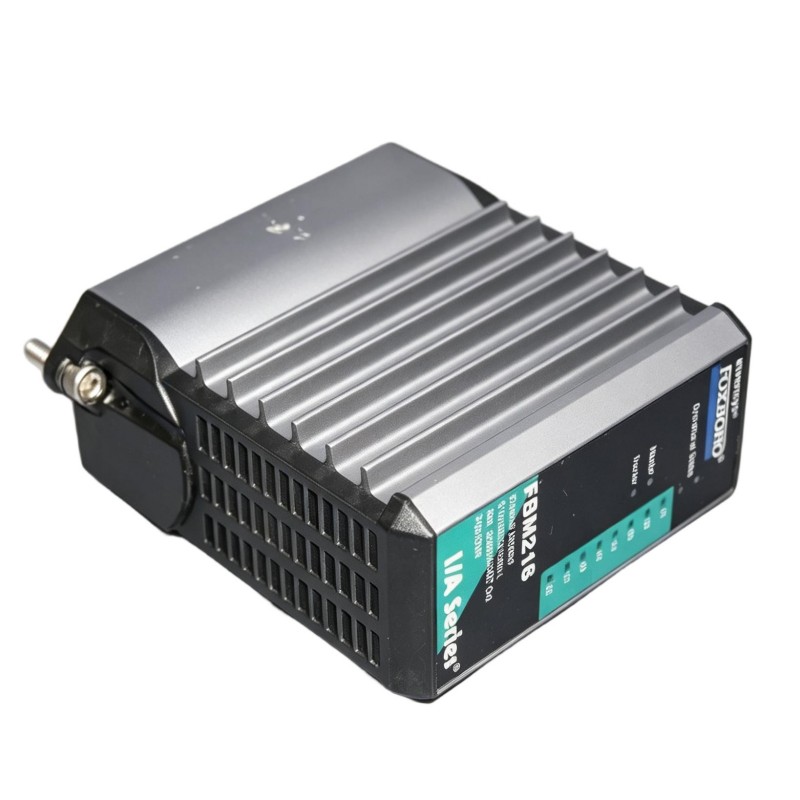

The Foxboro FBM218 P0922VW is an I/A Series HART communication redundant output module used to interface control-system output signals with field devices that support HART communication. It combines analog output functionality with digital HART communication, allowing the control system to send process commands while also exchanging device-related information through the field interface.
The module is used on output loops where the control system needs to drive field equipment such as control valves, actuators, or other analog-controlled devices. In a HART-enabled installation, the analog output provides the primary control signal while the HART communication path can carry additional digital information associated with the connected field instrument.
The redundant architecture is particularly relevant to control applications where continued I/O availability and system fault tolerance are important. The FBM218 P0922VW therefore sits between the I/A Series control processing environment and the field output circuit, supporting both process control and digital device communication.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | FBM218 P0922VW |
| Product Type | HART Communication Redundant Output Module |
| Product Family | Foxboro I/A Series |
| Series | I/A Series |
| Signal Type | Analog Output with HART Communication |
| Primary Function | Field Output Signal Interface |
| Communication | HART |
| Architecture | Redundant I/O |
| Field Device Type | HART-Compatible Analog Output Devices |
| Typical Application | Control Valves, Actuators, Analog-Controlled Field Devices |
| System Role | Output Interface between Control System and Field Devices |
| Signal Direction | Control System to Field Device |
| Installation | I/A Series I/O System / Control Cabinet |
| Dimensions | 114 × 45 × 104 mm |
| Weight | 0.284 kg |
Product Features
- Supports analog output interfacing within the Foxboro I/A Series architecture.
- Provides HART communication capability for compatible field devices.
- Supports redundant output applications within the I/O architecture.
- Allows process control signals and digital field-device information to coexist on the same instrument interface.
- Suitable for control valves, actuators, and other HART-compatible output devices.
- Separates field output interfacing from higher-level control strategy execution.
- Supports applications where I/O availability and field-device communication are both important.
- Fits established Foxboro I/A Series control and instrumentation installations.
Working Principle
The FBM218 P0922VW operates at the output interface between the Foxboro I/A Series control system and a HART-compatible field device.
1. Control strategy generates an output command
The I/A Series control processor determines the required output according to the configured control strategy. For a valve application, for example, the controller may calculate a new output value in response to a process measurement and the configured control loop.
2. Output information reaches the I/O layer
The control command is transferred to the appropriate I/O interface. The FBM218 receives the output information and establishes the corresponding field-side output condition.
3. Analog control signal reaches the field device
The primary analog output is used by the connected field instrument to establish its commanded operating state. A control valve or actuator can use this signal to adjust its position according to the configured process demand.
4. HART communication is exchanged
In a HART-enabled loop, digital communication can be superimposed on the analog instrument circuit. This allows additional device information to be exchanged without replacing the primary analog control function.
5. Redundant architecture supports continuity
The FBM218 operates as part of a redundant I/O arrangement. The redundant architecture provides an additional path or system-level availability mechanism so that the output function can remain integrated with the control system when supported by the overall system configuration.
The exact redundancy behavior depends on the associated I/A Series hardware, system configuration, termination arrangement, and application design.
Role in an I/A Series HART Output Control Architecture
The FBM218 P0922VW occupies the field output interface layer of the control architecture. It connects the control strategy with HART-compatible field equipment while also supporting the communication and availability requirements of the I/O system.
| Architecture Layer | Typical Component | Role |
|---|---|---|
| Process Layer | Process Equipment | Responds to the commanded field output |
| Field Device Layer | Control Valve, Actuator, HART Device | Receives the analog control signal and exchanges digital information |
| Field Wiring Layer | Instrument Cable and Termination Hardware | Carries the output circuit and communication path |
| I/O Interface Layer | FBM218 P0922VW | Provides redundant HART-capable output interfacing |
| Control Processing Layer | I/A Series Control Processor | Calculates and manages configured control strategies |
| Operator Layer | Operator Workstation / HMI | Displays process values, device information, alarms, and operating status |
| Engineering Layer | Configuration and Maintenance Tools | Supports I/O configuration, diagnostics, and system maintenance |
Industrial Applications
| Application | Use of FBM218 P0922VW |
|---|---|
| Process Control Loops | Sends analog control commands to field instruments |
| Control Valve Systems | Interfaces output signals with HART-compatible valve positioners or actuators |
| Chemical Processing | Supports digitally communicative analog output instruments |
| Oil and Gas Facilities | Provides field output interfacing within I/A Series control systems |
| Power Generation | Supports control of field equipment requiring analog commands |
| Refining Systems | Connects control strategies with HART-capable final control elements |
| Water and Wastewater | Supports analog-controlled valves and related process equipment |
| Continuous Manufacturing | Combines output control with field-device communication |
Installation and Maintenance
- Verify that the FBM218 P0922VW is appropriate for the intended Foxboro I/A Series HART output architecture before installation.
- Confirm the associated termination hardware, field wiring, and redundant I/O arrangement against the system documentation.
- Isolate the relevant output circuit and follow the site’s electrical safety procedures before removing or installing I/O hardware.
- Check the connected field device to ensure that it supports the intended HART-enabled output application.
- Inspect field wiring and termination points for loose connections, damaged insulation, corrosion, or other signs of deterioration.
- Verify correct channel identification so that the output is connected to the intended valve, actuator, or field instrument.
- Check the system configuration for correct output assignment and confirm that the configured control point corresponds to the physical field circuit.
- During commissioning, verify the analog output response using an approved controlled test procedure rather than applying uncontrolled commands to the process equipment.
- Check HART communication when digital device information is unavailable even though the primary output loop appears to operate correctly.
- For redundant installations, verify the associated redundancy status and system diagnostics after maintenance or replacement.
- If an output behaves intermittently, inspect the complete signal path from the control configuration through the I/O interface, termination, wiring, and field device before replacing the module.
- Record module replacement, channel assignments, redundancy status, field-device communication results, and commissioning test results in the maintenance documentation.
Related Components
| Component | Function |
|---|---|
| Foxboro I/A Series Control Processor | Executes configured control strategies and generates output commands |
| HART-Compatible Control Valve | Receives analog control output and supports digital device communication |
| HART Valve Positioner | Converts and applies the control command to the final control element |
| I/O Termination Assembly | Provides the field-side connection between I/O hardware and field circuits |
| Instrument Cable | Carries the analog output and HART communication path |
| Operator Workstation | Provides process and field-device monitoring |
| I/A Series Engineering Tools | Support configuration, diagnostics, and maintenance |
| Redundant I/O Infrastructure | Supports the required system availability architecture |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Foxboro FBM218 RH927AV | I/A Series HART Communication Redundant Output Module | Related FBM218 redundant HART output variant |
| Foxboro FBM216b P0927AJ | I/A Series HART Communication Redundant Input Module | Complementary HART input interface |
| Foxboro FBM216b RH927AJ | I/A Series Redundant HART Communication Input Module | Related redundant HART input module |
| Foxboro FBM217 P0914TR | I/A Series Discrete Input Interface Module | Related I/A Series field input interface |
| Foxboro FBM214 P0922VT | I/A Series Input Module | Related I/O module for process signal acquisition |
Key Advantages
- Integrates HART communication with analog output interfacing.
- Supports redundant I/O applications within the Foxboro I/A Series architecture.
- Suitable for HART-compatible valves, actuators, and other field output devices.
- Combines process output control with digital field-device communication.
- Supports centralized control and device-level information exchange.
- Fits established I/A Series instrumentation and control installations.
Technical FAQs
What is the difference between the analog output and HART communication on the FBM218 P0922VW?
The analog output carries the primary process control command to the field device, while HART communication provides an additional digital communication channel. The two functions can operate together on a compatible instrument loop, allowing process control and device-related communication through the same field interface.
Why is redundancy important for an FBM218 output application?
Redundancy is used where continued I/O availability is important to the control application. The FBM218 can participate in a redundant I/O architecture so that the output function remains supported by the overall system when the associated hardware and configuration provide the required redundancy behavior.
What should be checked when a HART device receives the output but does not communicate digitally?
First check the field-device compatibility and complete loop wiring. Then inspect termination connections, channel configuration, HART communication status, and system diagnostics. A functioning analog output does not by itself confirm that the digital communication path is correctly configured.
Can the FBM218 P0922VW be used for control valve applications?
Yes. It is applicable to output loops involving HART-compatible control valves, valve positioners, actuators, and similar field devices. The specific valve interface and loop arrangement should be verified against the I/A Series system configuration and the requirements of the connected field device.
