Product Overview

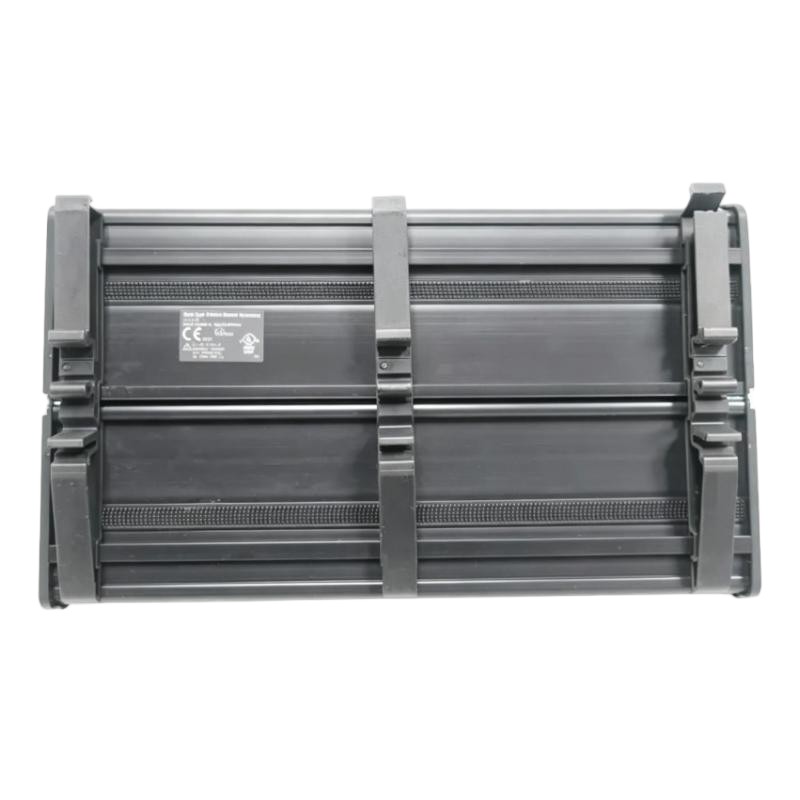

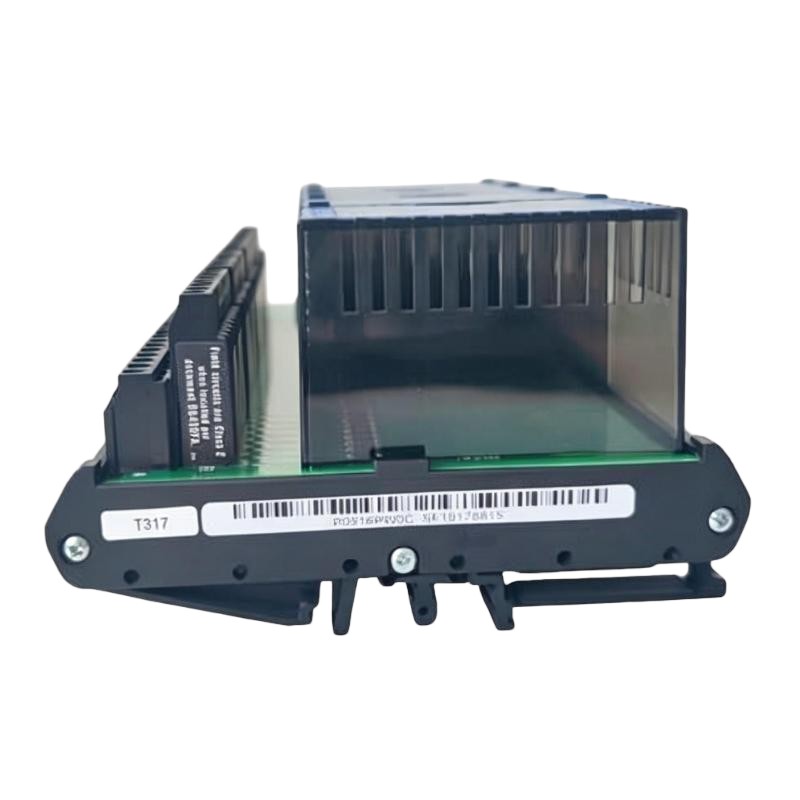

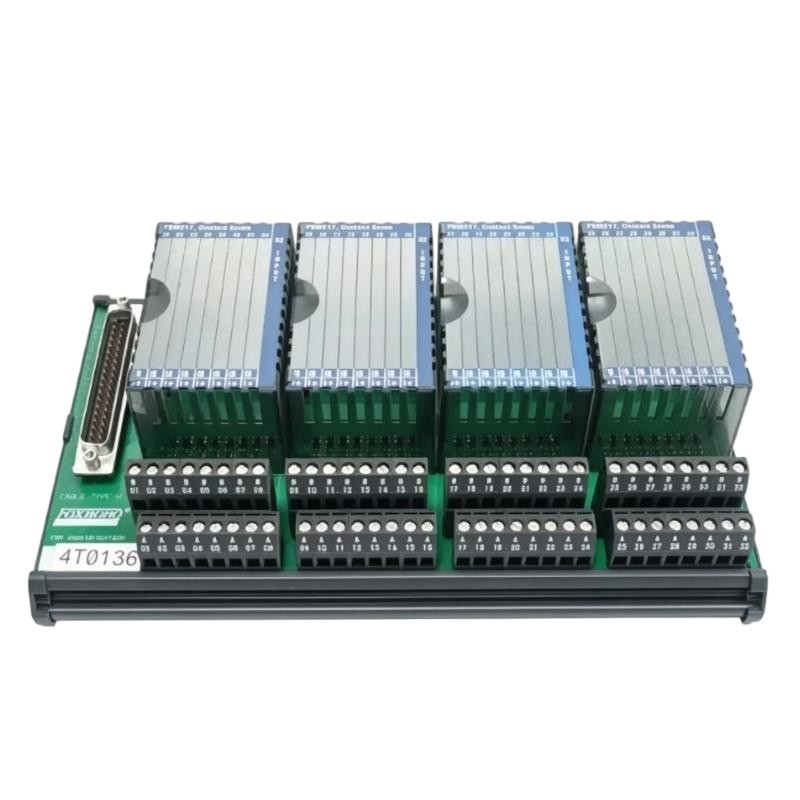

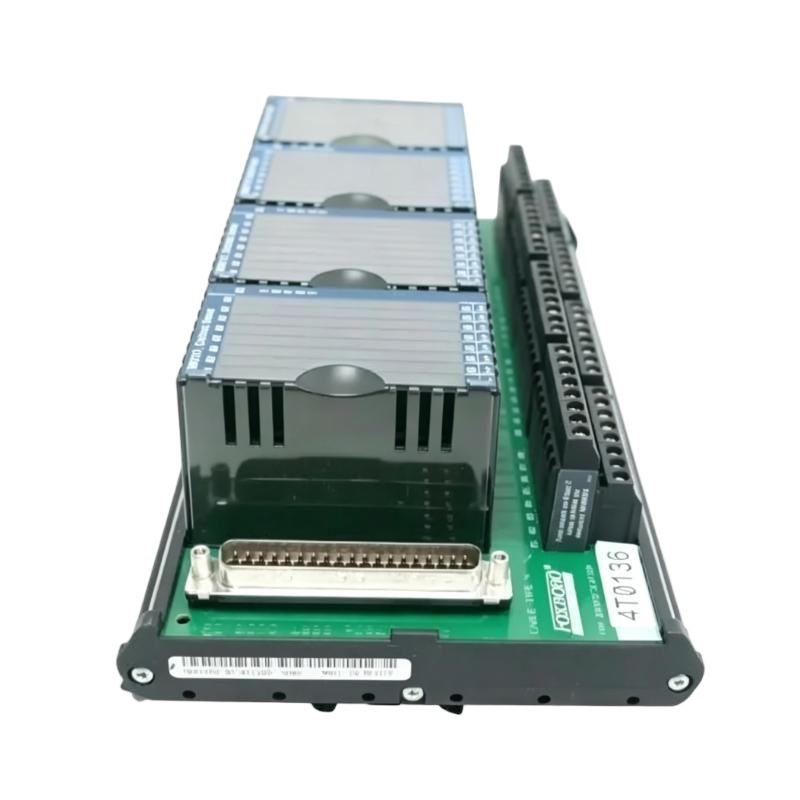

The Foxboro FBM217 P0916PW is an I/A Series discrete input interface module used to bring binary field signals into a Foxboro control system. It serves as the interface between field devices such as switches, contacts, status relays, and discrete sensors and the system’s control processing layer.

In a typical installation, the module receives field status information through the associated termination and wiring arrangement, conditions the incoming discrete signals, and makes the resulting state information available to the I/A Series control system. Typical signals include equipment running or stopped status, valve open or closed indication, alarm contacts, permissive conditions, and interlock feedback.

The FBM217 P0916PW is suited to applications where a large number of discrete field conditions must be organized into the control architecture. Its role is primarily signal acquisition and interface rather than control logic execution, allowing the control processor to use field status information for sequencing, alarming, permissives, and interlocking.

Technical Specifications

Product Features

• Supports discrete field signal acquisition within the Foxboro I/A Series architecture.
• Interfaces binary field conditions with the control system’s processing layer.
• Suitable for equipment status, alarm, permissive, and interlock signals.
• Separates field signal interface functions from higher-level control logic.
• Works with the associated termination and cabinet wiring arrangement.
• Useful for centralized monitoring of multiple machine or process states.
• Supports structured troubleshooting from the field wiring side through the control system.
• Fits applications where clear separation between field devices and controller processing is required.

Working Principle

The FBM217 P0916PW operates as a discrete signal acquisition point between field wiring and the Foxboro I/A Series control system.

1. Field device changes state

A connected field device changes between its defined discrete states. Examples include a motor auxiliary contact changing state after a starter operates, a valve limit switch indicating open or closed position, or an alarm contact changing state.

2. Signal enters the field interface

The discrete signal travels through the associated field wiring and termination arrangement toward the FBM217 interface. Proper terminal identification and circuit continuity are important because the module depends on the field circuit to represent the actual equipment condition.

3. Input state is detected

The module receives the incoming discrete condition and establishes the corresponding input state for the I/A Series system. The field condition is therefore converted into usable digital status information rather than being handled as a continuous analog measurement.

4. Status is transferred to the control system

The acquired input information is passed into the I/A Series control architecture, where configured control strategies can use the status for monitoring, sequencing, permissives, alarms, and interlocks.

5. Control logic uses the input

The control processor interprets the discrete state according to the configured application. A single input may represent equipment availability, a permissive condition, a fault indication, or a process limit, depending on how the control strategy is configured.

This arrangement keeps the field signal acquisition function at the I/O level while allowing application-specific decisions to remain in the control system.

Role in an I/A Series Discrete Signal Control Architecture

The FBM217 P0916PW occupies the field-input interface layer of the control architecture. It does not replace the control processor; instead, it delivers discrete field information to the processing layer so that configured control strategies can respond to actual equipment conditions.

Industrial Applications

Installation and Maintenance

1. Verify that the FBM217 P0916PW is compatible with the intended Foxboro I/A Series system architecture before installation.
2. Confirm the module identification and associated termination arrangement against the cabinet documentation.
3. Isolate the relevant field circuits and follow the site’s electrical safety procedures before working on the I/O assembly.
4. Check field wiring for correct terminal assignment, secure connections, and clear circuit identification.
5. Verify that switches, contacts, relays, and other discrete field devices operate correctly before diagnosing the module itself.
6. Inspect termination points for loose conductors, damaged insulation, corrosion, or signs of overheating.
7. Confirm that the expected input state matches the actual field device state during commissioning.
8. Check the control-system configuration if an input appears correct electrically but is displayed incorrectly at the operator interface.
9. When troubleshooting intermittent signals, inspect both the field device and the complete wiring path rather than replacing the interface module immediately.
10. Keep cabinet wiring organized so that individual discrete circuits can be traced from the termination point to the associated I/O channel.
11. After maintenance, perform a controlled functional test using representative field conditions and verify that the control system receives the expected status.
12. Record replaced modules, wiring changes, abnormal input behavior, and test results in the maintenance documentation for future troubleshooting.

Related Components

Recommended Related Models

Key Advantages

• Direct integration with the Foxboro I/A Series control architecture.
• Dedicated interface for discrete field conditions.
• Suitable for equipment status, alarms, permissives, and interlocks.
• Clear separation between field signal acquisition and control logic.
• Practical for centralized industrial equipment monitoring.
• Supports structured field-to-controller troubleshooting.

Technical FAQs

What types of field signals can the FBM217 P0916PW handle?

The FBM217 P0916PW is intended for discrete field information, such as equipment status contacts, switch states, valve position indications, alarm contacts, and other binary conditions. The exact field circuit arrangement should follow the applicable I/A Series system documentation and site wiring design.

Can the FBM217 P0916PW perform control logic?

No. Its primary role is discrete input interfacing and signal acquisition. The acquired status is passed into the I/A Series control architecture, where configured control logic, sequencing, permissives, alarms, and interlocks are handled by the appropriate processing components.

What should be checked if an input does not change state?

Start with the field device and wiring path. Check the device’s mechanical or electrical operation, terminal connections, circuit continuity, and expected signal state. If the field circuit is correct, then review the I/O configuration and system diagnostics before determining whether the interface module requires replacement.

Is the FBM217 P0916PW suitable for equipment interlock applications?

It can provide the discrete equipment status information used by configured interlock strategies. For example, a motor running contact, valve position switch, or equipment fault contact can be acquired as an input and then evaluated by the control strategy. The actual interlock function depends on the overall system configuration.
