Product Overview

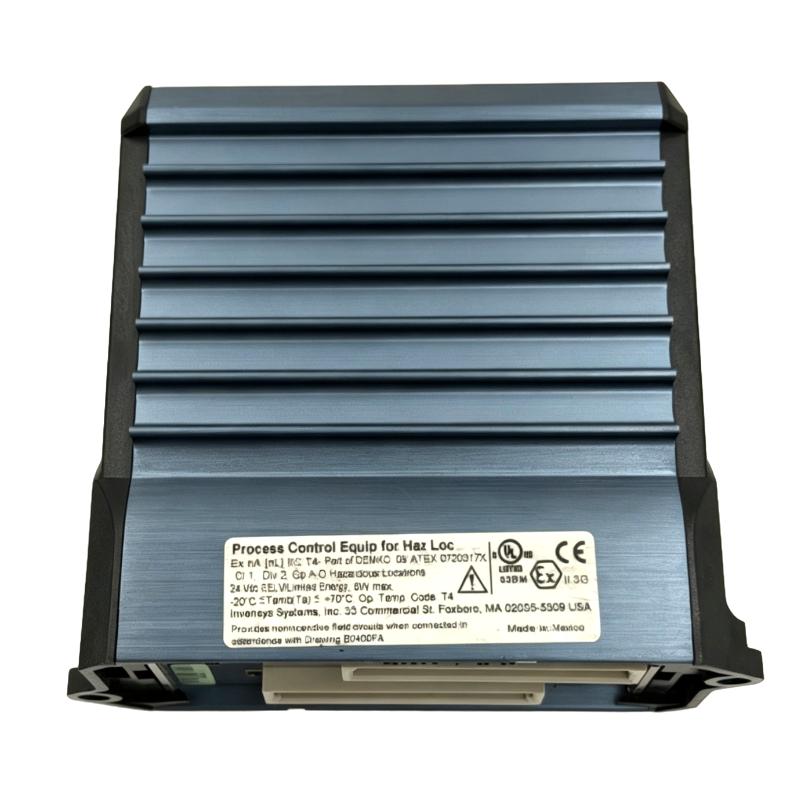

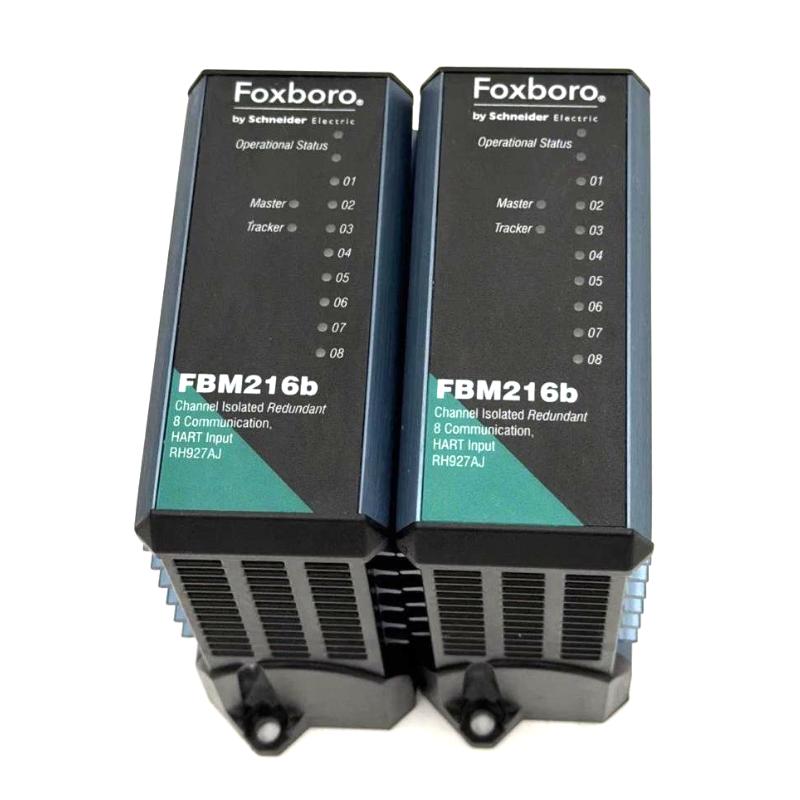

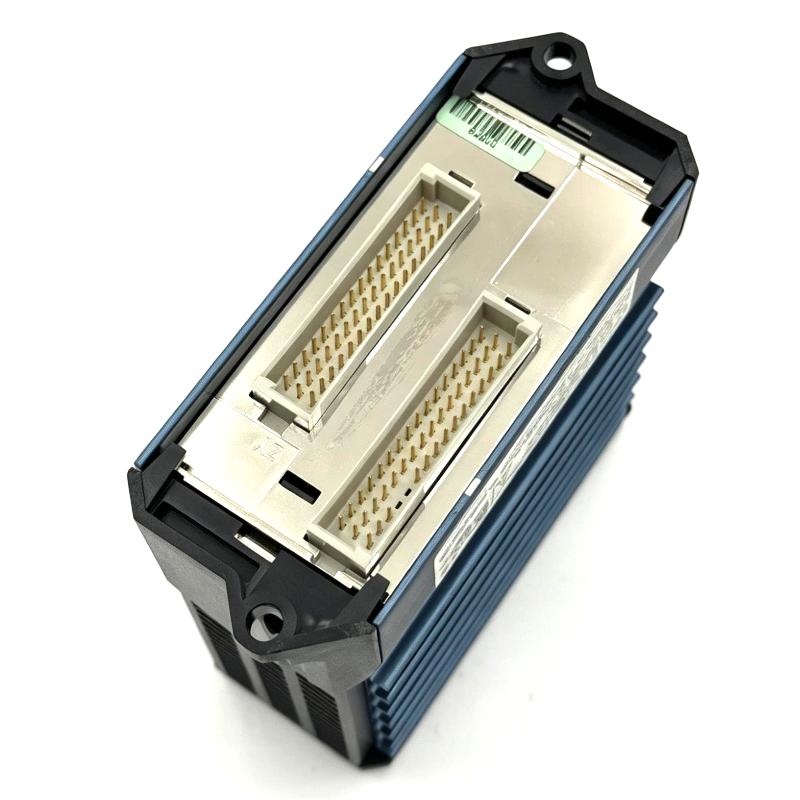

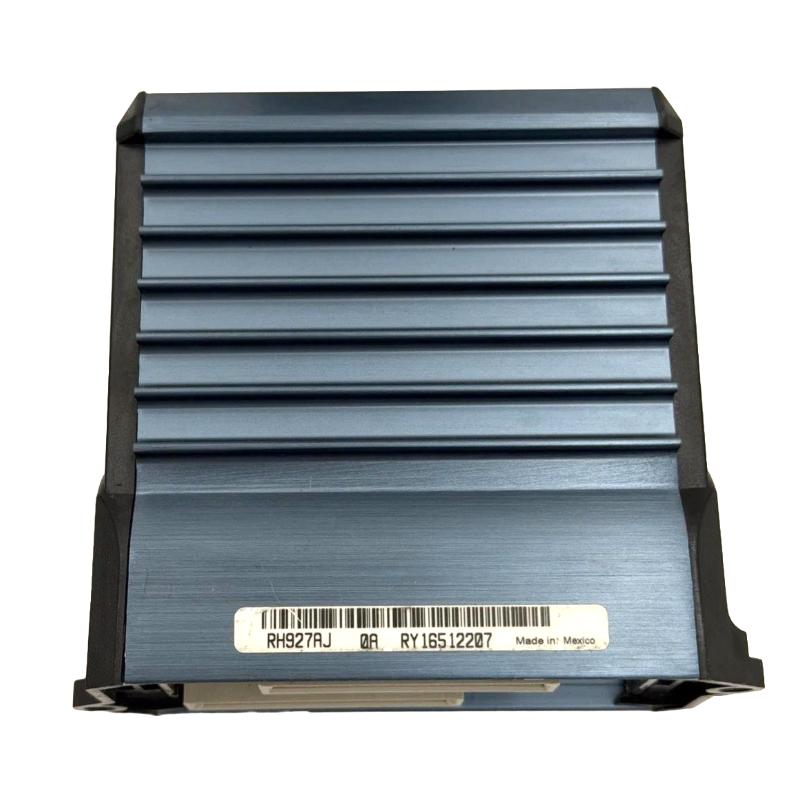

The Foxboro FBM216b RH927AJ is an I/A Series redundant HART communication input module used at the field I/O level of a Foxboro process control system. It provides the interface between compatible HART field instrumentation and the control-system architecture, allowing process signals and associated digital field-device information to be handled through the I/O subsystem.
The module is intended for process automation environments where intelligent field instruments are part of the measurement and control infrastructure. HART communication can supplement the primary process measurement with device-related information, giving commissioning and maintenance personnel additional information when working with compatible field instruments.
The redundant architecture is particularly relevant in process installations where I/O availability and continuity are important considerations. The FBM216b RH927AJ works together with the associated termination assemblies, field wiring, I/A Series communication infrastructure, and control processors rather than functioning as a standalone controller.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | FBM216b RH927AJ |
| Product Type | Redundant HART Communication Input Module |
| Product Family | I/A Series |
| Series | Foxboro I/A Series |
| Module Type | Redundant Input Module |
| Signal Interface | HART-Compatible Field Instrument Signals |
| Communication | HART Communication |
| Primary Function | Field Signal Acquisition and HART Communication |
| Redundancy | Redundant I/O Architecture |
| System Integration | Foxboro I/A Series Control System |
| Field Interface | Process Instrumentation |
| Application | Process Measurement and Control |
| Installation | I/O Subsystem / Field Interface Assembly |
| Dimensions | 114× 45× 104 mm |
| Weight | 0.284 kg |
Product Features
- I/A Series redundant input module for compatible HART field instrumentation.
- Combines process input functionality with HART communication capability.
- Supports redundant I/O configurations within Foxboro process control architectures.
- Provides a field-level interface between intelligent instruments and the control system.
- Allows HART-enabled devices to exchange additional digital information with the system.
- Suitable for process measurement and monitoring applications.
- Integrates with the associated Foxboro I/O, termination, and communication infrastructure.
- Supports maintenance and commissioning activities involving compatible HART field devices.
- Suitable for existing I/A Series system expansion and compatible module replacement.
- Works as part of a complete field instrumentation and process-control architecture.
Working Principle
1. Field device connection
Compatible HART field instruments are connected through the field wiring and associated termination infrastructure. The connected instrument supplies the process measurement required by the control system.
2. Input signal acquisition
The FBM216b RH927AJ receives the field input and interfaces the signal with the I/A Series I/O architecture. The acquired process information can then be passed to the control-system functions responsible for monitoring and control.
3. HART communication
In addition to the primary measurement, HART communication provides a digital communication path with compatible field instruments. Depending on the connected device and system configuration, this path can carry additional device information used during configuration, commissioning, and maintenance.
4. Redundant I/O operation
The module is used within a redundant I/O arrangement. The associated system architecture determines how the redundant paths are configured and how the system responds to an I/O path or module-related condition.
5. Control-system processing
After acquisition, the field information is transferred through the I/A Series architecture toward the appropriate control functions. Process data can be used for monitoring, alarming, or control, while available HART information can assist maintenance personnel with field-device diagnostics and management.
Role in an I/A Series Process Control Architecture
The FBM216b RH927AJ operates between HART-compatible field instrumentation and the Foxboro I/A Series control system. Its position at the I/O layer allows process measurements to enter the control architecture while supporting HART communication and the configured redundant I/O arrangement.
| Architecture Layer | Main Function | Relationship to FBM216b RH927AJ |
|---|---|---|
| Field Instruments | Measure process conditions | Supplies compatible process and HART information |
| Field Wiring | Carries instrument signals | Connects field devices with the I/O interface |
| Termination Assembly | Organizes field connections | Provides the connection interface associated with the module |
| FBM216b RH927AJ | Acquires input signals and supports HART communication | Provides the field I/O interface |
| Redundant I/O Path | Supports the configured redundant architecture | Works with the module as part of the I/O arrangement |
| I/A Series Communication | Transfers I/O information | Carries acquired information toward the control system |
| Control Processor | Executes control and monitoring functions | Processes the incoming field information |
| Operator / Maintenance System | Displays process and device information | Uses available measurement and HART-related information |
Industrial Applications
| Application | Typical Use |
|---|---|
| Oil and Gas | Connecting HART-enabled field instrumentation to process control systems |
| Chemical Processing | Acquisition and monitoring of intelligent process measurements |
| Refining | Integration of field transmitters into I/A Series control architectures |
| Power Generation | Process instrumentation interface for automated plant systems |
| Water and Wastewater | Monitoring process measurements from compatible intelligent instruments |
| Pharmaceutical Processing | Integration of field instrumentation into automated process systems |
| General Process Automation | Field signal acquisition and HART device communication |
| Plant Maintenance Systems | Supporting commissioning and troubleshooting of HART-enabled instruments |
Installation and Maintenance
- Verify the complete model number — Confirm FBM216b RH927AJ before installation or replacement to ensure the correct I/O module is being used.
- Check I/A Series compatibility — Verify that the module is suitable for the existing Foxboro I/A Series hardware and configured system architecture.
- Confirm the redundancy arrangement — Review the existing redundant I/O configuration before replacing or adding a module.
- Inspect the associated termination assembly — Check the termination interface and ensure that field connections are properly secured.
- Check field wiring — Inspect instrument wiring for loose connections, damaged conductors, incorrect termination, or signs of deterioration.
- Verify HART instrument compatibility — Confirm that connected field devices support the intended HART communication arrangement.
- Check module seating and connections — Make sure the module is correctly installed in its designated position and that all associated connections are secure.
- Review system configuration — Verify the I/O configuration and module identification before returning the system to normal operation.
- Verify process signal acquisition — Confirm that expected field measurements are correctly received by the control system after installation.
- Check HART communication — Where digital field-device communication is required, verify that compatible instruments can communicate through the configured I/O path.
- Review diagnostic information — Check system and module diagnostics for abnormal communication, I/O, or field-device conditions.
- Follow controlled replacement procedures — For an operating process system, use the site’s approved isolation, redundancy, configuration, and commissioning procedures when replacing the module.
Related Components
| Component | Function |
|---|---|
| Foxboro I/A Series Control Processor | Processes field information and executes control functions |
| I/A Series I/O Communication Infrastructure | Transfers I/O information between field modules and the control system |
| I/A Series Termination Assembly | Provides the field wiring interface for connected instruments |
| HART Field Transmitter | Supplies process measurement and additional digital device information |
| Field Wiring | Connects field instruments to the I/O subsystem |
| Redundant I/O Infrastructure | Supports the configured redundant signal path |
| I/A Series Mounting Infrastructure | Provides the installation interface for the I/O module |
| Engineering / Maintenance Station | Supports configuration, monitoring, and troubleshooting |
Recommended Related Models
| Model | Product Type | Typical Application |
|---|---|---|
| Foxboro FBM216 P0922VV | I/A Series Input Module | Process signal acquisition |
| Foxboro FBM214b RH927AH | I/A Series Input Module | Process instrumentation interface |
| Foxboro FBM214 P0922VT | I/A Series Input Module | Field signal integration |
| Foxboro FBM211 RH914TN | I/A Series Input Module | Process input applications |
| Foxboro FBM207c RH917GY | I/A Series Input Module | I/A Series process I/O |
| Foxboro FBM207c P0917GY | I/A Series Input Module | Field signal acquisition |
| Foxboro FBM203 RH914SV | I/A Series Input Module | Process measurement interface |
Key Advantages
- Redundant I/O architecture for compatible I/A Series process-control applications.
- HART communication capability for compatible intelligent field instruments.
- Integrates field measurements into the Foxboro I/A Series control system.
- Provides access to additional field-device information through HART communication.
- Suitable for process monitoring, commissioning, and maintenance activities.
- Appropriate for compatible I/A Series system expansion and replacement requirements.
Technical FAQs
What is the role of the FBM216b RH927AJ in an I/A Series system?
The module provides a redundant input interface for compatible HART field instrumentation. It acquires field process signals and supports HART communication within the Foxboro I/A Series I/O architecture.
What information can HART communication provide?
HART communication can carry digital information from a compatible field instrument in addition to its primary process measurement. Depending on the instrument and system configuration, this information can support device configuration, diagnostics, commissioning, and maintenance.
Why is redundancy relevant to the FBM216b RH927AJ?
The module is intended for use in a redundant I/O arrangement. Redundancy allows the system architecture to maintain an additional I/O path according to its configured design, which is useful in process-control installations where continuity of I/O operation is an important consideration.
What should be checked if the process signal is available but HART communication is not working?
Check the field-device configuration, field wiring, termination connections, I/O configuration, and communication path. The primary process signal and HART digital communication should be evaluated separately because a valid process measurement does not necessarily confirm that the digital communication path is operating correctly.
