Product Overview

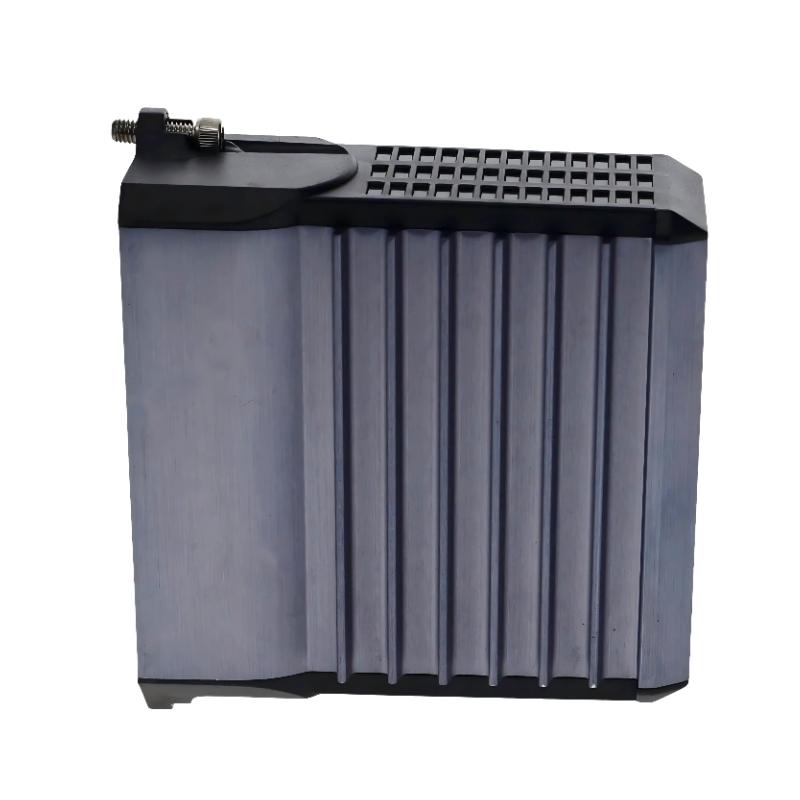

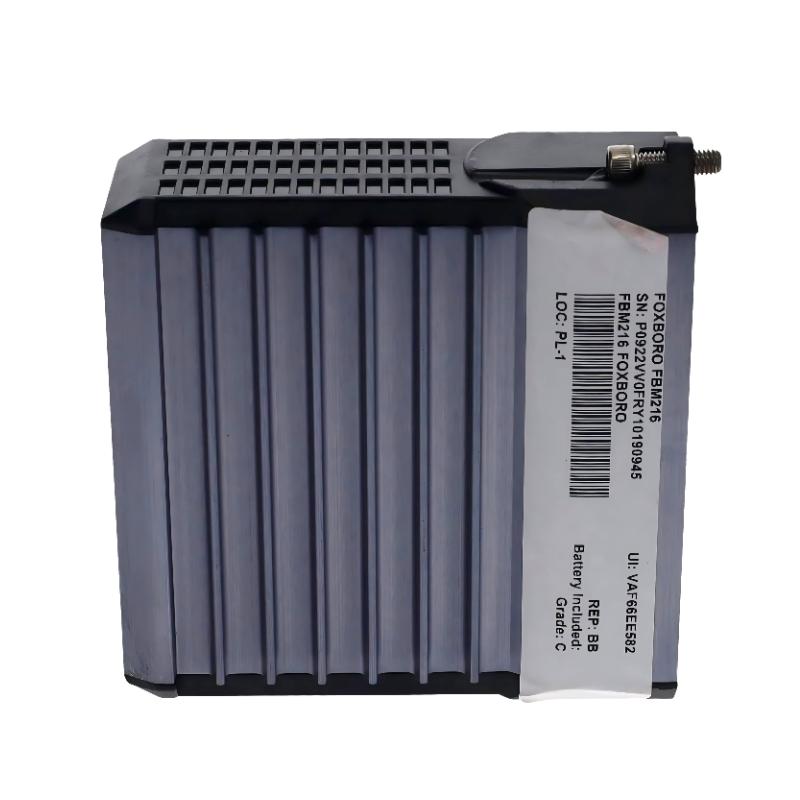

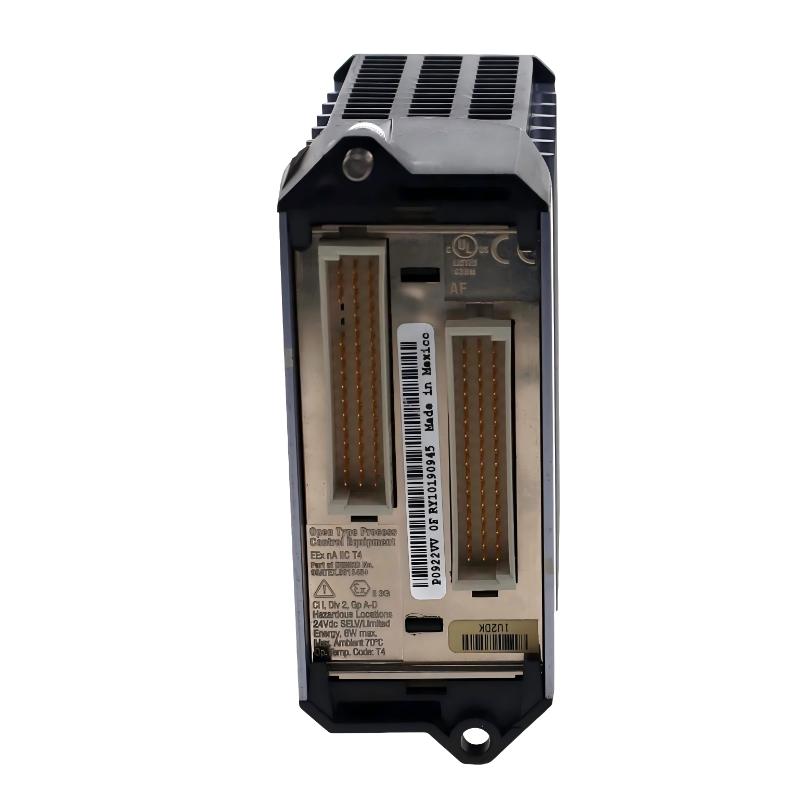

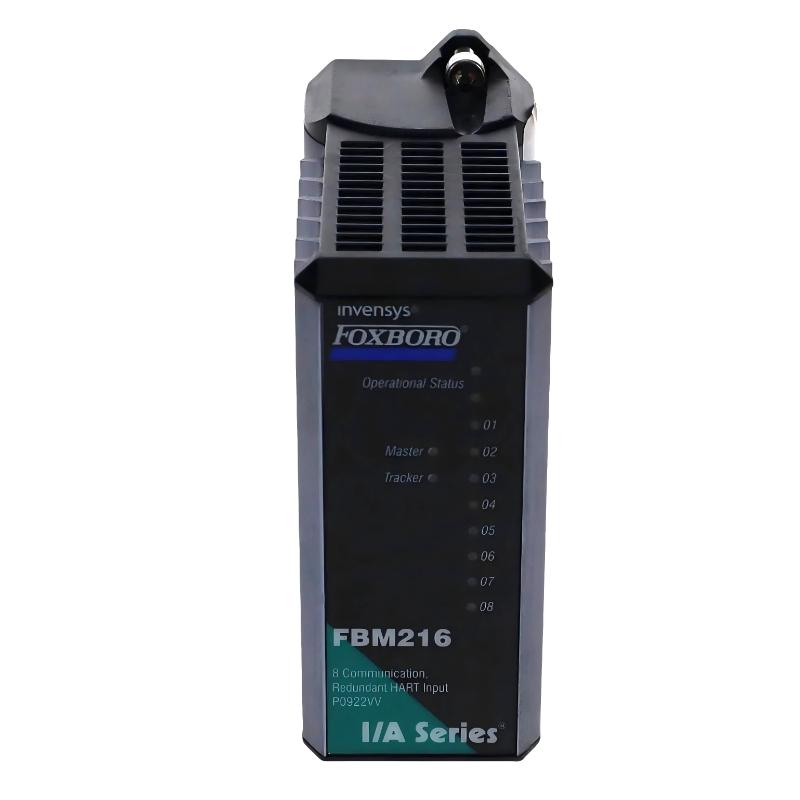

The Foxboro FBM216 P0922VV I/A Series HART Communication Redundant Input Interface Module is a field I/O interface for HART-capable process instrumentation used in Foxboro I/A Series control systems. It brings smart field-device information into the control architecture while supporting a redundant input arrangement for applications where continuity of measurement is an important part of the system design.
In a typical process plant, smart transmitters provide continuous measurements such as pressure, flow, temperature, or level. In addition to the primary measurement, HART communication can carry device identification, configuration information, status, and diagnostic data. The FBM216 provides the interface between these field instruments and the I/A Series control-system environment.
The module is suited to process applications where field instrumentation, HART communication, and input redundancy need to work together. During commissioning or troubleshooting, the complete signal path should be considered, including the transmitter, field wiring, termination, input interface, and control-system configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | P0922VV |
| Product Type | HART Communication Redundant Input Interface Module |
| Product Family | Foxboro FBM216 |
| Series | I/A Series |
| Module Type | Field I/O Interface Module |
| Communication Type | HART |
| Input Function | Redundant Input |
| Signal Interface | Analog / HART |
| Field Device | HART-Capable Process Instrumentation |
| Application | Smart Instrument Integration |
| System Integration | Foxboro I/A Series Control System |
| Installation | I/O / Control Cabinet |
| Dimensions | 114 × 45 × 104 mm |
| Weight | 0.284 kg |
Product Features
- Provides a HART communication interface for smart field instrumentation.
- Supports redundant input arrangements within the Foxboro I/A Series I/O architecture.
- Combines process measurement acquisition with digital HART communication.
- Supports integration of smart transmitters into process monitoring and control applications.
- Allows additional instrument information to be used for configuration and maintenance.
- Provides a defined interface between field instrumentation and the control-system processing layer.
- Suitable for centralized process-control cabinets using HART-enabled instrumentation.
Working Principle
The FBM216 provides the interface between HART-capable field instruments and the Foxboro I/A Series control system. The module handles the field I/O interface while the actual measurement originates at the connected process instrument.
1. Process measurement
A smart transmitter measures a process variable such as pressure, flow, temperature, or level and produces the corresponding field signal.
2. Redundant input arrangement
Where redundancy is required by the application, the associated input paths are arranged according to the system design. The FBM216 provides the interface through which the configured field inputs enter the I/O architecture.
3. HART communication
HART adds a digital communication layer to the field instrument connection. Depending on the transmitter, information such as device identification, configuration, status, and diagnostics can be exchanged.
4. I/O interface
The FBM216 receives the field information and interfaces it with the I/A Series system. It does not perform the physical process measurement; instead, it provides the connection between field instrumentation and system-level processing.
5. Control-system processing
The acquired process value can be used for monitoring, alarming, calculations, sequencing, or closed-loop control. HART information can separately support instrument configuration and maintenance.
Role in a Foxboro I/A Series Redundant HART Control Architecture
The FBM216 occupies the field I/O layer between smart instrumentation and the I/A Series control system. Its redundant input capability becomes part of the wider architecture that includes field devices, wiring, I/O configuration, and control logic.
| Architecture Layer | Function |
|---|---|
| Process Equipment | Generates the physical process variable |
| HART Field Instrument | Measures the process variable and provides digital device communication |
| Field Wiring | Carries measurement and HART communication |
| Redundant Input Path | Provides the configured redundant field-input arrangement |
| FBM216 P0922VV | Interfaces the field inputs with the I/O system |
| I/A Series Control System | Processes measurements and executes configured logic |
| Operator / Maintenance Interface | Displays process information and supports diagnostics |
Industrial Applications
| Application | Typical Use |
|---|---|
| Pressure Monitoring | Integration of smart pressure transmitters |
| Flow Measurement | Acquisition of flow measurements with HART communication |
| Temperature Monitoring | Integration of HART-enabled temperature instruments |
| Level Measurement | Monitoring of critical vessel or tank levels |
| Process Control Loops | Supplying measurement data to configured control strategies |
| Oil and Gas Systems | Smart instrumentation within centralized control architectures |
| Chemical Processing | HART-enabled process measurement and monitoring |
| Utility Systems | Monitoring important plant utility variables |
Installation and Maintenance
- Verify the system assignment — Confirm that the FBM216 corresponds to the intended I/O position and approved system documentation.
- Check field-device compatibility — Verify that connected instrumentation supports the intended HART and input arrangement.
- Review wiring documentation — Check instrument tags, input assignments, terminal references, and redundant signal paths.
- Apply electrical isolation — Follow approved plant isolation procedures before working on field circuits.
- Verify transmitter configuration — Confirm the connected smart instruments are configured for the intended application.
- Inspect field wiring — Check conductors and termination points for loose connections, damage, corrosion, or other visible problems.
- Check each input path — Verify the expected signal path for the configured redundant arrangement.
- Verify HART communication — If digital device information is unavailable, inspect the transmitter, wiring, I/O interface, and system configuration.
- Check I/O configuration — Confirm that the control-system configuration matches the intended FBM216 installation.
- Compare measurements — Where applicable, compare redundant or independent measurements to identify discrepancies.
- Review diagnostics — Use available HART and system diagnostic information to investigate instrument or communication problems.
- Document changes — Record approved changes to instruments, wiring, I/O assignments, and redundancy configuration.
Related Components
| Component | Function in the System |
|---|---|
| Foxboro FBM216 | HART communication redundant input interface |
| Foxboro I/A Series Control System | Processes measurements and executes control applications |
| HART-Capable Transmitters | Provide process measurements and digital device information |
| Pressure Transmitters | Supply pressure measurements |
| Flow Transmitters | Provide continuous flow information |
| Temperature Transmitters | Supply process temperature measurements |
| Level Transmitters | Provide vessel or tank level information |
| Field Wiring | Carries measurement and HART communication |
| I/O Termination Components | Provide physical field-wiring connections |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Foxboro FBM214b RH927AH | I/A Series HART Communication Input Module | Related HART-enabled input interface |
| Foxboro FBM214 P0922VT | I/A Series HART Communication Input Interface Module | Related HART communication input hardware |
| Foxboro FBM211 RH914TN | I/A Series Analog Input Module | Related analog process measurement interface |
| Foxboro FBM211 P0916JT | I/A Series Termination Assembly | Related analog field-wiring termination component |
| Foxboro FBM207c RH917GY | Channel Isolated Contact Sense Input Interface Module | Related field input module for discrete signals |
Key Advantages
- Supports HART-enabled instrumentation in the I/A Series architecture.
- Provides a redundant input interface for applicable system designs.
- Combines process measurement acquisition with digital instrument communication.
- Supports access to additional field-device information.
- Fits critical process measurement and monitoring applications.
- Provides a clear interface between smart instrumentation and control-system functions.
Technical FAQs
What is the purpose of the Foxboro FBM216 P0922VV?
The FBM216 P0922VV provides a HART communication redundant input interface for smart field instrumentation within a Foxboro I/A Series control system. It connects field measurement and HART communication with the system’s I/O architecture.
What does the redundant input function mean in this application?
It refers to the input arrangement used to support the required level of input continuity within the overall control-system design. The actual redundancy strategy depends on the associated field devices, wiring, I/O configuration, and control architecture.
What information can be obtained through the HART communication layer?
Depending on the connected field instrument, HART communication can provide device identification, configuration information, status, and diagnostic data in addition to the primary process measurement.
What should be checked if one input path does not agree with another?
Check the associated field instruments first, then inspect the corresponding wiring, termination points, input assignments, and FBM216 configuration. Comparing the measurements and available HART diagnostic information can help determine whether the discrepancy originates from the instrument, wiring, I/O interface, or configuration.
