Product Overview

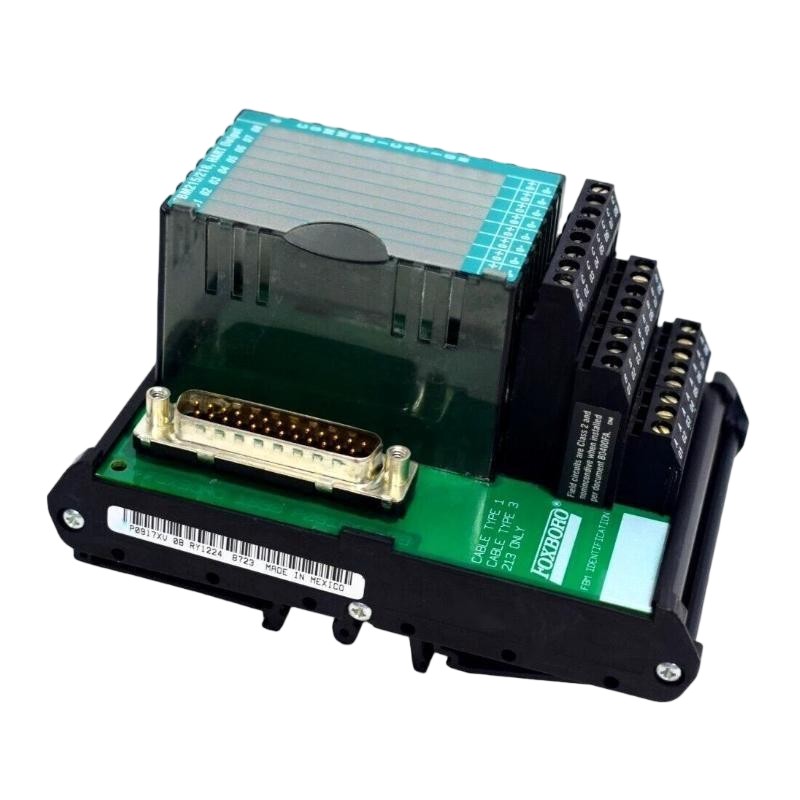

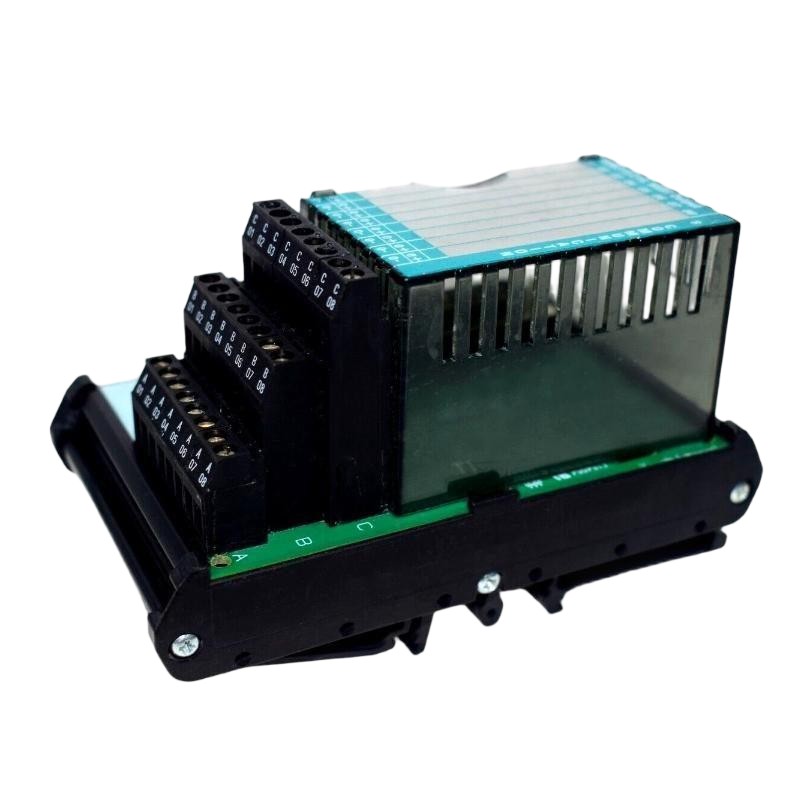

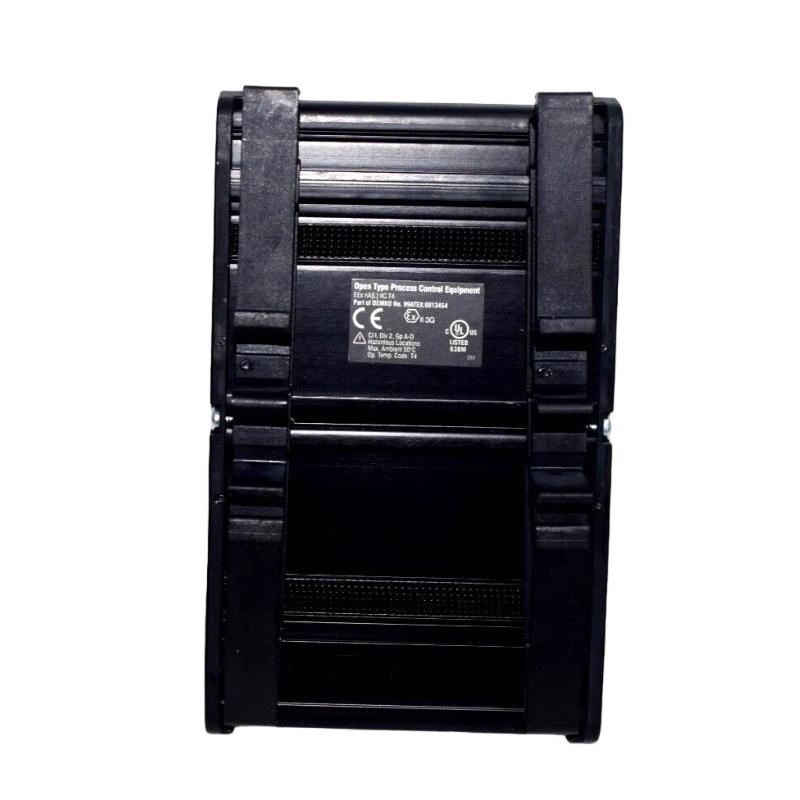

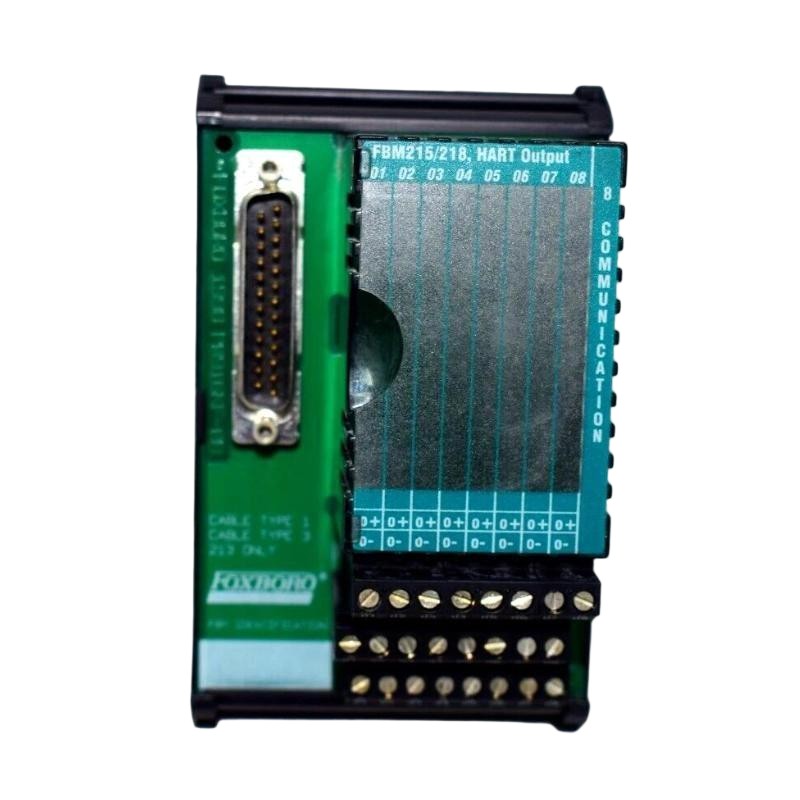

The Foxboro FBM215/218 P0917XV is an I/A Series termination assembly used to organize and interface field wiring with the associated FBM215 or FBM218 I/O modules. It forms the field-side connection point between external instrumentation circuits and the I/A Series I/O architecture.
Termination assemblies are particularly useful in control cabinets where multiple field circuits need to be routed, identified, and connected to the appropriate I/O channels. Instead of bringing every field conductor directly to the electronic I/O module, the termination arrangement provides a dedicated interface that simplifies cabinet wiring and maintenance.
The P0917XV is associated with FBM215/218 applications, making it relevant to installations where the termination hardware must match the corresponding I/O architecture. During maintenance, the termination assembly also provides a practical point for tracing field circuits, checking connections, and isolating wiring-related faults.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | P0917XV |
| Product Type | Termination Assembly |
| Product Family | Foxboro I/A Series |
| Series | I/A Series |
| Associated I/O Modules | FBM215 / FBM218 |
| Primary Function | Field Wiring Termination and I/O Interface |
| Signal Interface | Field I/O Circuits |
| Installation Role | Field-Side I/O Connection |
| System Architecture | Foxboro I/A Series |
| Application | I/O Cabinet and Field Signal Termination |
| Maintenance Function | Field Circuit Identification and Troubleshooting |
| Interface Arrangement | Termination between Field Wiring and I/O Hardware |
| Dimensions | 125 × 76 × 80 mm |
| Weight | 0.181 kg |
Product Features
- Provides a dedicated termination point for FBM215/218 I/O applications.
- Organizes field wiring before connection to the associated I/O hardware.
- Supports cleaner separation between field circuits and electronic I/O modules.
- Simplifies field circuit identification during commissioning and maintenance.
- Suitable for established Foxboro I/A Series control cabinets.
- Helps reduce direct handling of individual field conductors at the I/O module.
- Supports structured troubleshooting of wiring and termination faults.
- Can be used as part of an existing FBM215/218 field interface arrangement.
Working Principle
The P0917XV functions as a passive field termination and interconnection assembly. It does not execute control logic or independently process the field signal.
1. Field devices generate signals
External instruments, switches, transmitters, valves, or other process devices generate or receive the signals associated with the control application.
2. Field wiring reaches the termination assembly
The individual field circuits are routed into the cabinet and connected at the termination assembly. This creates an organized interface between the plant wiring and the I/O system.
3. Signals are assigned to the appropriate I/O interface
The termination arrangement provides the physical connection path toward the associated FBM215 or FBM218 module. Correct circuit identification is important because each field connection must correspond to the intended I/O point.
4. I/O module handles the signal
After passing through the termination interface, the signal reaches the associated I/O module. Depending on the connected FBM and application, the I/O hardware performs the required input or output interface function.
5. Control system uses the I/O information
For input circuits, the acquired field information is transferred into the I/A Series control system. For output circuits, the control-system command travels through the I/O interface and termination arrangement toward the field device.
The termination assembly therefore acts as the physical connection layer between cabinet field wiring and the electronic I/O system.
Role in an I/A Series I/O Termination Architecture
The P0917XV occupies the field termination layer of the Foxboro I/A Series architecture. Its main purpose is to provide an organized physical interface for the associated FBM215/218 I/O modules while keeping field wiring separate from the electronic processing hardware.
| Architecture Layer | Typical Component | Role |
|---|---|---|
| Process Layer | Industrial Process Equipment | Generates or responds to process conditions |
| Field Device Layer | Instruments, Valves, Switches, Actuators | Produces or receives field signals |
| Field Wiring Layer | Instrument and Control Cables | Carries signals between equipment and cabinet |
| Termination Layer | P0917XV | Organizes and interfaces field wiring with I/O hardware |
| I/O Layer | FBM215 / FBM218 | Performs the applicable field signal interface function |
| Control Processing Layer | I/A Series Control Processor | Executes configured control strategies |
| Operator Layer | HMI / Operator Workstation | Displays process and equipment information |
Industrial Applications
| Application | Use of P0917XV |
|---|---|
| Process Control Cabinets | Organizes field circuits associated with I/A Series I/O |
| Instrumentation Systems | Provides structured termination for field instrumentation |
| Control Valve Applications | Interfaces field-side wiring with associated output I/O architecture |
| Process Monitoring | Supports organized connections for measurement and status circuits |
| Chemical Plants | Simplifies cabinet-level field wiring organization |
| Oil and Gas Facilities | Supports structured I/O termination in established control systems |
| Power Generation | Provides a field-side interface for control and instrumentation circuits |
| System Maintenance | Gives technicians a defined point for circuit inspection and tracing |
Installation and Maintenance
- Verify that the P0917XV termination assembly matches the intended FBM215/218 I/O installation before beginning the replacement or installation work.
- Review the cabinet drawings and termination documentation to identify all field circuits associated with the assembly.
- Isolate the relevant field circuits and follow the site’s electrical safety procedures before working on the termination hardware.
- Label field conductors clearly before disconnecting an existing termination assembly to prevent channel identification errors.
- Inspect terminals and connection points for loose conductors, corrosion, contamination, damaged insulation, or signs of overheating.
- Confirm that field wiring is routed to the correct termination points according to the approved cabinet documentation.
- Check the physical connection between the termination assembly and the associated I/O interface before restoring the system to service.
- Avoid excessive mechanical stress on field conductors, terminal connections, and associated interface wiring during installation.
- When troubleshooting an I/O point, verify the field device and wiring path at the termination assembly before replacing the electronic I/O module.
- Check continuity and expected circuit conditions where permitted by the plant maintenance procedure and field-device design.
- After installation, perform a controlled point-to-point verification to confirm that each field circuit reaches the intended I/O channel.
- Record termination changes, circuit identification, wiring corrections, and test results in the cabinet maintenance documentation.
Related Components
| Component | Function |
|---|---|
| Foxboro FBM215 | Associated I/A Series I/O module used with the termination architecture |
| Foxboro FBM218 | Associated I/A Series HART communication output module |
| P0917XV Termination Assembly | Provides the field-side termination and I/O interface |
| Field Wiring | Carries process and equipment signals between the field and control cabinet |
| I/A Series Control Processor | Executes configured control and monitoring strategies |
| I/O Cabinet | Houses the termination and electronic I/O hardware |
| Field Instruments | Generate or receive the process signals connected through the I/O system |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Foxboro FBM215 P0917TQ | I/A Series Termination Assembly | Related termination hardware for I/O applications |
| Foxboro FBM216 P0916BX | I/A Series Termination Assembly | Related I/A Series field termination assembly |
| Foxboro FBM211 P0916JT | I/A Series Termination Assembly | Related termination hardware for I/A Series I/O |
| Foxboro FBM218 P0922VW | I/A Series HART Communication Redundant Output Module | Associated I/O module family |
| Foxboro FBM217 P0916PW | I/A Series Discrete Input Interface Module | Related I/A Series field input module |
Key Advantages
- Provides an organized field-wiring interface for FBM215/218 applications.
- Separates field termination from electronic I/O hardware.
- Simplifies circuit identification and maintenance.
- Supports structured cabinet wiring and point-to-point verification.
- Suitable for established Foxboro I/A Series installations.
- Helps technicians isolate wiring and termination issues during troubleshooting.
Technical FAQs
What is the purpose of the P0917XV termination assembly?
The P0917XV provides the physical field-wiring termination and interface associated with FBM215/218 I/O applications. It organizes field circuits and connects them into the corresponding I/O architecture without performing the control logic itself.
Is the P0917XV an active I/O module?
No. It is a termination assembly rather than an electronic control or signal-processing module. The associated FBM I/O hardware performs the applicable input, output, or communication function.
Why should the termination assembly be checked before replacing an I/O module?
A loose conductor, incorrect termination, damaged connection, or wiring fault can produce symptoms that appear to originate from the I/O module. Checking the field circuit and termination point first helps distinguish a wiring problem from an electronic I/O fault.
Can the P0917XV be used with any Foxboro I/A Series module?
It should not be treated as a universal I/A Series termination assembly. The P0917XV is associated with FBM215/218 applications, so the intended I/O module, termination arrangement, field wiring, and cabinet configuration should be verified before installation.
