Product Overview

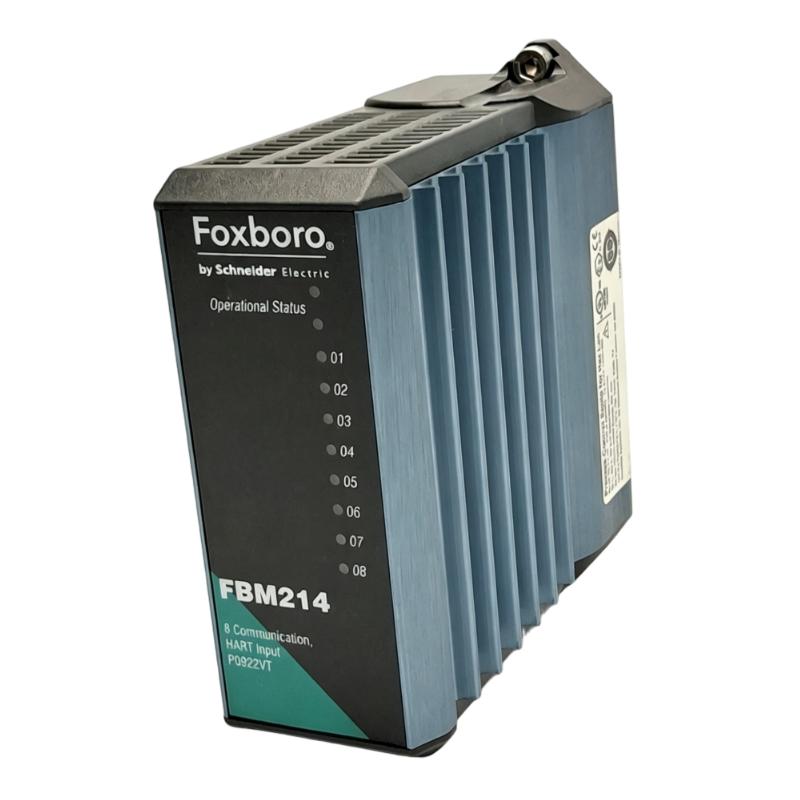

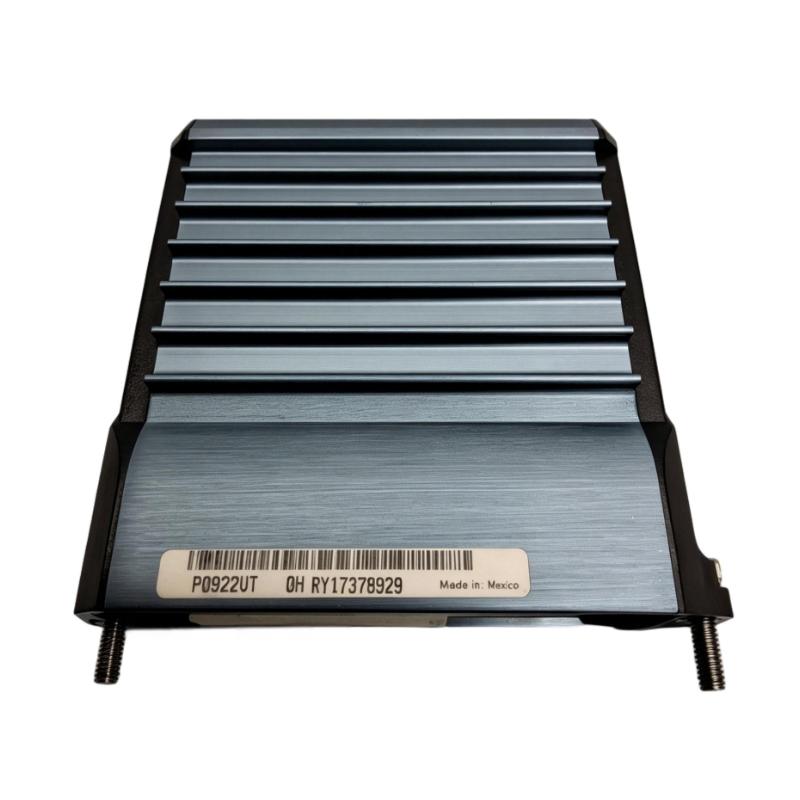

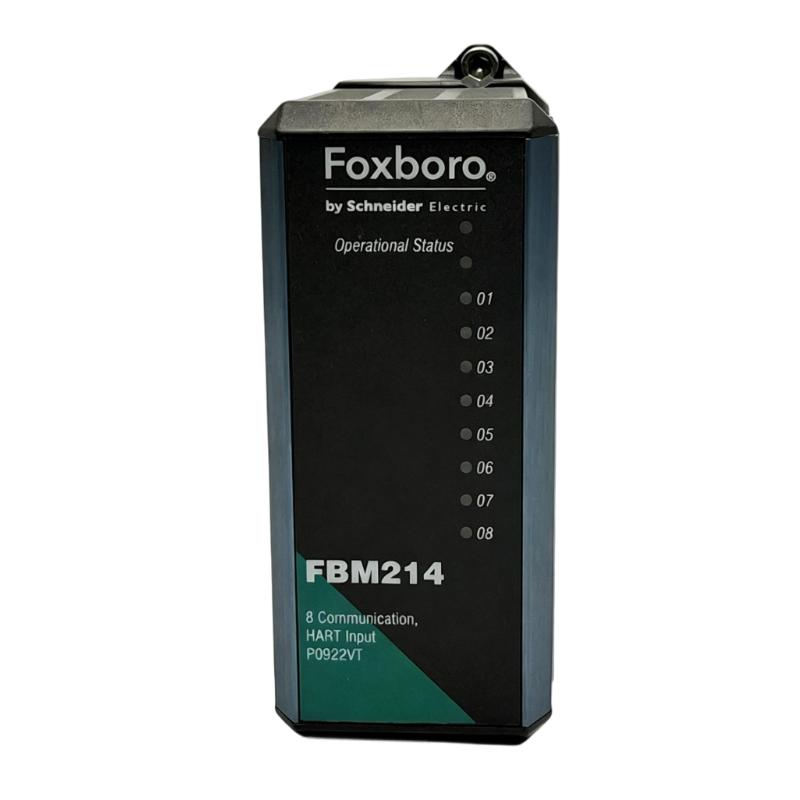

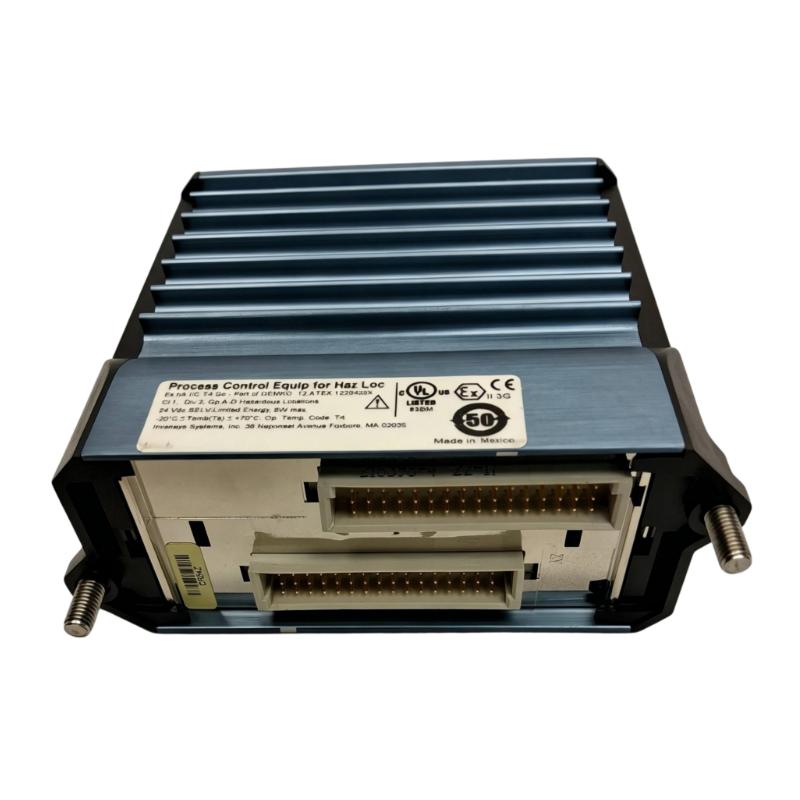

The Foxboro FBM214 P0922VT I/A Series HART Communication Input Interface Module is a field I/O interface used to connect HART-capable process instrumentation with a Foxboro I/A Series control system. It combines analog process signal acquisition with access to HART communication information, allowing the control-system architecture to work with both the primary measurement and additional digital instrument information.
In a typical process plant, smart transmitters may provide a continuous process measurement while also communicating configuration, diagnostic, identification, or other instrument data through the HART protocol. The FBM214 provides the interface between these field instruments and the control-system I/O architecture.
This makes the module useful in installations where conventional analog process measurements need to coexist with digital instrument communication. The physical field wiring, transmitter configuration, I/O setup, and HART communication path all need to be considered when commissioning or troubleshooting the installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | P0922VT |
| Product Type | HART Communication Input Interface Module |
| Product Family | Foxboro FBM214 |
| Series | I/A Series |
| Module Type | Field I/O Interface Module |
| Communication Type | HART |
| Input Function | Analog Measurement and HART Communication Interface |
| Field Device Type | HART-Capable Process Instrumentation |
| Signal Interface | Analog / HART Field Signal |
| Digital Communication | HART Protocol |
| Application | Smart Instrument Integration |
| System Integration | Foxboro I/A Series Control System |
| Instrument Data | Measurement and HART Device Information |
| Diagnostic Function | HART-Based Instrument Communication |
| Installation | I/O / Control Cabinet |
| Dimensions | 114 × 45 × 104 mm |
| Weight | 0.284 kg |
Product Features
- Provides an interface between HART-capable field instruments and the Foxboro I/A Series control system.
- Supports integration of analog process measurements with HART digital communication.
- Allows smart field instrumentation to participate in a more informative I/O architecture.
- Provides a defined interface between field transmitters and the control-system processing layer.
- Useful for applications where instrument diagnostics or additional digital device information is required.
- Supports structured control cabinet installations for HART-enabled process instrumentation.
- Helps separate field instrument communication from higher-level control logic and operator functions.
Working Principle
The FBM214 operates at the field I/O layer, receiving signals from HART-capable process instruments and providing an interface through which the control system can work with both the primary measurement and HART communication.
1. Smart transmitter measurement
A HART-capable field instrument measures a process variable such as pressure, temperature, flow, or level. The instrument produces its process measurement while also supporting digital communication through HART.
2. Field signal transmission
The field wiring carries the instrument signal toward the control cabinet. The analog measurement and HART communication share the field connection, so correct wiring and device configuration are important for proper operation.
3. Input interface
The FBM214 receives the field signal and provides the interface between the smart instrument and the Foxboro I/A Series I/O architecture. The module serves as the communication path between the field device and the control system rather than acting as the process instrument itself.
4. HART communication
HART communication can carry additional information associated with the connected smart instrument. Depending on the device and system configuration, this can include identification, configuration information, status, diagnostic information, and other digital device data.
5. Control-system utilization
The primary process measurement can be used by the control application for monitoring, alarming, calculations, and closed-loop control. Additional HART information can support instrument management and troubleshooting without replacing the primary process measurement path.
Role in a Foxboro I/A Series HART Control Architecture
The FBM214 provides the interface between HART-capable field instruments and the Foxboro I/A Series control-system environment. It sits at the boundary between field instrumentation and system-level processing.
| Architecture Layer | Function |
|---|---|
| Process Equipment | Generates the physical process variable |
| HART Field Instrument | Measures the process variable and communicates instrument data |
| Field Wiring | Carries the measurement and HART communication |
| FBM214 P0922VT | Interfaces the analog/HART field signal with the I/O system |
| I/A Series Control System | Processes measurements and configured control functions |
| HART Instrument Data Layer | Provides additional digital device information |
| Operator / Maintenance Interface | Supports process monitoring and instrument diagnostics |
The separation between the process measurement and HART digital information is important. A HART-capable transmitter can continue supplying its primary measurement while additional digital information is used for configuration, diagnostics, and maintenance activities.
Industrial Applications
| Application | Typical Use |
|---|---|
| Pressure Transmitter Integration | Connecting smart pressure instruments to the I/A Series system |
| Flow Measurement | Acquiring flow measurements while retaining access to HART device information |
| Temperature Measurement | Integrating smart temperature transmitters into the control architecture |
| Level Measurement | Connecting HART-capable level instruments for process monitoring and control |
| Smart Instrumentation | Centralizing measurement and digital instrument information |
| Process Diagnostics | Accessing additional device information for maintenance activities |
| Chemical Processing | Supporting HART-enabled process instrumentation across production units |
| Oil and Gas Systems | Integrating smart field instruments into centralized control and monitoring systems |
Installation and Maintenance
- Verify HART instrument compatibility — Confirm that the connected field instrument is appropriate for the intended FBM214 application and HART communication arrangement.
- Review the I/O documentation — Check instrument tags, input assignments, wiring drawings, and system configuration before installation.
- Confirm field wiring — Verify conductor identification and the intended signal path between the smart instrument and the control cabinet.
- Apply electrical isolation procedures — Follow the plant’s approved isolation and maintenance procedures before working on field circuits.
- Check transmitter configuration — Verify that the field instrument is configured correctly for the intended process measurement and application.
- Inspect termination points — Check field wiring and cabinet connections for loose conductors, damaged insulation, corrosion, or other visible problems.
- Verify the analog measurement path — Confirm that the primary process measurement is reaching the I/O system correctly before troubleshooting the digital communication layer.
- Check HART communication — If digital device information is unavailable, inspect the complete HART communication path, including the field instrument, wiring, I/O interface, and system configuration.
- Review device identification — Confirm that the control-system configuration corresponds to the intended field instrument and I/O assignment.
- Compare process readings — When troubleshooting measurement discrepancies, compare the control-system value with the transmitter display or an approved independent reference where available.
- Check diagnostic information — Use available HART device information to investigate instrument status, configuration issues, or diagnostic conditions.
- Document configuration changes — Record approved transmitter, wiring, I/O, and HART configuration changes so future maintenance reflects the actual installation.
Related Components
| Component | Function in the System |
|---|---|
| Foxboro FBM214 | HART communication and input interface for smart field instrumentation |
| Foxboro I/A Series Control System | Processes field measurements and executes control applications |
| HART-Capable Pressure Transmitter | Provides pressure measurement and digital instrument communication |
| HART-Capable Flow Transmitter | Provides flow measurement and additional device information |
| HART-Capable Temperature Transmitter | Supplies temperature measurement and HART data |
| HART-Capable Level Transmitter | Provides continuous level measurement and digital communication |
| Field Wiring | Carries the field measurement and HART communication path |
| I/O Termination Components | Provide physical field-wiring connections |
| Instrument Configuration Tools | Support configuration and diagnostic access for smart field devices |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Foxboro FBM211 RH914TN | I/A Series Analog Input Module | Related analog input interface for process measurements |
| Foxboro FBM211 P0916JT | I/A Series Termination Assembly | Related field-wiring termination component |
| Foxboro FBM207c RH917GY | Channel Isolated Contact Sense Input Interface Module | Related discrete field input interface |
| Foxboro FBM207c P0917MF | Compression Termination Assembly | Related Foxboro field termination hardware |
| Foxboro I/A Series HART Interface Components | HART Communication Interface | Related smart-instrument integration hardware |
Key Advantages
- Integrates HART-capable field instruments into the Foxboro I/A Series I/O architecture.
- Combines process measurement acquisition with access to digital instrument communication.
- Supports smart transmitter applications and instrument diagnostics.
- Provides a defined interface between field instrumentation and control-system processing.
- Helps maintenance personnel access additional field-device information during troubleshooting.
- Suitable for process plants using HART-enabled instrumentation.
Technical FAQs
What is the main purpose of the Foxboro FBM214 P0922VT?
The FBM214 P0922VT provides an I/O interface for HART-capable field instrumentation in a Foxboro I/A Series control system. It allows the system architecture to work with the primary process measurement while also supporting HART digital communication.
What additional information can HART communication provide?
Depending on the connected instrument, HART communication can provide information such as device identification, configuration data, status, and diagnostic information. The exact information available depends on the field instrument and the system configuration.
What should be checked if the analog measurement works but HART communication does not?
Check the HART-capable transmitter first, then inspect the field wiring, termination points, FBM214 interface, and system configuration. Because the primary analog measurement and digital HART communication serve different functions, a working process value does not necessarily confirm that the digital communication path is correctly configured.
Can the FBM214 replace the field transmitter?
No. The FBM214 is an I/O interface module, not a process transmitter. The field instrument performs the actual measurement, while the FBM214 provides the interface through which the measurement and associated HART information can enter the control-system architecture.
