Product Overview

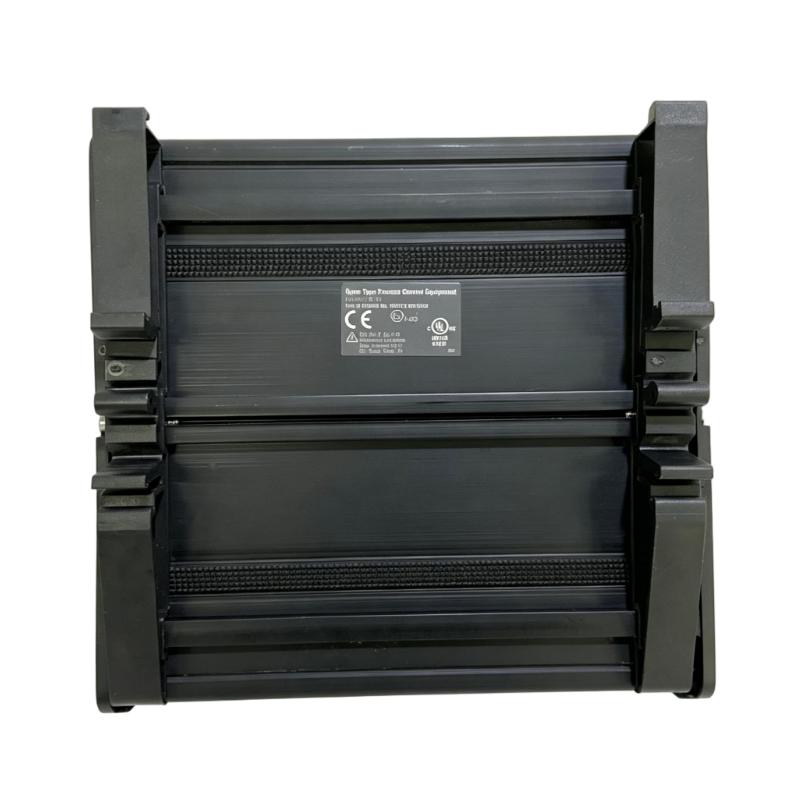

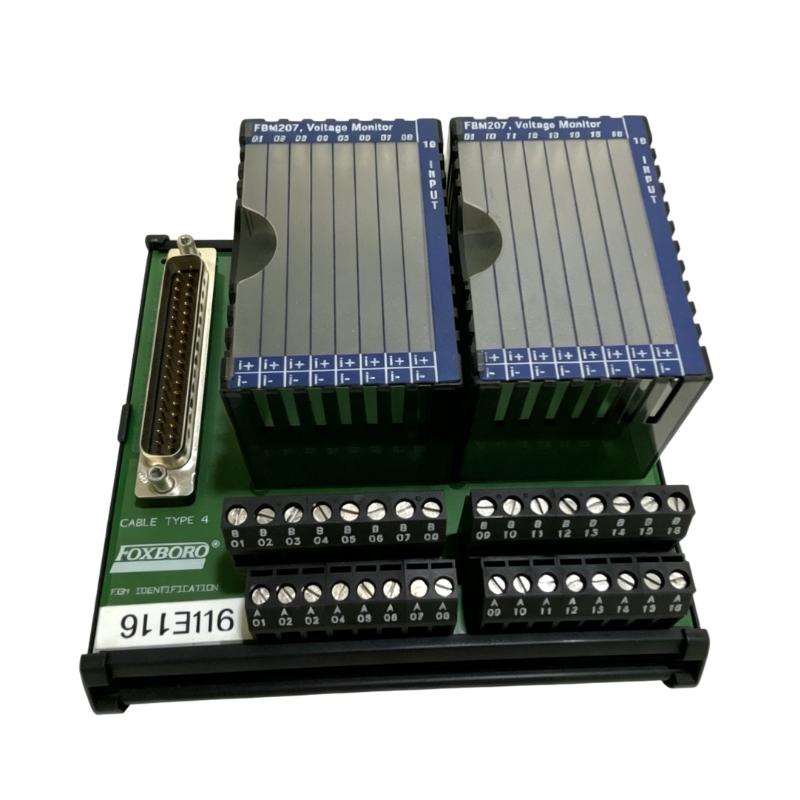

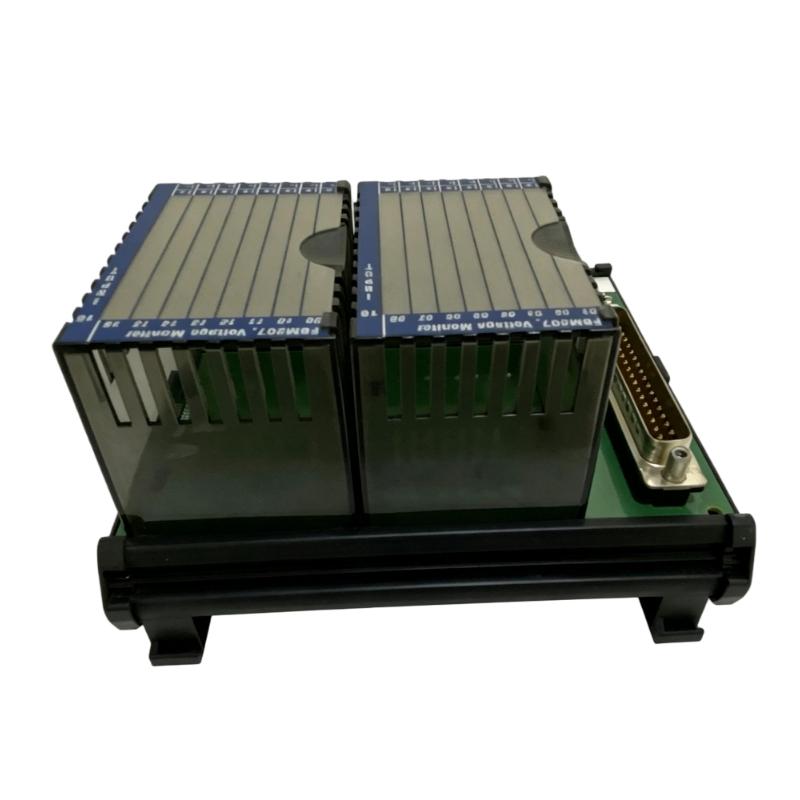

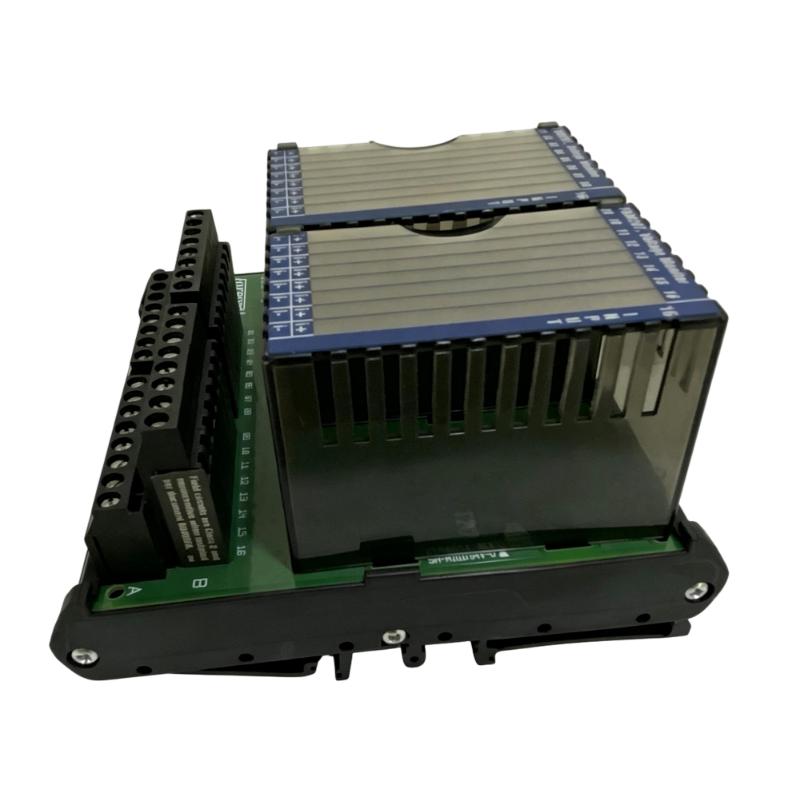

The Foxboro FBM207 P0916PH is a Compression Termination Assembly used with the I/A Series 200 distributed control system. It provides the field-side connection point for wiring associated with compatible Series 200 field bus modules, keeping instrument conductors organized before they connect to the corresponding I/O hardware.
In a typical control cabinet, field cables from transmitters, switches, meters, or other process instruments are routed to a termination assembly rather than being landed directly on the electronic FBM. The P0916PH provides the physical termination interface, while the associated termination cable carries the signals between the assembly and the FBM baseplate.
This arrangement is particularly useful in process plants where a cabinet may contain many I/O channels. Instead of handling field wiring directly at the electronic module, maintenance personnel can work with a clearly defined termination point. During an I/O module replacement, the field wiring can remain organized at the termination side while the electronic module is serviced separately.
The FBM207 P0916PH is therefore a wiring and interface component rather than an independent signal-processing module. Its suitability depends on the associated FBM type, termination cable, baseplate configuration, and installed I/A Series 200 architecture.
For retrofit or replacement work, the existing termination arrangement should be identified before ordering. Series 200 termination assemblies can have different connector layouts and field wiring functions even when their external form is similar.
Technical Specifications
| ParameterSpecification | |
|---|---|
| Manufacturer | Foxboro |
| Model | FBM207 |
| Part Number | P0916PH |
| Product Family | I/A Series 200 |
| Product Type | Compression Termination Assembly |
| Termination Type | Compression |
| Module Role | Field wiring termination |
| Mounting | I/A Series 200 cabinet / termination arrangement |
| Field Connection | Compression terminals |
| System Connection | Dedicated termination cable interface |
| Associated Hardware | Compatible FBM, baseplate, and termination cable |
| Application | Distributed process I/O field wiring |
| Dimensions | 127 × 80 × 125 mm |
| Weight | 0.272 kg |
Product Features
- I/A Series 200 Compression Termination Assembly
- Model FBM207
- Part number P0916PH
- Provides a dedicated field wiring termination point
- Uses compression-type field connections
- Separates field wiring from the electronic FBM
- Works with the associated Series 200 termination cable arrangement
- Suitable for process instrumentation cabinets
- Helps organize multi-channel field wiring
- Supports maintenance of I/A Series 200 I/O assemblies
- Integrates with the Series 200 baseplate and FBM architecture
- Suitable for existing process-control installations
- Intended as part of a complete I/O termination arrangement rather than as a standalone I/O module
Working Principle
The FBM207 P0916PH provides the physical transition between field wiring and the associated I/A Series 200 I/O hardware.
A typical arrangement is:
Field Instrument → P0916PH Termination Assembly → Termination Cable → FBM / Baseplate → I/A Series 200 Control System
Field conductors are landed at the compression terminals of the P0916PH. The termination assembly does not independently measure, convert, or control the process signal. Instead, it routes the connected field circuits through the appropriate termination cable toward the associated I/O module.
For example, when a transmitter is installed several meters away from the control cabinet, its cable can be brought into the cabinet and terminated at the P0916PH. The corresponding signal then continues through the termination cable to the appropriate FBM channel.
This physical separation is useful during maintenance. If an electronic FBM needs to be removed, technicians can work from the module side without having to reorganize every field conductor connected to the termination assembly.
The actual signal type and channel function are determined by the associated FBM rather than by the P0916PH itself. Consequently, the termination assembly should always be matched to the specific Series 200 module and cable arrangement used in the installation.
Role in an I/A Series 200 Distributed I/O Control Architecture
The FBM207 P0916PH sits on the field-wiring side of an I/A Series 200 I/O arrangement.
Field Devices → P0916PH → Termination Cable → FBM → Series 200 Baseplate → Nodebus → Control System
| System Element | Function |
|---|---|
| Field Device | Generates or receives the process signal |
| P0916PH | Provides compression-type field termination |
| Termination Cable | Carries field signals between termination hardware and the FBM arrangement |
| FBM | Performs the actual signal interface or I/O function |
| Series 200 Baseplate | Provides the module and system connection |
| Nodebus | Transfers I/O data within the I/A Series architecture |
| Control Processor | Processes field information and executes control logic |
| Operator / Control Application | Displays process information and manages control functions |
The P0916PH is consequently one part of the complete I/O path. Correct selection requires checking the associated FBM and termination cable rather than selecting the assembly independently.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Control Cabinets | Terminating field instrument cables before connection to Series 200 I/O |
| Oil and Gas Facilities | Organizing distributed field wiring in control cabinets |
| Chemical Plants | Providing structured termination for process instrumentation |
| Water Treatment | Connecting field instruments to distributed I/O hardware |
| Power Generation | Managing field wiring associated with process monitoring equipment |
| Compressor Systems | Terminating instrumentation cables from packaged equipment |
| Pump Stations | Organizing control and monitoring signal wiring |
| Refining | Supporting large numbers of field instrument connections |
| Manufacturing Plants | Providing cabinet-side termination for distributed equipment |
| Utility Systems | Connecting field devices to centralized control-system I/O |
Installation and Maintenance
- Confirm that the existing I/A Series 200 installation requires an FBM207 P0916PH termination assembly.
- Verify the complete part number P0916PH before removing the existing assembly.
- Identify the associated FBM and confirm that the termination arrangement is compatible with that module.
- Record each field cable and terminal assignment before disconnecting the existing wiring.
- Check the compression terminals for loose conductors, damaged insulation, or signs of overheating.
- Verify that each conductor is securely inserted into the correct terminal position.
- Inspect the associated termination cable and connectors for physical damage.
- Check the connection between the termination cable and the Series 200 baseplate or associated I/O hardware.
- Keep the original field-channel mapping when transferring wiring to a replacement termination assembly.
- After installation, verify the signal status of the associated I/O channels from the control system.
- If a signal is missing or incorrect, check the field device, conductor continuity, termination point, cable, and associated FBM separately.
- Update the cabinet wiring documentation after replacement so future technicians can identify the field termination and associated I/O channel without tracing the complete cable route.
When troubleshooting a termination problem, checking continuity from the field device to the termination point and then through the termination cable can help isolate a wiring fault before replacing the associated electronic FBM.
Related Components
| Component | Function |
|---|---|
| Foxboro FBM207 | Associated Series 200 I/O hardware reference |
| P0916PH | Compression termination assembly reference |
| I/A Series 200 Baseplate | Provides the mounting and system interface for FBMs |
| Termination Cable | Connects the termination assembly to the I/O hardware |
| I/A Series 200 FBM | Performs the applicable field signal interface |
| Field Wiring | Carries signals between field instruments and the cabinet |
| Process Transmitter | Provides measurement information to the I/O system |
| Field Control Device | Receives control signals from compatible I/O hardware |
| I/A Series 200 Nodebus | Transfers I/O data through the control architecture |
| Control Processor | Processes I/O information and executes control strategies |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Foxboro FBM207 P0916PH | Compression Termination Assembly | Field wiring termination for compatible I/A Series 200 I/O |
| Foxboro FBM206 P0916CQ | Channel Isolated Pulse Input Interface Module | Pulse and frequency signal acquisition |
| Foxboro FBM205 P0914XG | Redundant I/O Interface Module | Redundant I/O applications |
| Foxboro FBM204 P0914SY | I/O Interface Module | Combined analog input and output applications |
| Foxboro FBM203d | RTD Input Module | RTD temperature signal acquisition |
| Foxboro I/A Series 200 | Distributed I/O Platform | Process control and field instrumentation |
| Foxboro Series 200 Baseplate | FBM Baseplate | Mounting and system connection for Series 200 modules |
Key Advantages
- Provides a dedicated compression termination point for field wiring.
- Separates field conductors from the electronic I/O hardware.
- Supports organized cabinet wiring in Series 200 installations.
- Simplifies access to field termination points during maintenance.
- Works with the I/A Series 200 termination and baseplate architecture.
- Suitable for distributed process instrumentation.
- Helps maintain clear field-channel identification.
- Can be used as part of an existing Series 200 I/O replacement strategy.
Technical FAQs
What is the FBM207 P0916PH used for?
The FBM207 P0916PH is a Compression Termination Assembly used to provide the field-side wiring interface for compatible I/A Series 200 I/O hardware. It does not perform the primary signal-processing function of the associated FBM.
Does the P0916PH process field signals?
No. The P0916PH is primarily a termination and signal-routing component. The associated FBM performs the applicable input or output signal processing, while the termination assembly provides the physical connection between field wiring and the I/O hardware.
Why use a termination assembly instead of connecting field wiring directly to the FBM?
A separate termination point keeps field wiring organized and makes maintenance easier. When an electronic FBM needs to be removed, the field conductors can remain landed at the termination assembly instead of being individually disconnected from the electronic module.
What should be verified before replacing a P0916PH?
The associated FBM type, termination cable, baseplate arrangement, field-channel assignments, and existing wiring configuration should all be checked. The P0916PH should be selected as part of the complete I/A Series 200 termination arrangement rather than based only on its physical dimensions.
