Product Overview

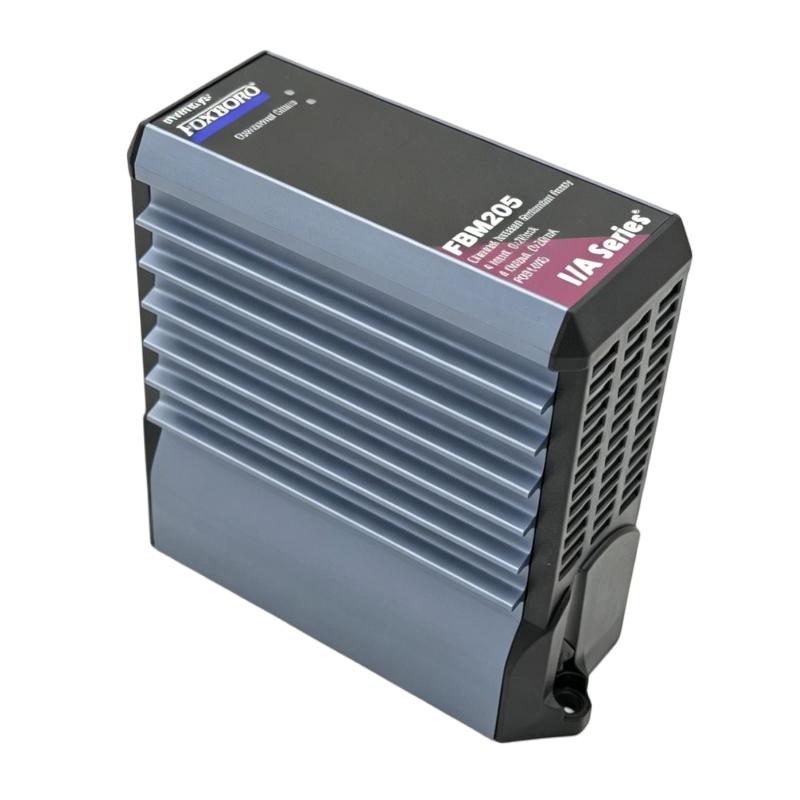

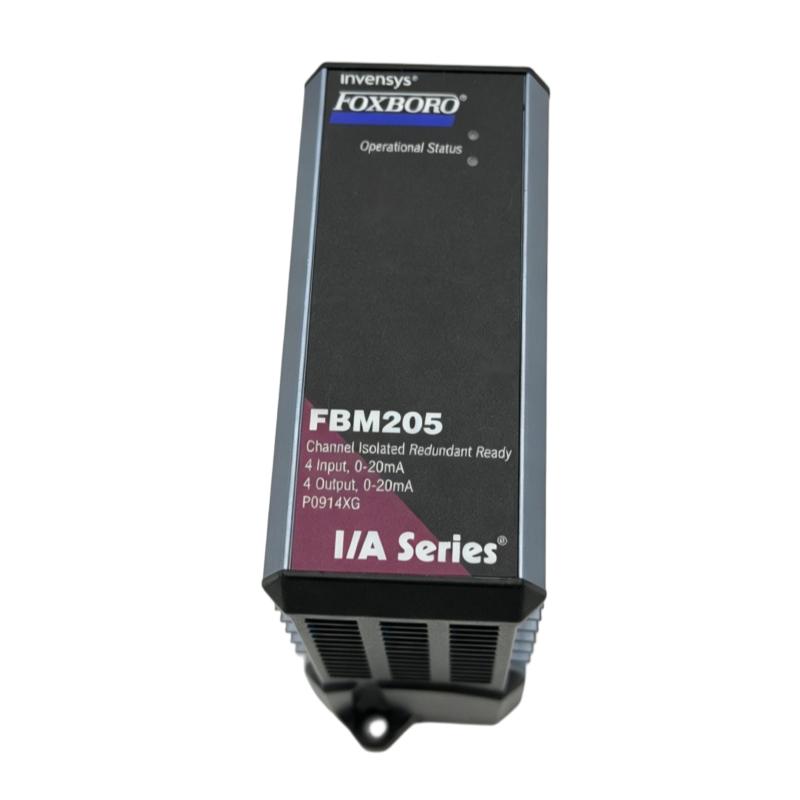

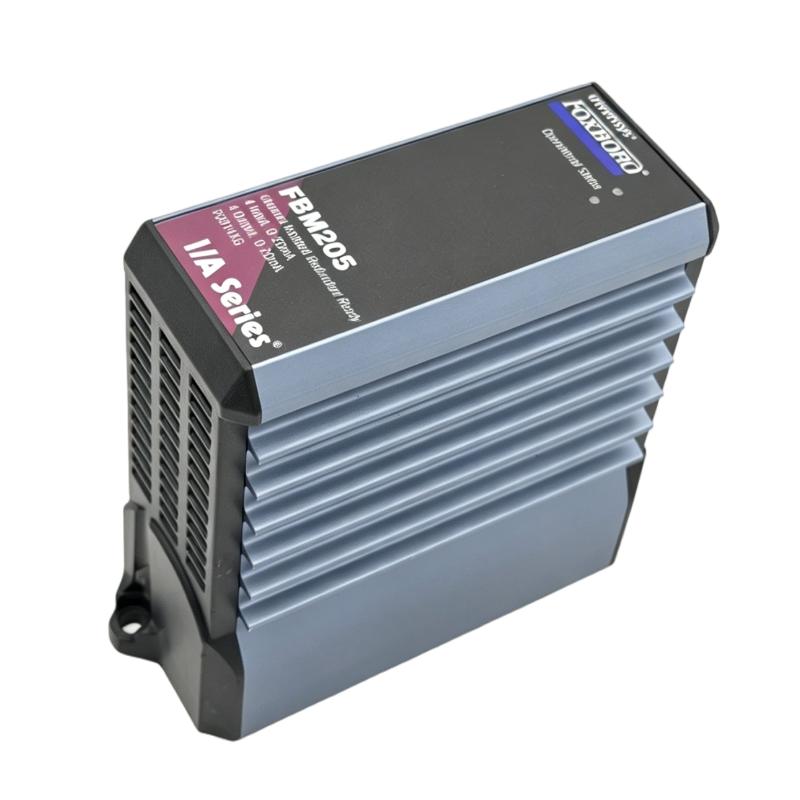

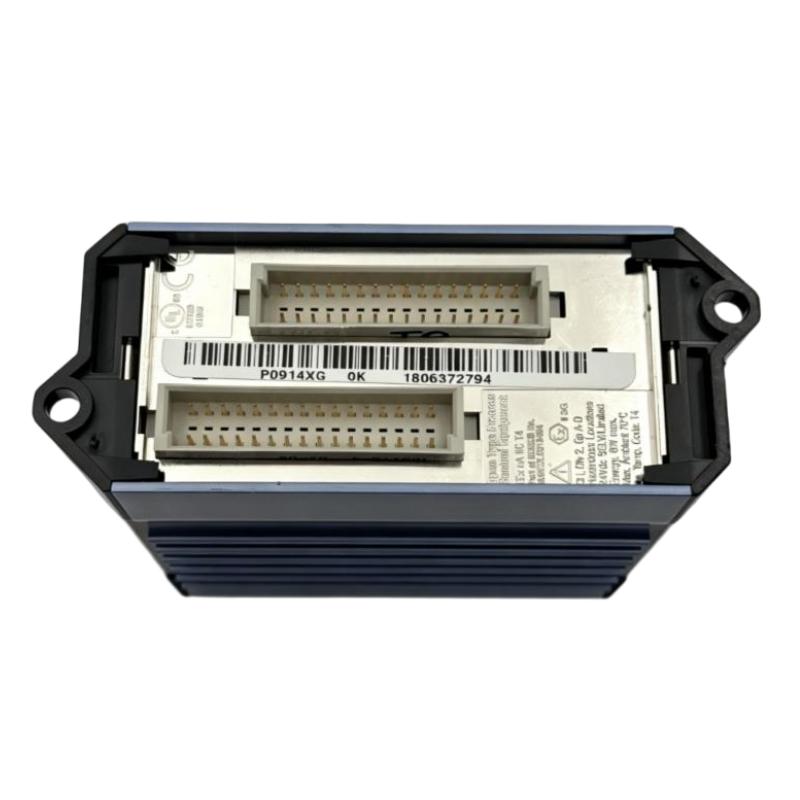

The Foxboro FBM205 P0914XG is a Redundant I/O Interface Module for the I/A Series 200 distributed control system. It is used in process applications where analog field signals need to be acquired through a redundant I/O arrangement, giving the control architecture an additional level of continuity compared with a single-module configuration.
The FBM205 is suited to installations where field instrumentation cannot simply be taken offline when an individual I/O component requires maintenance. Typical examples include continuous process units, utility systems, rotating equipment packages, and other plant areas where temperature, pressure, flow, or level measurements are part of an operating control strategy.
Within an I/A Series 200 installation, the FBM205 works with its associated baseplate, termination assembly, termination cable, and control-system communication path. The field wiring terminates at the appropriate termination hardware, while the FBM provides the interface between the field signals and the I/A Series control system.
The P0914XG reference identifies a specific FBM205 hardware version. For replacement work, the installed baseplate and termination arrangement should be checked together with the module reference. A physically similar Series 200 FBM is not automatically a suitable substitute because I/O function, redundancy arrangement, and field termination can differ between module types.
The FBM205 is therefore most relevant in applications where the I/O layer itself needs to be considered as part of the plant availability strategy rather than simply as a collection of individual signal channels.
Technical Specifications
| ParameterSpecification | |
|---|---|
| Manufacturer | Foxboro |
| Model | FBM205 |
| Part Number | P0914XG |
| Product Family | I/A Series 200 |
| Product Type | Redundant I/O Interface Module |
| I/O Configuration | Redundant I/O |
| Module Function | Field signal interface for the I/A Series 200 control system |
| Architecture | Redundant I/O arrangement |
| Mounting | I/A Series 200 baseplate |
| Field Connection | Dedicated termination assembly |
| System Connection | I/A Series 200 Nodebus architecture |
| Associated Hardware | Baseplate, termination assembly, termination cable |
| Application Type | Process control and distributed field I/O |
| Dimensions | 114 × 45 × 104 mm |
| Weight | 0.284 kg |
Product Features
- I/A Series 200 Redundant I/O Interface Module
- Model FBM205
- Part number P0914XG
- Supports redundant I/O architecture
- Intended for process-control applications requiring redundant field I/O
- Integrates with the I/A Series 200 distributed control system
- Uses the Series 200 baseplate architecture
- Works with dedicated field termination hardware
- Separates field wiring from the electronic I/O module
- Suitable for continuous process applications
- Supports control-system architectures where I/O availability is a key consideration
- Can be incorporated into maintenance strategies that minimize interruption to field signal processing
Working Principle
The FBM205 functions as the I/O interface between field devices and the I/A Series 200 control architecture.
A simplified signal path is:
Field Devices → Termination Assembly → FBM205 → I/A Series 200 Nodebus → Control System
The field-side signals first reach the associated termination hardware. The termination assembly provides the physical connection between the instrument wiring and the Series 200 I/O arrangement. The FBM205 then handles the interface between those field circuits and the control-system communication path.
The redundant arrangement is relevant when the I/O layer needs to continue supporting the control strategy during certain component or maintenance conditions. Rather than treating an I/O point as an isolated module, the redundant architecture allows the system configuration to account for availability at the I/O level.
In a running process plant, this can matter when a measurement or control path is associated with equipment that operates continuously. Maintenance personnel can work from the system’s defined redundancy and switchover strategy instead of relying solely on a single I/O path.
The exact redundancy behavior depends on the complete I/A Series 200 configuration, including the associated FBMs, baseplates, termination hardware, and control-system setup. The FBM205 should therefore be evaluated as part of the installed architecture rather than as a standalone module.
Role in an I/A Series 200 Redundant I/O Control Architecture
The FBM205 P0914XG belongs to the field I/O portion of an I/A Series 200 redundant control architecture.
Field Instruments → Termination Hardware → Redundant FBM205 Arrangement → Nodebus → Control Processor → Operator / Control Application
| System Element | Function |
|---|---|
| Field Instrument | Generates or receives process signals |
| Termination Assembly | Provides the field-side wiring interface |
| FBM205 | Provides the redundant I/O interface within the Series 200 architecture |
| Baseplate | Provides module mounting and system connection |
| Termination Cable | Connects field termination hardware with the I/O assembly |
| Nodebus | Transfers I/O information through the I/A Series architecture |
| Control Processor | Processes field data and executes control strategies |
| Control Application | Uses process information for monitoring, control, alarms, and interlocks |
The redundancy arrangement should be verified against the actual installed system because the required companion hardware and configuration depend on the application and I/A Series 200 system revision.
Industrial Applications
| Application | Typical Use |
|---|---|
| Continuous Process Plants | Maintaining field I/O availability within operating process units |
| Oil and Gas Facilities | Supporting field instrumentation in continuously operating areas |
| Chemical Processing | Providing I/O interfaces where process interruption can affect production |
| Power Generation | Supporting distributed field signals in operating generation systems |
| Refining | Handling field I/O within process units requiring high availability |
| Water and Utility Plants | Maintaining communication with distributed process instrumentation |
| Compressor Systems | Supporting I/O architecture around continuously operating equipment |
| Pumping Facilities | Connecting field instrumentation to the control system |
| Process Skids | Integrating skid-mounted instrumentation with the DCS |
| Manufacturing Processes | Supporting distributed I/O where maintenance interruption should be minimized |
Installation and Maintenance
- Confirm that the existing control system uses an FBM205 configuration before replacing the module.
- Verify the complete part number P0914XG against the installed hardware documentation.
- Check the required redundant I/O arrangement before disconnecting any field or system connections.
- Identify the associated termination assembly and termination cable before removing the existing module.
- Record the existing field-channel assignments so the replacement can be installed without changing the established signal mapping.
- Inspect the baseplate connection for contamination, damaged contacts, or mechanical problems.
- Check the termination hardware for loose field conductors and signs of overheating or physical damage.
- Verify the module seating and mechanical retention before restoring system power.
- Confirm the redundant I/O configuration in the I/A Series 200 system after installation.
- Check the control-system status and diagnostic information before returning the affected process area to normal operation.
- Compare field signals with the corresponding values displayed by the control application to verify correct signal handling.
- Document the replacement part number, termination arrangement, channel mapping, and redundancy configuration for future maintenance.
For a redundancy-related fault, it is useful to determine whether the problem follows the module, remains with the field termination, or appears at the system communication level. This helps avoid replacing healthy field wiring or termination hardware when the actual fault is within the I/O module or its system configuration.
Related Components
| Component | Function |
|---|---|
| Foxboro FBM205 | Redundant I/O interface module |
| P0914XG | FBM205 module part number |
| I/A Series 200 Baseplate | Provides module mounting and system connection |
| Termination Assembly | Provides field wiring termination |
| Termination Cable | Connects termination hardware with the I/O assembly |
| I/A Series 200 Nodebus | Carries I/O information within the control architecture |
| Control Processor | Executes process-control functions |
| Field Instrumentation | Provides process measurements or receives control signals |
| 24 V DC System Power | Supplies the associated I/O system |
| I/A Series 200 Control System | Integrates distributed field I/O with process control |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Foxboro FBM205 P0914XG | Redundant I/O Interface Module | Redundant I/O applications within I/A Series 200 |
| Foxboro FBM204 P0914SY | I/O Interface Module | Combined analog input and output applications |
| Foxboro FBM203d | RTD Input Module | Eight-channel RTD temperature measurement |
| Foxboro FBM202 | Thermocouple / mV Input Module | Temperature and millivolt signal acquisition |
| Foxboro FBM201 | Analog Input Module | Analog process signal acquisition |
| Foxboro I/A Series 200 | Distributed I/O Platform | Process control and field instrumentation |
| Foxboro Series 200 Baseplate | FBM Baseplate | Mounting and system connection for Series 200 modules |
Key Advantages
- Supports redundant I/O architecture.
- Integrates with the I/A Series 200 control system.
- Suitable for process applications where I/O availability matters.
- Works with dedicated Series 200 termination hardware.
- Separates field termination from the electronic FBM.
- Supports structured maintenance of distributed field I/O.
- Suitable for continuously operating process equipment.
- Provides a dedicated interface for redundant I/O configurations.
Technical FAQs
What is the main purpose of the FBM205 P0914XG?
The FBM205 P0914XG is used as a Redundant I/O Interface Module within the I/A Series 200 architecture. Its role is to provide the I/O interface associated with a redundant field-I/O arrangement rather than serving as a general-purpose standalone signal converter.
Does replacing the FBM205 also require replacing the termination assembly?
Not necessarily. The FBM and termination assembly are separate parts of the Series 200 I/O architecture. Before replacement, the installed termination hardware and termination cable should be identified to make sure they are compatible with the FBM205 configuration.
Why is redundancy useful for an I/A Series 200 I/O system?
Redundancy can reduce the impact of an individual I/O hardware fault or maintenance event on a running process, depending on how the complete control architecture is configured. It is particularly relevant to process units where certain field signals need to remain available during maintenance activities.
What should be checked when an FBM205 replacement does not restore the I/O system?
Check the module seating, baseplate connection, termination assembly, termination cable, system power, redundant configuration, and Nodebus communication path. If the field-side wiring is unchanged, comparing the affected I/O path with the redundant or corresponding system path can help isolate whether the issue is hardware-related or configuration-related.
